Plot time series of emails resulting from a search, in this case my emails about ARCHY 109 during the Fall quarter of 2018

gistfile1.R

# get the dates of all emails with a certain search string, and plot

# install.packages(c("gmailr", "lubridate", "tidyverse"))
suppressPackageStartupMessages(library(gmailr))
suppressPackageStartupMessages(library(tidyverse))

archy_109 <-
  messages(
    search = 'ARCHY 109',
    num_results = 1000,
    user_id = "me"
  )


l1 <- length(archy_109) # 10
l2 <- length((archy_109[[1]]$messages)) # 100

# set up dataframe to access items in nested list
df <- cross_df(list(i=1:l1, j=1:l2))

# extract email dates and email body text
# this takes several minutes
df1 <-
  df %>%
  mutate(email_date = map2(i, j, ~gmailr::date(message(archy_109[[.x]]$messages[[.y]]$id)))) %>%
  mutate(email_text = map2(i, j, ~gmailr::message(archy_109[[.x]]$messages[[.y]]$id))) %>%
  mutate(email_date_out = unlist(email_date))

# extract sizeEstimate "Estimated size in bytes of the message."
# https://developers.google.com/gmail/api/v1/reference/users/messages
# this is very fast!
df2 <-
  df1 %>%
  mutate(idx = 1:nrow(.)) %>%
  mutate(size_estimate = map_int(idx, ~email_text[[.x]]$sizeEstimate))


library(lubridate)
# compute how many emails per day
archy_109_dates_data <-
  df2 %>%
  separate(email_date_out ,
           into = c('dayname', 'day', 'month', 'year', 'time', 'offset'),
           sep = " ") %>%
  unite(day_hour,
        c(day, month, year, time),
        sep = " ", remove =  FALSE) %>%
  mutate(day_hour = parse_date_time(day_hour, orders = "%d %m %y %H:%M:%S"),
         hour = hour(day_hour)) %>%
  group_by(month, day) %>%
  summarise(n = n(),
            mean_size_bytes = mean(size_estimate, na.rm = TRUE)) %>%
  arrange(month, desc(day)) %>%
  unite(month_day_hour,
        c(month, day),
        sep = " ", remove =  FALSE) %>%
  mutate(month_day_hour = parse_date_time(month_day_hour,
                                          orders = "%m %d")) %>%
  # just this quarter
  filter(month_day_hour > "2018-08-20" & month_day_hour  < "2018-11-14")

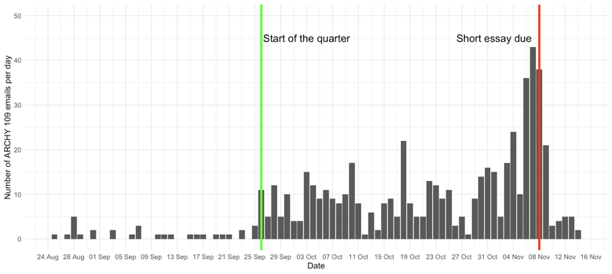

# plot: how many emails per day
ggplot(archy_109_dates_data,
       aes(month_day_hour,
           n)) +
  geom_col() +
  geom_vline(colour = "green",
             size = 2,
             aes(xintercept = as.POSIXct(as.Date("2018-09-26")))) +
  annotate("text",
           x = as.POSIXct(as.Date("2018-10-03")),
           y = 45,
           size = 7,
           label = "Start of the quarter") +
  geom_vline(colour = "red",
             size = 2,
             aes(xintercept = as.POSIXct(as.Date("2018-11-08")))) +
  annotate("text",
           x = as.POSIXct(as.Date("2018-11-01")),
           y = 45,
           size = 7,
           label = "Short essay due") +
  scale_x_datetime(date_labels = "%d %b",
                   name = "Date",
                   date_breaks = "4 days") +
  scale_y_continuous(limits = c(0, 50),
                     name = "Number of ARCHY 109 emails per day") +
  theme_minimal(base_size = 16)

# plot: email size

# quick look at distribution of email sizes of emails that I send out
email_sizes <-
  df2 %>%
  mutate(from = map_chr(email_text, from)) %>%
  filter(from == "Ben Marwick <[email protected]>") %>%
  separate(email_date_out ,
           into = c('dayname', 'day', 'month', 'year', 'time', 'offset'),
           sep = " ") %>%
  unite(day_hour,
        c(day, month, year, time),
        sep = " ", remove =  FALSE) %>%
  mutate(day_hour = parse_date_time(day_hour, orders = "%d %m %y %H:%M:%S"),
         hour = hour(day_hour)) %>%
  # days before short essay due date
  mutate(days_before_due_date = day(as.period(as_datetime("2018-11-08") - day_hour) ))

# check distribution of sizes
ggplot(email_sizes,
       aes(size_estimate)) +
  geom_histogram() +
  scale_x_log10()

# let's trim off the outliers!
email_sizes_no_outlier <-
email_sizes %>%
  filter(size_estimate < 1.5e4) %>%
  filter(days_before_due_date < 100)

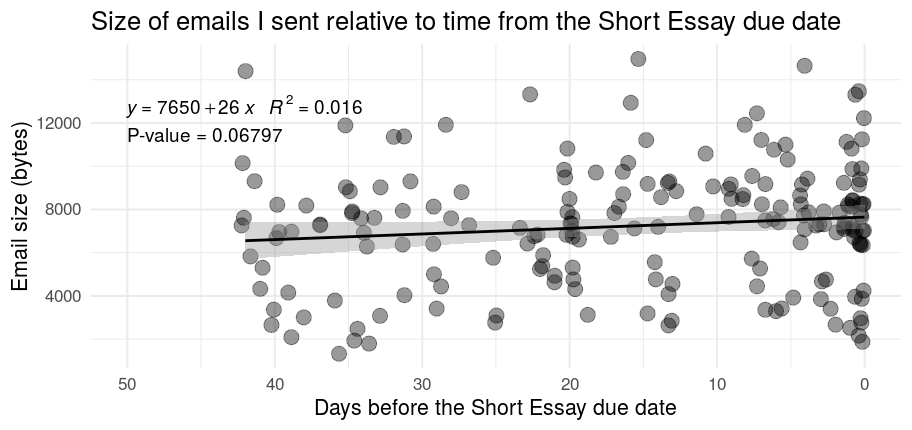

# show formula on plot
library(ggpmisc)
my.formula <- y ~ x

  ggplot(email_sizes_no_outlier,
         aes(days_before_due_date,
           size_estimate)) +
  geom_jitter(size = 5,
              alpha = 0.4) +
  geom_smooth(method = "lm",
              color="black",
              formula = my.formula) +
  stat_poly_eq(formula = my.formula,
                aes(label = paste(..eq.label.., ..rr.label.., sep = "~~~")),
               label.x.npc = 'left',
       label.y.npc = 0.8,
       size = 5,
                parse = TRUE) +
  stat_fit_glance(method = 'lm',
                       method.args = list(formula = my.formula),
                       geom = 'text',
                       aes(label = paste("P-value = ",
                                         signif(..p.value.., digits = 4),
                                         sep = "")),
       label.x.npc = 'left',
       label.y.npc = 0.75,
       size = 5) +
  theme_minimal(base_size = 16) +
  scale_x_reverse(limits = c(50, 0)) +
  xlab("Days before the Short Essay due date") +
  ylab("Email size (bytes)") +
  ggtitle("Size of emails I sent relative to time from the Short Essay due date")
