Setting up a basic encoder with the Teensy 2.0 and TMK

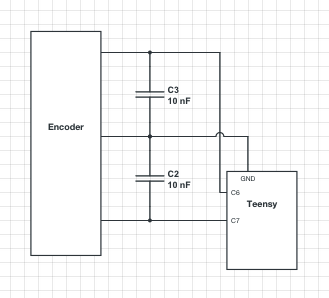

Schematic (using C6 and C7):

All modifications are made to matrix.c.

Code to add near top of file:

beeps.h

#include <stdint.h>
#include <stdbool.h>
#include <avr/io.h>
#include <util/delay.h>

void note(int x, float length);
void beeps();

void true_note(float x, float y, float length);
