Finite Differences

finiteDiff.py

import numpy
import matplotlib.pyplot

class System:
    def __init__(self,length,height,gridSize):
        self.length = length
        self.height = height
        self.gridSize = gridSize
        self.grid = numpy.empty((self.height/self.gridSize + 1, self.length/self.gridSize + 1,))
        self.__str__ = self.grid.__str__
    def plot(self,name):
        matplotlib.pyplot.clf()
        matplotlib.pyplot.imshow(self.grid, cmap='cool', interpolation='nearest')
        matplotlib.pyplot.savefig(name)
    def plotConvergence(self,name):
        matplotlib.pyplot.clf()
        matplotlib.pyplot.plot(sys.errorHistory[1:])
        matplotlib.pyplot.savefig(name)
    def boundaryInit(self, north, east, west, south):
        self.grid[:] = min([north,east,west,south])
        self.grid[0,] = north
        self.grid[self.height/self.gridSize] = south
        self.grid[:,0] = west
        self.grid[:,self.length/self.gridSize] = east
    def iterate(self,fittingFactor=1):
        self.it += 1
        for i in xrange(1,int(self.height/self.gridSize)):
            for j in xrange(1, int(self.length/self.gridSize)):
                new = (self.grid[i+1,j] + self.grid[i,j+1] + self.grid[i-1,j] + self.grid[i,j-1])/4.0
                self.grid[i,j] = self.grid[i,j] + (new - self.grid[i,j])*fittingFactor
    def solve(self, prec,fittingFactor=1):
        self.it = 0
        oldSum = numpy.sum(abs(self.grid[1:self.height/self.gridSize, 1:self.length/self.gridSize]))
        newSum = 123
        self.errorHistory = []
        while True:
            oldSum = newSum
            self.iterate(fittingFactor)
            newSum = numpy.sum(abs(self.grid[1:self.height/self.gridSize, 1:self.length/self.gridSize]))
            error = abs(newSum - oldSum)/((self.height/self.gridSize - 1)*(self.length/self.gridSize - 1))
            self.errorHistory.append(error)
            if error <= prec:
                break

sys = System(10,5,0.1)
sys.boundaryInit(100,200,200,100)
sys.solve(0.001,1.2)

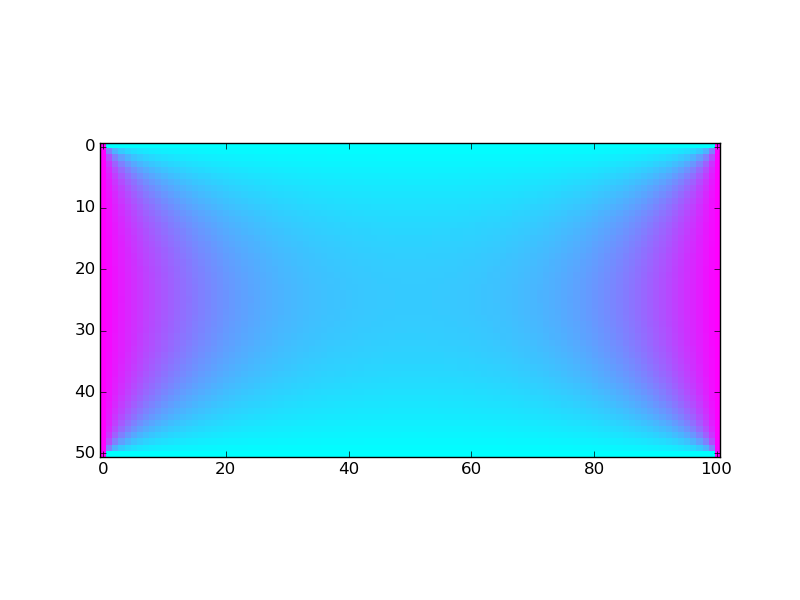

sys.plot("solution12.png")

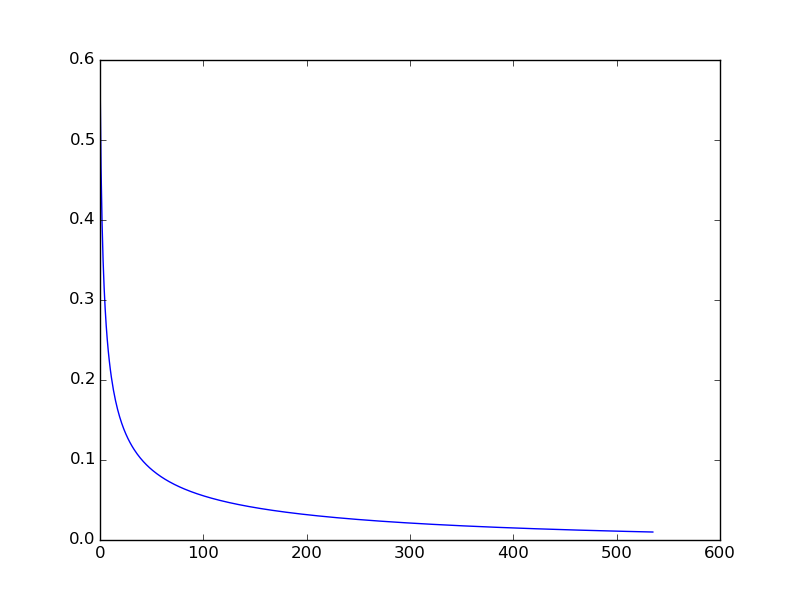

sys.plotConvergence("error.png")
print sys.it
