###Context Trying to achieve VGA passthrough to an HVM Windows8.1 pro subdomain (for gaming) on Xen 4.5.0. Currently, the PC has two graphics cards in slots 01:00.0 (Nvidia GTX 970) and 04:00:0 (Radeon HD6870). When the PC first starts, BIOS and beginning Xen chatter show on the Right monitor (which is Nvidia's) and sometime when Xen PCI-back grabs the card, or when the kernel realizes that the Nouveau drivers are blacklisted, the output switches to the Left monitor (Radeon's). Linux then behaves quite nicely.

Distribution: elementaryOS Luna 0.2

toaster@toaster:~$ uname -a
Linux toaster 3.9.11-030911-generic #201307202035 SMP Sun Jul 21 00:35:53 UTC 2013 x86_64 x86_64 x86_64 GNU/Linux

Motherboard: Gigabyte 990fxaUd3 rev1.1, latest firmware
IOMMU and Virtualization enabled

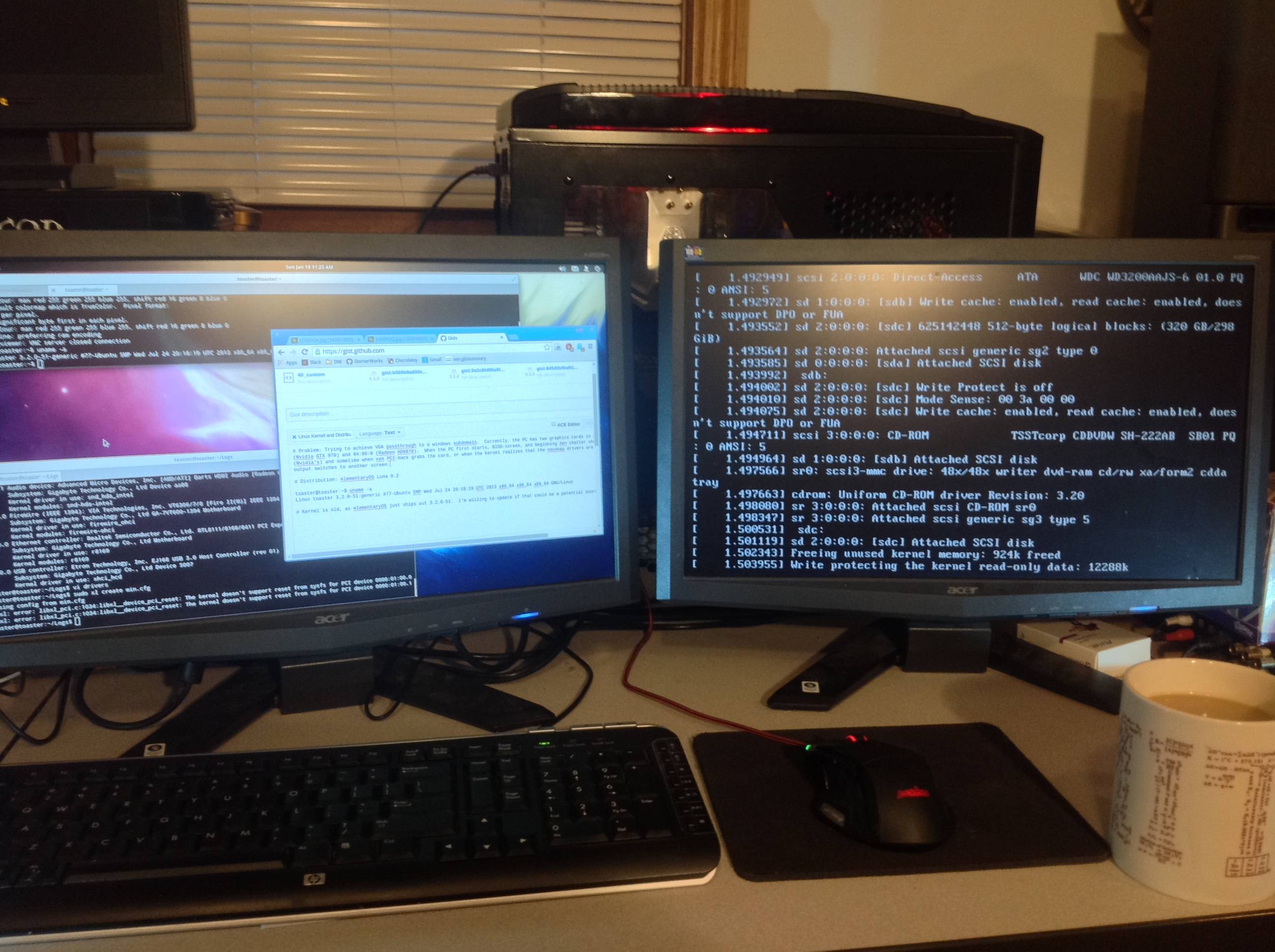

What monitors look like

###Problem: VGA passthrough appears to be somewhat functional, but I can never get Windows8.1 Pro to take over the Right monitor. I currently have to leave gfx_passthru disabled, and I have to vnc into the machine in order to see anything happening:

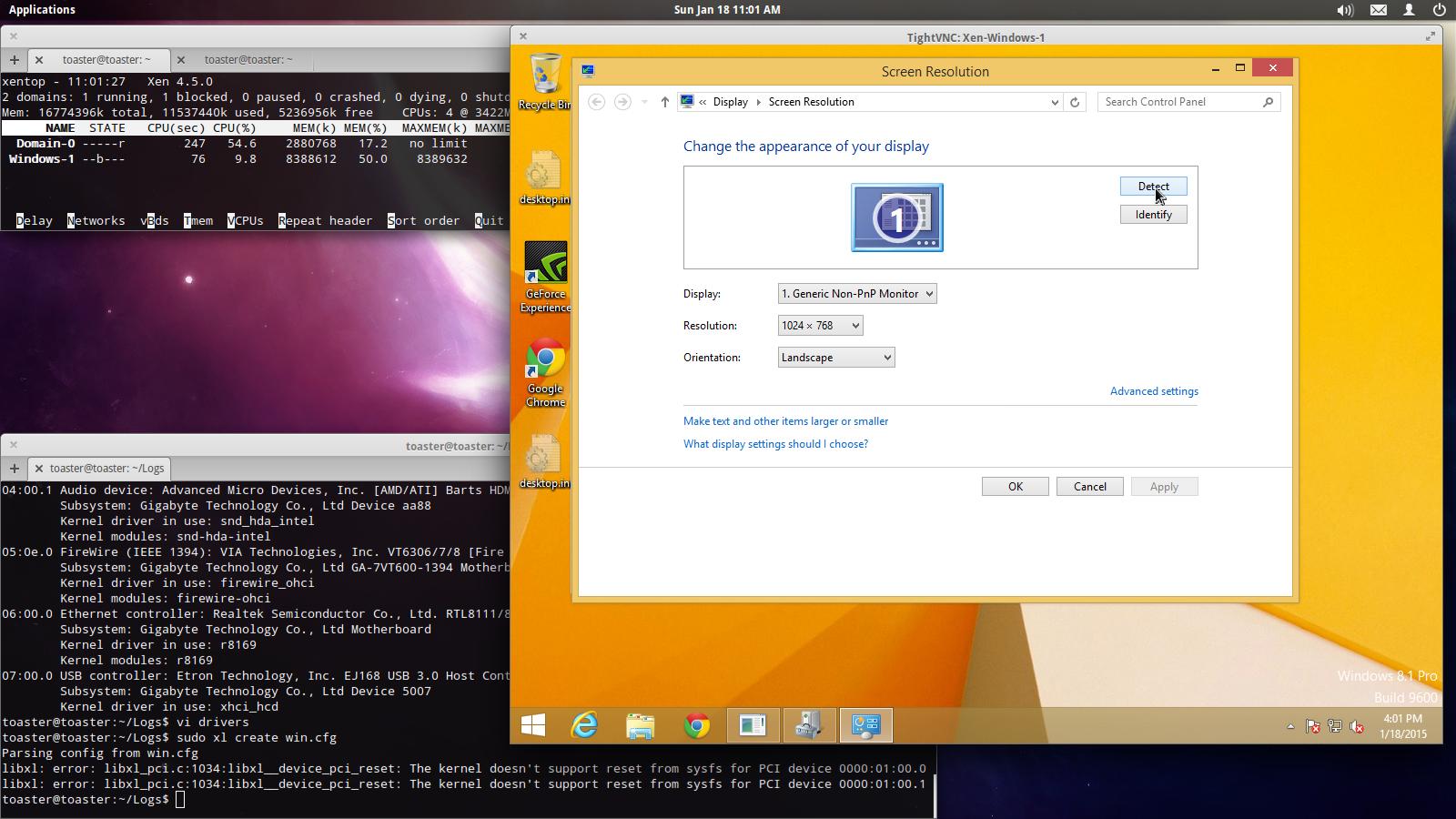

Windows Device Manager: After windows booted There are no extra monitors present :( Monitors do not show up

Ejecting the devices from the taskbar appears do do nothing, or sometimes cause the device to report Error Code 43 in device manager. The card was known to work when Linux was booting to it prior to this setup. I doubt that the physical integrity of the card has been compromised.

###Minor annoyances

  • Down a bit, you can see the kernel arguments I boot with. For some reason, xen-pciback.hide=(01:00.0)(01:00.1) doesn't seem to grab BOTH. dmesg shows that Xen only seizes 01:00.0, and I have to manually disconnect the other after I boot. This doesn't seem to be a major problem, but something just seems off here, and was worth mentioning in a squawk list.
  • Second, drivers don't like being reset, but this is probably ignore-able.
sudo xl create win.cfg
Parsing config from win.cfg
libxl: error: libxl_pci.c:1034:libxl__device_pci_reset: The kernel doesn't support reset from sysfs for PCI device 0000:01:00.0
libxl: error: libxl_pci.c:1034:libxl__device_pci_reset: The kernel doesn't support reset from sysfs for PCI device 0000:01:00.1
Raw
driver-kernoodling
# This is what I have to do after every reboot to free up the Nvidia Audio driver. The video card is freed up, and resetting the
# audio driver is easy, and removes that as a possible source of confusion. Although, Windows may not like the fact that someone dirtied up the audio driver before hand, booting without it seems to be a worse evil.
toaster@toaster:~/Logs$ sudo xl pci-assignable-list
0000:01:00.0
toaster@toaster:~/Logs$ sudo echo 0000:01:00.1 | sudo tee /sys/bus/pci/drivers/snd_hda_intel/unbind
0000:01:00.1
toaster@toaster:~/Logs$ sudo echo 0000:01:00.1 | sudo tee /sys/bus/pci/drivers/pciback/new_slot
0000:01:00.1
toaster@toaster:~/Logs$ sudo echo 0000:01:00.1 | sudo tee /sys/bus/pci/drivers/pciback/bind
0000:01:00.1
toaster@toaster:~/Logs$ sudo xl pci-assignable-list0000:01:00.1
0000:01:00.0
toaster@toaster:~/Logs$ lspci -k
00:00.0 Host bridge: Advanced Micro Devices, Inc. [AMD/ATI] RD890 PCI to PCI bridge (external gfx0 port B) (rev 02)
Subsystem: Gigabyte Technology Co., Ltd Device 5000
00:00.2 IOMMU: Advanced Micro Devices, Inc. [AMD/ATI] RD990 I/O Memory Management Unit (IOMMU)
Subsystem: Gigabyte Technology Co., Ltd Device 5000
00:02.0 PCI bridge: Advanced Micro Devices, Inc. [AMD/ATI] RD890 PCI to PCI bridge (PCI express gpp port B)
Kernel driver in use: pcieport
Kernel modules: shpchp
00:09.0 PCI bridge: Advanced Micro Devices, Inc. [AMD/ATI] RD890 PCI to PCI bridge (PCI express gpp port H)
Kernel driver in use: pcieport
Kernel modules: shpchp
00:0a.0 PCI bridge: Advanced Micro Devices, Inc. [AMD/ATI] RD890 PCI to PCI bridge (external gfx1 port A)
Kernel driver in use: pcieport
Kernel modules: shpchp
00:0b.0 PCI bridge: Advanced Micro Devices, Inc. [AMD/ATI] RD890 PCI to PCI bridge (NB-SB link)
Kernel driver in use: pcieport
Kernel modules: shpchp
00:11.0 SATA controller: Advanced Micro Devices, Inc. [AMD/ATI] SB7x0/SB8x0/SB9x0 SATA Controller [IDE mode] (rev 40)
Subsystem: Gigabyte Technology Co., Ltd GA-MA770-DS3rev2.0 Motherboard
Kernel driver in use: ahci
00:12.0 USB controller: Advanced Micro Devices, Inc. [AMD/ATI] SB7x0/SB8x0/SB9x0 USB OHCI0 Controller
Subsystem: Gigabyte Technology Co., Ltd Device 5004
Kernel driver in use: ohci_hcd
00:12.2 USB controller: Advanced Micro Devices, Inc. [AMD/ATI] SB7x0/SB8x0/SB9x0 USB EHCI Controller
Subsystem: Gigabyte Technology Co., Ltd Device 5004
Kernel driver in use: ehci_hcd
00:13.0 USB controller: Advanced Micro Devices, Inc. [AMD/ATI] SB7x0/SB8x0/SB9x0 USB OHCI0 Controller
Subsystem: Gigabyte Technology Co., Ltd Device 5004
Kernel driver in use: ohci_hcd
00:13.2 USB controller: Advanced Micro Devices, Inc. [AMD/ATI] SB7x0/SB8x0/SB9x0 USB EHCI Controller
Subsystem: Gigabyte Technology Co., Ltd Device 5004
Kernel driver in use: ehci_hcd
00:14.0 SMBus: Advanced Micro Devices, Inc. [AMD/ATI] SBx00 SMBus Controller (rev 42)
Kernel modules: sp5100_tco, i2c-piix4
00:14.1 IDE interface: Advanced Micro Devices, Inc. [AMD/ATI] SB7x0/SB8x0/SB9x0 IDE Controller (rev 40)
Subsystem: Gigabyte Technology Co., Ltd Device 5002
Kernel driver in use: pata_atiixp
Kernel modules: pata_atiixp
00:14.2 Audio device: Advanced Micro Devices, Inc. [AMD/ATI] SBx00 Azalia (Intel HDA) (rev 40)
Subsystem: Gigabyte Technology Co., Ltd Device a132
Kernel driver in use: snd_hda_intel
Kernel modules: snd-hda-intel
00:14.3 ISA bridge: Advanced Micro Devices, Inc. [AMD/ATI] SB7x0/SB8x0/SB9x0 LPC host controller (rev 40)
Subsystem: Advanced Micro Devices, Inc. [AMD/ATI] SB7x0/SB8x0/SB9x0 LPC host controller
00:14.4 PCI bridge: Advanced Micro Devices, Inc. [AMD/ATI] SBx00 PCI to PCI Bridge (rev 40)
00:14.5 USB controller: Advanced Micro Devices, Inc. [AMD/ATI] SB7x0/SB8x0/SB9x0 USB OHCI2 Controller
Subsystem: Gigabyte Technology Co., Ltd Device 5004
Kernel driver in use: ohci_hcd
00:15.0 PCI bridge: Advanced Micro Devices, Inc. [AMD/ATI] SB700/SB800/SB900 PCI to PCI bridge (PCIE port 0)
Kernel driver in use: pcieport
Kernel modules: shpchp
00:15.1 PCI bridge: Advanced Micro Devices, Inc. [AMD/ATI] SB700/SB800/SB900 PCI to PCI bridge (PCIE port 1)
Kernel driver in use: pcieport
Kernel modules: shpchp
00:15.2 PCI bridge: Advanced Micro Devices, Inc. [AMD/ATI] SB900 PCI to PCI bridge (PCIE port 2)
Kernel driver in use: pcieport
Kernel modules: shpchp
00:15.3 PCI bridge: Advanced Micro Devices, Inc. [AMD/ATI] SB900 PCI to PCI bridge (PCIE port 3)
Kernel driver in use: pcieport
Kernel modules: shpchp
00:16.0 USB controller: Advanced Micro Devices, Inc. [AMD/ATI] SB7x0/SB8x0/SB9x0 USB OHCI0 Controller
Subsystem: Gigabyte Technology Co., Ltd Device 5004
Kernel driver in use: ohci_hcd
00:16.2 USB controller: Advanced Micro Devices, Inc. [AMD/ATI] SB7x0/SB8x0/SB9x0 USB EHCI Controller
Subsystem: Gigabyte Technology Co., Ltd Device 5004
Kernel driver in use: ehci_hcd
00:18.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 10h Processor HyperTransport Configuration
00:18.1 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 10h Processor Address Map
00:18.2 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 10h Processor DRAM Controller
Kernel modules: amd64_edac_mod
00:18.3 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 10h Processor Miscellaneous Control
Kernel driver in use: k10temp
Kernel modules: k10temp
00:18.4 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 10h Processor Link Control
01:00.0 VGA compatible controller: NVIDIA Corporation Device 13c2 (rev a1)
Subsystem: ZOTAC International (MCO) Ltd. Device 1366
Kernel driver in use: pciback
Kernel modules: nouveau, nvidiafb
01:00.1 Audio device: NVIDIA Corporation Device 0fbb (rev a1)
Subsystem: ZOTAC International (MCO) Ltd. Device 1366
Kernel driver in use: pciback
Kernel modules: snd-hda-intel
02:00.0 USB controller: Etron Technology, Inc. EJ168 USB 3.0 Host Controller (rev 01)
Subsystem: Gigabyte Technology Co., Ltd Device 5007
Kernel driver in use: xhci_hcd
03:00.0 IDE interface: Marvell Technology Group Ltd. 88SE9172 SATA III 6Gb/s RAID Controller (rev 11)
Subsystem: Gigabyte Technology Co., Ltd Device b000
Kernel driver in use: ahci
04:00.0 VGA compatible controller: Advanced Micro Devices, Inc. [AMD/ATI] Barts XT [Radeon HD 6870]
Subsystem: Gigabyte Technology Co., Ltd Device 21fa
Kernel driver in use: radeon
Kernel modules: radeon
04:00.1 Audio device: Advanced Micro Devices, Inc. [AMD/ATI] Barts HDMI Audio [Radeon HD 6800 Series]
Subsystem: Gigabyte Technology Co., Ltd Device aa88
Kernel driver in use: snd_hda_intel
Kernel modules: snd-hda-intel
05:0e.0 FireWire (IEEE 1394): VIA Technologies, Inc. VT6306/7/8 [Fire II(M)] IEEE 1394 OHCI Controller (rev c0)
Subsystem: Gigabyte Technology Co., Ltd GA-7VT600-1394 Motherboard
Kernel driver in use: firewire_ohci
Kernel modules: firewire-ohci
06:00.0 Ethernet controller: Realtek Semiconductor Co., Ltd. RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller (rev 06)
Subsystem: Gigabyte Technology Co., Ltd Motherboard
Kernel driver in use: r8169
Kernel modules: r8169
07:00.0 USB controller: Etron Technology, Inc. EJ168 USB 3.0 Host Controller (rev 01)
Subsystem: Gigabyte Technology Co., Ltd Device 5007
Kernel driver in use: xhci_hcd
Raw
etc.default.grub
# /etc/default/grub
# Nothing too special here, just making sure grub is viewable, and that the option 2 is selected by default
# If you change this file, run 'update-grub' afterwards to update
# /boot/grub/grub.cfg.
# For full documentation of the options in this file, see:
# info -f grub -n 'Simple configuration'
GRUB_DEFAULT=2
#GRUB_HIDDEN_TIMEOUT=0
#GRUB_HIDDEN_TIMEOUT_QUIET=true
GRUB_TIMEOUT=3
GRUB_DISTRIBUTOR=`lsb_release -i -s 2> /dev/null || echo Debian`
#GRUB_CMDLINE_LINUX_DEFAULT="quiet splash"
GRUB_CMDLINE_LINUX=""
# Uncomment to enable BadRAM filtering, modify to suit your needs
# This works with Linux (no patch required) and with any kernel that obtains
# the memory map information from GRUB (GNU Mach, kernel of FreeBSD ...)
#GRUB_BADRAM="0x01234567,0xfefefefe,0x89abcdef,0xefefefef"
# Uncomment to disable graphical terminal (grub-pc only)
#GRUB_TERMINAL=console
# The resolution used on graphical terminal
# note that you can use only modes which your graphic card supports via VBE
# you can see them in real GRUB with the command `vbeinfo'
#GRUB_GFXMODE=640x480
# Uncomment if you don't want GRUB to pass "root=UUID=xxx" parameter to Linux
#GRUB_DISABLE_LINUX_UUID=true
# Uncomment to disable generation of recovery mode menu entries
#GRUB_DISABLE_RECOVERY="true"
# Uncomment to get a beep at grub start
#GRUB_INIT_TUNE="480 440 1"
Raw
etc.grub.d.40_custom
# /etc/grub.d/40_custom
# boot arguments, all in one place.
#!/bin/sh
exec tail -n +3 $0
# This file provides an easy way to add custom menu entries. Simply type the
# menu entries you want to add after this comment. Be careful not to change
# the 'exec tail' line above.
menuentry "Xen 4.5.0 / elementaryOS Luna 0.2 / Linux 3.2.0-51 / credit scheduler" {
insmod part_msdos
insmod ext2
set root='(hd0,msdos1)'
echo 'Loading Xen 4.5.0...'
multiboot /boot/xen-4.5.0.gz dom0_mem=4096M loglevel=all guest_loglevel=all com1=115200,8n1 iommu=debug
echo 'Loading Linux 3.2.0-51-generic...'
module /boot/vmlinuz-3.2.0-51-generic placeholder root=/dev/sda2 ro earlyprintk=xen debug loglevel=8 xen-pciback.hide=(01:00.0)(01:00.1)
echo 'Loading initial ramdisk...'
module /boot/initrd.img-3.2.0-51-generic
}
Raw
linux.dmesg
# Output of `dmesg`
[ 0.000000] Initializing cgroup subsys cpuset
[ 0.000000] Initializing cgroup subsys cpu
[ 0.000000] Linux version 3.2.0-51-generic (buildd@allspice) (gcc version 4.6.3 (Ubuntu/Linaro 4.6.3-1ubuntu5) ) #77-Ubuntu SMP Wed Jul 24 20:18:19 UTC 2013 (Ubuntu 3.2.0-51.77-generic 3.2.48)
[ 0.000000] Command line: placeholder root=/dev/sda2 ro earlyprintk=xen debug loglevel=8 xen-pciback.hide=(01:00.0)(01:00.1)
[ 0.000000] KERNEL supported cpus:
[ 0.000000] Intel GenuineIntel
[ 0.000000] AMD AuthenticAMD
[ 0.000000] Centaur CentaurHauls
[ 0.000000] Freeing 9f-100 pfn range: 97 pages freed
[ 0.000000] 1-1 mapping on 9f->100
[ 0.000000] Freeing afda0-100000 pfn range: 328288 pages freed
[ 0.000000] 1-1 mapping on afda0->100000
[ 0.000000] Released 328385 pages of unused memory
[ 0.000000] Set 328385 page(s) to 1-1 mapping
[ 0.000000] BIOS-provided physical RAM map:
[ 0.000000] Xen: 0000000000000000 - 000000000009f000 (usable)
[ 0.000000] Xen: 000000000009f800 - 0000000000100000 (reserved)
[ 0.000000] Xen: 0000000000100000 - 00000000afda0000 (usable)
[ 0.000000] Xen: 00000000afda0000 - 00000000afdd1000 (ACPI NVS)
[ 0.000000] Xen: 00000000afdd1000 - 00000000afe00000 (ACPI data)
[ 0.000000] Xen: 00000000afe00000 - 00000000aff00000 (reserved)
[ 0.000000] Xen: 00000000e0000000 - 00000000f0000000 (reserved)
[ 0.000000] Xen: 00000000fec00000 - 0000000100000000 (reserved)
[ 0.000000] Xen: 0000000100000000 - 0000000450000000 (usable)
[ 0.000000] Xen: 000000fd00000000 - 0000010000000000 (reserved)
[ 0.000000] bootconsole [xenboot0] enabled
[ 0.000000] NX (Execute Disable) protection: active
[ 0.000000] SMBIOS 2.4 present.
[ 0.000000] DMI: Gigabyte Technology Co., Ltd. GA-990FXA-UD3/GA-990FXA-UD3, BIOS F10e 09/09/2014
[ 0.000000] e820 update range: 0000000000000000 - 0000000000010000 (usable) ==> (reserved)
[ 0.000000] e820 remove range: 00000000000a0000 - 0000000000100000 (usable)
[ 0.000000] No AGP bridge found
[ 0.000000] last_pfn = 0x450000 max_arch_pfn = 0x400000000
[ 0.000000] last_pfn = 0xafda0 max_arch_pfn = 0x400000000
[ 0.000000] initial memory mapped : 0 - 055e3000
[ 0.000000] Base memory trampoline at [ffff88000009a000] 9a000 size 20480
[ 0.000000] init_memory_mapping: 0000000000000000-00000000afda0000
[ 0.000000] 0000000000 - 00afda0000 page 4k
[ 0.000000] kernel direct mapping tables up to afda0000 @ a7d000-1000000
[ 0.000000] xen: setting RW the range fca000 - 1000000
[ 0.000000] init_memory_mapping: 0000000100000000-0000000450000000
[ 0.000000] 0100000000 - 0450000000 page 4k
[ 0.000000] kernel direct mapping tables up to 450000000 @ ae311000-afda0000
[ 0.000000] xen: setting RW the range afd9f000 - afda0000
[ 0.000000] RAMDISK: 02060000 - 055e3000
[ 0.000000] ACPI: RSDP 00000000000f6b40 00014 (v00 GBT )
[ 0.000000] ACPI: RSDT 00000000afdd1000 0004C (v01 GBT GBTUACPI 42302E31 GBTU 01010101)
[ 0.000000] ACPI: FACP 00000000afdd1080 00074 (v01 GBT GBTUACPI 42302E31 GBTU 01010101)
[ 0.000000] ACPI: DSDT 00000000afdd1100 07997 (v01 GBT GBTUACPI 00001000 MSFT 03000000)
[ 0.000000] ACPI: FACS 00000000afda0000 00040
[ 0.000000] ACPI: SSDT 00000000afdd8b80 0088C (v01 PTLTD POWERNOW 00000001 LTP 00000001)
[ 0.000000] ACPI: MSDM 00000000afdd9440 00055 (v03 GBT GBTUACPI 42302E31 GBTU 01010101)
[ 0.000000] ACPI: HPET 00000000afdd94c0 00038 (v01 GBT GBTUACPI 42302E31 GBTU 00000098)
[ 0.000000] ACPI: MCFG 00000000afdd9500 0003C (v01 GBT GBTUACPI 42302E31 GBTU 01010101)
[ 0.000000] ACPI: MATS 00000000afdd9580 00034 (v01 GBT 00000000 00000000)
[ 0.000000] ACPI: TAMG 00000000afdd95f0 00202 (v01 GBT GBT B0 5455312E BG?? 53450101)
[ 0.000000] ACPI: APIC 00000000afdd8ac0 000BC (v01 GBT GBTUACPI 42302E31 GBTU 01010101)
[ 0.000000] ACPI: MATS 00000000afdd9800 06491 (v01 MATS RCM 80000001 INTL 20061109)
[ 0.000000] ACPI: IVRS 00000000afddfd10 000F8 (v01 AMD RD890S 00202031 AMD 00000000)
[ 0.000000] ACPI: Local APIC address 0xfee00000
[ 0.000000] NUMA turned off
[ 0.000000] Faking a node at 0000000000000000-0000000450000000
[ 0.000000] Initmem setup node 0 0000000000000000-0000000450000000
[ 0.000000] NODE_DATA [00000000ae30c000 - 00000000ae310fff]
[ 0.000000] Zone PFN ranges:
[ 0.000000] DMA 0x00000010 -> 0x00001000
[ 0.000000] DMA32 0x00001000 -> 0x00100000
[ 0.000000] Normal 0x00100000 -> 0x00450000
[ 0.000000] Movable zone start PFN for each node
[ 0.000000] early_node_map[3] active PFN ranges
[ 0.000000] 0: 0x00000010 -> 0x0000009f
[ 0.000000] 0: 0x00000100 -> 0x000afda0
[ 0.000000] 0: 0x00100000 -> 0x00450000
[ 0.000000] On node 0 totalpages: 4193583
[ 0.000000] DMA zone: 64 pages used for memmap
[ 0.000000] DMA zone: 1362 pages reserved
[ 0.000000] DMA zone: 2557 pages, LIFO batch:0
[ 0.000000] DMA32 zone: 16320 pages used for memmap
[ 0.000000] DMA32 zone: 699872 pages, LIFO batch:31
[ 0.000000] Normal zone: 54272 pages used for memmap
[ 0.000000] Normal zone: 3419136 pages, LIFO batch:31
[ 0.000000] ACPI: PM-Timer IO Port: 0x808
[ 0.000000] ACPI: Local APIC address 0xfee00000
[ 0.000000] ACPI: LAPIC (acpi_id[0x00] lapic_id[0x00] enabled)
[ 0.000000] ACPI: LAPIC (acpi_id[0x01] lapic_id[0x01] enabled)
[ 0.000000] ACPI: LAPIC (acpi_id[0x02] lapic_id[0x02] enabled)
[ 0.000000] ACPI: LAPIC (acpi_id[0x03] lapic_id[0x03] enabled)
[ 0.000000] ACPI: LAPIC (acpi_id[0x04] lapic_id[0x04] disabled)
[ 0.000000] ACPI: LAPIC (acpi_id[0x05] lapic_id[0x05] disabled)
[ 0.000000] ACPI: LAPIC (acpi_id[0x06] lapic_id[0x06] disabled)
[ 0.000000] ACPI: LAPIC (acpi_id[0x07] lapic_id[0x07] disabled)
[ 0.000000] ACPI: LAPIC_NMI (acpi_id[0x00] dfl dfl lint[0x1])
[ 0.000000] ACPI: LAPIC_NMI (acpi_id[0x01] dfl dfl lint[0x1])
[ 0.000000] ACPI: LAPIC_NMI (acpi_id[0x02] dfl dfl lint[0x1])
[ 0.000000] ACPI: LAPIC_NMI (acpi_id[0x03] dfl dfl lint[0x1])
[ 0.000000] ACPI: LAPIC_NMI (acpi_id[0x04] dfl dfl lint[0x1])
[ 0.000000] ACPI: LAPIC_NMI (acpi_id[0x05] dfl dfl lint[0x1])
[ 0.000000] ACPI: LAPIC_NMI (acpi_id[0x06] dfl dfl lint[0x1])
[ 0.000000] ACPI: LAPIC_NMI (acpi_id[0x07] dfl dfl lint[0x1])
[ 0.000000] ACPI: IOAPIC (id[0x08] address[0xfec00000] gsi_base[0])
[ 0.000000] IOAPIC[0]: apic_id 8, version 255, address 0xfec00000, GSI 0-255
[ 0.000000] ACPI: INT_SRC_OVR (bus 0 bus_irq 0 global_irq 2 dfl dfl)
[ 0.000000] ACPI: INT_SRC_OVR (bus 0 bus_irq 9 global_irq 9 low level)
[ 0.000000] ACPI: IRQ0 used by override.
[ 0.000000] ACPI: IRQ2 used by override.
[ 0.000000] ACPI: IRQ9 used by override.
[ 0.000000] Using ACPI (MADT) for SMP configuration information
[ 0.000000] ACPI: HPET id: 0x10b9a201 base: 0xfed00000
[ 0.000000] SMP: Allowing 8 CPUs, 4 hotplug CPUs
[ 0.000000] nr_irqs_gsi: 272
[ 0.000000] PM: Registered nosave memory: 000000000009f000 - 00000000000a0000
[ 0.000000] PM: Registered nosave memory: 00000000000a0000 - 0000000000100000
[ 0.000000] PM: Registered nosave memory: 00000000afda0000 - 00000000afdd1000
[ 0.000000] PM: Registered nosave memory: 00000000afdd1000 - 00000000afe00000
[ 0.000000] PM: Registered nosave memory: 00000000afe00000 - 00000000aff00000
[ 0.000000] PM: Registered nosave memory: 00000000aff00000 - 00000000e0000000
[ 0.000000] PM: Registered nosave memory: 00000000e0000000 - 00000000f0000000
[ 0.000000] PM: Registered nosave memory: 00000000f0000000 - 00000000fec00000
[ 0.000000] PM: Registered nosave memory: 00000000fec00000 - 0000000100000000
[ 0.000000] Allocating PCI resources starting at aff00000 (gap: aff00000:30100000)
[ 0.000000] Booting paravirtualized kernel on Xen
[ 0.000000] Xen version: 4.5.0 (preserve-AD)
[ 0.000000] setup_percpu: NR_CPUS:256 nr_cpumask_bits:256 nr_cpu_ids:8 nr_node_ids:1
[ 0.000000] PERCPU: Embedded 28 pages/cpu @ffff8800ae000000 s83136 r8192 d23360 u262144
[ 0.000000] pcpu-alloc: s83136 r8192 d23360 u262144 alloc=1*2097152
[ 0.000000] pcpu-alloc: [0] 0 1 2 3 4 5 6 7
[ 0.000000] Built 1 zonelists in Zone order, mobility grouping on. Total pages: 4121565
[ 0.000000] Policy zone: Normal
[ 0.000000] Kernel command line: placeholder root=/dev/sda2 ro earlyprintk=xen debug loglevel=8 xen-pciback.hide=(01:00.0)(01:00.1)
[ 0.000000] PID hash table entries: 4096 (order: 3, 32768 bytes)
[ 0.000000] Placing 64MB software IO TLB between ffff880099a00000 - ffff88009da00000
[ 0.000000] software IO TLB at phys 0x99a00000 - 0x9da00000
[ 0.000000] Memory: 2439352k/18087936k available (6583k kernel code, 1313604k absent, 14334980k reserved, 6623k data, 924k init)
[ 0.000000] SLUB: Genslabs=15, HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1
[ 0.000000] Hierarchical RCU implementation.
[ 0.000000] RCU dyntick-idle grace-period acceleration is enabled.
[ 0.000000] NR_IRQS:16640 nr_irqs:1024 16
[ 0.000000] xen: sci override: global_irq=9 trigger=0 polarity=1
[ 0.000000] xen: registering gsi 9 triggering 0 polarity 1
[ 0.000000] xen: --> pirq=9 -> irq=9 (gsi=9)
[ 0.000000] xen: acpi sci 9
[ 0.000000] xen: --> pirq=1 -> irq=1 (gsi=1)
[ 0.000000] xen: --> pirq=2 -> irq=2 (gsi=2)
[ 0.000000] xen: --> pirq=3 -> irq=3 (gsi=3)
[ 0.000000] xen: --> pirq=4 -> irq=4 (gsi=4)
[ 0.000000] xen: --> pirq=5 -> irq=5 (gsi=5)
[ 0.000000] xen: --> pirq=6 -> irq=6 (gsi=6)
[ 0.000000] xen: --> pirq=7 -> irq=7 (gsi=7)
[ 0.000000] xen: --> pirq=8 -> irq=8 (gsi=8)
[ 0.000000] xen: --> pirq=10 -> irq=10 (gsi=10)
[ 0.000000] xen: --> pirq=11 -> irq=11 (gsi=11)
[ 0.000000] xen: --> pirq=12 -> irq=12 (gsi=12)
[ 0.000000] xen: --> pirq=13 -> irq=13 (gsi=13)
[ 0.000000] xen: --> pirq=14 -> irq=14 (gsi=14)
[ 0.000000] xen: --> pirq=15 -> irq=15 (gsi=15)
[ 0.000000] Console: colour VGA+ 80x25
[ 0.000000] console [tty0] enabled, bootconsole disabled
[ 0.000000] allocated 134217728 bytes of page_cgroup
[ 0.000000] please try 'cgroup_disable=memory' option if you don't want memory cgroups
[ 0.000000] Xen: using vcpuop timer interface
[ 0.000000] installing Xen timer for CPU 0
[ 0.000000] Detected 3422.890 MHz processor.
[ 0.004000] Calibrating delay loop (skipped), value calculated using timer frequency.. 6845.78 BogoMIPS (lpj=13691560)
[ 0.004000] pid_max: default: 32768 minimum: 301
[ 0.004000] Security Framework initialized
[ 0.004000] AppArmor: AppArmor initialized
[ 0.004000] Yama: becoming mindful.
[ 0.004000] Dentry cache hash table entries: 2097152 (order: 12, 16777216 bytes)
[ 0.009425] Inode-cache hash table entries: 1048576 (order: 11, 8388608 bytes)
[ 0.011278] Mount-cache hash table entries: 256
[ 0.011449] Initializing cgroup subsys cpuacct
[ 0.011492] Initializing cgroup subsys memory
[ 0.011539] Initializing cgroup subsys devices
[ 0.011578] Initializing cgroup subsys freezer
[ 0.011616] Initializing cgroup subsys blkio
[ 0.011660] Initializing cgroup subsys perf_event
[ 0.011738] tseg: 00aff00000
[ 0.011785] CPU: Physical Processor ID: 0
[ 0.011831] CPU: Processor Core ID: 0
[ 0.013068] ACPI: Core revision 20110623
[ 0.020049] ftrace: allocating 26587 entries in 105 pages
[ 0.024078] cpu 0 spinlock event irq 273
[ 0.024155] Performance Events: Broken PMU hardware detected, using software events only.
[ 0.024370] NMI watchdog disabled (cpu0): hardware events not enabled
[ 0.024483] installing Xen timer for CPU 1
[ 0.024535] cpu 1 spinlock event irq 279
[ 0.024712] NMI watchdog disabled (cpu1): hardware events not enabled
[ 0.024822] installing Xen timer for CPU 2
[ 0.024875] cpu 2 spinlock event irq 285
[ 0.025020] NMI watchdog disabled (cpu2): hardware events not enabled
[ 0.025125] installing Xen timer for CPU 3
[ 0.025176] cpu 3 spinlock event irq 291
[ 0.025320] NMI watchdog disabled (cpu3): hardware events not enabled
[ 0.025384] Brought up 4 CPUs
[ 0.025511] devtmpfs: initialized
[ 0.025608] EVM: security.selinux
[ 0.025654] EVM: security.SMACK64
[ 0.025699] EVM: security.capability
[ 0.025789] PM: Registering ACPI NVS region at afda0000 (200704 bytes)
[ 0.028053] Grant table initialized
[ 0.028141] print_constraints: dummy:
[ 0.028210] RTC time: 15:51:01, date: 01/18/15
[ 0.028281] NET: Registered protocol family 16
[ 0.028430] Trying to unpack rootfs image as initramfs...
[ 0.040123] node 0 link 0: io port [6000, ffff]
[ 0.040177] TOM: 00000000b0000000 aka 2816M
[ 0.040225] Fam 10h mmconf [mem 0xe0000000-0xe00fffff]
[ 0.040274] node 0 link 0: mmio [a0000, bffff]
[ 0.040356] node 0 link 0: mmio [b0000000, dfffffff]
[ 0.040439] node 0 link 0: mmio [f0000000, ffffffff]
[ 0.040520] node 0 link 0: mmio [e0000000, e09fffff] ==> [e0100000, e09fffff]
[ 0.040638] TOM2: 0000000450000000 aka 17664M
[ 0.040684] bus: [00, 09] on node 0 link 0
[ 0.040734] bus: 00 index 0 [io 0x0000-0xffff]
[ 0.040780] bus: 00 index 1 [mem 0x000a0000-0x000bffff]
[ 0.040826] bus: 00 index 2 [mem 0xb0000000-0xdfffffff]
[ 0.040872] bus: 00 index 3 [mem 0xe0a00000-0xffffffff]
[ 0.040919] bus: 00 index 4 [mem 0xe0100000-0xe09fffff]
[ 0.040965] bus: 00 index 5 [mem 0x450000000-0xfcffffffff]
[ 0.041023] Extended Config Space enabled on 1 nodes
[ 0.041109] ACPI: bus type pci registered
[ 0.041219] PCI: MMCONFIG for domain 0000 [bus 00-ff] at [mem 0xe0000000-0xefffffff] (base 0xe0000000)
[ 0.041278] PCI: MMCONFIG at [mem 0xe0000000-0xefffffff] reserved in E820
[ 0.125726] Freeing initrd memory: 54796k freed
[ 0.143640] PCI: Using configuration type 1 for base access
[ 0.144603] bio: create slab <bio-0> at 0
[ 0.144603] ACPI: Added _OSI(Module Device)
[ 0.144603] ACPI: Added _OSI(Processor Device)
[ 0.144603] ACPI: Added _OSI(3.0 _SCP Extensions)
[ 0.144603] ACPI: Added _OSI(Processor Aggregator Device)
[ 0.144937] ACPI: EC: Look up EC in DSDT
[ 0.154011] ACPI Warning: Incorrect checksum in table [TAMG] - 0x45, should be 0x44 (20110623/tbutils-314)
[ 0.154312] ACPI: Interpreter enabled
[ 0.154361] ACPI: (supports S0 S3 S4 S5)
[ 0.154561] ACPI: Using IOAPIC for interrupt routing
[ 0.249887] ACPI: No dock devices found.
[ 0.249933] HEST: Table not found.
[ 0.249979] PCI: Using host bridge windows from ACPI; if necessary, use "pci=nocrs" and report a bug
[ 0.250103] ACPI: PCI Root Bridge [PCI0] (domain 0000 [bus 00-ff])
[ 0.250286] pci_root PNP0A03:00: host bridge window [io 0x0000-0x0cf7]
[ 0.250333] pci_root PNP0A03:00: host bridge window [io 0x0d00-0xffff]
[ 0.250379] pci_root PNP0A03:00: host bridge window [mem 0x000a0000-0x000bffff]
[ 0.250433] pci_root PNP0A03:00: host bridge window [mem 0x000c0000-0x000dffff]
[ 0.250487] pci_root PNP0A03:00: host bridge window [mem 0xfed40000-0xfed44fff]
[ 0.250541] pci_root PNP0A03:00: host bridge window [mem 0xb0000000-0xfebfffff]
[ 0.250614] pci 0000:00:00.0: [1002:5a14] type 0 class 0x000600
[ 0.250679] pci 0000:00:00.0: reg 1c: [mem 0xe0000000-0xffffffff 64bit]
[ 0.250811] pci 0000:00:00.2: [1002:5a23] type 0 class 0x000806
[ 0.250946] pci 0000:00:02.0: [1002:5a16] type 1 class 0x000604
[ 0.251052] pci 0000:00:02.0: PME# supported from D0 D3hot D3cold
[ 0.251100] pci 0000:00:02.0: PME# disabled
[ 0.251172] pci 0000:00:09.0: [1002:5a1c] type 1 class 0x000604
[ 0.251277] pci 0000:00:09.0: PME# supported from D0 D3hot D3cold
[ 0.251324] pci 0000:00:09.0: PME# disabled
[ 0.251387] pci 0000:00:0a.0: [1002:5a1d] type 1 class 0x000604
[ 0.251492] pci 0000:00:0a.0: PME# supported from D0 D3hot D3cold
[ 0.251539] pci 0000:00:0a.0: PME# disabled
[ 0.251603] pci 0000:00:0b.0: [1002:5a1f] type 1 class 0x000604
[ 0.251709] pci 0000:00:0b.0: PME# supported from D0 D3hot D3cold
[ 0.251756] pci 0000:00:0b.0: PME# disabled
[ 0.251830] pci 0000:00:11.0: [1002:4390] type 0 class 0x000101
[ 0.251894] pci 0000:00:11.0: reg 10: [io 0xff00-0xff07]
[ 0.251948] pci 0000:00:11.0: reg 14: [io 0xfe00-0xfe03]
[ 0.252019] pci 0000:00:11.0: reg 18: [io 0xfd00-0xfd07]
[ 0.252073] pci 0000:00:11.0: reg 1c: [io 0xfc00-0xfc03]
[ 0.252128] pci 0000:00:11.0: reg 20: [io 0xfb00-0xfb0f]
[ 0.252183] pci 0000:00:11.0: reg 24: [mem 0xfdfff000-0xfdfff3ff]
[ 0.252249] pci 0000:00:11.0: set SATA to AHCI mode
[ 0.252345] pci 0000:00:12.0: [1002:4397] type 0 class 0x000c03
[ 0.252404] pci 0000:00:12.0: reg 10: [mem 0xfdffe000-0xfdffefff]
[ 0.252525] pci 0000:00:12.2: [1002:4396] type 0 class 0x000c03
[ 0.252590] pci 0000:00:12.2: reg 10: [mem 0xfdffd000-0xfdffd0ff]
[ 0.252724] pci 0000:00:12.2: supports D1 D2
[ 0.252768] pci 0000:00:12.2: PME# supported from D0 D1 D2 D3hot
[ 0.252816] pci 0000:00:12.2: PME# disabled
[ 0.252882] pci 0000:00:13.0: [1002:4397] type 0 class 0x000c03
[ 0.252940] pci 0000:00:13.0: reg 10: [mem 0xfdffc000-0xfdffcfff]
[ 0.253062] pci 0000:00:13.2: [1002:4396] type 0 class 0x000c03
[ 0.253126] pci 0000:00:13.2: reg 10: [mem 0xfdffb000-0xfdffb0ff]
[ 0.253260] pci 0000:00:13.2: supports D1 D2
[ 0.253305] pci 0000:00:13.2: PME# supported from D0 D1 D2 D3hot
[ 0.253352] pci 0000:00:13.2: PME# disabled
[ 0.253416] pci 0000:00:14.0: [1002:4385] type 0 class 0x000c05
[ 0.253545] pci 0000:00:14.1: [1002:439c] type 0 class 0x000101
[ 0.253603] pci 0000:00:14.1: reg 10: [io 0x0000-0x0007]
[ 0.253658] pci 0000:00:14.1: reg 14: [io 0x0000-0x0003]
[ 0.253717] pci 0000:00:14.1: reg 18: [io 0x0000-0x0007]
[ 0.253771] pci 0000:00:14.1: reg 1c: [io 0x0000-0x0003]
[ 0.253825] pci 0000:00:14.1: reg 20: [io 0xfa00-0xfa0f]
[ 0.253910] pci 0000:00:14.2: [1002:4383] type 0 class 0x000403
[ 0.253977] pci 0000:00:14.2: reg 10: [mem 0xfdff4000-0xfdff7fff 64bit]
[ 0.254094] pci 0000:00:14.2: PME# supported from D0 D3hot D3cold
[ 0.254142] pci 0000:00:14.2: PME# disabled
[ 0.254199] pci 0000:00:14.3: [1002:439d] type 0 class 0x000601
[ 0.254325] pci 0000:00:14.4: [1002:4384] type 1 class 0x000604
[ 0.254414] pci 0000:00:14.5: [1002:4399] type 0 class 0x000c03
[ 0.254472] pci 0000:00:14.5: reg 10: [mem 0xfdffa000-0xfdffafff]
[ 0.254596] pci 0000:00:15.0: [1002:43a0] type 1 class 0x000604
[ 0.254724] pci 0000:00:15.0: supports D1 D2
[ 0.254795] pci 0000:00:15.1: [1002:43a1] type 1 class 0x000604
[ 0.254923] pci 0000:00:15.1: supports D1 D2
[ 0.254994] pci 0000:00:15.2: [1002:43a2] type 1 class 0x000604
[ 0.255122] pci 0000:00:15.2: supports D1 D2
[ 0.255192] pci 0000:00:15.3: [1002:43a3] type 1 class 0x000604
[ 0.255320] pci 0000:00:15.3: supports D1 D2
[ 0.255390] pci 0000:00:16.0: [1002:4397] type 0 class 0x000c03
[ 0.255448] pci 0000:00:16.0: reg 10: [mem 0xfdff9000-0xfdff9fff]
[ 0.255570] pci 0000:00:16.2: [1002:4396] type 0 class 0x000c03
[ 0.255634] pci 0000:00:16.2: reg 10: [mem 0xfdff8000-0xfdff80ff]
[ 0.255769] pci 0000:00:16.2: supports D1 D2
[ 0.255813] pci 0000:00:16.2: PME# supported from D0 D1 D2 D3hot
[ 0.255861] pci 0000:00:16.2: PME# disabled
[ 0.255926] pci 0000:00:18.0: [1022:1200] type 0 class 0x000600
[ 0.256025] pci 0000:00:18.1: [1022:1201] type 0 class 0x000600
[ 0.256099] pci 0000:00:18.2: [1022:1202] type 0 class 0x000600
[ 0.256173] pci 0000:00:18.3: [1022:1203] type 0 class 0x000600
[ 0.256256] pci 0000:00:18.4: [1022:1204] type 0 class 0x000600
[ 0.256390] pci 0000:01:00.0: [10de:13c2] type 0 class 0x000300
[ 0.256447] pci 0000:01:00.0: reg 10: [mem 0xfb000000-0xfbffffff]
[ 0.256506] pci 0000:01:00.0: reg 14: [mem 0xb0000000-0xbfffffff 64bit pref]
[ 0.256566] pci 0000:01:00.0: reg 1c: [mem 0xce000000-0xcfffffff 64bit pref]
[ 0.256621] pci 0000:01:00.0: reg 24: [io 0xcf00-0xcf7f]
[ 0.256675] pci 0000:01:00.0: reg 30: [mem 0x00000000-0x0007ffff pref]
[ 0.256801] pci 0000:01:00.1: [10de:0fbb] type 0 class 0x000403
[ 0.256858] pci 0000:01:00.1: reg 10: [mem 0xfcffc000-0xfcffffff]
[ 0.264043] pci 0000:00:02.0: PCI bridge to [bus 01-01]
[ 0.264094] pci 0000:00:02.0: bridge window [io 0xc000-0xcfff]
[ 0.264142] pci 0000:00:02.0: bridge window [mem 0xfb000000-0xfcffffff]
[ 0.264192] pci 0000:00:02.0: bridge window [mem 0xb0000000-0xcfffffff 64bit pref]
[ 0.264303] pci 0000:02:00.0: [1b6f:7023] type 0 class 0x000c03
[ 0.264368] pci 0000:02:00.0: reg 10: [mem 0xfddf8000-0xfddfffff 64bit]
[ 0.264508] pci 0000:02:00.0: supports D1 D2
[ 0.264552] pci 0000:02:00.0: PME# supported from D0 D1 D2 D3hot D3cold
[ 0.264601] pci 0000:02:00.0: PME# disabled
[ 0.272040] pci 0000:00:09.0: PCI bridge to [bus 02-02]
[ 0.272090] pci 0000:00:09.0: bridge window [io 0xb000-0xbfff]
[ 0.272137] pci 0000:00:09.0: bridge window [mem 0xfdd00000-0xfddfffff]
[ 0.272186] pci 0000:00:09.0: bridge window [mem 0xfda00000-0xfdafffff 64bit pref]
[ 0.272294] pci 0000:03:00.0: [1b4b:917a] type 0 class 0x000101
[ 0.272351] pci 0000:03:00.0: reg 10: [io 0xef00-0xef07]
[ 0.272404] pci 0000:03:00.0: reg 14: [io 0xee00-0xee03]
[ 0.272457] pci 0000:03:00.0: reg 18: [io 0xed00-0xed07]
[ 0.272510] pci 0000:03:00.0: reg 1c: [io 0xec00-0xec03]
[ 0.272563] pci 0000:03:00.0: reg 20: [io 0xeb00-0xeb0f]
[ 0.272616] pci 0000:03:00.0: reg 24: [mem 0xfd1ff000-0xfd1ff1ff]
[ 0.272669] pci 0000:03:00.0: reg 30: [mem 0x00000000-0x0000ffff pref]
[ 0.273802] pci 0000:03:00.0: PME# supported from D3hot
[ 0.273850] pci 0000:03:00.0: PME# disabled
[ 0.280041] pci 0000:00:0a.0: PCI bridge to [bus 03-03]
[ 0.280090] pci 0000:00:0a.0: bridge window [io 0xe000-0xefff]
[ 0.280137] pci 0000:00:0a.0: bridge window [mem 0xfd100000-0xfd1fffff]
[ 0.280187] pci 0000:00:0a.0: bridge window [mem 0xfd000000-0xfd0fffff 64bit pref]
[ 0.280294] pci 0000:04:00.0: [1002:6738] type 0 class 0x000300
[ 0.280359] pci 0000:04:00.0: reg 10: [mem 0xd0000000-0xdfffffff 64bit pref]
[ 0.280419] pci 0000:04:00.0: reg 18: [mem 0xfdec0000-0xfdedffff 64bit]
[ 0.280474] pci 0000:04:00.0: reg 20: [io 0xde00-0xdeff]
[ 0.280536] pci 0000:04:00.0: reg 30: [mem 0x00000000-0x0001ffff pref]
[ 0.280629] pci 0000:04:00.0: supports D1 D2
[ 0.280705] pci 0000:04:00.1: [1002:aa88] type 0 class 0x000403
[ 0.280768] pci 0000:04:00.1: reg 10: [mem 0xfdefc000-0xfdefffff 64bit]
[ 0.280904] pci 0000:04:00.1: supports D1 D2
[ 0.288043] pci 0000:00:0b.0: PCI bridge to [bus 04-04]
[ 0.288093] pci 0000:00:0b.0: bridge window [io 0xd000-0xdfff]
[ 0.288140] pci 0000:00:0b.0: bridge window [mem 0xfde00000-0xfdefffff]
[ 0.288189] pci 0000:00:0b.0: bridge window [mem 0xd0000000-0xdfffffff 64bit pref]
[ 0.288293] pci 0000:05:0e.0: [1106:3044] type 0 class 0x000c00
[ 0.288362] pci 0000:05:0e.0: reg 10: [mem 0xfdcff000-0xfdcff7ff]
[ 0.288420] pci 0000:05:0e.0: reg 14: [io 0xaf00-0xaf7f]
[ 0.288564] pci 0000:05:0e.0: supports D2
[ 0.288608] pci 0000:05:0e.0: PME# supported from D2 D3hot D3cold
[ 0.288657] pci 0000:05:0e.0: PME# disabled
[ 0.288736] pci 0000:00:14.4: PCI bridge to [bus 05-05] (subtractive decode)
[ 0.288784] pci 0000:00:14.4: bridge window [io 0xa000-0xafff]
[ 0.288845] pci 0000:00:14.4: bridge window [mem 0xfdc00000-0xfdcfffff]
[ 0.288894] pci 0000:00:14.4: bridge window [mem 0xfdb00000-0xfdbfffff pref]
[ 0.288948] pci 0000:00:14.4: bridge window [io 0x0000-0x0cf7] (subtractive decode)
[ 0.289002] pci 0000:00:14.4: bridge window [io 0x0d00-0xffff] (subtractive decode)
[ 0.289056] pci 0000:00:14.4: bridge window [mem 0x000a0000-0x000bffff] (subtractive decode)
[ 0.289111] pci 0000:00:14.4: bridge window [mem 0x000c0000-0x000dffff] (subtractive decode)
[ 0.289166] pci 0000:00:14.4: bridge window [mem 0xfed40000-0xfed44fff] (subtractive decode)
[ 0.289221] pci 0000:00:14.4: bridge window [mem 0xb0000000-0xfebfffff] (subtractive decode)
[ 0.289348] pci 0000:06:00.0: [10ec:8168] type 0 class 0x000200
[ 0.289410] pci 0000:06:00.0: reg 10: [io 0x9e00-0x9eff]
[ 0.289486] pci 0000:06:00.0: reg 18: [mem 0xfd8ff000-0xfd8fffff 64bit pref]
[ 0.289551] pci 0000:06:00.0: reg 20: [mem 0xfd8f8000-0xfd8fbfff 64bit pref]
[ 0.289682] pci 0000:06:00.0: supports D1 D2
[ 0.289731] pci 0000:06:00.0: PME# supported from D0 D1 D2 D3hot D3cold
[ 0.289780] pci 0000:06:00.0: PME# disabled
[ 0.296046] pci 0000:00:15.0: PCI bridge to [bus 06-06]
[ 0.296097] pci 0000:00:15.0: bridge window [io 0x9000-0x9fff]
[ 0.296145] pci 0000:00:15.0: bridge window [mem 0xfd900000-0xfd9fffff]
[ 0.296195] pci 0000:00:15.0: bridge window [mem 0xfd800000-0xfd8fffff 64bit pref]
[ 0.296323] pci 0000:07:00.0: [1b6f:7023] type 0 class 0x000c03
[ 0.296393] pci 0000:07:00.0: reg 10: [mem 0xfd7f8000-0xfd7fffff 64bit]
[ 0.296556] pci 0000:07:00.0: supports D1 D2
[ 0.296601] pci 0000:07:00.0: PME# supported from D0 D1 D2 D3hot D3cold
[ 0.296650] pci 0000:07:00.0: PME# disabled
[ 0.304047] pci 0000:00:15.1: PCI bridge to [bus 07-07]
[ 0.304097] pci 0000:00:15.1: bridge window [io 0x8000-0x8fff]
[ 0.304145] pci 0000:00:15.1: bridge window [mem 0xfd700000-0xfd7fffff]
[ 0.304195] pci 0000:00:15.1: bridge window [mem 0xfd600000-0xfd6fffff 64bit pref]
[ 0.304304] pci 0000:00:15.2: PCI bridge to [bus 08-08]
[ 0.304353] pci 0000:00:15.2: bridge window [io 0x7000-0x7fff]
[ 0.304401] pci 0000:00:15.2: bridge window [mem 0xfd500000-0xfd5fffff]
[ 0.304452] pci 0000:00:15.2: bridge window [mem 0xfd400000-0xfd4fffff 64bit pref]
[ 0.304558] pci 0000:00:15.3: PCI bridge to [bus 09-09]
[ 0.304607] pci 0000:00:15.3: bridge window [io 0x6000-0x6fff]
[ 0.304655] pci 0000:00:15.3: bridge window [mem 0xfd300000-0xfd3fffff]
[ 0.304706] pci 0000:00:15.3: bridge window [mem 0xfd200000-0xfd2fffff 64bit pref]
[ 0.304798] ACPI: PCI Interrupt Routing Table [\_SB_.PCI0._PRT]
[ 0.305011] ACPI: PCI Interrupt Routing Table [\_SB_.PCI0.PEX0._PRT]
[ 0.305082] ACPI: PCI Interrupt Routing Table [\_SB_.PCI0.PEX1._PRT]
[ 0.305147] ACPI: PCI Interrupt Routing Table [\_SB_.PCI0.PEX2._PRT]
[ 0.305212] ACPI: PCI Interrupt Routing Table [\_SB_.PCI0.PEX3._PRT]
[ 0.305280] ACPI: PCI Interrupt Routing Table [\_SB_.PCI0.P2P_._PRT]
[ 0.305356] ACPI: PCI Interrupt Routing Table [\_SB_.PCI0.PCE2._PRT]
[ 0.305426] ACPI: PCI Interrupt Routing Table [\_SB_.PCI0.PCE9._PRT]
[ 0.305497] ACPI: PCI Interrupt Routing Table [\_SB_.PCI0.PCEA._PRT]
[ 0.305561] ACPI: PCI Interrupt Routing Table [\_SB_.PCI0.PCEB._PRT]
[ 0.305629] pci0000:00: Requesting ACPI _OSC control (0x1d)
[ 0.305675] pci0000:00: ACPI _OSC request failed (AE_NOT_FOUND), returned control mask: 0x1d
[ 0.305731] ACPI _OSC control for PCIe not granted, disabling ASPM
[ 0.317417] ACPI: PCI Interrupt Link [LNKA] (IRQs 3 4 5 6 7 10 11) *0
[ 0.317835] ACPI: PCI Interrupt Link [LNKB] (IRQs 3 4 5 6 7 10 11) *0
[ 0.318241] ACPI: PCI Interrupt Link [LNKC] (IRQs 3 4 5 6 7 10 11) *0
[ 0.318648] ACPI: PCI Interrupt Link [LNKD] (IRQs 3 4 5 6 7 10 11) *0
[ 0.319066] ACPI: PCI Interrupt Link [LNKE] (IRQs 3 4 5 6 7 10 11) *0
[ 0.319470] ACPI: PCI Interrupt Link [LNKF] (IRQs 3 4 5 6 7 10 11) *0
[ 0.319874] ACPI: PCI Interrupt Link [LNK0] (IRQs 3 4 5 6 7 10 11) *0
[ 0.320292] ACPI: PCI Interrupt Link [LNK1] (IRQs 3 4 5 6 7 10 11) *0
[ 0.320685] xen/balloon: Initialising balloon driver.
[ 0.364705] xen-balloon: Initialising balloon driver.
[ 0.364771] xen/balloon: Xen selfballooning driver disabled for domain0.
[ 0.364917] vgaarb: device added: PCI:0000:01:00.0,decodes=io+mem,owns=io+mem,locks=none
[ 0.364917] vgaarb: device added: PCI:0000:04:00.0,decodes=io+mem,owns=none,locks=none
[ 0.364917] vgaarb: loaded
[ 0.364917] vgaarb: bridge control possible 0000:04:00.0
[ 0.364917] vgaarb: bridge control possible 0000:01:00.0
[ 0.364917] i2c-core: driver [aat2870] using legacy suspend method
[ 0.364917] i2c-core: driver [aat2870] using legacy resume method
[ 0.364917] SCSI subsystem initialized
[ 0.364917] libata version 3.00 loaded.
[ 0.364917] usbcore: registered new interface driver usbfs
[ 0.364917] usbcore: registered new interface driver hub
[ 0.364917] usbcore: registered new device driver usb
[ 0.364917] PCI: Using ACPI for IRQ routing
[ 0.375195] PCI: pci_cache_line_size set to 64 bytes
[ 0.375249] pci 0000:00:00.0: no compatible bridge window for [mem 0xe0000000-0xffffffff 64bit]
[ 0.375424] reserve RAM buffer: 000000000009f000 - 000000000009ffff
[ 0.375463] reserve RAM buffer: 00000000afda0000 - 00000000afffffff
[ 0.375618] NetLabel: Initializing
[ 0.375701] NetLabel: domain hash size = 128
[ 0.375744] NetLabel: protocols = UNLABELED CIPSOv4
[ 0.375796] NetLabel: unlabeled traffic allowed by default
[ 0.375890] Switching to clocksource xen
[ 0.381476] AppArmor: AppArmor Filesystem Enabled
[ 0.381544] pnp: PnP ACPI init
[ 0.381596] ACPI: bus type pnp registered
[ 0.381744] pnp 00:00: [bus 00-ff]
[ 0.381789] pnp 00:00: [io 0x0cf8-0x0cff]
[ 0.381833] pnp 00:00: [io 0x0000-0x0cf7 window]
[ 0.381878] pnp 00:00: [io 0x0d00-0xffff window]
[ 0.381923] pnp 00:00: [mem 0x000a0000-0x000bffff window]
[ 0.381968] pnp 00:00: [mem 0x000c0000-0x000dffff window]
[ 0.382014] pnp 00:00: [mem 0xfed40000-0xfed44fff window]
[ 0.382060] pnp 00:00: [mem 0xb0000000-0xfebfffff window]
[ 0.382156] pnp 00:00: Plug and Play ACPI device, IDs PNP0a03 (active)
[ 0.382208] pnp 00:01: [io 0x0010-0x001f]
[ 0.382253] pnp 00:01: [io 0x0022-0x003f]
[ 0.382297] pnp 00:01: [io 0x0044-0x004d]
[ 0.382341] pnp 00:01: [io 0x0050-0x005f]
[ 0.382385] pnp 00:01: [io 0x0062-0x0063]
[ 0.382428] pnp 00:01: [io 0x0065-0x006f]
[ 0.382472] pnp 00:01: [io 0x0074-0x007f]
[ 0.382516] pnp 00:01: [io 0x0091-0x0093]
[ 0.382560] pnp 00:01: [io 0x00a2-0x00bf]
[ 0.382604] pnp 00:01: [io 0x00e0-0x00ef]
[ 0.382648] pnp 00:01: [io 0x04d0-0x04d1]
[ 0.382692] pnp 00:01: [io 0x0220-0x0225]
[ 0.382736] pnp 00:01: [io 0x0290-0x0294]
[ 0.382829] system 00:01: [io 0x04d0-0x04d1] has been reserved
[ 0.382876] system 00:01: [io 0x0220-0x0225] has been reserved
[ 0.382922] system 00:01: [io 0x0290-0x0294] has been reserved
[ 0.382968] system 00:01: Plug and Play ACPI device, IDs PNP0c02 (active)
[ 0.388156] pnp 00:02: [io 0x0900-0x091f]
[ 0.388202] pnp 00:02: [io 0x0228-0x022f]
[ 0.388246] pnp 00:02: [io 0x040b]
[ 0.388289] pnp 00:02: [io 0x04d6]
[ 0.388333] pnp 00:02: [io 0x0c00-0x0c01]
[ 0.388377] pnp 00:02: [io 0x0c14]
[ 0.388420] pnp 00:02: [io 0x0c50-0x0c52]
[ 0.388463] pnp 00:02: [io 0x0c6c-0x0c6d]
[ 0.388507] pnp 00:02: [io 0x0c6f]
[ 0.388550] pnp 00:02: [io 0x0cd0-0x0cd1]
[ 0.388593] pnp 00:02: [io 0x0cd2-0x0cd3]
[ 0.388637] pnp 00:02: [io 0x0cd4-0x0cdf]
[ 0.388680] pnp 00:02: [io 0x0800-0x08fe]
[ 0.388724] pnp 00:02: [io 0x0a10-0x0a17]
[ 0.388767] pnp 00:02: [io 0x0b00-0x0b0f]
[ 0.388810] pnp 00:02: [io 0x0b10-0x0b1f]
[ 0.388856] pnp 00:02: [io 0x0b20-0x0b3f]
[ 0.388900] pnp 00:02: [mem 0x00000000-0x00000fff window]
[ 0.388945] pnp 00:02: [mem 0xfee00400-0xfee00fff window]
[ 0.388994] pnp 00:02: disabling [mem 0x00000000-0x00000fff window] because it overlaps 0000:00:00.0 BAR 3 [mem 0x00000000-0x1fffffff 64bit]
[ 0.389075] pnp 00:02: disabling [mem 0x00000000-0x00000fff window disabled] because it overlaps 0000:01:00.0 BAR 6 [mem 0x00000000-0x0007ffff pref]
[ 0.389138] pnp 00:02: disabling [mem 0x00000000-0x00000fff window disabled] because it overlaps 0000:03:00.0 BAR 6 [mem 0x00000000-0x0000ffff pref]
[ 0.390243] pnp 00:02: disabling [mem 0x00000000-0x00000fff window disabled] because it overlaps 0000:04:00.0 BAR 6 [mem 0x00000000-0x0001ffff pref]
[ 0.390333] system 00:02: [io 0x0900-0x091f] has been reserved
[ 0.390379] system 00:02: [io 0x0228-0x022f] has been reserved
[ 0.390424] system 00:02: [io 0x040b] has been reserved
[ 0.390468] system 00:02: [io 0x04d6] has been reserved
[ 0.390514] system 00:02: [io 0x0c00-0x0c01] has been reserved
[ 0.390558] system 00:02: [io 0x0c14] has been reserved
[ 0.390610] system 00:02: [io 0x0c50-0x0c52] has been reserved
[ 0.390655] system 00:02: [io 0x0c6c-0x0c6d] has been reserved
[ 0.390701] system 00:02: [io 0x0c6f] has been reserved
[ 0.390746] system 00:02: [io 0x0cd0-0x0cd1] has been reserved
[ 0.390791] system 00:02: [io 0x0cd2-0x0cd3] has been reserved
[ 0.390837] system 00:02: [io 0x0cd4-0x0cdf] has been reserved
[ 0.390883] system 00:02: [io 0x0800-0x08fe] has been reserved
[ 0.390928] system 00:02: [io 0x0a10-0x0a17] has been reserved
[ 0.390973] system 00:02: [io 0x0b00-0x0b0f] has been reserved
[ 0.391019] system 00:02: [io 0x0b10-0x0b1f] has been reserved
[ 0.391064] system 00:02: [io 0x0b20-0x0b3f] has been reserved
[ 0.391109] system 00:02: [mem 0xfee00400-0xfee00fff window] has been reserved
[ 0.391164] system 00:02: Plug and Play ACPI device, IDs PNP0c02 (active)
[ 0.391300] pnp 00:03: [dma 4]
[ 0.391344] pnp 00:03: [io 0x0000-0x000f]
[ 0.391388] pnp 00:03: [io 0x0080-0x0090]
[ 0.391431] pnp 00:03: [io 0x0094-0x009f]
[ 0.391474] pnp 00:03: [io 0x00c0-0x00df]
[ 0.391543] pnp 00:03: Plug and Play ACPI device, IDs PNP0200 (active)
[ 0.391632] pnp 00:04: [irq 0 disabled]
[ 0.391677] xen: registering gsi 8 triggering 1 polarity 0
[ 0.391733] pnp 00:04: [irq 8]
[ 0.391778] pnp 00:04: [mem 0xfed00000-0xfed003ff]
[ 0.391844] pnp 00:04: Plug and Play ACPI device, IDs PNP0103 (active)
[ 0.391913] pnp 00:05: [io 0x0070-0x0073]
[ 0.391978] pnp 00:05: Plug and Play ACPI device, IDs PNP0b00 (active)
[ 0.392033] pnp 00:06: [io 0x0061]
[ 0.392098] pnp 00:06: Plug and Play ACPI device, IDs PNP0800 (active)
[ 0.392148] pnp 00:07: [io 0x00f0-0x00ff]
[ 0.392192] xen: registering gsi 13 triggering 1 polarity 0
[ 0.392244] pnp 00:07: [irq 13]
[ 0.392309] pnp 00:07: Plug and Play ACPI device, IDs PNP0c04 (active)
[ 0.392637] pnp 00:08: [io 0x03f8-0x03ff]
[ 0.392681] xen: registering gsi 4 triggering 1 polarity 0
[ 0.392733] pnp 00:08: [irq 4]
[ 0.392816] pnp 00:08: Plug and Play ACPI device, IDs PNP0501 (active)
[ 0.392885] pnp 00:09: [io 0x0060]
[ 0.392929] pnp 00:09: [io 0x0064]
[ 0.392973] xen: registering gsi 1 triggering 1 polarity 0
[ 0.393025] pnp 00:09: [irq 1]
[ 0.393098] pnp 00:09: Plug and Play ACPI device, IDs PNP0303 (active)
[ 0.393167] pnp 00:0a: [mem 0xe0000000-0xefffffff]
[ 0.393256] system 00:0a: [mem 0xe0000000-0xefffffff] has been reserved
[ 0.393303] system 00:0a: Plug and Play ACPI device, IDs PNP0c02 (active)
[ 0.393522] pnp 00:0b: [mem 0x000cec00-0x000cffff]
[ 0.393567] pnp 00:0b: [mem 0x000f0000-0x000f7fff]
[ 0.393612] pnp 00:0b: [mem 0x000f8000-0x000fbfff]
[ 0.393657] pnp 00:0b: [mem 0x000fc000-0x000fffff]
[ 0.393701] pnp 00:0b: [mem 0xafda0000-0xafdfffff]
[ 0.393746] pnp 00:0b: [mem 0xffff0000-0xffffffff]
[ 0.393790] pnp 00:0b: [mem 0x00000000-0x0009ffff]
[ 0.393835] pnp 00:0b: [mem 0x00100000-0xafd9ffff]
[ 0.393880] pnp 00:0b: [mem 0xafe00000-0xafefffff]
[ 0.393924] pnp 00:0b: [mem 0xaff00000-0xafffffff]
[ 0.393968] pnp 00:0b: [mem 0xfec00000-0xfec00fff]
[ 0.394013] pnp 00:0b: [mem 0xfee00000-0xfee00fff]
[ 0.394058] pnp 00:0b: [mem 0xfff80000-0xfffeffff]
[ 0.394104] pnp 00:0b: disabling [mem 0x000cec00-0x000cffff] because it overlaps 0000:00:00.0 BAR 3 [mem 0x00000000-0x1fffffff 64bit]
[ 0.394162] pnp 00:0b: disabling [mem 0x000f0000-0x000f7fff] because it overlaps 0000:00:00.0 BAR 3 [mem 0x00000000-0x1fffffff 64bit]
[ 0.394219] pnp 00:0b: disabling [mem 0x000f8000-0x000fbfff] because it overlaps 0000:00:00.0 BAR 3 [mem 0x00000000-0x1fffffff 64bit]
[ 0.394277] pnp 00:0b: disabling [mem 0x000fc000-0x000fffff] because it overlaps 0000:00:00.0 BAR 3 [mem 0x00000000-0x1fffffff 64bit]
[ 0.394335] pnp 00:0b: disabling [mem 0x00000000-0x0009ffff] because it overlaps 0000:00:00.0 BAR 3 [mem 0x00000000-0x1fffffff 64bit]
[ 0.394393] pnp 00:0b: disabling [mem 0x00100000-0xafd9ffff] because it overlaps 0000:00:00.0 BAR 3 [mem 0x00000000-0x1fffffff 64bit]
[ 0.394506] system 00:0b: [mem 0xafda0000-0xafdfffff] could not be reserved
[ 0.394553] system 00:0b: [mem 0xffff0000-0xffffffff] has been reserved
[ 0.394599] system 00:0b: [mem 0xafe00000-0xafefffff] has been reserved
[ 0.394645] system 00:0b: [mem 0xaff00000-0xafffffff] could not be reserved
[ 0.394692] system 00:0b: [mem 0xfec00000-0xfec00fff] could not be reserved
[ 0.394739] system 00:0b: [mem 0xfee00000-0xfee00fff] could not be reserved
[ 0.394785] system 00:0b: [mem 0xfff80000-0xfffeffff] has been reserved
[ 0.394832] system 00:0b: Plug and Play ACPI device, IDs PNP0c01 (active)
[ 0.394892] pnp: PnP ACPI: found 12 devices
[ 0.394936] ACPI: ACPI bus type pnp unregistered
[ 0.399208] PM-Timer failed consistency check (0x0xffffff) - aborting.
[ 0.399280] PCI: max bus depth: 1 pci_try_num: 2
[ 0.399383] pci 0000:01:00.0: BAR 6: assigned [mem 0xc0000000-0xc007ffff pref]
[ 0.399438] pci 0000:00:02.0: PCI bridge to [bus 01-01]
[ 0.399485] pci 0000:00:02.0: bridge window [io 0xc000-0xcfff]
[ 0.399533] pci 0000:00:02.0: bridge window [mem 0xfb000000-0xfcffffff]
[ 0.399581] pci 0000:00:02.0: bridge window [mem 0xb0000000-0xcfffffff 64bit pref]
[ 0.399639] pci 0000:00:09.0: PCI bridge to [bus 02-02]
[ 0.399685] pci 0000:00:09.0: bridge window [io 0xb000-0xbfff]
[ 0.399734] pci 0000:00:09.0: bridge window [mem 0xfdd00000-0xfddfffff]
[ 0.399781] pci 0000:00:09.0: bridge window [mem 0xfda00000-0xfdafffff 64bit pref]
[ 0.399839] pci 0000:03:00.0: BAR 6: assigned [mem 0xfd000000-0xfd00ffff pref]
[ 0.399894] pci 0000:00:0a.0: PCI bridge to [bus 03-03]
[ 0.399940] pci 0000:00:0a.0: bridge window [io 0xe000-0xefff]
[ 0.399988] pci 0000:00:0a.0: bridge window [mem 0xfd100000-0xfd1fffff]
[ 0.400043] pci 0000:00:0a.0: bridge window [mem 0xfd000000-0xfd0fffff 64bit pref]
[ 0.400101] pci 0000:04:00.0: BAR 6: assigned [mem 0xfde00000-0xfde1ffff pref]
[ 0.400155] pci 0000:00:0b.0: PCI bridge to [bus 04-04]
[ 0.400201] pci 0000:00:0b.0: bridge window [io 0xd000-0xdfff]
[ 0.400248] pci 0000:00:0b.0: bridge window [mem 0xfde00000-0xfdefffff]
[ 0.400296] pci 0000:00:0b.0: bridge window [mem 0xd0000000-0xdfffffff 64bit pref]
[ 0.400354] pci 0000:00:14.4: PCI bridge to [bus 05-05]
[ 0.400399] pci 0000:00:14.4: bridge window [io 0xa000-0xafff]
[ 0.400448] pci 0000:00:14.4: bridge window [mem 0xfdc00000-0xfdcfffff]
[ 0.400497] pci 0000:00:14.4: bridge window [mem 0xfdb00000-0xfdbfffff pref]
[ 0.400555] pci 0000:00:15.0: PCI bridge to [bus 06-06]
[ 0.400601] pci 0000:00:15.0: bridge window [io 0x9000-0x9fff]
[ 0.400650] pci 0000:00:15.0: bridge window [mem 0xfd900000-0xfd9fffff]
[ 0.400698] pci 0000:00:15.0: bridge window [mem 0xfd800000-0xfd8fffff 64bit pref]
[ 0.400756] pci 0000:00:15.1: PCI bridge to [bus 07-07]
[ 0.400802] pci 0000:00:15.1: bridge window [io 0x8000-0x8fff]
[ 0.400851] pci 0000:00:15.1: bridge window [mem 0xfd700000-0xfd7fffff]
[ 0.400899] pci 0000:00:15.1: bridge window [mem 0xfd600000-0xfd6fffff 64bit pref]
[ 0.400957] pci 0000:00:15.2: PCI bridge to [bus 08-08]
[ 0.401003] pci 0000:00:15.2: bridge window [io 0x7000-0x7fff]
[ 0.401052] pci 0000:00:15.2: bridge window [mem 0xfd500000-0xfd5fffff]
[ 0.401100] pci 0000:00:15.2: bridge window [mem 0xfd400000-0xfd4fffff 64bit pref]
[ 0.401159] pci 0000:00:15.3: PCI bridge to [bus 09-09]
[ 0.401205] pci 0000:00:15.3: bridge window [io 0x6000-0x6fff]
[ 0.401254] pci 0000:00:15.3: bridge window [mem 0xfd300000-0xfd3fffff]
[ 0.401302] pci 0000:00:15.3: bridge window [mem 0xfd200000-0xfd2fffff 64bit pref]
[ 0.401365] xen: registering gsi 18 triggering 0 polarity 1
[ 0.401421] xen: --> pirq=18 -> irq=18 (gsi=18)
[ 0.401472] pci 0000:00:02.0: PCI INT A -> GSI 18 (level, low) -> IRQ 18
[ 0.401521] pci 0000:00:02.0: setting latency timer to 64
[ 0.401570] xen: registering gsi 17 triggering 0 polarity 1
[ 0.401619] xen: --> pirq=17 -> irq=17 (gsi=17)
[ 0.401667] pci 0000:00:09.0: PCI INT A -> GSI 17 (level, low) -> IRQ 17
[ 0.401714] pci 0000:00:09.0: setting latency timer to 64
[ 0.401762] xen: registering gsi 18 triggering 0 polarity 1
[ 0.401808] Already setup the GSI :18
[ 0.401852] pci 0000:00:0a.0: PCI INT A -> GSI 18 (level, low) -> IRQ 18
[ 0.401900] pci 0000:00:0a.0: setting latency timer to 64
[ 0.401948] xen: registering gsi 19 triggering 0 polarity 1
[ 0.401995] xen: --> pirq=19 -> irq=19 (gsi=19)
[ 0.402044] pci 0000:00:0b.0: PCI INT A -> GSI 19 (level, low) -> IRQ 19
[ 0.402092] pci 0000:00:0b.0: setting latency timer to 64
[ 0.402146] xen: registering gsi 17 triggering 0 polarity 1
[ 0.402191] Already setup the GSI :17
[ 0.402235] pci 0000:00:15.0: PCI INT A -> GSI 17 (level, low) -> IRQ 17
[ 0.402283] pci 0000:00:15.0: setting latency timer to 64
[ 0.402332] xen: registering gsi 17 triggering 0 polarity 1
[ 0.402377] Already setup the GSI :17
[ 0.402420] pci 0000:00:15.1: PCI INT A -> GSI 17 (level, low) -> IRQ 17
[ 0.402469] pci 0000:00:15.1: setting latency timer to 64
[ 0.402518] xen: registering gsi 17 triggering 0 polarity 1
[ 0.402563] Already setup the GSI :17
[ 0.402606] pci 0000:00:15.2: PCI INT A -> GSI 17 (level, low) -> IRQ 17
[ 0.402655] pci 0000:00:15.2: setting latency timer to 64
[ 0.402704] xen: registering gsi 17 triggering 0 polarity 1
[ 0.402749] Already setup the GSI :17
[ 0.402792] pci 0000:00:15.3: PCI INT A -> GSI 17 (level, low) -> IRQ 17
[ 0.402841] pci 0000:00:15.3: setting latency timer to 64
[ 0.402888] pci_bus 0000:00: resource 4 [io 0x0000-0x0cf7]
[ 0.402933] pci_bus 0000:00: resource 5 [io 0x0d00-0xffff]
[ 0.402978] pci_bus 0000:00: resource 6 [mem 0x000a0000-0x000bffff]
[ 0.403024] pci_bus 0000:00: resource 7 [mem 0x000c0000-0x000dffff]
[ 0.403070] pci_bus 0000:00: resource 8 [mem 0xfed40000-0xfed44fff]
[ 0.403115] pci_bus 0000:00: resource 9 [mem 0xb0000000-0xfebfffff]
[ 0.403161] pci_bus 0000:01: resource 0 [io 0xc000-0xcfff]
[ 0.404255] pci_bus 0000:01: resource 1 [mem 0xfb000000-0xfcffffff]
[ 0.404301] pci_bus 0000:01: resource 2 [mem 0xb0000000-0xcfffffff 64bit pref]
[ 0.404356] pci_bus 0000:02: resource 0 [io 0xb000-0xbfff]
[ 0.404401] pci_bus 0000:02: resource 1 [mem 0xfdd00000-0xfddfffff]
[ 0.404447] pci_bus 0000:02: resource 2 [mem 0xfda00000-0xfdafffff 64bit pref]
[ 0.404500] pci_bus 0000:03: resource 0 [io 0xe000-0xefff]
[ 0.404546] pci_bus 0000:03: resource 1 [mem 0xfd100000-0xfd1fffff]
[ 0.404591] pci_bus 0000:03: resource 2 [mem 0xfd000000-0xfd0fffff 64bit pref]
[ 0.404645] pci_bus 0000:04: resource 0 [io 0xd000-0xdfff]
[ 0.404690] pci_bus 0000:04: resource 1 [mem 0xfde00000-0xfdefffff]
[ 0.404737] pci_bus 0000:04: resource 2 [mem 0xd0000000-0xdfffffff 64bit pref]
[ 0.404791] pci_bus 0000:05: resource 0 [io 0xa000-0xafff]
[ 0.404836] pci_bus 0000:05: resource 1 [mem 0xfdc00000-0xfdcfffff]
[ 0.404881] pci_bus 0000:05: resource 2 [mem 0xfdb00000-0xfdbfffff pref]
[ 0.404927] pci_bus 0000:05: resource 4 [io 0x0000-0x0cf7]
[ 0.404972] pci_bus 0000:05: resource 5 [io 0x0d00-0xffff]
[ 0.405017] pci_bus 0000:05: resource 6 [mem 0x000a0000-0x000bffff]
[ 0.405063] pci_bus 0000:05: resource 7 [mem 0x000c0000-0x000dffff]
[ 0.405108] pci_bus 0000:05: resource 8 [mem 0xfed40000-0xfed44fff]
[ 0.405154] pci_bus 0000:05: resource 9 [mem 0xb0000000-0xfebfffff]
[ 0.405199] pci_bus 0000:06: resource 0 [io 0x9000-0x9fff]
[ 0.405245] pci_bus 0000:06: resource 1 [mem 0xfd900000-0xfd9fffff]
[ 0.405290] pci_bus 0000:06: resource 2 [mem 0xfd800000-0xfd8fffff 64bit pref]
[ 0.405344] pci_bus 0000:07: resource 0 [io 0x8000-0x8fff]
[ 0.405389] pci_bus 0000:07: resource 1 [mem 0xfd700000-0xfd7fffff]
[ 0.405434] pci_bus 0000:07: resource 2 [mem 0xfd600000-0xfd6fffff 64bit pref]
[ 0.405489] pci_bus 0000:08: resource 0 [io 0x7000-0x7fff]
[ 0.405533] pci_bus 0000:08: resource 1 [mem 0xfd500000-0xfd5fffff]
[ 0.405579] pci_bus 0000:08: resource 2 [mem 0xfd400000-0xfd4fffff 64bit pref]
[ 0.405633] pci_bus 0000:09: resource 0 [io 0x6000-0x6fff]
[ 0.405678] pci_bus 0000:09: resource 1 [mem 0xfd300000-0xfd3fffff]
[ 0.405723] pci_bus 0000:09: resource 2 [mem 0xfd200000-0xfd2fffff 64bit pref]
[ 0.405806] NET: Registered protocol family 2
[ 0.406787] IP route cache hash table entries: 524288 (order: 10, 4194304 bytes)
[ 0.409639] TCP established hash table entries: 524288 (order: 11, 8388608 bytes)
[ 0.411775] TCP bind hash table entries: 65536 (order: 8, 1048576 bytes)
[ 0.412073] TCP: Hash tables configured (established 524288 bind 65536)
[ 0.412120] TCP reno registered
[ 0.412221] UDP hash table entries: 8192 (order: 6, 262144 bytes)
[ 0.412407] UDP-Lite hash table entries: 8192 (order: 6, 262144 bytes)
[ 0.412596] NET: Registered protocol family 1
[ 0.412672] xen: registering gsi 18 triggering 0 polarity 1
[ 0.412720] Already setup the GSI :18
[ 0.412765] pci 0000:00:12.0: PCI INT A -> GSI 18 (level, low) -> IRQ 18
[ 0.484068] pci 0000:00:12.0: PCI INT A disabled
[ 0.484133] xen: registering gsi 17 triggering 0 polarity 1
[ 0.484180] Already setup the GSI :17
[ 0.484224] pci 0000:00:12.2: PCI INT B -> GSI 17 (level, low) -> IRQ 17
[ 0.484339] pci 0000:00:12.2: PCI INT B disabled
[ 0.484390] xen: registering gsi 18 triggering 0 polarity 1
[ 0.484435] Already setup the GSI :18
[ 0.484479] pci 0000:00:13.0: PCI INT A -> GSI 18 (level, low) -> IRQ 18
[ 0.556070] pci 0000:00:13.0: PCI INT A disabled
[ 0.556133] xen: registering gsi 17 triggering 0 polarity 1
[ 0.556180] Already setup the GSI :17
[ 0.556225] pci 0000:00:13.2: PCI INT B -> GSI 17 (level, low) -> IRQ 17
[ 0.556338] pci 0000:00:13.2: PCI INT B disabled
[ 0.556399] xen: registering gsi 18 triggering 0 polarity 1
[ 0.556444] Already setup the GSI :18
[ 0.556488] pci 0000:00:14.5: PCI INT C -> GSI 18 (level, low) -> IRQ 18
[ 0.628069] pci 0000:00:14.5: PCI INT C disabled
[ 0.628140] xen: registering gsi 18 triggering 0 polarity 1
[ 0.628186] Already setup the GSI :18
[ 0.628230] pci 0000:00:16.0: PCI INT A -> GSI 18 (level, low) -> IRQ 18
[ 0.700069] pci 0000:00:16.0: PCI INT A disabled
[ 0.700147] xen: registering gsi 17 triggering 0 polarity 1
[ 0.700195] Already setup the GSI :17
[ 0.700239] pci 0000:00:16.2: PCI INT B -> GSI 17 (level, low) -> IRQ 17
[ 0.700336] pci 0000:00:16.2: PCI INT B disabled
[ 0.700411] pci 0000:01:00.0: Boot video device
[ 0.700474] xen: registering gsi 17 triggering 0 polarity 1
[ 0.700520] Already setup the GSI :17
[ 0.700564] pci 0000:02:00.0: PCI INT A -> GSI 17 (level, low) -> IRQ 17
[ 0.700646] pci 0000:02:00.0: PCI INT A disabled
[ 0.700711] xen: registering gsi 17 triggering 0 polarity 1
[ 0.700756] Already setup the GSI :17
[ 0.700799] pci 0000:07:00.0: PCI INT A -> GSI 17 (level, low) -> IRQ 17
[ 0.700884] pci 0000:07:00.0: PCI INT A disabled
[ 0.700932] PCI: CLS 64 bytes, default 64
[ 0.701347] audit: initializing netlink socket (disabled)
[ 0.701401] type=2000 audit(1421596262.145:1): initialized
[ 0.716611] HugeTLB registered 2 MB page size, pre-allocated 0 pages
[ 0.717811] VFS: Disk quotas dquot_6.5.2
[ 0.717896] Dquot-cache hash table entries: 512 (order 0, 4096 bytes)
[ 0.718314] fuse init (API version 7.17)
[ 0.718430] msgmni has been set to 4871
[ 0.718858] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 253)
[ 0.718940] io scheduler noop registered
[ 0.718984] io scheduler deadline registered
[ 0.719048] io scheduler cfq registered (default)
[ 0.719537] pci_hotplug: PCI Hot Plug PCI Core version: 0.5
[ 0.719594] pciehp: PCI Express Hot Plug Controller Driver version: 0.4
[ 0.719743] input: Power Button as /devices/LNXSYSTM:00/LNXSYBUS:00/PNP0C0C:00/input/input0
[ 0.719800] ACPI: Power Button [PWRB]
[ 0.719878] input: Power Button as /devices/LNXSYSTM:00/LNXPWRBN:00/input/input1
[ 0.719932] ACPI: Power Button [PWRF]
[ 0.924626] ERST: Table is not found!
[ 0.924671] GHES: HEST is not enabled!
[ 0.925256] Serial: 8250/16550 driver, 32 ports, IRQ sharing enabled
[ 0.984859] hpet_acpi_add: no address or irqs in _CRS
[ 0.984980] Linux agpgart interface v0.103
[ 0.990400] brd: module loaded
[ 0.992733] loop: module loaded
[ 0.993353] ahci 0000:00:11.0: version 3.0
[ 0.993450] xen: registering gsi 19 triggering 0 polarity 1
[ 0.993529] Already setup the GSI :19
[ 0.993605] ahci 0000:00:11.0: PCI INT A -> GSI 19 (level, low) -> IRQ 19
[ 0.993931] ahci 0000:00:11.0: AHCI 0001.0200 32 slots 4 ports 6 Gbps 0xf impl SATA mode
[ 0.994027] ahci 0000:00:11.0: flags: 64bit ncq sntf ilck pm led clo pmp pio slum part
[ 0.995440] scsi0 : ahci
[ 0.995749] scsi1 : ahci
[ 0.996040] scsi2 : ahci
[ 0.996307] scsi3 : ahci
[ 0.996658] ata1: SATA max UDMA/133 abar m1024@0xfdfff000 port 0xfdfff100 irq 19
[ 0.996751] ata2: SATA max UDMA/133 abar m1024@0xfdfff000 port 0xfdfff180 irq 19
[ 0.996841] ata3: SATA max UDMA/133 abar m1024@0xfdfff000 port 0xfdfff200 irq 19
[ 0.996929] ata4: SATA max UDMA/133 abar m1024@0xfdfff000 port 0xfdfff280 irq 19
[ 0.997204] xen: registering gsi 18 triggering 0 polarity 1
[ 0.997290] Already setup the GSI :18
[ 0.997369] ahci 0000:03:00.0: PCI INT A -> GSI 18 (level, low) -> IRQ 18
[ 0.997682] ahci 0000:03:00.0: AHCI 0001.0000 32 slots 2 ports 6 Gbps 0x3 impl IDE mode
[ 0.997776] ahci 0000:03:00.0: flags: 64bit ncq sntf led only pmp fbs pio slum part sxs
[ 0.997872] ahci 0000:03:00.0: setting latency timer to 64
[ 0.998761] scsi4 : ahci
[ 0.999054] scsi5 : ahci
[ 0.999244] ata5: SATA max UDMA/133 abar m512@0xfd1ff000 port 0xfd1ff100 irq 298
[ 0.999334] ata6: SATA max UDMA/133 abar m512@0xfd1ff000 port 0xfd1ff180 irq 298
[ 0.999686] xen: registering gsi 17 triggering 0 polarity 1
[ 0.999767] Already setup the GSI :17
[ 0.999843] pata_acpi 0000:00:14.1: PCI INT B -> GSI 17 (level, low) -> IRQ 17
[ 1.000880] Fixed MDIO Bus: probed
[ 1.001002] tun: Universal TUN/TAP device driver, 1.6
[ 1.001078] tun: (C) 1999-2004 Max Krasnyansky <[email protected]>
[ 1.001356] PPP generic driver version 2.4.2
[ 1.001743] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[ 1.001870] xen: registering gsi 17 triggering 0 polarity 1
[ 1.001950] Already setup the GSI :17
[ 1.002027] ehci_hcd 0000:00:12.2: PCI INT B -> GSI 17 (level, low) -> IRQ 17
[ 1.002154] ehci_hcd 0000:00:12.2: EHCI Host Controller
[ 1.002403] ehci_hcd 0000:00:12.2: new USB bus registered, assigned bus number 1
[ 1.002503] ehci_hcd 0000:00:12.2: applying AMD SB700/SB800/Hudson-2/3 EHCI dummy qh workaround
[ 1.002735] QUIRK: Enable AMD PLL fix
[ 1.002842] ehci_hcd 0000:00:12.2: debug port 1
[ 1.002993] ehci_hcd 0000:00:12.2: irq 17, io mem 0xfdffd000
[ 1.012083] ehci_hcd 0000:00:12.2: USB 2.0 started, EHCI 1.00
[ 1.012587] hub 1-0:1.0: USB hub found
[ 1.012678] hub 1-0:1.0: 5 ports detected
[ 1.012979] xen: registering gsi 17 triggering 0 polarity 1
[ 1.013060] Already setup the GSI :17
[ 1.013137] ehci_hcd 0000:00:13.2: PCI INT B -> GSI 17 (level, low) -> IRQ 17
[ 1.013265] ehci_hcd 0000:00:13.2: EHCI Host Controller
[ 1.013530] ehci_hcd 0000:00:13.2: new USB bus registered, assigned bus number 2
[ 1.013628] ehci_hcd 0000:00:13.2: applying AMD SB700/SB800/Hudson-2/3 EHCI dummy qh workaround
[ 1.014898] ehci_hcd 0000:00:13.2: debug port 1
[ 1.014999] ehci_hcd 0000:00:13.2: irq 17, io mem 0xfdffb000
[ 1.024083] ehci_hcd 0000:00:13.2: USB 2.0 started, EHCI 1.00
[ 1.024596] hub 2-0:1.0: USB hub found
[ 1.024679] hub 2-0:1.0: 5 ports detected
[ 1.024960] xen: registering gsi 17 triggering 0 polarity 1
[ 1.025039] Already setup the GSI :17
[ 1.025116] ehci_hcd 0000:00:16.2: PCI INT B -> GSI 17 (level, low) -> IRQ 17
[ 1.025244] ehci_hcd 0000:00:16.2: EHCI Host Controller
[ 1.025496] ehci_hcd 0000:00:16.2: new USB bus registered, assigned bus number 3
[ 1.025594] ehci_hcd 0000:00:16.2: applying AMD SB700/SB800/Hudson-2/3 EHCI dummy qh workaround
[ 1.025788] ehci_hcd 0000:00:16.2: debug port 1
[ 1.025891] ehci_hcd 0000:00:16.2: irq 17, io mem 0xfdff8000
[ 1.036081] ehci_hcd 0000:00:16.2: USB 2.0 started, EHCI 1.00
[ 1.036554] hub 3-0:1.0: USB hub found
[ 1.036651] hub 3-0:1.0: 4 ports detected
[ 1.036924] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[ 1.037044] xen: registering gsi 18 triggering 0 polarity 1
[ 1.037124] Already setup the GSI :18
[ 1.037201] ohci_hcd 0000:00:12.0: PCI INT A -> GSI 18 (level, low) -> IRQ 18
[ 1.037327] ohci_hcd 0000:00:12.0: OHCI Host Controller
[ 1.037602] ohci_hcd 0000:00:12.0: new USB bus registered, assigned bus number 4
[ 1.037800] ohci_hcd 0000:00:12.0: irq 18, io mem 0xfdffe000
[ 1.096438] hub 4-0:1.0: USB hub found
[ 1.096528] hub 4-0:1.0: 5 ports detected
[ 1.096801] xen: registering gsi 18 triggering 0 polarity 1
[ 1.096880] Already setup the GSI :18
[ 1.096956] ohci_hcd 0000:00:13.0: PCI INT A -> GSI 18 (level, low) -> IRQ 18
[ 1.097081] ohci_hcd 0000:00:13.0: OHCI Host Controller
[ 1.097339] ohci_hcd 0000:00:13.0: new USB bus registered, assigned bus number 5
[ 1.097489] ohci_hcd 0000:00:13.0: irq 18, io mem 0xfdffc000
[ 1.156431] hub 5-0:1.0: USB hub found
[ 1.156521] hub 5-0:1.0: 5 ports detected
[ 1.156797] xen: registering gsi 18 triggering 0 polarity 1
[ 1.156877] Already setup the GSI :18
[ 1.156953] ohci_hcd 0000:00:14.5: PCI INT C -> GSI 18 (level, low) -> IRQ 18
[ 1.157077] ohci_hcd 0000:00:14.5: OHCI Host Controller
[ 1.157352] ohci_hcd 0000:00:14.5: new USB bus registered, assigned bus number 6
[ 1.157518] ohci_hcd 0000:00:14.5: irq 18, io mem 0xfdffa000
[ 1.216433] hub 6-0:1.0: USB hub found
[ 1.216523] hub 6-0:1.0: 2 ports detected
[ 1.216789] xen: registering gsi 18 triggering 0 polarity 1
[ 1.216868] Already setup the GSI :18
[ 1.216945] ohci_hcd 0000:00:16.0: PCI INT A -> GSI 18 (level, low) -> IRQ 18
[ 1.217069] ohci_hcd 0000:00:16.0: OHCI Host Controller
[ 1.217329] ohci_hcd 0000:00:16.0: new USB bus registered, assigned bus number 7
[ 1.217489] ohci_hcd 0000:00:16.0: irq 18, io mem 0xfdff9000
[ 1.276438] hub 7-0:1.0: USB hub found
[ 1.276528] hub 7-0:1.0: 4 ports detected
[ 1.276796] uhci_hcd: USB Universal Host Controller Interface driver
[ 1.276986] xen: registering gsi 17 triggering 0 polarity 1
[ 1.277067] Already setup the GSI :17
[ 1.277143] xhci_hcd 0000:02:00.0: PCI INT A -> GSI 17 (level, low) -> IRQ 17
[ 1.277291] xhci_hcd 0000:02:00.0: setting latency timer to 64
[ 1.277373] xhci_hcd 0000:02:00.0: xHCI Host Controller
[ 1.277631] xhci_hcd 0000:02:00.0: new USB bus registered, assigned bus number 8
[ 1.278479] xHCI xhci_add_endpoint called for root hub
[ 1.278560] xHCI xhci_check_bandwidth called for root hub
[ 1.278701] hub 8-0:1.0: USB hub found
[ 1.278784] hub 8-0:1.0: 2 ports detected
[ 1.279009] xhci_hcd 0000:02:00.0: xHCI Host Controller
[ 1.279253] xhci_hcd 0000:02:00.0: new USB bus registered, assigned bus number 9
[ 1.279571] xHCI xhci_add_endpoint called for root hub
[ 1.279649] xHCI xhci_check_bandwidth called for root hub
[ 1.279790] hub 9-0:1.0: USB hub found
[ 1.279872] hub 9-0:1.0: 2 ports detected
[ 1.316107] ata6: SATA link down (SStatus 0 SControl 300)
[ 1.316242] ata5: SATA link down (SStatus 0 SControl 300)
[ 1.320176] xen: registering gsi 17 triggering 0 polarity 1
[ 1.320261] Already setup the GSI :17
[ 1.320338] xhci_hcd 0000:07:00.0: PCI INT A -> GSI 17 (level, low) -> IRQ 17
[ 1.320496] xhci_hcd 0000:07:00.0: setting latency timer to 64
[ 1.320581] xhci_hcd 0000:07:00.0: xHCI Host Controller
[ 1.320865] xhci_hcd 0000:07:00.0: new USB bus registered, assigned bus number 10
[ 1.321759] xHCI xhci_add_endpoint called for root hub
[ 1.321838] xHCI xhci_check_bandwidth called for root hub
[ 1.321978] hub 10-0:1.0: USB hub found
[ 1.322061] hub 10-0:1.0: 2 ports detected
[ 1.322284] xhci_hcd 0000:07:00.0: xHCI Host Controller
[ 1.322523] xhci_hcd 0000:07:00.0: new USB bus registered, assigned bus number 11
[ 1.322839] xHCI xhci_add_endpoint called for root hub
[ 1.322917] xHCI xhci_check_bandwidth called for root hub
[ 1.323053] hub 11-0:1.0: USB hub found
[ 1.323136] hub 11-0:1.0: 2 ports detected
[ 1.364299] usbcore: registered new interface driver libusual
[ 1.364468] i8042: PNP: PS/2 Controller [PNP0303:PS2K] at 0x60,0x64 irq 1
[ 1.364545] i8042: PNP: PS/2 appears to have AUX port disabled, if this is incorrect please boot with i8042.nopnp
[ 1.364913] serio: i8042 KBD port at 0x60,0x64 irq 1
[ 1.365307] mousedev: PS/2 mouse device common for all mice
[ 1.365760] rtc_cmos 00:05: RTC can wake from S4
[ 1.366068] rtc_cmos 00:05: rtc core: registered rtc_cmos as rtc0
[ 1.366200] rtc0: alarms up to one month, 242 bytes nvram
[ 1.366491] device-mapper: uevent: version 1.0.3
[ 1.366816] device-mapper: ioctl: 4.22.0-ioctl (2011-10-19) initialised: [email protected]
[ 1.366917] EFI Variables Facility v0.08 2004-May-17
[ 1.367692] TCP cubic registered
[ 1.368117] NET: Registered protocol family 10
[ 1.369737] NET: Registered protocol family 17
[ 1.369836] Registering the dns_resolver key type
[ 1.370325] PM: Hibernation image not present or could not be loaded.
[ 1.370425] registered taskstats version 1
[ 1.384580] input: AT Translated Set 2 keyboard as /devices/platform/i8042/serio0/input/input2
[ 1.410198] Magic number: 15:251:892
[ 1.410382] bdi default: hash matches
[ 1.410557] rtc_cmos 00:05: setting system clock to 2015-01-18 15:51:02 UTC (1421596262)
[ 1.410705] powernow-k8: Found 1 AMD Phenom(tm) II X4 965 Processor (4 cpu cores) (version 2.20.00)
[ 1.410809] BIOS EDD facility v0.16 2004-Jun-25, 0 devices found
[ 1.410885] EDD information not available.
[ 1.488098] ata1: SATA link up 6.0 Gbps (SStatus 133 SControl 300)
[ 1.488219] ata3: SATA link up 3.0 Gbps (SStatus 123 SControl 300)
[ 1.488382] ata4: SATA link up 1.5 Gbps (SStatus 113 SControl 300)
[ 1.488484] ata2: SATA link up 6.0 Gbps (SStatus 133 SControl 300)
[ 1.488691] ata1.00: ATA-8: INTEL SSDSC2BP480G4, L2010420, max UDMA/133
[ 1.488774] ata1.00: 937703088 sectors, multi 1: LBA48 NCQ (depth 31/32)
[ 1.489028] ata4.00: ATAPI: TSSTcorp CDDVDW SH-222AB, SB01, max UDMA/100
[ 1.489178] ata3.00: ATA-8: WDC WD3200AAJS-65M0A0, 01.03E01, max UDMA/133
[ 1.489260] ata3.00: 625142448 sectors, multi 16: LBA48 NCQ (depth 31/32), AA
[ 1.489518] ata2.00: ATA-9: OCZ-VERTEX4, 1.5, max UDMA/133
[ 1.489598] ata2.00: 125045424 sectors, multi 16: LBA48 NCQ (depth 31/32), AA
[ 1.489729] ata1.00: configured for UDMA/133
[ 1.489913] ata4.00: configured for UDMA/100
[ 1.490084] scsi 0:0:0:0: Direct-Access ATA INTEL SSDSC2BP48 L201 PQ: 0 ANSI: 5
[ 1.490702] sd 0:0:0:0: [sda] 937703088 512-byte logical blocks: (480 GB/447 GiB)
[ 1.490711] sd 0:0:0:0: Attached scsi generic sg0 type 0
[ 1.491118] sd 0:0:0:0: [sda] Write Protect is off
[ 1.491200] sd 0:0:0:0: [sda] Mode Sense: 00 3a 00 00
[ 1.491291] ata3.00: configured for UDMA/133
[ 1.491345] sd 0:0:0:0: [sda] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA
[ 1.491483] ata2.00: configured for UDMA/133
[ 1.491883] scsi 1:0:0:0: Direct-Access ATA OCZ-VERTEX4 1.5 PQ: 0 ANSI: 5
[ 1.492360] sda: sda1 sda2 sda3
[ 1.492441] sd 1:0:0:0: Attached scsi generic sg1 type 0
[ 1.492455] sd 1:0:0:0: [sdb] 125045424 512-byte logical blocks: (64.0 GB/59.6 GiB)
[ 1.492684] sd 1:0:0:0: [sdb] Write Protect is off
[ 1.492784] sd 1:0:0:0: [sdb] Mode Sense: 00 3a 00 00
[ 1.492949] scsi 2:0:0:0: Direct-Access ATA WDC WD3200AAJS-6 01.0 PQ: 0 ANSI: 5
[ 1.492972] sd 1:0:0:0: [sdb] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA
[ 1.493552] sd 2:0:0:0: [sdc] 625142448 512-byte logical blocks: (320 GB/298 GiB)
[ 1.493564] sd 2:0:0:0: Attached scsi generic sg2 type 0
[ 1.493585] sd 0:0:0:0: [sda] Attached SCSI disk
[ 1.493992] sdb:
[ 1.494002] sd 2:0:0:0: [sdc] Write Protect is off
[ 1.494010] sd 2:0:0:0: [sdc] Mode Sense: 00 3a 00 00
[ 1.494075] sd 2:0:0:0: [sdc] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA
[ 1.494711] scsi 3:0:0:0: CD-ROM TSSTcorp CDDVDW SH-222AB SB01 PQ: 0 ANSI: 5
[ 1.494964] sd 1:0:0:0: [sdb] Attached SCSI disk
[ 1.497566] sr0: scsi3-mmc drive: 48x/48x writer dvd-ram cd/rw xa/form2 cdda tray
[ 1.497663] cdrom: Uniform CD-ROM driver Revision: 3.20
[ 1.498080] sr 3:0:0:0: Attached scsi CD-ROM sr0
[ 1.498347] sr 3:0:0:0: Attached scsi generic sg3 type 5
[ 1.500531] sdc:
[ 1.501119] sd 2:0:0:0: [sdc] Attached SCSI disk
[ 1.502343] Freeing unused kernel memory: 924k freed
[ 1.503955] Write protecting the kernel read-only data: 12288k
[ 1.522606] Freeing unused kernel memory: 1592k freed
[ 1.525024] Freeing unused kernel memory: 1188k freed
[ 1.600116] usb 5-3: new full-speed USB device number 2 using ohci_hcd
[ 1.682587] udevd[110]: starting version 175
[ 1.734110] wmi: Mapper loaded
[ 1.742541] [drm] Initialized drm 1.1.0 20060810
[ 1.749903] [drm] radeon defaulting to kernel modesetting.
[ 1.749954] [drm] radeon kernel modesetting enabled.
[ 1.750118] radeon 0000:04:00.0: enabling device (0000 -> 0003)
[ 1.750201] xen: registering gsi 19 triggering 0 polarity 1
[ 1.750277] Already setup the GSI :19
[ 1.750334] radeon 0000:04:00.0: PCI INT A -> GSI 19 (level, low) -> IRQ 19
[ 1.750423] radeon 0000:04:00.0: setting latency timer to 64
[ 1.750806] [drm] initializing kernel modesetting (BARTS 0x1002:0x6738 0x1458:0x21FA).
[ 1.750931] [drm] register mmio base: 0xFDEC0000
[ 1.750976] [drm] register mmio size: 131072
[ 1.871960] ATOM BIOS: GV
[ 1.872098] [drm] GPU not posted. posting now...
[ 1.877465] radeon 0000:04:00.0: VRAM: 1024M 0x0000000000000000 - 0x000000003FFFFFFF (1024M used)
[ 1.877521] radeon 0000:04:00.0: GTT: 512M 0x0000000040000000 - 0x000000005FFFFFFF
[ 1.877576] [drm] Detected VRAM RAM=1024M, BAR=256M
[ 1.877621] [drm] RAM width 256bits DDR
[ 1.877995] [TTM] Zone kernel: Available graphics memory: 1248926 kiB.
[ 1.878045] [TTM] Initializing pool allocator.
[ 1.878094] scsi6 : pata_atiixp
[ 1.878200] [drm] radeon: 1024M of VRAM memory ready
[ 1.878249] scsi7 : pata_atiixp
[ 1.878888] ata7: PATA max UDMA/100 cmd 0x1f0 ctl 0x3f6 bmdma 0xfa00 irq 14
[ 1.878935] ata8: PATA max UDMA/100 cmd 0x170 ctl 0x376 bmdma 0xfa08 irq 15
[ 1.878994] [drm] radeon: 512M of GTT memory ready.
[ 1.879057] [drm] GART: num cpu pages 131072, num gpu pages 131072
[ 1.879795] [drm] Loading BARTS Microcode
[ 1.879883] xen: registering gsi 22 triggering 0 polarity 1
[ 1.879939] xen: --> pirq=22 -> irq=22 (gsi=22)
[ 1.879995] firewire_ohci 0000:05:0e.0: PCI INT A -> GSI 22 (level, low) -> IRQ 22
[ 1.880228] r8169 Gigabit Ethernet driver 2.3LK-NAPI loaded
[ 1.880290] xen: registering gsi 17 triggering 0 polarity 1
[ 1.880341] Already setup the GSI :17
[ 1.880392] r8169 0000:06:00.0: PCI INT A -> GSI 17 (level, low) -> IRQ 17
[ 1.880480] r8169 0000:06:00.0: setting latency timer to 64
[ 1.881110] r8169 0000:06:00.0: eth0: RTL8168evl/8111evl at 0xffffc9000187a000, 50:e5:49:be:9a:35, XID 0c900800 IRQ 301
[ 1.881168] r8169 0000:06:00.0: eth0: jumbo features [frames: 9200 bytes, tx checksumming: ko]
[ 1.893117] [drm] PCIE GART of 512M enabled (table at 0x0000000000040000).
[ 1.893341] radeon 0000:04:00.0: WB enabled
[ 1.893412] [drm] Supports vblank timestamp caching Rev 1 (10.10.2010).
[ 1.893481] [drm] Driver supports precise vblank timestamp query.
[ 1.893671] radeon 0000:04:00.0: radeon: using MSI.
[ 1.893856] [drm] radeon: irq initialized.
[ 1.910790] [drm] ring test succeeded in 2 usecs
[ 1.911122] [drm] radeon: ib pool ready.
[ 1.911295] [drm] ib test succeeded in 0 usecs
[ 1.912310] [drm] Radeon Display Connectors
[ 1.912356] [drm] Connector 0:
[ 1.912401] [drm] DisplayPort
[ 1.912444] [drm] HPD4
[ 1.912488] [drm] DDC: 0x6430 0x6430 0x6434 0x6434 0x6438 0x6438 0x643c 0x643c
[ 1.912541] [drm] Encoders:
[ 1.912584] [drm] DFP1: INTERNAL_UNIPHY2
[ 1.912627] [drm] Connector 1:
[ 1.912672] [drm] DisplayPort
[ 1.912715] [drm] HPD5
[ 1.912758] [drm] DDC: 0x6440 0x6440 0x6444 0x6444 0x6448 0x6448 0x644c 0x644c
[ 1.912812] [drm] Encoders:
[ 1.912856] [drm] DFP2: INTERNAL_UNIPHY2
[ 1.912900] [drm] Connector 2:
[ 1.912944] [drm] HDMI-A
[ 1.912988] [drm] HPD3
[ 1.913031] [drm] DDC: 0x6460 0x6460 0x6464 0x6464 0x6468 0x6468 0x646c 0x646c
[ 1.913084] [drm] Encoders:
[ 1.913128] [drm] DFP3: INTERNAL_UNIPHY1
[ 1.913171] [drm] Connector 3:
[ 1.913214] [drm] DVI-D
[ 1.913256] [drm] HPD1
[ 1.913298] [drm] DDC: 0x6480 0x6480 0x6484 0x6484 0x6488 0x6488 0x648c 0x648c
[ 1.913352] [drm] Encoders:
[ 1.913394] [drm] DFP4: INTERNAL_UNIPHY1
[ 1.913438] [drm] Connector 4:
[ 1.913480] [drm] DVI-I
[ 1.913523] [drm] HPD6
[ 1.913566] [drm] DDC: 0x6470 0x6470 0x6474 0x6474 0x6478 0x6478 0x647c 0x647c
[ 1.913619] [drm] Encoders:
[ 1.913662] [drm] DFP5: INTERNAL_UNIPHY
[ 1.913706] [drm] CRT1: INTERNAL_KLDSCP_DAC1
[ 1.913839] [drm] Internal thermal controller with fan control
[ 1.915071] [drm] radeon: power management initialized
[ 1.996684] firewire_ohci: Added fw-ohci device 0000:05:0e.0, OHCI v1.10, 4 IR + 8 IT contexts, quirks 0x11
[ 1.999853] [drm] fb mappable at 0xD0142000
[ 1.999899] [drm] vram apper at 0xD0000000
[ 1.999942] [drm] size 5787648
[ 1.999985] [drm] fb depth is 24
[ 2.000049] [drm] pitch is 6400
[ 2.030353] input: USB Gaming Mouse as /devices/pci0000:00/0000:00:13.0/usb5/5-3/5-3:1.0/input/input3
[ 2.030456] generic-usb 0003:1EA7:002C.0001: input,hidraw0: USB HID v1.10 Keyboard [USB Gaming Mouse] on usb-0000:00:13.0-3/input0
[ 2.040721] input: USB Gaming Mouse as /devices/pci0000:00/0000:00:13.0/usb5/5-3/5-3:1.1/input/input4
[ 2.044997] generic-usb 0003:1EA7:002C.0002: input,hidraw1: USB HID v1.10 Mouse [USB Gaming Mouse] on usb-0000:00:13.0-3/input1
[ 2.068199] input: USB Gaming Mouse as /devices/pci0000:00/0000:00:13.0/usb5/5-3/5-3:1.2/input/input5
[ 2.068321] generic-usb 0003:1EA7:002C.0003: input,hiddev0,hidraw2: USB HID v1.10 Device [USB Gaming Mouse] on usb-0000:00:13.0-3/input2
[ 2.068332] usbcore: registered new interface driver usbhid
[ 2.068333] usbhid: USB HID core driver
[ 2.232945] Console: switching to colour frame buffer device 200x56
[ 2.236488] fb0: radeondrmfb frame buffer device
[ 2.236507] drm: registered panic notifier
[ 2.236527] [drm] Initialized radeon 2.12.0 20080528 for 0000:04:00.0 on minor 0
[ 2.500116] firewire_core: created device fw0: GUID 0049e55077710500, S400
[ 2.680981] EXT4-fs (sda2): mounted filesystem with ordered data mode. Opts: (null)
[ 3.120424] ADDRCONF(NETDEV_UP): eth0: link is not ready
[ 3.145684] udevd[409]: starting version 175
[ 3.178105] lp: driver loaded but no devices found
[ 3.230291] EXT4-fs (sda2): re-mounted. Opts: errors=remount-ro
[ 3.246998] xen: registering gsi 16 triggering 0 polarity 1
[ 3.247013] xen: --> pirq=16 -> irq=16 (gsi=16)
[ 3.247023] snd_hda_intel 0000:00:14.2: PCI INT A -> GSI 16 (level, low) -> IRQ 16
[ 3.300966] EXT4-fs (sda1): mounted filesystem with ordered data mode. Opts: (null)
[ 3.307170] hda_codec: ALC889: BIOS auto-probing.
[ 3.328724] input: HDA ATI SB Line as /devices/pci0000:00/0000:00:14.2/sound/card0/input6
[ 3.330405] input: HDA ATI SB Front Mic as /devices/pci0000:00/0000:00:14.2/sound/card0/input7
[ 3.330459] input: HDA ATI SB Rear Mic as /devices/pci0000:00/0000:00:14.2/sound/card0/input8
[ 3.330569] input: HDA ATI SB Front Headphone as /devices/pci0000:00/0000:00:14.2/sound/card0/input9
[ 3.330623] input: HDA ATI SB Line-Out Side as /devices/pci0000:00/0000:00:14.2/sound/card0/input10
[ 3.330721] input: HDA ATI SB Line-Out CLFE as /devices/pci0000:00/0000:00:14.2/sound/card0/input11
[ 3.330779] input: HDA ATI SB Line-Out Surround as /devices/pci0000:00/0000:00:14.2/sound/card0/input12
[ 3.334377] input: HDA ATI SB Line-Out Front as /devices/pci0000:00/0000:00:14.2/sound/card0/input13
[ 3.334921] xen: registering gsi 19 triggering 0 polarity 1
[ 3.334925] Already setup the GSI :19
[ 3.334930] snd_hda_intel 0000:01:00.1: PCI INT B -> GSI 19 (level, low) -> IRQ 19
[ 3.334933] hda_intel: Disabling MSI
[ 3.335041] snd_hda_intel 0000:01:00.1: setting latency timer to 64
[ 3.335887] ACPI: resource piix4_smbus [io 0x0b00-0x0b07] conflicts with ACPI region SOR1 [io 0xb00-0xb0f]
[ 3.335890] ACPI: If an ACPI driver is available for this device, you should use it instead of the native driver
[ 3.336423] SP5100 TCO timer: SP5100 TCO WatchDog Timer Driver v0.01
[ 3.336557] SP5100 TCO timer: mmio address 0xb8fe00 already in use
[ 3.350003] MCE: In-kernel MCE decoding enabled.
[ 3.350820] EDAC MC: Ver: 2.1.0
[ 3.370469] AMD64 EDAC driver v3.4.0
[ 3.370530] EDAC amd64: DRAM ECC disabled.
[ 3.370600] EDAC amd64: NB MCE bank disabled, set MSR 0x0000017b[4] on node 0 to enable.
[ 3.370603] EDAC amd64: ECC disabled in the BIOS or no ECC capability, module will not load.
[ 3.370604] Either enable ECC checking or force module loading by setting 'ecc_enable_override'.
[ 3.370604] (Note that use of the override may cause unknown side effects.)
[ 3.433713] ppdev: user-space parallel port driver
[ 3.436459] Bluetooth: Core ver 2.16
[ 3.436568] NET: Registered protocol family 31
[ 3.436570] Bluetooth: HCI device and connection manager initialized
[ 3.436573] Bluetooth: HCI socket layer initialized
[ 3.436574] Bluetooth: L2CAP socket layer initialized
[ 3.436580] Bluetooth: SCO socket layer initialized
[ 3.455243] Bluetooth: BNEP (Ethernet Emulation) ver 1.3
[ 3.455246] Bluetooth: BNEP filters: protocol multicast
[ 3.459900] Bluetooth: RFCOMM TTY layer initialized
[ 3.459908] Bluetooth: RFCOMM socket layer initialized
[ 3.459910] Bluetooth: RFCOMM ver 1.11
[ 3.505030] type=1400 audit(1421596264.590:2): apparmor="STATUS" operation="profile_load" name="/usr/lib/cups/backend/cups-pdf" pid=675 comm="apparmor_parser"
[ 3.505444] type=1400 audit(1421596264.590:3): apparmor="STATUS" operation="profile_load" name="/usr/sbin/cupsd" pid=675 comm="apparmor_parser"
[ 3.513058] Bridge firewalling registered
[ 3.517409] device eth0 entered promiscuous mode
[ 3.527663] type=1400 audit(1421596264.610:4): apparmor="STATUS" operation="profile_load" name="/sbin/dhclient" pid=753 comm="apparmor_parser"
[ 3.528142] type=1400 audit(1421596264.614:5): apparmor="STATUS" operation="profile_load" name="/usr/lib/NetworkManager/nm-dhcp-client.action" pid=753 comm="apparmor_parser"
[ 3.528329] type=1400 audit(1421596264.614:6): apparmor="STATUS" operation="profile_load" name="/usr/lib/connman/scripts/dhclient-script" pid=753 comm="apparmor_parser"
[ 3.532159] type=1400 audit(1421596264.618:7): apparmor="STATUS" operation="profile_load" name="/usr/sbin/ntpd" pid=755 comm="apparmor_parser"
[ 3.641000] r8169 0000:06:00.0: eth0: link down
[ 3.641010] r8169 0000:06:00.0: eth0: link down
[ 3.642461] ADDRCONF(NETDEV_UP): eth0: link is not ready
[ 3.646227] ADDRCONF(NETDEV_UP): xenbr0: link is not ready
[ 3.728209] xen: registering gsi 16 triggering 0 polarity 1
[ 3.728215] Already setup the GSI :16
[ 3.728219] snd_hda_intel 0000:04:00.1: PCI INT B -> GSI 16 (level, low) -> IRQ 16
[ 3.728362] snd_hda_intel 0000:04:00.1: setting latency timer to 64
[ 3.747414] HDMI status: Codec=0 Pin=3 Presence_Detect=0 ELD_Valid=0
[ 3.747485] input: HD-Audio Generic HDMI/DP,pcm=3 as /devices/pci0000:00/0000:00:0b.0/0000:04:00.1/sound/card2/input14
[ 5.323511] r8169 0000:06:00.0: eth0: link up
[ 5.328453] ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
[ 5.328894] xenbr0: port 1(eth0) entering forwarding state
[ 5.328921] xenbr0: port 1(eth0) entering forwarding state
[ 5.334032] ADDRCONF(NETDEV_CHANGE): xenbr0: link becomes ready
[ 15.665655] init: failsafe main process (829) killed by TERM signal
[ 15.738465] type=1400 audit(1421596276.822:8): apparmor="STATUS" operation="profile_load" name="/usr/lib/lightdm/lightdm/lightdm-guest-session-wrapper" pid=1212 comm="apparmor_parser"
[ 15.738899] type=1400 audit(1421596276.822:9): apparmor="STATUS" operation="profile_load" name="/usr/lib/lightdm/lightdm/lightdm-guest-session-wrapper//chromium_browser" pid=1212 comm="apparmor_parser"
[ 15.739377] type=1400 audit(1421596276.822:10): apparmor="STATUS" operation="profile_load" name="/usr/lib/telepathy/mission-control-5" pid=1215 comm="apparmor_parser"
[ 15.740063] type=1400 audit(1421596276.826:11): apparmor="STATUS" operation="profile_load" name="/usr/lib/telepathy/telepathy-*" pid=1215 comm="apparmor_parser"
[ 15.743846] type=1400 audit(1421596276.826:12): apparmor="STATUS" operation="profile_replace" name="/sbin/dhclient" pid=1213 comm="apparmor_parser"
[ 15.744445] type=1400 audit(1421596276.830:13): apparmor="STATUS" operation="profile_replace" name="/usr/lib/NetworkManager/nm-dhcp-client.action" pid=1213 comm="apparmor_parser"
[ 15.744754] type=1400 audit(1421596276.830:14): apparmor="STATUS" operation="profile_replace" name="/usr/lib/connman/scripts/dhclient-script" pid=1213 comm="apparmor_parser"
[ 15.745643] type=1400 audit(1421596276.830:15): apparmor="STATUS" operation="profile_replace" name="/usr/sbin/ntpd" pid=1217 comm="apparmor_parser"
[ 15.745982] type=1400 audit(1421596276.830:16): apparmor="STATUS" operation="profile_replace" name="/usr/lib/cups/backend/cups-pdf" pid=1216 comm="apparmor_parser"
[ 15.746663] type=1400 audit(1421596276.830:17): apparmor="STATUS" operation="profile_replace" name="/usr/sbin/cupsd" pid=1216 comm="apparmor_parser"
[ 15.854389] Event-channel device installed.
[ 15.885702] pciback 0000:01:00.0: seizing device
[ 15.886089] xen: registering gsi 18 triggering 0 polarity 1
[ 15.886093] Already setup the GSI :18
[ 15.886097] pciback 0000:01:00.0: PCI INT A -> GSI 18 (level, low) -> IRQ 18
[ 15.886104] pciback 0000:01:00.0: PCI INT A disabled
[ 15.887828] xen-pciback: backend is vpci
[ 15.934894] XENBUS: Unable to read cpu state
[ 15.935128] XENBUS: Unable to read cpu state
[ 15.935241] XENBUS: Unable to read cpu state
[ 15.935357] XENBUS: Unable to read cpu state
[ 15.951582] vgaarb: device changed decodes: PCI:0000:04:00.0,olddecodes=io+mem,decodes=none:owns=none
[ 16.172028] eth0: no IPv6 routers present
[ 16.344021] xenbr0: no IPv6 routers present
[ 18.887362] init: plymouth-stop pre-start process (2002) terminated with status 1
[ 20.380054] xenbr0: port 1(eth0) entering forwarding state
Raw
win.cfg
# This configures an HVM rather than a PV guest
builder = "hvm"
# This was suggested for GFX passthrough
device_model_version = "qemu-xen-traditional"
# Guest name
name = "Windows-1"
# Enable Microsoft Hyper-V compatible paravirtualisation
# enlightenment interfaces. Turning this on can improve Windows
# guest performance and is therefore recommended
viridian = 1
# Guest memory allocation
memory = 8192
#Number of VCPUS
vcpus = 4
acpi = 1
apic = 1
# Network device, allow dhcp
vif = [ 'type=ioemu, bridge=xenbr0' ]
disk = [
'phy:/dev/xenvg/dom1,hda,w',
'file:/var/lib/xen/images/windows8pro.iso,hdb:cdrom,rw'
]
# CD first, then HDD. QEMU detects both and boots to HDD if you don't press a key.
boot = "dc"
# Power options
on_poweroff = "destroy"
on_reboot = "destroy"
on_crash = "destroy"
usb = 1
usbdevice = "tablet"
pci = ['01:00.0','01:00.1']
#gfx_passthru=1
#serial="pty"
vnc = 1
Raw
xen.dmesg
# Output of `sudo xl dmesg`
Xen 4.5.0
(XEN) Xen version 4.5.0 (toaster@) (gcc (Ubuntu/Linaro 4.6.3-1ubuntu5) 4.6.3) debug=n Thu Jan 15 21:55:23 EST 2015
(XEN) Latest ChangeSet: Mon Jan 12 11:30:05 2015 -0500 git:a8ac229-dirty
(XEN) Bootloader: GRUB 1.99-21ubuntu3.10
(XEN) Command line: dom0_mem=4096M loglevel=all guest_loglevel=all com1=115200,8n1 iommu=debug
(XEN) Video information:
(XEN) VGA is text mode 80x25, font 8x16
(XEN) VBE/DDC methods: V2; EDID transfer time: 1 seconds
(XEN) Disc information:
(XEN) Found 3 MBR signatures
(XEN) Found 3 EDD information structures
(XEN) Xen-e820 RAM map:
(XEN) 0000000000000000 - 000000000009f800 (usable)
(XEN) 000000000009f800 - 00000000000a0000 (reserved)
(XEN) 00000000000f0000 - 0000000000100000 (reserved)
(XEN) 0000000000100000 - 00000000afda0000 (usable)
(XEN) 00000000afda0000 - 00000000afdd1000 (ACPI NVS)
(XEN) 00000000afdd1000 - 00000000afe00000 (ACPI data)
(XEN) 00000000afe00000 - 00000000aff00000 (reserved)
(XEN) 00000000e0000000 - 00000000f0000000 (reserved)
(XEN) 00000000fec00000 - 0000000100000000 (reserved)
(XEN) 0000000100000000 - 0000000450000000 (usable)
(XEN) ACPI: RSDP 000F6B40, 0014 (r0 GBT )
(XEN) ACPI: RSDT AFDD1000, 004C (r1 GBT GBTUACPI 42302E31 GBTU 1010101)
(XEN) ACPI: FACP AFDD1080, 0074 (r1 GBT GBTUACPI 42302E31 GBTU 1010101)
(XEN) ACPI: DSDT AFDD1100, 7997 (r1 GBT GBTUACPI 1000 MSFT 3000000)
(XEN) ACPI: FACS AFDA0000, 0040
(XEN) ACPI: SSDT AFDD8B80, 088C (r1 PTLTD POWERNOW 1 LTP 1)
(XEN) ACPI: MSDM AFDD9440, 0055 (r3 GBT GBTUACPI 42302E31 GBTU 1010101)
(XEN) ACPI: HPET AFDD94C0, 0038 (r1 GBT GBTUACPI 42302E31 GBTU 98)
(XEN) ACPI: MCFG AFDD9500, 003C (r1 GBT GBTUACPI 42302E31 GBTU 1010101)
(XEN) ACPI: MATS AFDD9580, 0034 (r1 GBT 0 0)
(XEN) ACPI: TAMG AFDD95F0, 0202 (r1 GBT GBT B0 5455312E BG 53450101)
(XEN) ACPI: APIC AFDD8AC0, 00BC (r1 GBT GBTUACPI 42302E31 GBTU 1010101)
(XEN) ACPI: MATS AFDD9800, 6491 (r1 MATS RCM 80000001 INTL 20061109)
(XEN) ACPI: IVRS AFDDFD10, 00F8 (r1 AMD RD890S 202031 AMD 0)
(XEN) System RAM: 16381MB (16774396kB)
(XEN) Domain heap initialised
(XEN) Processor #0 0:4 APIC version 16
(XEN) Processor #1 0:4 APIC version 16
(XEN) Processor #2 0:4 APIC version 16
(XEN) Processor #3 0:4 APIC version 16
(XEN) IOAPIC[0]: apic_id 8, version 33, address 0xfec00000, GSI 0-23
(XEN) Enabling APIC mode: Flat. Using 1 I/O APICs
(XEN) Using scheduler: SMP Credit Scheduler (credit)
(XEN) Detected 3422.891 MHz processor.
(XEN) Initing memory sharing.
(XEN) AMD-Vi: IOMMU 0 Enabled.
(XEN) I/O virtualisation enabled
(XEN) - Dom0 mode: Relaxed
(XEN) Interrupt remapping enabled
(XEN) ENABLING IO-APIC IRQs
(XEN) -> Using new ACK method
(XEN) Platform timer is 14.318MHz HPET
(XEN) Allocated console ring of 16 KiB.
(XEN) HVM: ASIDs enabled.
(XEN) SVM: Supported advanced features:
(XEN) - Nested Page Tables (NPT)
(XEN) - Last Branch Record (LBR) Virtualisation
(XEN) - Next-RIP Saved on #VMEXIT
(XEN) HVM: SVM enabled
(XEN) HVM: Hardware Assisted Paging (HAP) detected
(XEN) HVM: HAP page sizes: 4kB, 2MB, 1GB
(XEN) spurious 8259A interrupt: IRQ7.
(XEN) CPU1: No irq handler for vector e7 (IRQ -2147483648)
(XEN) CPU2: No irq handler for vector e7 (IRQ -2147483648)
(XEN) Brought up 4 CPUs
(XEN) CPU3: No irq handler for vector e7 (IRQ -2147483648)
(XEN) Xenoprofile: AMD IBS detected (0x1f)
(XEN) Dom0 has maximum 600 PIRQs
(XEN) *** LOADING DOMAIN 0 ***
(XEN) Xen kernel: 64-bit, lsb, compat32
(XEN) Dom0 kernel: 64-bit, PAE, lsb, paddr 0x1000000 -> 0x2060000
(XEN) PHYSICAL MEMORY ARRANGEMENT:
(XEN) Dom0 alloc.: 0000000438000000->000000043c000000 (1018493 pages to be allocated)
(XEN) Init. ramdisk: 000000044ca7d000->000000044ffff600
(XEN) VIRTUAL MEMORY ARRANGEMENT:
(XEN) Loaded kernel: ffffffff81000000->ffffffff82060000
(XEN) Init. ramdisk: ffffffff82060000->ffffffff855e2600
(XEN) Phys-Mach map: ffffffff855e3000->ffffffff85de3000
(XEN) Start info: ffffffff85de3000->ffffffff85de34b4
(XEN) Page tables: ffffffff85de4000->ffffffff85e17000
(XEN) Boot stack: ffffffff85e17000->ffffffff85e18000
(XEN) TOTAL: ffffffff80000000->ffffffff86000000
(XEN) ENTRY ADDRESS: ffffffff81cfc200
(XEN) Dom0 has maximum 4 VCPUs
(XEN) Scrubbing Free RAM on 1 nodes using 4 CPUs
(XEN) ...................................done.
(XEN) Initial low memory virq threshold set at 0x4000 pages.
(XEN) Std. Loglevel: Errors and warnings
(XEN) Guest Loglevel: Nothing (Rate-limited: Errors and warnings)
(XEN) Xen is relinquishing VGA console.
(XEN) *** Serial input -> DOM0 (type 'CTRL-a' three times to switch input to Xen)
(XEN) Freed 308kB init memory.
(XEN) traps.c:2579:d0v0 Domain attempted WRMSR 00000000c0010004 from 0x0000000000000000 to 0x000000000000abcd.
(XEN) mm.c:803: d0: Forcing read-only access to MFN e0002
Sign up for free to join this conversation on GitHub. Already have an account? Sign in to comment
