# Goal of this short script is to show the basic inner workings of the
# tidyAnimatedVerbs package.
library(tidyverse)
library(gganimate)
# load all functions from the tidyAnimatedVerbs package
r <- unclass(lsf.str(envir = asNamespace("tidyAnimatedVerbs"), all = T))
for(name in r) eval(parse(text=paste0(name, '<-tidyAnimatedVerbs:::', name)))
####### Joins
x <- data_frame(
id = 1:3,
x = paste0("x", 1:3)
)
y <- data_frame(
id = (1:4)[-3],
y = paste0("y", (1:4)[-3])
)
(list_res <- process_join(x, y, "id"))
#> $x
#> # A tibble: 8 x 11
#> .id .id_long .r .col .val .x .y .width .side .color .textcolor
#> <chr> <chr> <dbl> <chr> <chr> <int> <dbl> <dbl> <chr> <chr> <chr>
#> 1 .header .header_id 0 id id 1 0 1 x #737373 white
#> 2 .header .header_x 0 x x 2 0 1 x #737373 white
#> 3 1 1-1 1 id 1 1 -1 1 x #E41A1C white
#> 4 2 2-1 2 id 2 1 -2 1 x #377EB8 white
#> 5 3 3-1 3 id 3 1 -3 1 x #4DAF4A white
#> 6 1 1-1 1 x x1 2 -1 1 x #d0d0d0 black
#> 7 2 2-1 2 x x2 2 -2 1 x #d0d0d0 black
#> 8 3 3-1 3 x x3 2 -3 1 x #d0d0d0 black
#>
#> $y
#> # A tibble: 8 x 11
#> .id .id_long .r .col .val .x .y .width .side .color .textcolor
#> <chr> <chr> <dbl> <chr> <chr> <dbl> <dbl> <dbl> <chr> <chr> <chr>
#> 1 .header .header_id 0 id id 4 0 1 y #737373 white
#> 2 .header .header_y 0 y y 5 0 1 y #737373 white
#> 3 1 1-1 1 id 1 4 -1 1 y #E41A1C white
#> 4 2 2-1 2 id 2 4 -2 1 y #377EB8 white
#> 5 4 4-1 3 id 4 4 -3 1 y #984EA3 black
#> 6 1 1-1 1 y y1 5 -1 1 y #d0d0d0 black
#> 7 2 2-1 2 y y2 5 -2 1 y #d0d0d0 black
#> 8 4 4-1 3 y y4 5 -3 1 y #d0d0d0 black
step0 <- bind_rows(list_res$x, list_res$y) %>% mutate(.frame = 0, .alpha = 1)
static_plot(step0)
## continue workflow of joins
# combine the two datasets together:
step1 <- move_together(list_res$x, list_res$y, "left_join") %>% mutate(.frame = 1)
animate_plot(bind_rows(step0, step1))
########## Tidyr Gather Spread
# preprocess data:
# goal is to have a standardised structure of the data that can be plotted easily
long <- data_frame(
year = c(2010L, 2011L, 2010L, 2011L, 2010L, 2011L),
person = c("Alice", "Alice", "Bob", "Bob", "Charlie", "Charlie"),
sales = c(105, 110, 100, 97, 90, 95)
)
process_long(long, ids = "year", key = "person", value = "sales")
#> # A tibble: 23 x 12
#> .id .id_map .key_map .r .col .val .x .y .type .header
#> <chr> <chr> <chr> <dbl> <chr> <chr> <int> <dbl> <chr> <lgl>
#> 1 Alic… year Alice 0 id year 1 0 id TRUE
#> 2 Bob_… year Bob 0 id year 1 0 id TRUE
#> 3 Char… year Charlie 0 id year 1 0 id TRUE
#> 4 key_… key key 0 key pers… 2 0 key TRUE
#> 5 valu… value value 0 value sales 3 0 value TRUE
#> 6 Alic… 2010 Alice 1 year 2010 1 -1 id FALSE
#> 7 Alic… 2011 Alice 2 year 2011 1 -2 id FALSE
#> 8 Bob_… 2010 Bob 3 year 2010 1 -3 id FALSE
#> 9 Bob_… 2011 Bob 4 year 2011 1 -4 id FALSE
#> 10 Char… 2010 Charlie 5 year 2010 1 -5 id FALSE
#> # ... with 13 more rows, and 2 more variables: .color <chr>, .alpha <dbl>
wide <- data_frame(
year = 2010:2011,
Alice = c(105, 110),
Bob = c(100, 97),
Charlie = c(90, 95)
)
process_wide(wide, ids = "year", key = "person")
#> # A tibble: 21 x 12
#> .id .id_map .r .col .val .type .x .y .header .key_map
#> <chr> <chr> <dbl> <chr> <chr> <chr> <int> <dbl> <lgl> <chr>
#> 1 Alic… year 0 year year id 1 0 TRUE Alice
#> 2 Bob_… year 0 year year id 1 0 TRUE Bob
#> 3 Char… year 0 year year id 1 0 TRUE Charlie
#> 4 Alic… 2010 0 Alice Alice key 2 0 TRUE Alice
#> 5 Alic… 2011 0 Alice Alice key 2 0 TRUE Alice
#> 6 Bob_… 2010 0 Bob Bob key 3 0 TRUE Bob
#> 7 Bob_… 2011 0 Bob Bob key 3 0 TRUE Bob
#> 8 Char… 2010 0 Char… Char… key 4 0 TRUE Charlie
#> 9 Char… 2011 0 Char… Char… key 4 0 TRUE Charlie
#> 10 Alic… 2010 1 year 2010 id 1 -1 FALSE Alice
#> # ... with 11 more rows, and 2 more variables: .color <chr>, .alpha <dbl>

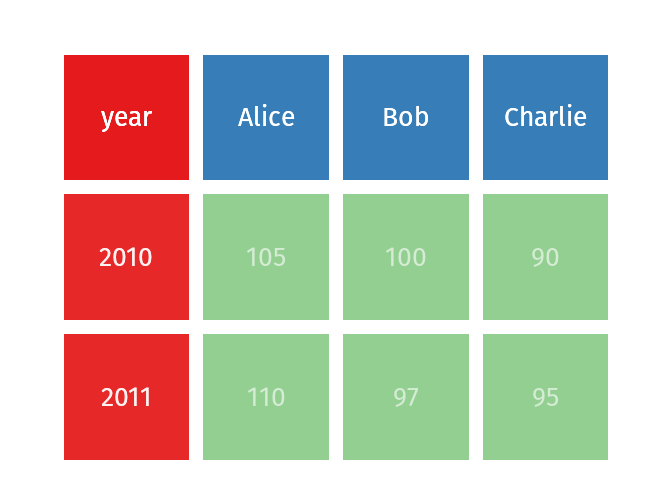

process_wide(wide, ids = "year", key = "person") %>% static_plot()
# basic workflow:
# 1. get the base data (say we use long) on the left-hand side and
# then calculate the second (wide) right-hand side dataset
lhs <- long
rhs <- spread(long, key = "person", value = "sales")
# process the data
(lhs_proc <- process_long(lhs, "year", "person", "sales"))
#> # A tibble: 23 x 12
#> .id .id_map .key_map .r .col .val .x .y .type .header
#> <chr> <chr> <chr> <dbl> <chr> <chr> <int> <dbl> <chr> <lgl>
#> 1 Alic… year Alice 0 id year 1 0 id TRUE
#> 2 Bob_… year Bob 0 id year 1 0 id TRUE
#> 3 Char… year Charlie 0 id year 1 0 id TRUE
#> 4 key_… key key 0 key pers… 2 0 key TRUE
#> 5 valu… value value 0 value sales 3 0 value TRUE
#> 6 Alic… 2010 Alice 1 year 2010 1 -1 id FALSE
#> 7 Alic… 2011 Alice 2 year 2011 1 -2 id FALSE
#> 8 Bob_… 2010 Bob 3 year 2010 1 -3 id FALSE
#> 9 Bob_… 2011 Bob 4 year 2011 1 -4 id FALSE
#> 10 Char… 2010 Charlie 5 year 2010 1 -5 id FALSE
#> # ... with 13 more rows, and 2 more variables: .color <chr>, .alpha <dbl>
(rhs_proc <- process_wide(rhs, "year", "person", "sales"))
#> # A tibble: 21 x 12
#> .id .id_map .r .col .val .type .x .y .header .key_map
#> <chr> <chr> <dbl> <chr> <chr> <chr> <int> <dbl> <lgl> <chr>
#> 1 Alic… year 0 year year id 1 0 TRUE Alice
#> 2 Bob_… year 0 year year id 1 0 TRUE Bob
#> 3 Char… year 0 year year id 1 0 TRUE Charlie
#> 4 Alic… 2010 0 Alice Alice key 2 0 TRUE Alice
#> 5 Alic… 2011 0 Alice Alice key 2 0 TRUE Alice
#> 6 Bob_… 2010 0 Bob Bob key 3 0 TRUE Bob
#> 7 Bob_… 2011 0 Bob Bob key 3 0 TRUE Bob
#> 8 Char… 2010 0 Char… Char… key 4 0 TRUE Charlie
#> 9 Char… 2011 0 Char… Char… key 4 0 TRUE Charlie
#> 10 Alic… 2010 1 year 2010 id 1 -1 FALSE Alice
#> # ... with 11 more rows, and 2 more variables: .color <chr>, .alpha <dbl>
# combine into a single data-frame
anim_df <- bind_rows(
lhs_proc %>% mutate(.frame = 0),
rhs_proc %>% mutate(.frame = 1)
)
# plot the anim_df
animate_plot(anim_df)
Created on 2018-08-23 by the reprex package (v0.2.0).
