ProjectRed Segment Display gates are controlled using Bundled Cables, each bundled cable has 16 colors, in this case the first 8 (1-8) control the right display, while the last 8 (9-16) control the left display.
Numbers represent the decimal value for each segment
| Digit | (DP) G F E D C B A | Hex | Dec |
|---|---|---|---|
| 0 | 00111111 | 0x3F | 63 |
| 1 | 00000110 | 0x6 | 6 |
| 2 | 01011011 | 0x5B | 91 |
| 3 | 01001111 | 0x4F | 79 |
| 4 | 01100110 | 0x66 | 102 |
| 5 | 01101101 | 0x6D | 109 |
| 6 | 01111101 | 0x7D | 125 |
| 7 | 00000111 | 0x7 | 7 |
| 8 | 01111111 | 0x7F | 127 |
| 9 | 01101111 | 0x6F | 111 |

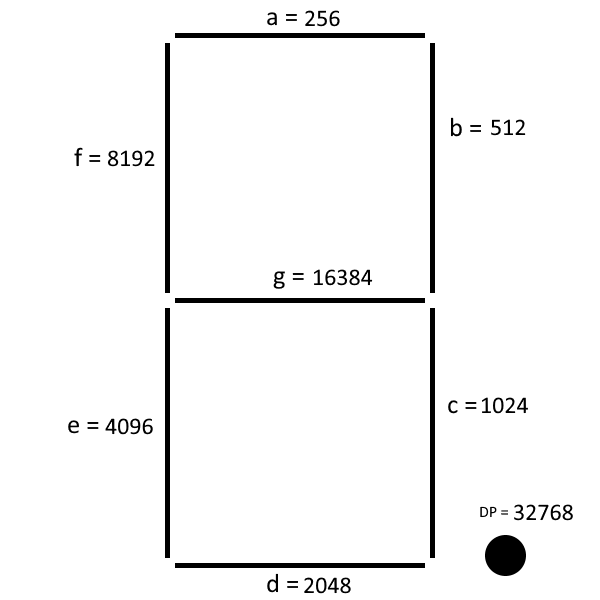

Numbers represent the decimal value for each segment
| Digit | (DP) G F E D C B A | Hex | Dec |
|---|---|---|---|
| 0 | 0011111100000000 | 0x3F00 | 16128 |
| 1 | 0000011000000000 | 0x600 | 1536 |
| 2 | 0101101100000000 | 0x5B00 | 23296 |
| 3 | 0100111100000000 | 0x4F00 | 20224 |
| 4 | 0110011000000000 | 0x6600 | 26112 |
| 5 | 0110110100000000 | 0x6D00 | 27904 |
| 6 | 0111110100000000 | 0x7D00 | 32000 |
| 7 | 0000011100000000 | 0x700 | 1792 |
| 8 | 0111111100000000 | 0x7F00 | 32512 |
| 9 | 0110111100000000 | 0x6F00 | 28416 |

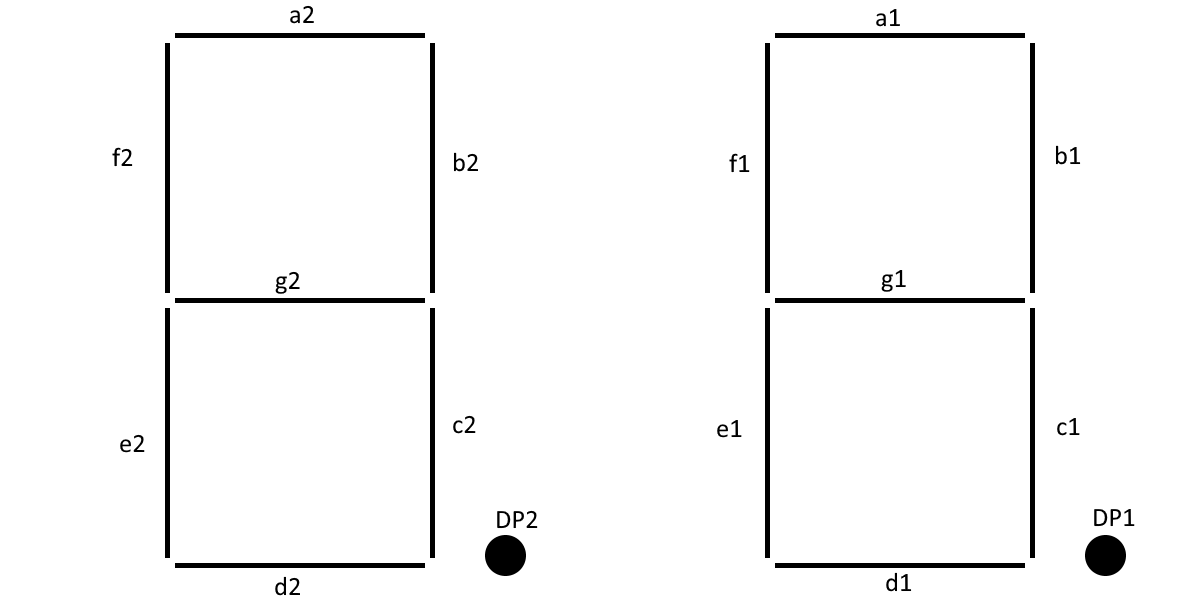

| Segment | Color |
|---|---|
| a1 | White |
| b1 | Orange |
| c1 | Magenta |
| d1 | Light Blue |
| e1 | Yellow |
| f1 | Lime |
| g1 | Pink |
| DP1 | Gray |
| a2 | Light Gray |
| b2 | Cyan |
| c2 | Purple |
| d2 | Blue |
| e2 | Brown |
| f2 | Green |
| g2 | Red |
| DP2 | Black |
