Print a module dependency tree for modules

Get-DependencyTree.ps1

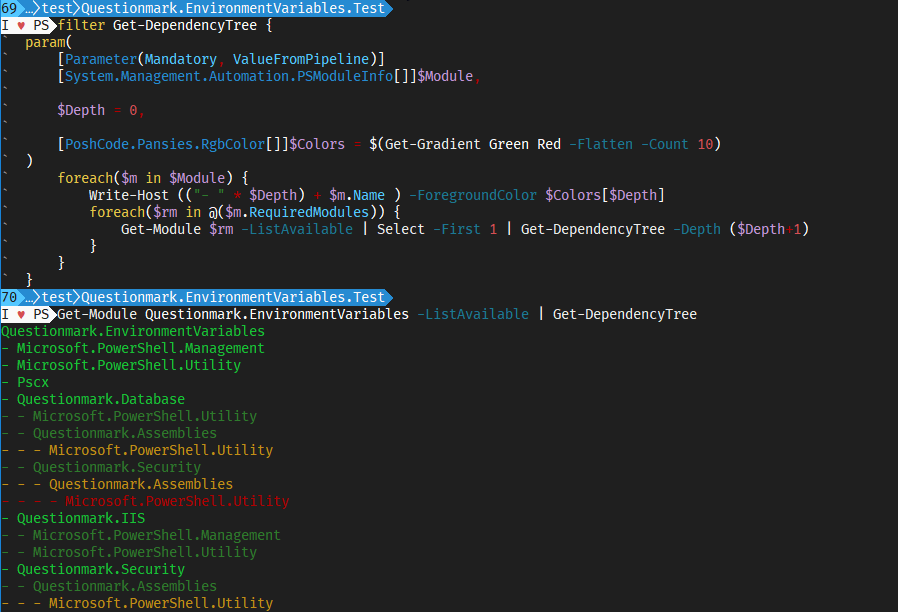

filter Get-DependencyTree {
    <#
        .NOTES
            From https://gist.github.com/Jaykul/304e7874d629ef4848c9acd0cfd550d0
    #>
param(
    [Parameter(Mandatory, ValueFromPipeline)]
    [System.Management.Automation.PSModuleInfo[]]$Module,

    $Depth = 0,

    $Colors = @("Green", "DarkGreen", "Blue", "Cyan", "Yellow", "DarkYellow", "DarkRed", "Red", "Magenta")
)
    foreach($m in $Module) {
        Write-Host (("- " * $Depth) + $m.Name ) -ForegroundColor $Colors[$Depth]
        foreach($rm in @($m.RequiredModules)) {
            Get-Module $rm -ListAvailable | Select -First 1 | Get-DependencyTree -Depth ($Depth+1)
        }
    }
}

Optimize-ModuleList.ps1

#requires -module DependsOn, Metadata
function Optimize-ModuleList {
    <#
        .SYNOPSIS
            Sorts Modules based on dependency, so modules always appear after their RequiredModules
        .DESCRIPTION
            Should go in the RequiredModules module, since this supports in-place sorting of RequiredModules.psd1

            However, it currently only works on installed modules, and requires DependsOn for the sorting
        .NOTES
            From https://gist.github.com/Jaykul/304e7874d629ef4848c9acd0cfd550d0
    #>
    [CmdletBinding(DefaultParameterSetName = "ByName")]
    param(
        [Parameter(Mandatory, Position = 0, ParameterSetName = "ByName")]
        [string[]]$Name,

        [Parameter(Mandatory, Position = 0, ValueFromPipeline, ParameterSetName = "ModuleInfo")]
        [System.Management.Automation.PSModuleInfo[]]$Module,

        [Parameter(Mandatory, ParameterSetName = "RequiredModulesPath")]
        [string]$RequiredModulesPath
    )
    begin {
        $Modules = [System.Collections.Generic.List[System.Management.Automation.PSModuleInfo]]::new()
    }
    process {
        if ($RequiredModulesPath) {
            $Metadata = Import-Metadata $RequiredModulesPath
            $Name = @($Metadata.Keys)
        }
        if ($Name) {
            $Module = GetRequiredModule $Name
        }
        $Modules.AddRange($Module)
    }
    end {
        $Ordered = $Modules | Resolve-DependencyOrder -Key { $_.Name } -DependsOn { $_.RequiredModules.Name }
        $Ordered
        if ($Metadata) {
            $RequiredModules = [Ordered]@{}
            # Output for RequiredModules ...
            foreach ($ModuleName in $Ordered.Name) {
                $VersionRange = $Metadata[$ModuleName]
                if (!$VersionRange) {
                    # In case the version is 2 or 4 numbers, always use 3
                    $Version = $Ordered.Where({ $_.Name -eq $ModuleName }, "First", 1).Version
                    $VersionRange = "[{0}.{1}.{2},]" -f [Math]::Max(0, $Version.Major), [Math]::Max(0, $Version.Minor), [Math]::Max(0, $Version.Build)
                }
                $RequiredModules[$ModuleName] = $VersionRange
            }
            Export-Metadata -InputObject $RequiredModules -Path $RequiredModulesPath
        }
    }
}
