One of the best ways to investigate a problematic Xamarin.Android Errors is to first ensure you have the proper tooling available:
- Diagnostic MSBuild Output Enabled(Instructions)
- Android SDK Installed
- Android API Level Documentation
You typically have about 16 ms / frame to do all of your drawing logic. This number is typically found based on the hardware performance of 1000ms / 60hz = 16ms. If the window is missed in the 16ms window, you will experience what's called a "Dropped Frame". You will need to wait until the next frame to render an update. That means it will take roughly 32ms to see a new result.
Jank is a term for dropped or delayed frames.

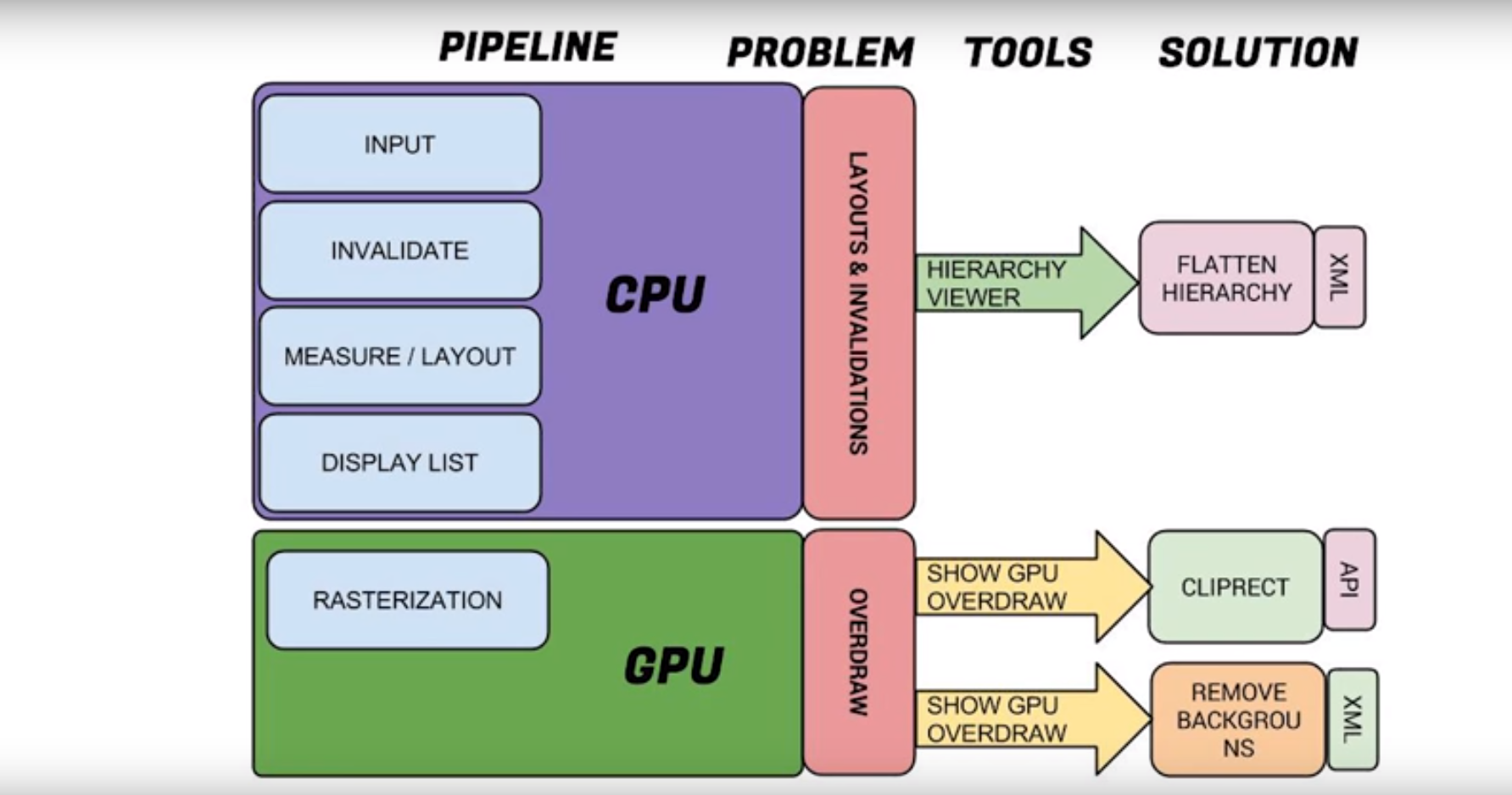

The CPU consists of 4 major items:
- Measure
- Layout
- Record
- Execute
There are two problematic areas:
- Layouts
- Invalidations
Debugging Tools:
Hierarchy Viewer - http://developer.android.com/tools/help/hierarchy-viewer.html
You'll want to click on the venn-diagram icon which will put 3 dots on each View.
- Left - Measure Phase
- Middle - Layout Phase
- Right - Draw Phase
Color (Relative Performance to other nodes)
- Green - Fastest performer compared to other nodes
- Yellow - Bottom 50% to other nodes
- Red - Potential problem / Red Flag / Slowest Performer(Should be expected on at least one node)
Best Practices:
Keep layouts simple and flat. Inflating layouts is expensive in which each nested layout will affect performance.
The GPU consists of 1 major item:
- Rasterization
There is one problematic area:
- Overdraw
Debugging Tools:
Show GPU Overdraw (Settings -> Developer Options -> Debug GPU Overdraw -> Show overdraw areas)
http://developer.android.com/tools/performance/debug-gpu-overdraw/index.html
You will now see that your device has many different colors to it. You can use the following key to help diagnose problematic areas:
- 4x Overdraw Red
- 3x Overdraw Pink
- 2x Overdraw Green
- 1x Overdraw Blue
Ideally you want your application to only be showing Blue->Green.
When you identify problematic areas of overdraw, use ClipRect() / QuickReject() and/or remove backgrounds/drawables/views.
The compute section is mainly comprised of three major items:
- Profile
- Fix
- Repeat
Debugging Tools:
Traceview - http://developer.android.com/tools/help/traceview.html
http://developer.android.com/tools/debugging/debugging-tracing.html
systrace - http://developer.android.com/tools/performance/systrace/index.html
Trace.BeginSection() - http://developer.android.com/tools/debugging/systrace.html#app-trace
Analyze a systrace - http://developer.android.com/tools/debugging/systrace.html#analysis
Best Practices:
Make use of Batching/Caching to make less requests or have a locally saved cache to backup to.
Avoid blocking the UI/Main Thread by identifying pieces of work that can go on background threads.
Memory is a bit trickier with Xamarin.Android as there are two Garbage Collectors being used.
Mono
Dalvik/ART
Debugging Tools:
Memory Monitor - http://developer.android.com/tools/performance/memory-monitor/index.html
Heap Viewer - http://developer.android.com/tools/performance/heap-viewer/index.html
Allocation Tracker - http://developer.android.com/tools/performance/allocation-tracker/index.html
Xamarin Profiler - https://xamarin.com/profiler
Memory Leaks:
While looking in memory monitor, you may notice that you are allocating more memory than what is being collected by the GC. This is the first red flag of a potential memory leak.
Battery Drain:
Current draw over time is the key to what work is being done via your application.
What tasks in my application are draining the battery the fastest?
Debugging Tools:
Battery Historian - http://developer.android.com/tools/performance/batterystats-battery-historian/index.html
https://github.com/google/battery-historian
Best Practices:
Limit network access.
Use JobScheduler to schedule jobs against the framework that will be executed in your application's own process.
