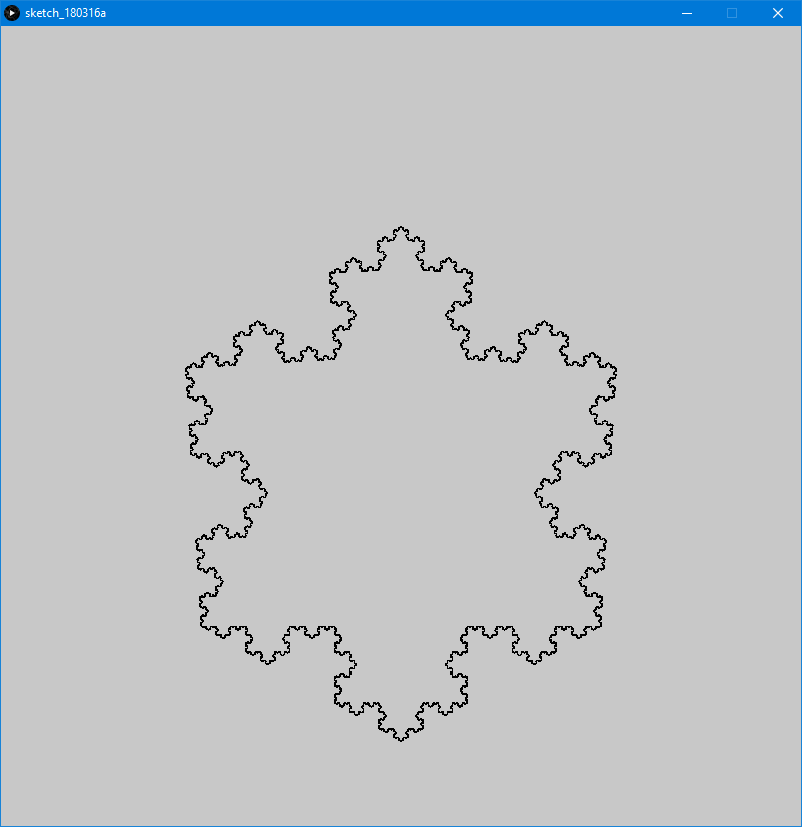

fun with snowflakes in processing
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| ArrayList<Line> lines = new ArrayList<Line>(); | |
| void setup(){ | |
| size(800,800); | |
| background(200); | |
| frameRate(1); | |
| createBaseShape(); | |
| strokeWeight(1); | |
| drawLines(); | |
| } | |
| void draw(){ | |
| background(200); | |
| drawLines(); | |
| applyRule(); | |
| } | |
| void createBaseShape(){ | |
| int padding = 200; | |
| PVector a = new PVector(width/2, padding); | |
| PVector b = new PVector(padding, height-padding); | |
| PVector c = new PVector(width-padding, height - padding); | |
| lines.add(new Line(a, b)); | |
| lines.add(new Line(b, c)); | |
| lines.add(new Line(c,a)); | |
| } | |
| void applyRule(){ | |
| ArrayList<Line> newGen = new ArrayList<Line>(); | |
| for(Line l : lines){ | |
| float dist = l.origin.dist(l.target); | |
| float angle = getAngle(l.origin, l.target); | |
| PVector a = l.origin; | |
| PVector b = getPVectorAtAngle(a,dist/3,angle); | |
| PVector c = getPVectorAtAngle(b,dist/3,angle+60); | |
| PVector d = getPVectorAtAngle(a,dist-dist/3,angle); | |
| PVector e = l.target; | |
| newGen.add(new Line(a, b)); | |
| newGen.add(new Line(b, c)); | |
| newGen.add(new Line(c, d)); | |
| newGen.add(new Line(d, e)); | |
| } | |
| lines = newGen; | |
| } | |
| void drawLines(){ | |
| for(Line l : lines){ | |
| l.draw(); | |
| } | |
| } | |
| class Line{ | |
| PVector origin, target; | |
| public Line(PVector origin, PVector target){ | |
| this.origin = origin; | |
| this.target = target; | |
| } | |
| void draw(){ | |
| line(origin.x, origin.y, target.x, target.y); | |
| } | |
| } | |
| public PVector getPVectorAtAngle(PVector center, float radius, float angle) { | |
| return new PVector(center.x + radius * cos(angle * PI / 180), center.y + radius * sin(angle * PI / 180)); | |
| } | |
| public float getAngle(PVector origin, PVector end) { | |
| return degrees(atan2(end.y - origin.y, end.x - origin.x)); | |
| } |
