Raspberry Pi with Packer and QEMU

Creates a Raspberry Pi image using Packer and using QEMU to test it.

Tested with Raspberry Pi OS Lite 5.10 (March 4th 2021).

Requirements (Arch Linux)

yay -S curl go packer qemu qemu-arch-extra qemu-user-static-bin

Quick start

Install packer-builder-arm plugin

git clone https://github.com/mkaczanowski/packer-builder-arm
cd packer-builder-arm
go mod download
go build
mkdir -p ~/.packer.d/plugins
cp packer-builder-arm ~/.packer.d/plugins

Build image

sudo packer raspios-lite.pkr.hcl

Set user permissions

sudo chown $(whoami): raspberry-pi-os.img

Download the Raspberry Pi kernel

curl https://raw.githubusercontent.com/dhruvvyas90/qemu-rpi-kernel/master/kernel-qemu-5.4.51-buster -o kernel-qemu-5.4.51-buster
curl https://raw.githubusercontent.com/dhruvvyas90/qemu-rpi-kernel/master/versatile-pb-buster-5.4.51.dtb -o versatile-pb-buster-5.4.51.dtb

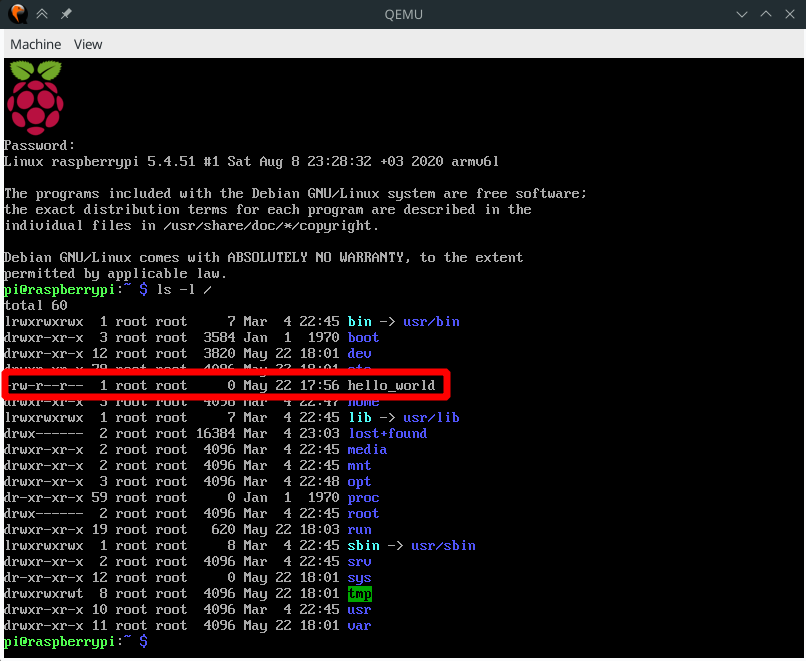

Run image with QEMU

qemu-system-arm -M versatilepb -cpu arm1176 -m 256 -drive "file=raspberry-pi-os.img,if=none,index=0,media=disk,format=raw,id=disk0" -device "virtio-blk-pci,drive=disk0,disable-modern=on,disable-legacy=off" -net "user,hostfwd=tcp::5022-:22" -dtb versatile-pb-buster-5.4.51.dtb -kernel kernel-qemu-5.4.51-buster -append 'root=/dev/vda2 panic=1' -no-reboot

References

• https://github.com/mkaczanowski/packer-builder-arm
• https://github.com/dhruvvyas90/qemu-rpi-kernel
• https://linuxhit.com/build-a-raspberry-pi-image-packer-packer-builder-arm
• https://blog.agchapman.com/using-qemu-to-emulate-a-raspberry-pi

raspios-lite.pkr.hcl

packer {
  required_version = "1.7.2"
}

####################
# Variables (TODO: https://github.com/hashicorp/packer/issues/10127)
####################

variable "raspios_remote_url" {
  description = "Raspberry Pi OS zip remote URL"
  type        = string
  default     = "https://downloads.raspberrypi.org/raspios_lite_armhf/images/raspios_lite_armhf-2021-03-25/2021-03-04-raspios-buster-armhf-lite.zip"
}

variable "image_size" {
  description = "Image size"
  type        = string
  default     = "4G"
}

variable "qemu_arm_binary_path" {
  description = "QEMU binary path"
  type        = string
  default     = "/usr/bin/qemu-arm-static"
}

####################
# Sources
####################

source "arm" "raspios" {
  // Base remote file
  file_urls             = [var.raspios_remote_url]
  file_checksum_url     = "${var.raspios_remote_url}.sha256"
  file_checksum_type    = "sha256"
  file_target_extension = "zip"

  // Image
  image_build_method = "reuse"
  image_path         = "raspberry-pi-os.img"
  image_type         = "dos"
  image_size         = var.image_size
  image_chroot_env   = ["PATH=/usr/local/bin:/usr/local/sbin:/usr/bin:/usr/sbin:/bin:/sbin"]

  image_partitions {
    name         = "boot"
    type         = "c"
    start_sector = "8192"
    filesystem   = "vfat"
    size         = "256M"
    mountpoint   = "/boot"
  }

  image_partitions {
    name         = "root"
    type         = "83"
    start_sector = "532480"
    filesystem   = "ext4"
    size         = "0"
    mountpoint   = "/"
  }

  // QEMU
  qemu_binary_source_path      = var.qemu_arm_binary_path
  qemu_binary_destination_path = var.qemu_arm_binary_path
}

build {
  sources = ["source.arm.raspios"]

  provisioner "shell" {
    inline = [
      "touch /hello_world",
    ]
  }
}
