Drawing polygons and polylines in lua/love2d with rounded corners

Readme.md

This is a simple module that can be used to draw polygons or polylines with rounded corners in love2d. The polygons/polylines must consist only from 90/270 degrees corners.

I wanted this functionality to draw pacman like mazes.

Example from a random pacman game:

How it works

When there is a 90 or 270 degrees corner then I remove r (radius of the circle that the rounded corner is part of) length from each line that is attached and draw the 1/4 of a circle with radius r which is essentially the rounded corner.

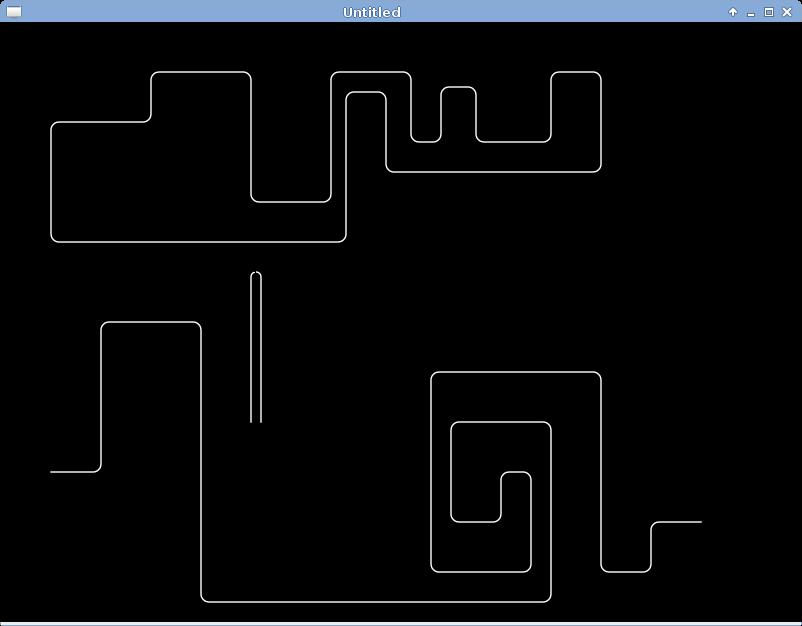

Here it is the output of the main.lua demo that is included in this gist:

Note that the function as it is working now it gets the points of a polygon/polyline and returns a new set of points that can then be used in love.draw() to draw the shape with rounded corners. The process may be slow in general depending on the values of r and n (where n is the number of points used to draw the corner), so it may not be appropriate in cases where the shapes have to move in real time. It is however OK for cases where we just have to draw static shapes as in the pacman maze example that inspired me to create this.

corner-rounder.lua

-- A simple helper module for drawing polygons and polylines with
-- rounded corners in love2d 0.9 (http://love2d.org/)
-- The MIT License (MIT)
-- Copyright (c) 2014 Periklis Ntanasis <[email protected]>

local corner_rounder = {}

--[[
Here are all the possible 90/270 degrees corner cases:

 * 1 left -> right -> down
 * 2 left -> right -> up
 * 3 right -> left -> up
 * 4 left -> right -> down
 * 5 down -> up -> left
 * 6 up -> down -> left
 * 7 up -> down -> right
 * 8 down -> up -> right
]]

local function get_X(r, y, a, b)
	return  a + math.sqrt(math.abs(r*r - math.pow((y-b), 2)))
end

local function get_Y(r, x, a, b)
	return  b + math.sqrt(math.abs(r*r - math.pow((x-a), 2)))
end

-- these functions are needed because graphics system isn't Cartesian
-- and classic circle equation cannot be applied
local function get_inverse_X(r, y, a, b)
	return  a - math.sqrt(math.abs(r*r - math.pow((y-b), 2)))
end

local function get_inverse_Y(r, x, a, b)
	return  b - math.sqrt(math.abs(r*r - math.pow((x-a), 2)))
end

local function check_lines(lineA, lineB)
	if lineA[2] == lineA[4] then
		-- A is horizontal
		local Aleft_to_right = true
		if lineA[1] > lineA[3] then
			Aleft_to_right = false
		end
		local Bup_to_down = true
		if lineB[2] > lineB[4] then
			Bup_to_down = false
		end
		if lineB[1] == lineB[3] then
			-- B is vertical
			if Aleft_to_right then
				if Bup_to_down then
					return 1 -- +,+
				else
					return 2 -- +,-
				end
			else
				if Bup_to_down then
					return 4 -- -,+
				else
					return 3 -- -,-
				end
			end
		end
	else
		-- A is vertical
		local Aup_to_down = true
		if lineA[2] > lineA[4] then
			Aup_to_down = false
		end
		local Bleft_to_right = true
		if lineB[1] > lineB[3] then
			Bleft_to_right = false
		end
		if lineB[2] == lineB[2] then
			-- B is horizontal
			if Aup_to_down then
				if Bleft_to_right then
					return 7 -- +, +
				else
					return 6 -- -, +
				end
			else
				if Bleft_to_right then
					return 8 -- -,-
				else
					return 5 -- +,-
				end
			end
		end
	end
	return 0 -- corner of 180 degrees
end

function corner_rounder.get_points(lines, r, n, polyline)
	r = r or 8
	n = n or 20
	local points = {}
	local center = {}
	for i = 1, #lines do
		local next_line = i+1
		if next_line == #lines+1 then
			next_line = 1
		end
		center.x = 0
		center.y = 0
		-- add the lines to the points table
		if lines[i][2] == lines[i][4] then
			-- vertical line
			if math.abs(lines[i][1] - lines[i][3]) <= r then
				print("A line should be longer than r")
				os.exit()
			elseif math.abs(lines[i][1] - lines[i][3]) <= 2*r then
				print("Warning: A line is shorter than 2r")
			end
			if polyline and i == 1 then
				table.insert(points , lines[i][1])
			else
				if lines[i][1] < lines[i][3] then
					table.insert(points , lines[i][1]+r)
				else
					table.insert(points , lines[i][1]-r)
				end
			end
			table.insert(points , lines[i][2])
			if polyline and i == #lines then
				table.insert(points , lines[i][3])
			else
				if lines[i][1] < lines[i][3] then
					table.insert(points , lines[i][3]-r)
				else
					table.insert(points , lines[i][3]+r)
				end
			end
			table.insert(points , lines[i][4])
		elseif lines[i][1] == lines[i][3] then
			-- horizontal line
			if math.abs(lines[i][2] - lines[i][4]) <= r then
				print("A line should be longer than r")
				os.exit()
			elseif math.abs(lines[i][2] - lines[i][4]) <= 2*r then
				print("Warning: A line is shorter than 2r")
			end
			table.insert(points , lines[i][1])
			if polyline and i == 1 then
				table.insert(points , lines[i][2])
			else
				if lines[i][2] < lines[i][4] then
					table.insert(points , lines[i][2]+r)
				else
					table.insert(points , lines[i][2]-r)
				end
			end
			table.insert(points , lines[i][3])
			if polyline and i == #lines then
				table.insert(points , lines[i][4])
			else
				if lines[i][2] < lines[i][4] then
					table.insert(points , lines[i][4]-r)
				else
					table.insert(points , lines[i][4]+r)
				end
			end
		end
		local corner_case
		if polyline and i == #lines then
			corner_case = 0
		else
			corner_case = check_lines(lines[i], lines[next_line])
		end
		-- calculate the circle center
		if corner_case == 1 then
			center.x = lines[i][3] - r
			center.y = lines[i][4] + r
		elseif corner_case == 2 then
			center.x = lines[i][3] - r
			center.y = lines[i][4] - r
		elseif corner_case == 3 then
			center.x = lines[i][3] + r
			center.y = lines[i][4] - r
		elseif corner_case == 4 then
			center.x = lines[i][3] + r
			center.y = lines[i][4] + r
		elseif corner_case == 5 then
			center.x = lines[i][3] - r
			center.y = lines[i][4] + r
		elseif corner_case == 6 then
			center.x = lines[i][3] - r
			center.y = lines[i][4] - r
		elseif corner_case == 7 then
			center.x = lines[i][3] + r
			center.y = lines[i][4] - r
		elseif corner_case == 8 then
			center.x = lines[i][3] + r
			center.y = lines[i][4] + r
		end
		-- if there is a corner of 90/270 degrees
		if center.x ~= 0 and center.y ~= 0 then
			local y = 0
			local x = 0
			dist = r / n
			for j = 1,n-1 do
				if corner_case == 1 then
					x = dist * j + center.x
					y = get_inverse_Y(r, x, center.x, center.y)
				elseif corner_case == 2 then
					x = dist * j + center.x
					y = get_Y(r, x, center.x, center.y)
				elseif corner_case == 3 then
					x = center.x - dist * j
					y = get_Y(r, x, center.x, center.y)
				elseif corner_case == 4 then
					x = center.x - dist * j
					y = get_inverse_Y(r, x, center.x, center.y)
				elseif corner_case == 5 then
					x = lines[i][3] - dist * j
					-- alternatively can be written like that
					-- x = center.x + r - dist*j
					y = get_inverse_Y(r, x, center.x, center.y)
				elseif corner_case == 6 then
					y = center.y + dist * j
					x = get_X(r, y, center.x, center.y)
				elseif corner_case == 7 then
					y = center.y + dist * j
					x = get_inverse_X(r, y, center.x, center.y)
				elseif corner_case == 8 then
					y = center.y - dist * j
					x = get_inverse_X(r, y, center.x, center.y)
				end
				table.insert(points, x)
				table.insert(points, y)
			end
		end
	end
	return points
end

local function points_to_lines(points, polyline)
	local lines = {}
	if #points % 2 == 1 then
		print("Unexpected number of points!")
		os.exit()
	end
	local i = 1
	while i < #points do
		if i == #points-1 then
			if not polyline then
				table.insert(lines, {points[i], points[i+1], points[1], points[2]} )
			end
		else
			table.insert(lines, {points[i], points[i+1], points[i+2], points[i+3]} )
		end
		i = i + 2
	end
	return lines
end

function corner_rounder.tranform_polygon_points(points, r, n)
	return corner_rounder.get_points(points_to_lines(points, false), r, n)
end

function corner_rounder.tranform_line_points(points, r, n)
	return corner_rounder.get_points(points_to_lines(points, true), r, n, true)
end

return corner_rounder

main.lua

local polygon
local line
local edge

function love.load()
	local cr = require "corner-rounder"
	local polygon_points = { 50,100 , 150,100 , 150,50 , 250,50 ,  250,180, 330,180 , 330,50 ,
	410,50, 410,120, 440,120 , 440,65 , 475,65 , 475,120 , 550,120 , 550,50 , 600,50 ,
	600,150 , 385,150 , 385,70 , 345,70 , 345,220 , 50,220 }
	polygon = cr.tranform_polygon_points(polygon_points)

	local line_points = { 50,450 , 100,450 , 100,300 , 200,300 , 200,580 , 550,580 , 550,400 ,
	450,400 , 450,500 , 500,500 , 500,450 , 530,450 , 530,550 , 430,550 , 430,350 , 600,350,
	600,550 , 650,550 , 650,500 , 700,500 }
	line = cr.tranform_line_points(line_points)

	local edge_case = {250,400 , 250,250 , 260,250 , 260,400}
	--edge = cr.tranform_line_points(edge_case, 4) -- ok
	edge = cr.tranform_line_points(edge_case, 5) -- warning
	--edge = cr.tranform_line_points(edge_case, 10) -- error
end

function love.draw()
	love.graphics.polygon("line", polygon)
	love.graphics.line(line)
	love.graphics.line(edge)
end
