pay_method.R

library(readabs)
library(tidyverse)
library(readxl)

theme_set(theme_minimal() +
            theme(panel.grid = element_blank(),
                  axis.ticks = element_line(),
                  axis.line.x = element_line()))

eeh_path <- download_abs_data_cube("employee-earnings-and-hours-australia",
                                   "003")

eeh_raw <- eeh_path |>
  read_excel(range = "Table_3!A5:D32") |>
  filter(!is.na(Award)) |>
  rename(income_range = 1)

eeh_long <- eeh_raw |>
  pivot_longer(!income_range,
               names_to = "method") |>
  mutate(income_lower = strayr::parse_income_range(income_range),
         income_lower = if_else(income_range == "Under $200", 0, income_lower),
         income_range = str_remove_all(income_range, " under"),
         income_range = str_replace_all(income_range, "Under ", "<"),
         income_range = str_replace_all(income_range, " and over", "+"),
         method = factor(method, levels = c("Award",
                                            "Individual arrangement",
                                            "Collective agreement")))

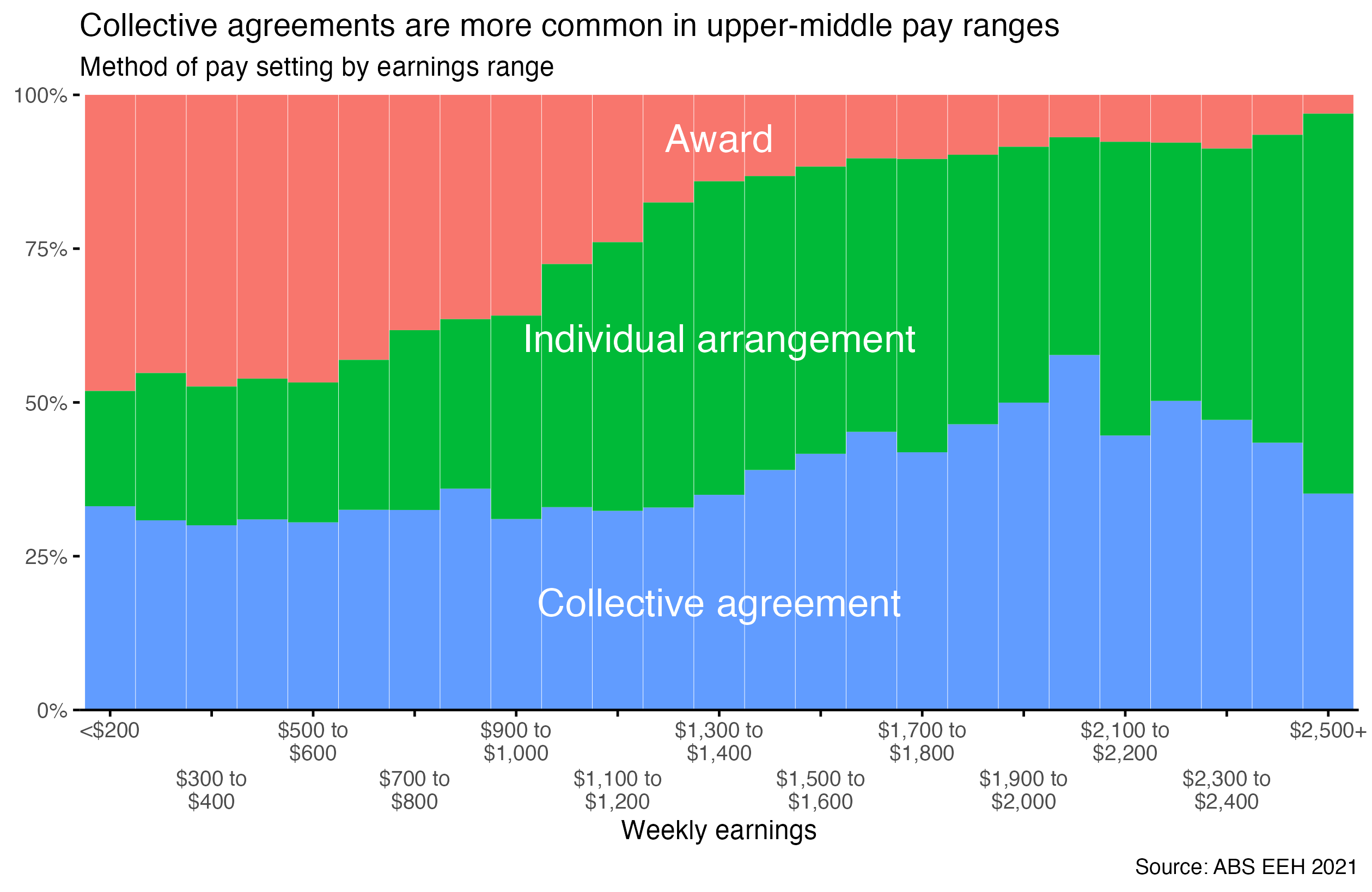

eeh_long |>
  ggplot(aes(x = reorder(income_range,
                         income_lower),
             y = value, fill = method)) +
  geom_col(position = "fill",
           width = 0.99,
           linewidth = 0) +
  geom_text(data = ~filter(., income_lower == 1300) |>
              arrange(desc(method)) |>
              mutate(y = (cumsum(value) - (value/ 2)) / sum(value)),
            aes(label = method,
                y = y),
            size = 16 / .pt,
            col = "white") +
  scale_x_discrete(labels = \(x) str_wrap(x, 9),
                   breaks = \(x) x[seq_along(x) %% 2 == 1],
                   guide = guide_axis(n.dodge = 2)) +
  scale_y_continuous(expand = expansion(0),
                     labels = scales::percent) +
  labs(x = "Weekly earnings",
       subtitle = "Method of pay setting by earnings range",
       title = "Collective agreements are more common in upper-middle pay ranges",
       caption = "Source: ABS EEH 2021") +
  theme(legend.position = "none",
        axis.title.y = element_blank())
