Put text on a OLED screen from a website on the ESP8266
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| #include <ESP8266WiFi.h> | |
| #include <ESP8266WebServer.h> | |
| #include <SPI.h> | |
| #include "SSD1306Spi.h" | |
| // Change here the ssid and password to your own. | |
| const char *ssid = "SSID"; | |
| const char *password = "password"; | |
| String ss = ssid; | |
| String pw = password; | |
| // The OLED display width and height | |
| #define int DISPLAY_HEIGHT = 64; | |
| #define int DISPLAY_WIDTH = 128; | |
| // Your webpage to show in string form. | |
| String webPage = "<html>\ | |
| <head>\ | |
| <title>Melvin ESP8266 Demo</title>\ | |
| </head>\ | |
| <body>\ | |
| <h1>Hello from Melvin's ESP8266!</h1>\ | |
| <p>You can enter text here and it will output on the oled screen </p>\ | |
| <form action='http://192.168.4.1/submit' method='POST'>\ | |
| Input: <input type='text' name='input'><br>\ | |
| <input type='submit' value='Submit'>\ | |
| </form>\ | |
| </body>\ | |
| </html>"; | |
| ESP8266WebServer server(80); // webserver on port 80 | |
| SSD1306Spi display(0,16,2); // RESET, DC, CS | |
| // Send the webpage when going to ESP8266s ip address | |
| void handleRoot() { | |
| server.send(200, "text/html", webPage); | |
| } | |
| // Handle the submit Button | |
| void handleSubmit(){ | |
| if (server.args() > 0 ) { | |
| for ( uint8_t i = 0; i < server.args(); i++ ) { | |
| if (server.argName(i) == "input") { | |
| // If the argumentName is input print out result on OLED Screen. | |
| display.clear(); | |
| display.drawString(DISPLAY_WIDTH/2, 10, "ssid: " + ss); | |
| display.drawString(DISPLAY_WIDTH/2, 20, "password: " + pw); | |
| display.drawString(DISPLAY_WIDTH/2, 30, "IP address: " + WiFi.softAPIP().toString()); | |
| display.drawString(DISPLAY_WIDTH/2, 40, "output: " + server.arg(i)); | |
| display.display(); | |
| } | |
| } | |
| } | |
| // Send the webpage again so users can enter text again. | |
| server.send(200, "text/html", webPage); | |
| } | |
| void setup() { | |
| // Init and flip the OLED display | |
| display.init(); | |
| display.flipScreenVertically(); | |
| // Set contrast and font | |
| display.setContrast(255); | |
| display.setFont(ArialMT_Plain_10); | |
| display.setTextAlignment(TEXT_ALIGN_CENTER_BOTH); | |
| // Startup Wifi Access Point | |
| WiFi.softAP(ssid, password); | |
| delay(500); | |
| // Display some info on the OLED | |
| display.clear(); | |
| display.drawString(DISPLAY_WIDTH/2, 10, "ssid: " + ss); // X,Y,String | |
| display.drawString(DISPLAY_WIDTH/2, 20, "password: " + pw); | |
| display.drawString(DISPLAY_WIDTH/2, 30, "IP address: " + WiFi.softAPIP().toString()); // The Ip of the ESP itself so you know where to go when connected. | |
| display.display(); | |
| // Start WebSockets on '/' and '/submit' for the form submit. | |
| server.on("/", handleRoot); | |
| server.on("/submit", handleSubmit); | |
| server.begin(); | |
| } | |
| // handle websocket requests forever. | |
| void loop() { | |
| server.handleClient(); | |
| } |
My IDE say 'DISPLAY_WIDTH' was not declared in this scope, how I solve? Thank you.
just change #define to const
const int DISPLAY_HEIGHT = 64;
const int DISPLAY_WIDTH = 128;
i am not able to see the message on my display can u please send the circuit diagram or block diagram??
[email protected]
i am not able to see the message on my display can u please send the circuit diagram or block diagram??
[email protected]
pls help
thank you

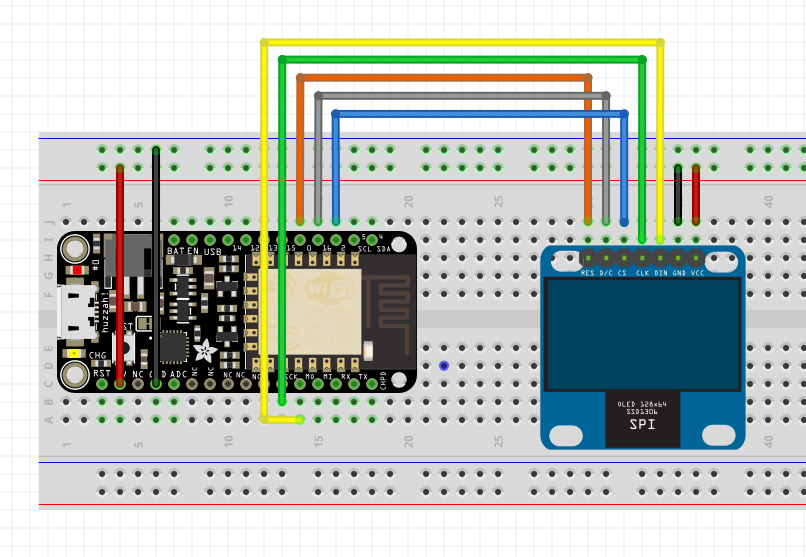

Sorry for the super late reply. Didn't saw the comment until now. But here is the diagram on how I connected the oled to the esp. One little mistake at the GND pin of the oled. It should connect to the ground and not the 5v of course.
what library used in this oled? adafruit?
on adafruit library i got no member drawstring , how solve it?
