Reactive Validation Triggers in Angular Forms

1-info.md

Reactive Validation Triggers in Angular Forms

Learn how to enhance Angular form validations using Reactive Forms and a few gimmicks.

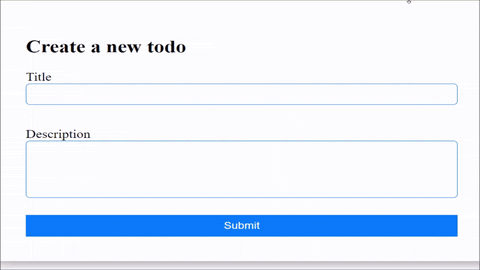

Demos

Input + Time based validation trigger

Form submit triggers errors to display

app,component.html

<app-todo-form></app-todo-form>

app.module.ts

import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';

import { AppComponent } from './app.component';
import { TodoFormModule } from './todos/todo-form/todo-form.module';

@NgModule({
  declarations: [
    AppComponent,
  ],
  imports: [
    BrowserModule,
    TodoFormModule,
  ],
  providers: [],
  bootstrap: [AppComponent]
})
export class AppModule { }

todo-form.component.html

<form [formGroup]="todoForm" (ngSubmit)="onSubmit()">

  <h2>Create new todo</h2>

  <!-- Title -->

  <div class="title-wrapper">
    <label>Title</label>
    <input formControlName="title" type="text" />
    <div class="error-message" *ngIf="formFieldCanBeValidated['title'] && titleControl.invalid && (titleControl.dirty || titleControl.touched)">
      <div *ngIf="titleControl.hasError('required')">Title is required</div>
      <div *ngIf="titleControl.hasError('maxlength')">Title is too long</div>
      <div *ngIf="titleControl.hasError('minlength')">Title is too short</div>
      <div *ngIf="titleControl.hasError('pattern')">Title contains numbers or symbols</div>
    </div>
  </div>

  <!-- Description -->

  <div class="description-wrapper">
    <label>Description</label>
    <textarea formControlName="description"></textarea>
    <div class="error-message" *ngIf="formFieldCanBeValidated['description'] && descriptionControl.invalid && (descriptionControl.dirty || descriptionControl.touched)">
      Maximum number of characters is 300!
    </div>
  </div>

    <button class="submit-btn" type="submit">Submit</button>

</form>

todo-form.component.scss

form {
  display: flex;
  flex-direction: column;
  width: 500px;
  box-shadow: rgba(0, 0, 0, 0.35) 0px 5px 15px;
  padding: 5%;
  margin: 5%;
}

.title-wrapper {
  width: 100%;
  margin-bottom: 2rem;

  & > input {
    width: 100%;
    border-radius: 5px;
    border: 1px solid #007BFF;
    outline: none;
    height: 20px;
    padding: 0 5px;
    box-sizing: border-box;
    height: 30px;
  }
}

.description-wrapper {
  width: 100%;

  & > textarea {
    width: 100%;
    border-radius: 5px;
    border: 1px solid #007BFF;
    outline: none;
    resize: none;
    height: 80px;
    box-sizing: border-box;
  }
}

.submit-btn {
  cursor: pointer;
  background: #007BFF;
  color: #FFF;
  margin-top: 20px;
  height: 30px;
  border: none;

  &:hover {
    background: #2890fe;
  }
}

.error-message {
  color: red;
}

todo-form.component.ts

import { Component, OnDestroy, OnInit } from '@angular/core';
import {
  AbstractControl,
  FormBuilder,
  FormGroup,
  Validators,
} from '@angular/forms';
import { debounceTime, Subject, takeUntil, tap } from 'rxjs';

enum FormFields {
  Title = 'title',
  Description = 'description',
}

@Component({
  selector: 'app-todo-form',
  templateUrl: './todo-form.component.html',
  styleUrls: ['./todo-form.component.scss'],
})
export class TodoFormComponent implements OnInit, OnDestroy {
  todoForm!: FormGroup;

  private readonly unsubscribed$ = new Subject<void>();

  formFieldCanBeValidated = {
    [FormFields.Title]: true,
    [FormFields.Description]: true,
  };

  constructor(private fb: FormBuilder) {}

  ngOnInit(): void {
    this.setupForm();

    this.toggleValidationRules(FormFields.Title);
    this.toggleValidationRules(FormFields.Description);
  }

  ngOnDestroy(): void {
    this.unsubscribed$.next();
    this.unsubscribed$.complete();
  }

  private toggleValidationRules(field: FormFields) {
    this.todoForm
      .get(field)
      ?.valueChanges.pipe(
         // clear validation as soon you start typing
        tap(() => (this.formFieldCanBeValidated[field] = false)),
        // hold for 500ms after user stopped typing
        debounceTime(500),
        takeUntil(this.unsubscribed$)
      )
      .subscribe(() => (this.formFieldCanBeValidated[field] = true));
  }

  get titleControl(): AbstractControl {
    return this.todoForm.get(FormFields.Title) as AbstractControl;
  }

  get descriptionControl(): AbstractControl {
    return this.todoForm.get(FormFields.Description) as AbstractControl;
  }

  private setupForm(): void {
    this.todoForm = this.fb.group({
      [FormFields.Title]: [
        '',
        [
          Validators.required,
          Validators.minLength(3),
          Validators.maxLength(100),
          Validators.pattern(new RegExp(/^[a-zA-Z\s]+$/)),
        ],
      ],
      [FormFields.Description]: ['', [Validators.maxLength(300)]],
    });
  }

  private triggerValidationOnSubmit(): void {
    Object.keys(this.todoForm.controls).forEach((field: string) => {
      const control = this.todoForm.get(field);
      control?.markAsTouched({ onlySelf: true });
    });
  }

  onSubmit(): void {
    console.log(this.todoForm.value);

    if (!this.todoForm.valid) {
      this.triggerValidationOnSubmit();
      return;
    }
    console.log('done');
  }
}

todo-form.module.ts

import { NgModule } from '@angular/core';
import { TodoFormComponent } from './todo-form.component';
import { ReactiveFormsModule } from '@angular/forms';
import { CommonModule } from '@angular/common';



@NgModule({
  declarations: [
    TodoFormComponent
  ],
  imports: [
    CommonModule,
    ReactiveFormsModule
  ],
  exports: [
    TodoFormComponent
  ]
})
export class TodoFormModule { }
