Dockerfile

# docker build -t kubenode .
FROM ubuntu:20.04

## kubenode software base
RUN apt update \
    && apt install  -yq  curl software-properties-common  ca-certificates openssh-client  apt-transport-https \
    wget curl iptables supervisor systemd

RUN echo "deb [signed-by=/usr/share/keyrings/cloud.google.gpg] https://packages.cloud.google.com/apt cloud-sdk main" | tee -a /etc/apt/sources.list.d/google-cloud-sdk.list \
    && curl https://packages.cloud.google.com/apt/doc/apt-key.gpg | apt-key --keyring /usr/share/keyrings/cloud.google.gpg add - \
    &&  apt-key adv --keyserver hkp://keyserver.ubuntu.com:80 --recv-keys 6A030B21BA07F4FB \
    && apt-get update


RUN  add-apt-repository "deb [arch=amd64] https://apt.kubernetes.io/ kubernetes-xenial main" \
    && apt-get update

ENV DOCKER_CHANNEL=stable \
	DOCKER_VERSION=19.03.11 \
	DOCKER_COMPOSE_VERSION=1.26.0 \
	DEBUG=false

# Docker installation
RUN set -eux; \
	\
	arch="$(uname --m)"; \
	case "$arch" in \
        # amd64
		x86_64) dockerArch='x86_64' ;; \
        # arm32v6
		armhf) dockerArch='armel' ;; \
        # arm32v7
		armv7) dockerArch='armhf' ;; \
        # arm64v8
		aarch64) dockerArch='aarch64' ;; \
		*) echo >&2 "error: unsupported architecture ($arch)"; exit 1 ;;\
	esac; \
	\
	if ! wget -O docker.tgz "https://download.docker.com/linux/static/${DOCKER_CHANNEL}/${dockerArch}/docker-${DOCKER_VERSION}.tgz"; then \
		echo >&2 "error: failed to download 'docker-${DOCKER_VERSION}' from '${DOCKER_CHANNEL}' for '${dockerArch}'"; \
		exit 1; \
	fi; \
	\
	tar --extract \
		--file docker.tgz \
		--strip-components 1 \
		--directory /usr/local/bin/ \
	; \
	rm docker.tgz; \
	\
	dockerd --version; \
	docker --version

RUN apt-get update \
    && apt-get install -yq htop git \
    net-tools \
    aptitude \
    build-essential \
    python3-setuptools \
    python3-dev \
    python3-pip \
    software-properties-common \
    ansible \
    curl \
    iptables \
    iputils-ping \
    sudo \
  kubelet kubeadm kubectl

RUN git clone --recursive https://github.com/cruizba/ubuntu-dind \
    && cd ubuntu-dind \
    && cp ./modprobe /usr/local/bin/ \
    && cp ./startup.sh /usr/local/bin/ \
    && cp ./supervisor/* /etc/supervisor/conf.d/ \
    && mkdir /opt/bash-utils/ \
    && cp ./logger.sh /opt/bash-utils/logger.sh

RUN chmod +x /usr/local/bin/startup.sh /usr/local/bin/modprobe
VOLUME /var/lib/docker

# Docker compose installation
RUN curl -L "https://github.com/docker/compose/releases/download/${DOCKER_COMPOSE_VERSION}/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose \
	&& chmod +x /usr/local/bin/docker-compose

RUN pip3 install "more-itertools<=5.0.0"


### SSH
RUN useradd --create-home --no-log-init --shell /bin/bash -g root vagrant && \
    usermod -aG sudo vagrant && \
    usermod -aG users vagrant && \
    echo "vagrant:vagrant" | chpasswd

RUN apt update && apt --no-install-recommends install -y  plink openssh-server ssh && \
    mkdir /var/run/sshd && \
    sed -ri 's/^#?PermitRootLogn\s+.*/PermitRootLogin yes/' /etc/ssh/sshd_config && \
    sed -ri 's/UsePAM yes/#UsePAM yes/g' /etc/ssh/sshd_config && \
    echo "\nAllowGroups root" >> /etc/ssh/sshd_config && \
    mkdir /root/.ssh && \
    mkdir /home/vagrant/.ssh
EXPOSE 22


ENTRYPOINT ["startup.sh"]
CMD ["/bin/bash"]

sdn.py

#
from l3ns.ldc import DockerNode
from l3ns.base.network import Network
from l3ns import defaults

defaults.network = Network('43.0.0.0/8')

master = DockerNode('master', image='kubenode', command='tail -f /dev/null', tty=True, stdin_open=True, )
worker1 = DockerNode('worker1', image='kubenode', command='tail -f /dev/null', tty=True, stdin_open=True)
worker2 = DockerNode('worker2', image='kubenode', command='tail -f /dev/null', tty=True, stdin_open=True)

master.connect_to(worker1)
master.connect_to(worker2)
#worker1.connect_to(master)
#worker2.connect_to(master)
master.connect_to_internet = True
worker1.connect_to_internet = True
worker2.connect_to_internet = True

def save_file_on_a_node(node_ctx, str, file_path):
    ret = node_ctx.exec_run('touch ' + file_path)
    print(ret.exit_code)
    print(ret.output)

    ret = node_ctx.exec_run("""/bin/bash -c "cat <<EOT >> """+file_path+"""
    """ + str +
"""
EOT"
""")
    print(ret.exit_code)
    print(ret.output.decode('ascii'))
    return ret

def save_file_on_all_nodes(str, file_path):
    save_file_on_a_node(master, str, file_path)
    save_file_on_a_node(worker1, str, file_path)
    save_file_on_a_node(worker2, str, file_path)



def run_on_a_node(node_ctx, cmd):
    print("on "+node_ctx.name+" running: " + cmd )
    ret = node_ctx.exec_run(cmd)
    #print(ret.exit_code)
    #print(ret.output.decode('ascii'))
    return ret

def run_on_all_nodes(str):
    run_on_a_node(master, str)
    run_on_a_node(worker1, str)
    run_on_a_node(worker2, str)

with defaults.network:
    hosts = """[masters]
master ansible_host="""+str(master.get_ip())+""" ansible_user=vagrant

[workers]
worker1 ansible_host="""+str(worker1.get_ip())+""" ansible_user=vagrant
worker2 ansible_host="""+str(worker2.get_ip())+""" ansible_user=vagrant

[all:vars]
ansible_python_interpreter=/usr/bin/python3
ansible_connection=ssh
ansible_user=vagrant
ansible_ssh_pass=vagrant
"""

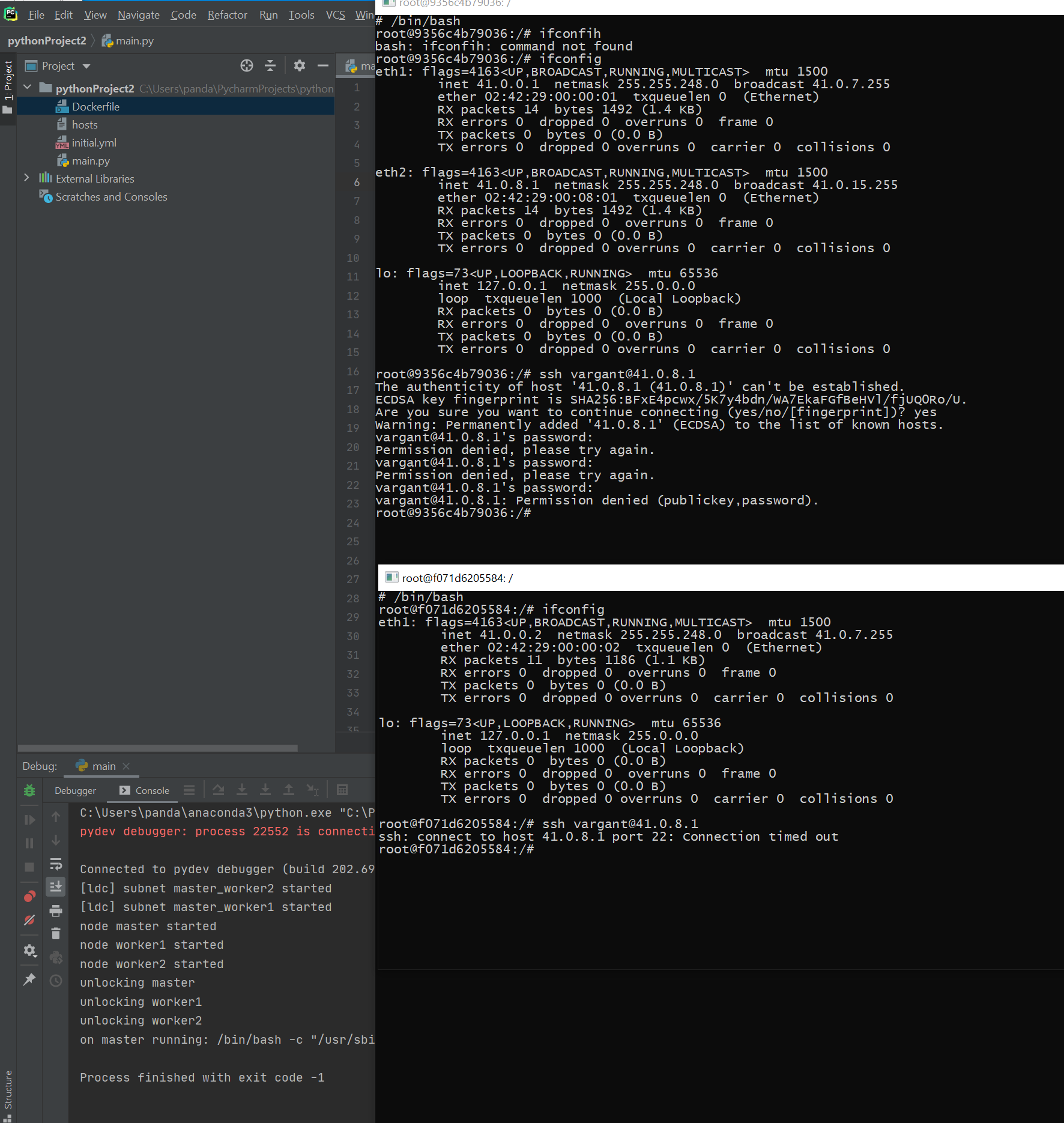

    run_on_all_nodes( """/bin/bash -c "/usr/sbin/sshd -D" """) ## Here wa  log onto  nodes directly!
    print("started SSH deamons on all nodes")
    run_on_a_node(master, """/bin/bash -c "plink vagrant@"""+ str(worker1.get_ip())+ """ -pw vagrant ls" """)
    print("press enter to stop simulation!")
    input1 = input()
    exit()
