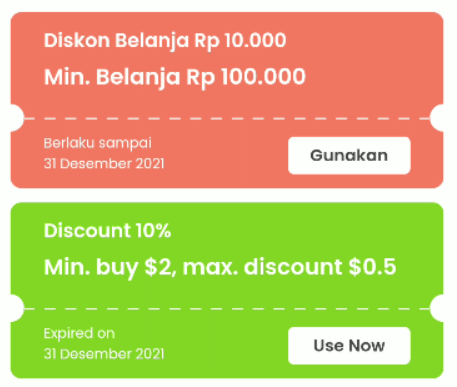

Create a custom ticket card display in flutter
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
class CustomTicket extends CustomClipper<Path> { | |
@override | |
Path getClip(Size size) { | |
final path = Path(); | |
//Radius | |
path.addRRect( | |
RRect.fromRectAndRadius( | |
Rect.fromLTWH(0, 0, size.width, size.height), | |
const Radius.circular(8), | |
), | |
); | |
// Left Round In | |
path.addOval( | |
Rect.fromCircle( | |
center: Offset(0, (size.height / 3) * 1.8), // Position Roun In Left | |
radius: 10, // Size | |
), | |
); | |
// Right Round In | |
path.addOval( | |
Rect.fromCircle( | |
center: Offset(size.width, (size.height / 3) * 1.8), // Position Roun In Right | |
radius: 10, // Size | |
), | |
); | |
// Horizontal Line Dash | |
const dashWidth = 10; | |
const dashSpace = 5; | |
final dashCount = size.width ~/ (dashWidth + dashSpace); | |
for (var i = 0; i < dashCount; i++) { | |
path.addRect( | |
Rect.fromLTWH( | |
i * (dashWidth + dashSpace).toDouble() + 10, | |
(size.height / 3) * 1.8, | |
dashWidth.toDouble(), | |
1, | |
), | |
); | |
} | |
path.fillType = PathFillType.evenOdd; | |
return path; | |
} | |
@override | |
bool shouldReclip(CustomClipper oldClipper) { | |
return true; | |
} | |
} |
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
ClipPath( | |
clipper: CustomTicket(), // <-- CustomClipper | |
child: Container( | |
color: backgroundColor ?? ThemesColor.orangeTwoColor, // <-- background color | |
height: 150.h, // <-- height | |
width: ThemesMargin.screenHeight(), // <-- width | |
child: // <-- child can be any widget | |
), | |
); |
