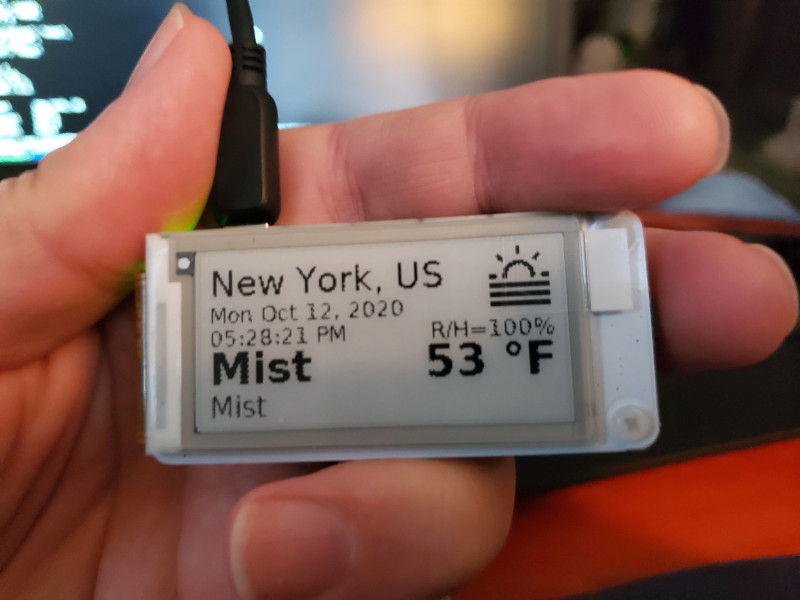

A tiny weather display console using a Pi Zero W and PaPiRus 2" (200x96) eInk display

RPiZeroW_eInk_WeatherConsole.md

FILENAME: README.md

PURPOSE

This code uses a Raspberry Pi Zero W to query the Open Weather Maps API, retrieve the current weather data for a location specified by the user, formats the response, and then displays it on a PaPiRus eInk display.

BACKGROUND

This code was based on code taken from a tutorial on the Adafruit website. The original code was written to work with an Adafruit eInk display. This version was modified to work with a 2.0" (200x96) PaPiRus eInk display attached to a Raspberry Pi Zero W.

PROJECT FILES

ID	FILENAME	DESCRIPTION
1	README.md	This README file.
2	weather.py	Contains the primary code to be edited and called by the user.
3	weather_graphics.py	Contains the primary driver display code. Generally, the user should not need to edit this code.
4	DejaVuSans.ttf DejaVuSans.ttf DejaVuSans.ttf DejaVuSans-Bold.ttf	Display Fonts - All of these will be located in /usr/share/fonts/truetype/dejavu/
5	./meteocons.ttf	Weather icons

PREREQUISITES: Please read before going any further

Setting up the PaPiRus API for the eInk screen

Prior to running this code, you will need to install the PaPiRus eInk API. The full documentation for this API is available via https://github.com/PiSupply/PaPiRus. However, if you want to try to do the quick install of the API, try running the following command and make sure that it completes with no errors:

 curl -sSL https://pisupp.ly/papiruscode | sudo bash

Getting the icons required for use in weather_graphics.py

See https://www.alessioatzeni.com/meteocons/ for icons

Download and unzip the meteo icons and fonts

curl --remote-name https://www.alessioatzeni.com/meteocons/res/download/meteocons-icons.zip && unzip meteocons-icons.zip
curl --remote-name https://www.alessioatzeni.com/meteocons/res/download/meteocons-font.zip && unzip meteocons-font.zip

Copy the meteocons.ttf to the current working directory

cp ./meteocons-font/FONT/Desktop-font/meteocons.ttf ./

---

PARTS LIST

ITEM	NOTES
PaPiRus eInk Display 2" (200x96)	For this project, I used the 2" display, which has a resolution of 200x96 pixels. Although I used dynamic variables that queried the display width and height, the actual display code will likely need to be modified if a different sized screen is used, especially if it is smaller than 2".
Raspberry Pi Zero W Option 1 Option 2	Option 1 - (with header pins installed) This model, which was the one used for this project, has the header pins installed. The base model Pi Zero W could be used, but only after the header pins have been installed. Option 2 - Base model - no pre-installed header pins To use this model, header pins will need to be installed first.
PaPiRus Github Repo	Contains installation instructions and sample code for the API.

INSTRUCTIONS FOR UPDATING WEATHER AND DISPLAY

MANUAL PROCESS: Making a single call to the code

Call python3 weather.py at the command line.

Be sure that the Python interpreter can find the font files called in weather_graphics.py. The best way to ensure the font files are available is to specify the full path name.

For system fonts, specifying a fixed path is not a problem. However, for specialized fonts, such as meteocons.ttf, the easiest way to guarantee they are found is to place the font file in the same folders as weather.py & weather_graphics.py, and issue the call to the Python interpreter as follows:

    cd /INSERT-CORRECT-PATH-NAME-HERE/ && python3 weather.py

AUTOMATED PROCESS: Using the cron daemon

At the command line, run the following command to start the crontab file editor. If you have not run it previously, you will be asked to select your text editor. If you are unsure of which one to use, select the nano option.

crontab -e

Add the following lines of code. This code will run the weather update code every 15 minutes during the hours of 7 AM - 10 PM. However, during the hours of 11 PM - 6 AM, it will only run the code every hour. You can change these times to suit your own preferences.

# min          hr     dom  mon dow   command
00,15,30,45    7-22   *    *   *     cd /home/pi/projects/PaPiRus/WeatherStation/python/ && python3 weather.py
00             0-6    *    *   *     cd /home/pi/projects/PaPiRus/WeatherStation/python/ && python3 weather.py
00             23     *    *   *     cd /home/pi/projects/PaPiRus/WeatherStation/python/ && python3 weather.py

---

ADDITIONAL NOTES

Most significant changes between this code and the original tutorial code (Optional)

Here are the biggest changes between this code and the original code in the Adafruit tutorial.

1. The original code was written for an Adafruit branded eInk bonnet. This code was written for the PaPiRus eInk display.
2. The original code contained a while loop in weather.py. For this code, I chose to get rid of the while loop and use a cron job to update the display periodically. I made this decision because
   1. the cron daemon is perfectly suited for tasks that run at scheduled intervals, and
   2. the cron approach will be easier and more robust.
   3. With the original code, a user would need to explicitly run the code after every reboot. Additionally, after manually running the code, the user would need to either
      1. stay logged in permanently, which will fail as soon as their terminal connection is broken, or
      2. the user would need to install a package like screen, which can continue to run jobs even if a user's terminal connection is broken.
   4. By using cron, all of the aforementioned problems are obviated.
3. I added a smaller font (tiny_font), which allowed me to add some additional weather elements to the screen, specifically, the day and date, the seconds to the time, and the relative humidity.
   1. I believe there is enough screen real estate to be able to display the feels_like data, which the code does retrieve and stores.
   2. However, I don't display it because the current displayed items would need to be repositioned in an optimal way. That task will be done in a future update.

---

weather.py

"""
FILENAME:   weather.py
            File 1 of 2

See README.md for more details

BACKGROUND
    Taken from https://learn.adafruit.com/raspberry-pi-e-ink-weather-station-using-python/weather-station-code

    This example queries the Open Weather Maps site API to find out the current
    weather for your location... and display it on a PaPiRus eInk display.

    The original code was written to work with an Adafruit eInk display. This version was
    modified to work with a 2.0" (200x96) PaPiRus eInk display attached to a Raspberry Pi Zero W.
        eInk Display:           https://www.adafruit.com/product/3335

        Raspberry Pi Zero W:    https://www.adafruit.com/product/3708   This model has the header pins installed.
                                https://www.adafruit.com/product/3400   Header pins are not included with this model.

        PaPiRus Github Repo:    https://github.com/PiSupply/PaPiRus     Contains installation instructions and sample code for the API.

PROJECT FILES
    1) weather.py
    2) weather_graphics.py

INSTRUCTIONS:
    call 'python3 weather.py' at the command line.
"""

import json
import datetime
import time
import urllib.request
import urllib.parse
from weather_graphics import Weather_Graphics
from papirus import Papirus

# You'll need to get a token from openweathermap.org, looks like:
# 'b6907d289e10d714a6e88b30761fae22'
OPEN_WEATHER_TOKEN = "b6907d289e10d714a6e88b30761fae22"          # Be sure to get your own token. This one won't work.
URL_SUCCESS_CODE = 200

# Use cityname, country code where countrycode is ISO3166 format.
# E.g. "New York, US" or "London, GB"
# In the US, a ZIP code will usually work, too.
#LOCATION = "New York, New York"
LOCATION = "10001, US"

DATA_SOURCE_URL = "https://api.openweathermap.org/data/2.5/weather"

if len(OPEN_WEATHER_TOKEN) == 0:
  raise RuntimeError(
    "You need to set your token first. If you don't already have one, you can register for a free account at https://home.openweathermap.org/users/sign_up"
  )

# Set up where we'll be fetching data from
params = {"q": LOCATION, "appid": OPEN_WEATHER_TOKEN}
data_source = DATA_SOURCE_URL + "?" + urllib.parse.urlencode(params)

# Initialize the Display
DISP_ROTATION = 0
img_display_screen = Papirus(rotation = DISP_ROTATION)

gfx = Weather_Graphics(img_display_screen, am_pm = True, celsius = False)
weather_refresh = None

response = urllib.request.urlopen(data_source)
if response.getcode() == URL_SUCCESS_CODE:
  value = response.read()
  print("Response is", json.dumps(json.loads(value), indent = 2, sort_keys = True))
  gfx.display_weather(value)
  print("")
  print("URL=", data_source)
  print("Last refresh: ", datetime.datetime.now().strftime("%I:%M:%S %p"))
  weather_refresh = time.monotonic()
else:
  print("Unable to retrieve data at {}".format(url))

weather_graphics.py

"""
FILENAME: weather_graphics.py
File 2 of 2

This example queries the Open Weather Maps site API to find out the current
weather for your location... and display it on a PaPiRus eInk display!

Taken from https://learn.adafruit.com/raspberry-pi-e-ink-weather-station-using-python/weather-station-code

PROJECT FILES
  1) weather.py
  2) weather_graphics.py

INSTRUCTIONS:
  call 'python3 weather.py' at the command line.

See README.md for more details.
"""

from datetime import datetime
import json
from PIL import Image, ImageDraw, ImageFont
from papirus import Papirus

tiny_font = ImageFont.truetype("/usr/share/fonts/truetype/dejavu/DejaVuSans.ttf", 12)
small_font = ImageFont.truetype("/usr/share/fonts/truetype/dejavu/DejaVuSans.ttf", 16)
medium_font = ImageFont.truetype("/usr/share/fonts/truetype/dejavu/DejaVuSans.ttf", 20)
large_font = ImageFont.truetype("/usr/share/fonts/truetype/dejavu/DejaVuSans-Bold.ttf", 24)
icon_font = ImageFont.truetype("./meteocons.ttf", 40)

# Map the OpenWeatherMap icon code to the appropriate font character
ICON_MAP = {
  "01d": "B",
  "01n": "C",
  "02d": "H",
  "02n": "I",
  "03d": "N",
  "03n": "N",
  "04d": "Y",
  "04n": "Y",
  "09d": "Q",
  "09n": "Q",
  "10d": "R",
  "10n": "R",
  "11d": "Z",
  "11n": "Z",
  "13d": "W",
  "13n": "W",
  "50d": "J",
  "50n": "K",
}

# Conversion from Kelvins to deg C
KELVINS_TO_DEG_C = 273.15

# RGB Colors
WHITE = (255, 255, 255)
BLACK = (0, 0, 0)

class Weather_Graphics:
  def __init__(self, display, *, am_pm=True, celsius=True):
    self.am_pm = am_pm
    self.celsius = celsius

    self.tiny_font = tiny_font
    self.small_font = small_font
    self.medium_font = medium_font
    self.large_font = large_font

    self.display = display

    self._weather_icon = None
    self._city_name = None
    self._main_text = None
    self._temperature = None
    self._description = None
    self._time_text = None

  def display_weather(self, weather):
    weather = json.loads(weather)

    # set the icon/background
    self._weather_icon = ICON_MAP[weather["weather"][0]["icon"]]

    city_name = weather["name"] + ", " + weather["sys"]["country"]
    print("city_name:\t", city_name)
    self._city_name = city_name

    main = weather["weather"][0]["main"]
    print("main:\t\t", main)
    self._main_text = main

    humidity = weather["main"]["humidity"]
    self._humidity = "R/H=%d%%" % humidity
    feels_like = weather["main"]["feels_like"] - KELVINS_TO_DEG_C 	# Convert kelvins to degrees C
    temperature = weather["main"]["temp"] - KELVINS_TO_DEG_C 	# Convert kelvins to degrees C

    if self.celsius:
      self._temperature = "%d °C" % temperature
      self._feels_like = "%d °C" % feels_like
    else:
      self._temperature = "%d °F" % ((temperature * 9 / 5) + 32)
      self._feels_like = "%d °F" % ((feels_like * 9 / 5) + 32)

    print("temperature:\t", self._temperature)
    print("feels_like:\t", self._feels_like)

    description = weather["weather"][0]["description"]
    description = description[0].upper() + description[1:]
    print("description:\t", description)
    self._description = description
    # Examples: "thunderstorm with heavy drizzle", "Clear sky", "Cloudy sky"

    self.update_time()

  def update_time(self):
    now = datetime.now()
    #self._time_text = now.strftime("%I:%M %p").lstrip("0").replace(" 0", " ")
    self._date_text = now.strftime("%a %b %d, %Y")
    self._time_text = now.strftime("%I:%M:%S %p")
    self.update_display()

  def update_display(self):
    image = Image.new("RGB", (200, 96), color=WHITE)
    draw = ImageDraw.Draw(image)

    # Draw the Icon
    (font_width, font_height) = icon_font.getsize(self._weather_icon)
    draw.text(
      (
          self.display.width - font_width - 2,			# x-position
          0,							# y-position
      ),
      self._weather_icon,
      font=icon_font,
      fill=BLACK,
    )

    # Draw the city
    draw.text(
      (5, 5), self._city_name, font=self.medium_font, fill=BLACK,
    )

    # Draw the date
    (font_width, font_height) = medium_font.getsize(self._date_text)
    draw.text(
      (5, font_height + 5),
      self._date_text,
      font=self.tiny_font,
      fill=BLACK,
    )

    # Draw the time
    (font_width, font_height) = medium_font.getsize(self._time_text)
    yheight = font_height + 21
    draw.text(
      (5, yheight),
      self._time_text,
      font=self.tiny_font,
      fill=BLACK,
    )

    # Draw the relative humidity
    (font_width, font_height) = tiny_font.getsize(self._humidity)
    draw.text(
      (self.display.width - font_width - 5, yheight),
      self._humidity,
      font=self.tiny_font,
      fill=BLACK,
    )

    # Draw the main text
    (font_width, font_height) = large_font.getsize(self._main_text)
    draw.text(
      (5, self.display.height - font_height * 2),
      self._main_text,
      font=self.large_font,
      fill=BLACK,
    )

    # Draw the description
    (font_width, font_height) = small_font.getsize(self._description)
    draw.text(
      (5, self.display.height - font_height - 5),
      self._description,
      font=self.small_font,
      fill=BLACK,
    )

    # Draw the temperature
    (font_width, font_height) = large_font.getsize(self._temperature)
    draw.text(
      (
          self.display.width - font_width - 5,
          self.display.height - font_height * 2,
      ),
      self._temperature,
      font=self.large_font,
      fill=BLACK,
    )

    self.display.display(image)
    self.display.update()
