Using a cheap video display as a Raspberry Pi monitor

Displays with 4.3" and 16:9 ratio like the one below are available from Chinese outlets for less than $10. Resolution is 480x272 but it's not clear if that's the raw resolution or actual RGB pixels. Power supply is 12-24V (actually 9-34V). Two video inputs are provided, one has priority. If used with a rear-view camera the lower-priority input can be used as a status display. If no video input is provided the display is in standby.

Using the Raspberry Pi TV monitor output

My monitor has a native resolution of 272 lines. I'm not sure to which TV standard that corresponds (maybe PAL?) but with the help of an SSH session the command tvservice -c "NTSC 4:3 P" results in a stable image. I'd like switch to TV-out mode; for this purpose the command shows the corresponing sdtv_mode value for /boot/config.txt. I had to adjust the overscan settings to use the full

LXD on Futro S720, basic installation

The following notes assume a Futro S720 "thin client" with a dual core AMD GX-217GA SOC, 2GiB DDR3 RAM and the standard "2GB" MSATA SDD. There is no way to install Ubuntu 22.04 Server on the 2GB SDD (the attempt to install "Ubuntu Server minimal" resulted in a crash), I connected a 5V SATA power supply cable to pins 1 and 7 of the "2xUSB" header and installed a HDD. The 10 pin 2xUSB header, next to MSATA, has the following pinout: 1/2: 5V, 7/8: Gnd, 9:(key), 10: 3.3V.

What we have is:

Ubuntu Server 22.04.3 on a 4GB thumb drive
Normal installation on HDD
Disk partitioning:
- 2GB MSATA disk partitioned as
/boot (auto size)

Modbus with Raspberry Pi

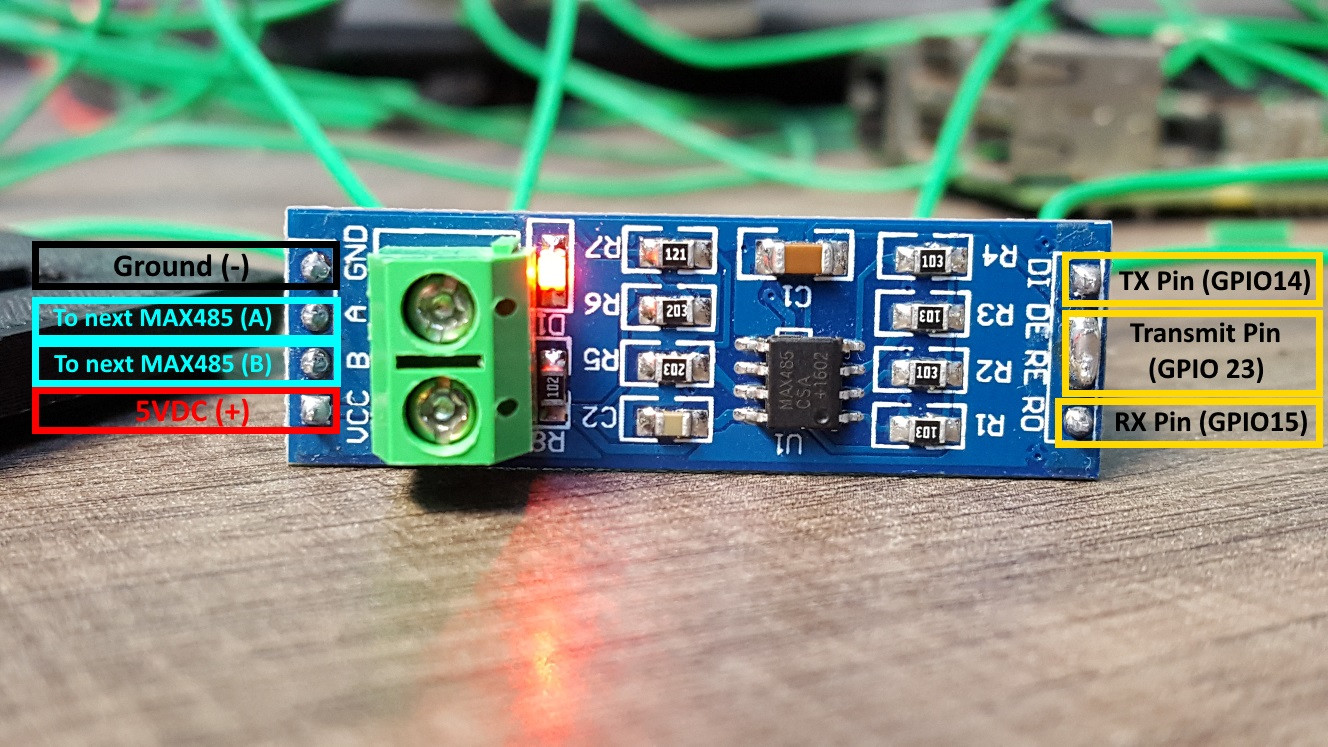

I'd like to use a simple Pi Zero which has but one USB interface. That's why my preference is connecting a RS485 transceiver to the GPIO header. Here is a useful picture from stackexcange (that also indicates that it's advisable to use a 3.3V compatible transceiver):

Kontron provides a good introduction to configuring the Linux kernel for using RS485 on the Raspberri Pi, especially regarding disabling kernel console output in the kernel configuration level. The docs link to the official RasPi UART configuration docs, which refers to the BCM2835 peripherals documentation.

On most RasPis only UART0 can be used which is of the PL011 type (basically a 16550). The

S740 Power Settings

The S740 is based on a J4105 6th gen. Intel Core SoC ("Gemini Lake") with 10W TDP. The box runs just fine with Ubuntu 22.04 Server as an always-on box.

In order to reduce power consumption the following service applies "tunables" recommended by Intel PowerTop after while starting the system.

I followed this systemd service howto.

Manual Install

The talk in the Forth2020 User-Group Zoom meeting 2022 #24 about using STM8 eForth for MODBUS nodes is here on YouTube.

If you wish to replicate the demo you should clone the STM8 eForth MODBUS code on GitHub and follow the instructions there. The code below should be placed in the root folder of this cloned repository with the indicated names.

If you have questions, please either join the Forth2020 group or open a GitHub Issue in the stm8ef-modbus repository.

This the base code with the MODBUS protocol handler loaded first (save as base):

\ STM8EF-MODBUS base protocol code

Two Pulse Inputs for the C0135 "4 Relay MODBUS Board"

A friend needs a C0135 based MODBUS Node with two pulse counter inputs.

The requirements are modest:

provide reliabe pulse counting on two inputs
at a maximum frequency of about 200Hz
where the duty cycle isn't well known (but likely not always 50%)
without jamming the MODBUS server

Using R on a Raspberry Pi Zero W

Using R on an embedded device might sound like a wacky thing to do but for "small scale data analytics" and for learning to analyze real-world data (e.g. using JAGS or STAN) it's a good match.

Yes, compared to a PC it's relatively slow - but consider this:

it runs on small power budget (maybe 0.5W when idling)
it has a hardware watchdog which makes it more likely that it can run for many months unattended
Raspbian-lite is based on Debian and it comes with all kinds of well tested tools and applications

VIM and NeoVIM installation notes

In the context of Using R on a Raspberry Pi Zero W the following notes list the steps that were used to install vim and nvim from scratch on a Raspberry Pi Zero W. The steps should also work for PCs with a recent Debian or Ubuntu version.

I'm aware that nvim implements many features not available in vim but since nvim was designed to be coexist with vim - it can even use the same .vimrc - so why not make a common installation so that starting any of them for editing a config file works as expected.

The default .vimrv location can be used, which is ~/.vimrc (general notes on configuring vim can be found in idiomatic-vimrc).

The following ~/.vimrc settings contain the minimal vim-plug configuration for both vim and nvim:
