SMD Capacitor markings

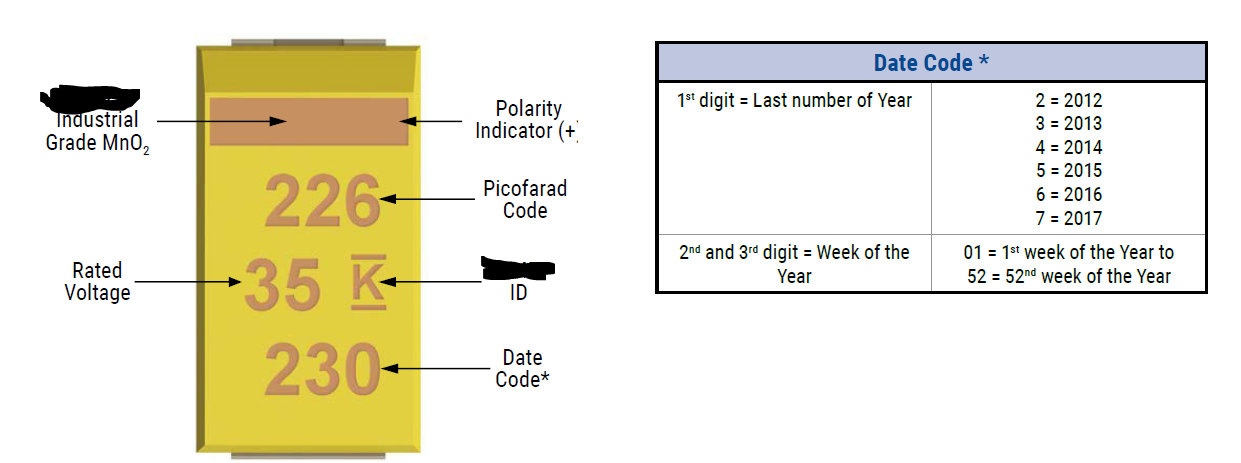

Polarized caps

Aluminium "can" electrolytic

Surface mount ceramic

![[Screenshot 2022-01-23 at 17.45.47.png]]

![[Screenshot 2022-01-23 at 17.46.00.png]]

code capacitance
A3 1.000 pF
A4 10.000 pF
A5 100.000 pF
F9 0,5 pF
N9 0,7 pF
S0 4,7 pF
