print("Enter number of elements: ") | |
n = int(input()) | |
elements, binary_elements = [], [] | |
for i in range(n): | |
# Take input and store in array | |
x = int(input()) | |
elements.append(x) | |
# Convert to binary array of 8 bits | |
binary_elements.append('{0:08b}'.format(x)) | |
sum = '00000000' | |
print("Number\tGray Level\tSum\t\tIGS Code") | |
for i in range(n): | |
if binary_elements[i][:4] == '1111': | |
# Add 0000 => don't add anything | |
sum = binary_elements[i] | |
else: | |
# Add 4 bits of LSB of sum to input | |
sum = '{0:08b}'.format(int(sum[4:],2) + elements[i]) | |
print("%d\t%s\t%s\t%s" % (elements[i], binary_elements[i], sum, sum[:4])) |
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment

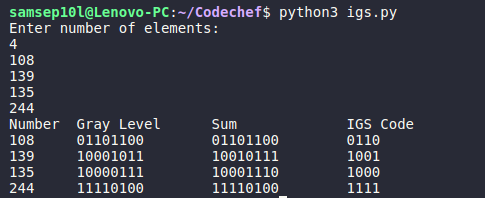

Output:
