Fcfs disk scheduling algorithm

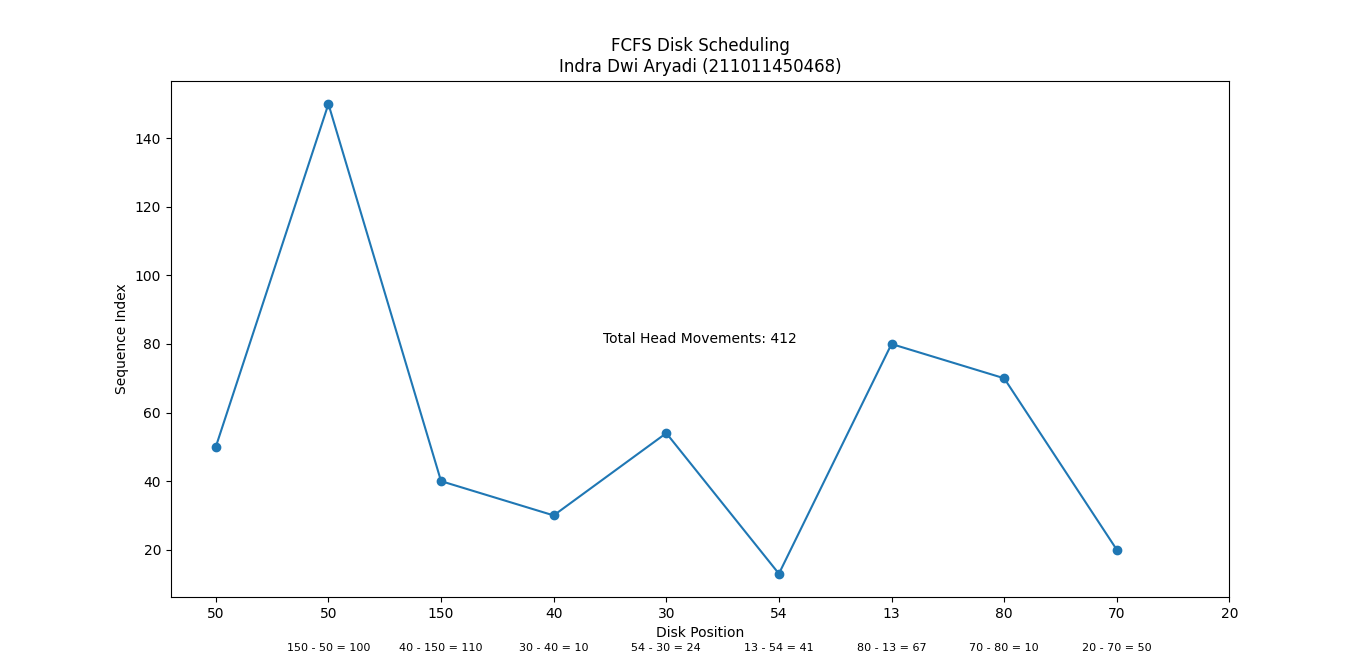

GrafikFCFS.py

import matplotlib.pyplot as plt


def fcfs_disk_scheduling(sequence, initial_seek):
    sequence.insert(0, initial_seek)
    total_head_movements = 0
    head_movements = [initial_seek]
    for i in range(1, len(sequence)):
        head_movement = abs(sequence[i] - sequence[i-1])
        total_head_movements += head_movement
        head_movements.append(sequence[i])
    return total_head_movements, head_movements


sequence = [150, 40, 30, 54, 13, 80, 70, 20]
initial_seek = 50

total_head_movements, head_movements = fcfs_disk_scheduling(
    sequence, initial_seek)

sequence_labels = [str(val) for val in sequence]
sequence_labels.insert(0, str(initial_seek))

plt.text(0.5, 0.5, f'Total Head Movements: {total_head_movements}',
         horizontalalignment='center', verticalalignment='center', transform=plt.gca().transAxes)

plt.plot(range(len(head_movements)), head_movements, marker='o')
plt.title('FCFS Disk Scheduling\nIndra Dwi Aryadi (211011450468)')
plt.xlabel('Disk Position')
plt.ylabel('Sequence Index')
plt.xticks(range(len(sequence_labels)), sequence_labels)

for i in range(1, len(sequence)):
    plt.text(i, -10, f'{sequence[i]} - {sequence[i-1]} = {abs(sequence[i] - sequence[i-1])}',
             fontsize=8, ha='center', va='bottom')

plt.show()

Main.py

size = 8

def FCFS(arr, head):
    seek_count = 0
    distance, cur_track = 0, 0

    for i in range(size):
        cur_track = arr[i]
        distance = abs(cur_track - head)
        seek_count += distance
        head = cur_track

        # Tampilkan perhitungan
        print(f"{distance} ({cur_track} - {head})")

    print("\nTotal jumlah operasi pencarian = ", seek_count)
    print("Urutan pencarian adalah")

    for i in range(size):
        print(arr[i])

# Driver code
if __name__ == '__main__':
    arr = [106, 79, 31, 60, 90, 10, 39, 110]
    head = 50

    FCFS(arr, head)

main2.py

size = 9  # Menyesuaikan ukuran array

def FCFS(arr, head):
    seek_count = 0
    distance, cur_track = 0, head

    for i in range(size):
        cur_track = arr[i]
        distance = abs(cur_track - head)
        seek_count += distance

        # Tampilkan perhitungan
        print(f"{distance} ({cur_track} - {head})")
        head = cur_track

    print("\nTotal jumlah operasi pencarian = ", seek_count)
    print("Urutan pencarian adalah")

    for i in range(size):
        print(arr[i])
    print("\nIndra Dwi Aryadi (211011450468)")

# Driver code
if __name__ == '__main__':
    arr = [106, 79, 31, 60, 90, 10, 39, 44, 110]
    head = 40

    FCFS(arr, head)
