Let’s proceed with our Kubernetes journey.

Previous parts:

In this part we will start working with AWS Elastic Kuberneters Service (EKS) – its short overview, then will create Kubernetes Control Plane, CloudFormation stack with Worker Nodes, will spin up a simple web-services and will add a LoadBalancer.

Elastic Kubernetes Service – an overview

AWS EKS is a Kubernetes cluster where its core – Control Plane – will be managed by AWS itself thus freeing a user from needless headache.

  • Control Plane: managed by AWS, consists of three EC2 in different Availability Zones
  • Worker Nodes: a common ЕС2 in AutoScaling group, in a customer’s VPC, managed by the user

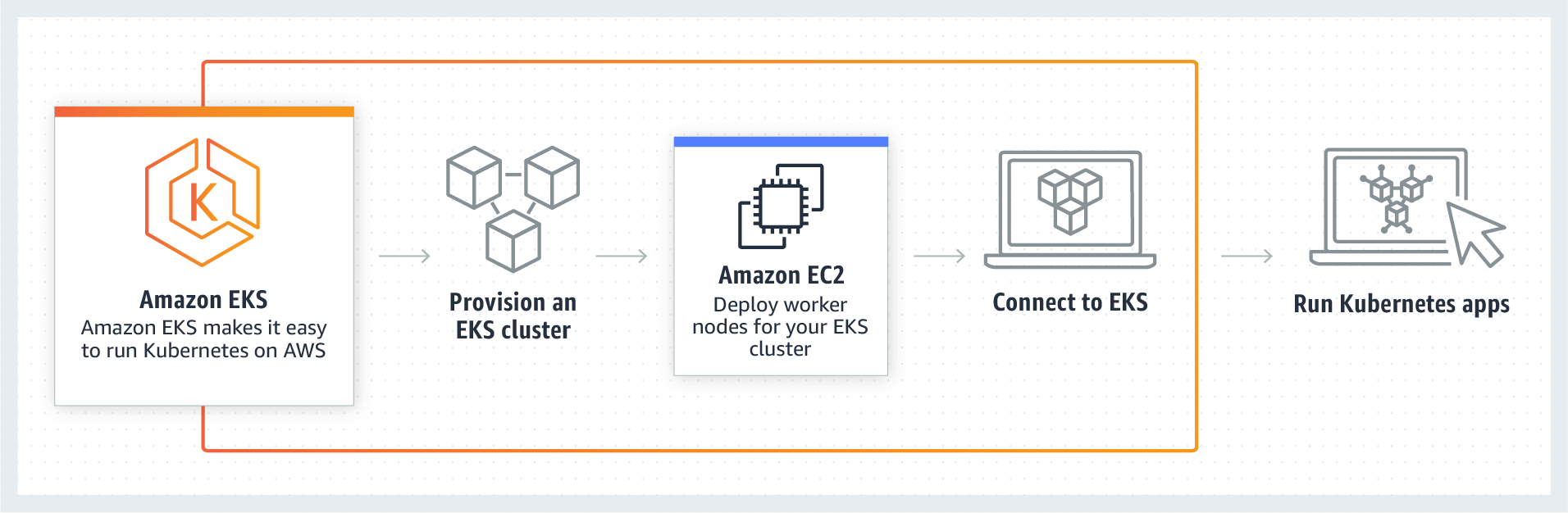

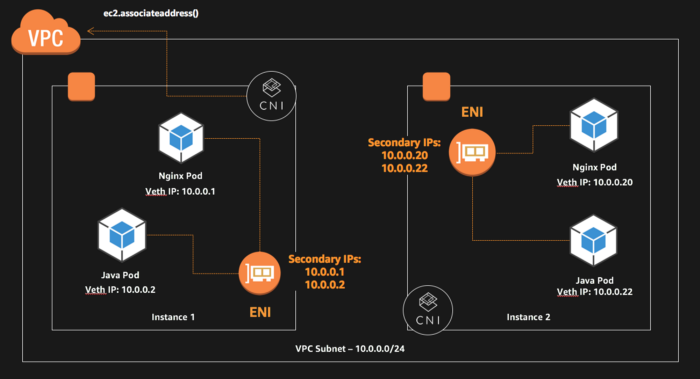

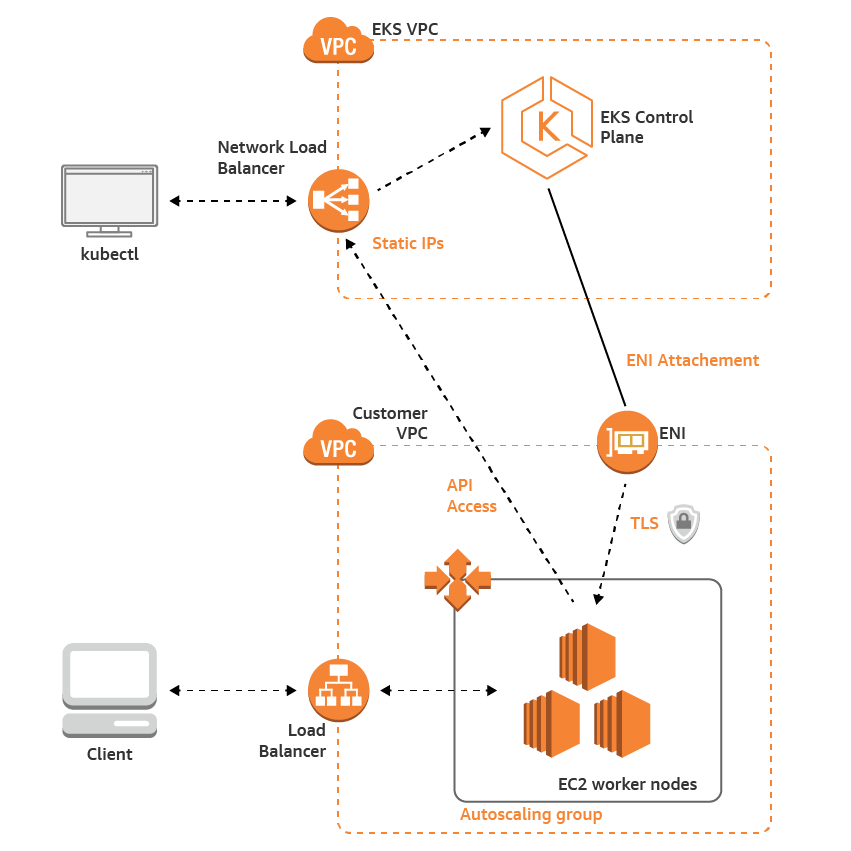

A network overview:

For networking – the amazon-vpc-cni-k8s plugin is used which allows using of AWS ENI (Elastic Network Interface) and a VPC’s network space inside of a cluster.

For authorization – the aws-iam-authenticator is used which allows authenticating Kubernetes objects against AWS IAM roles and policies (see Managing Users or IAM Roles for your Cluster)

Also, AWS will manage Kubernetes minor upgrades, i.e. 1.11.5 to 1.11.8, but major upgrades still must be done by a user.

Preparing AWS environment

To create an EKS cluster firt we need to create a dedicated VPC with subnets, configure routing and add an IAM role for a cluster authorization.

IAM role

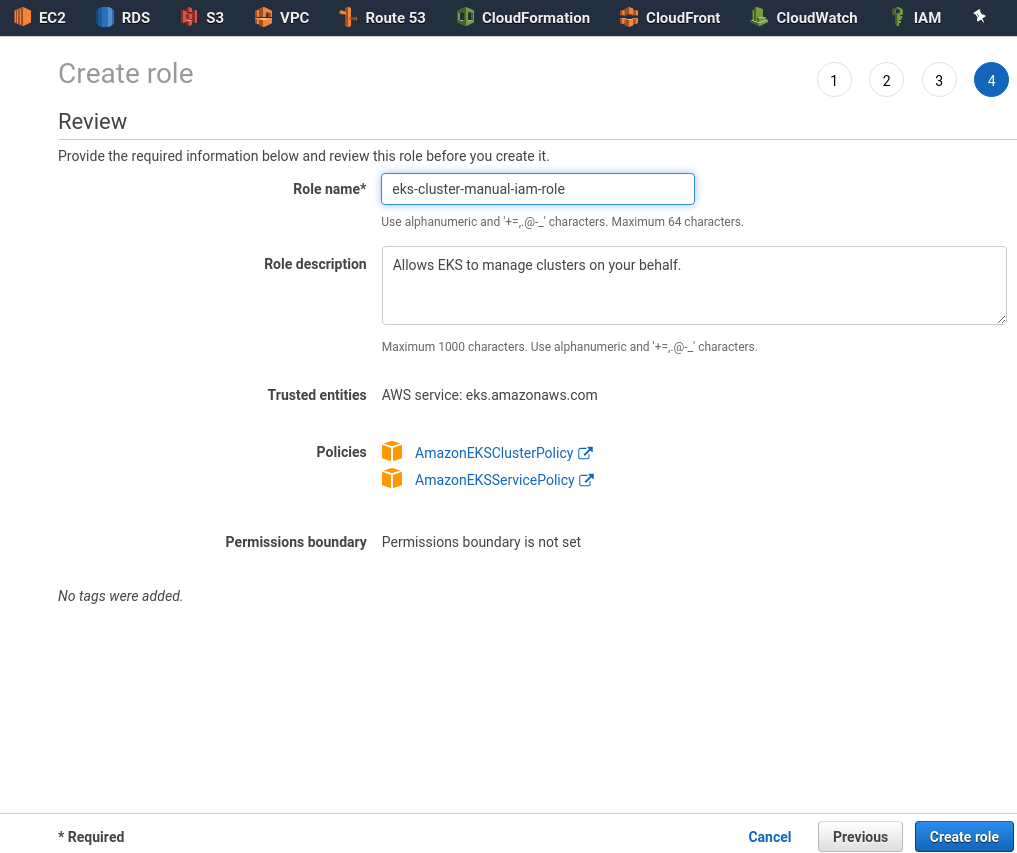

Go to the IAM, create a new role with EKS type:

Permissions will be filled by AWS itself:

Save it:

VPC

Next, have to create VPC with 4 subnets – two public for LoadBalacner and two private – for Worker Nodes.

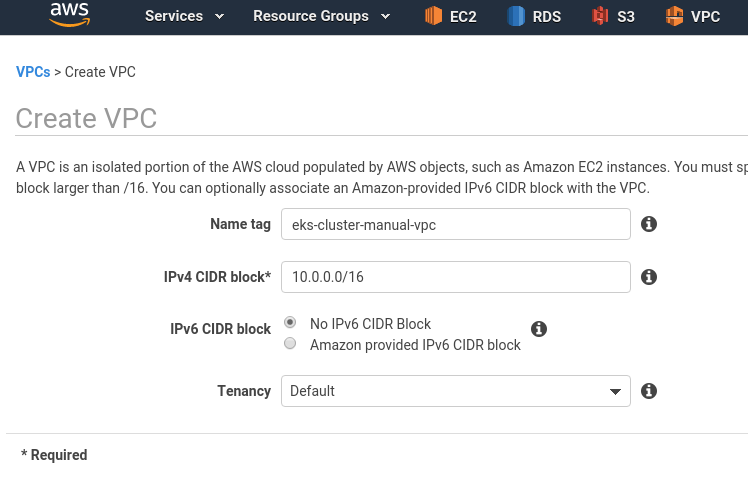

Create a VPC:

SecurityGroup

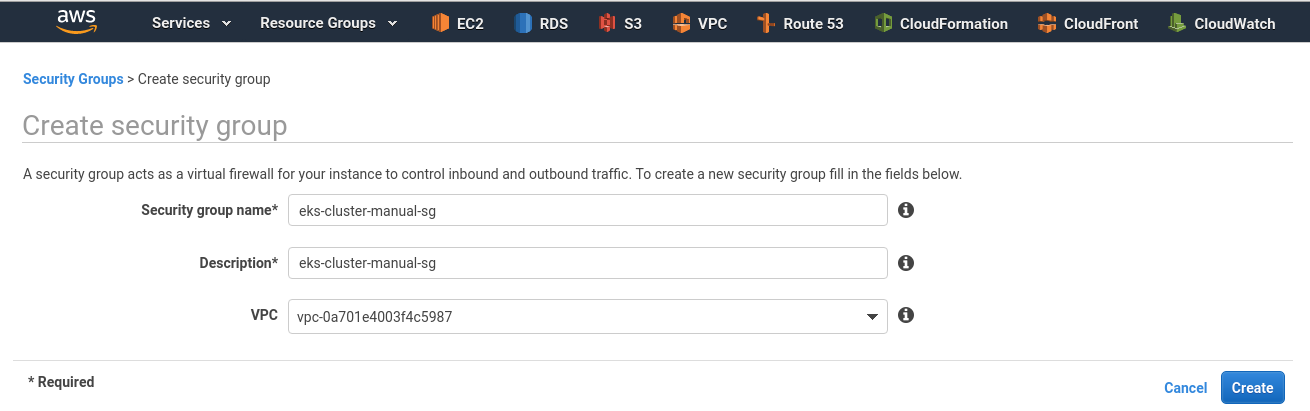

Go to the SecurityGroups, create a new one for the cluster:

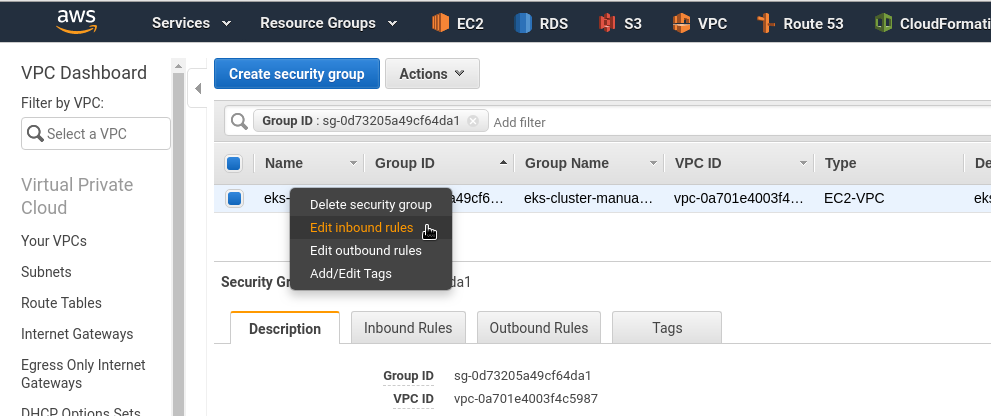

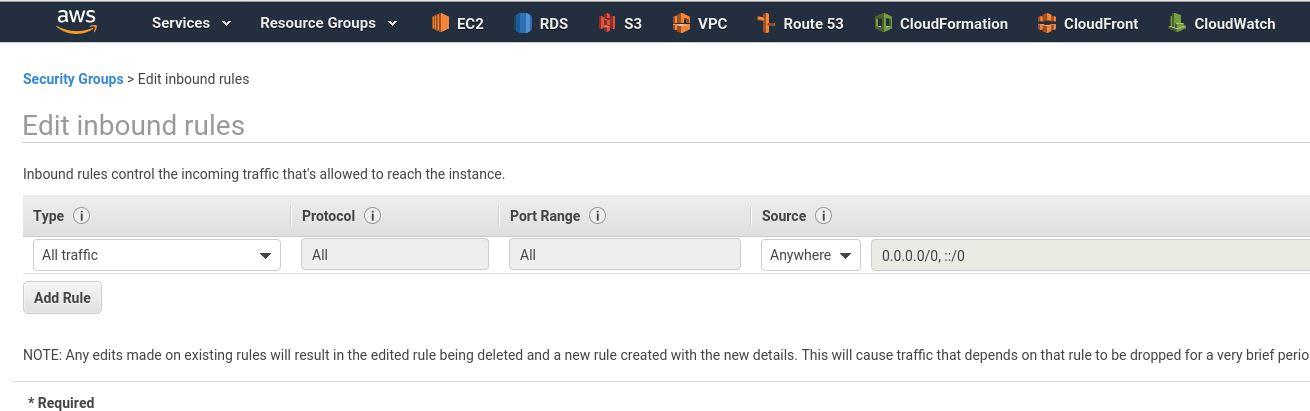

Add desired rules, here just an Allow All to All example:

Internet Gateway

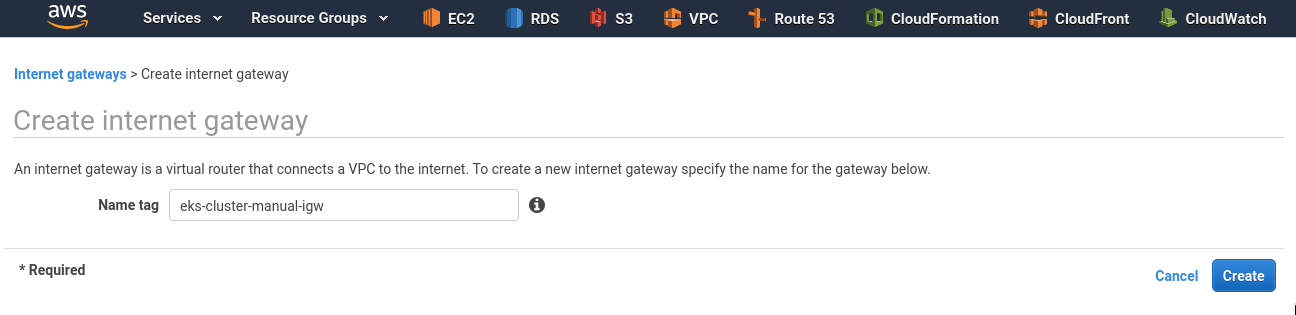

Create an IGW which will be used to route traffic from public subnets:

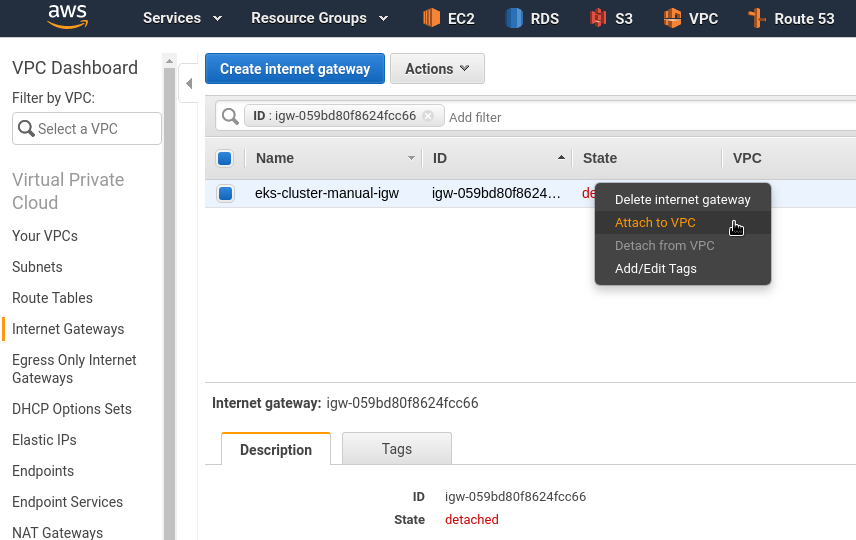

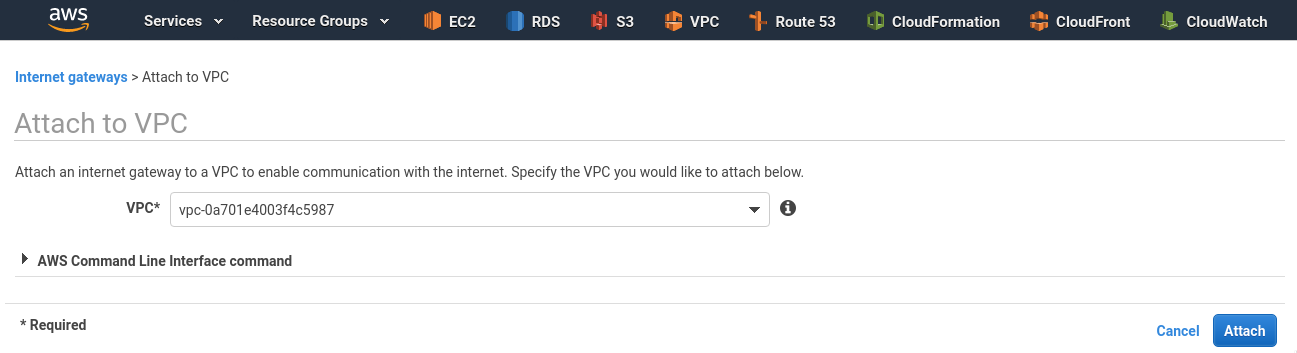

Attach it to the VPC:

Subnets

Pods will use IPs from a subnet allocated (see the amazon-vpc-cni-k8s), thus those subnets have to have enough address space.

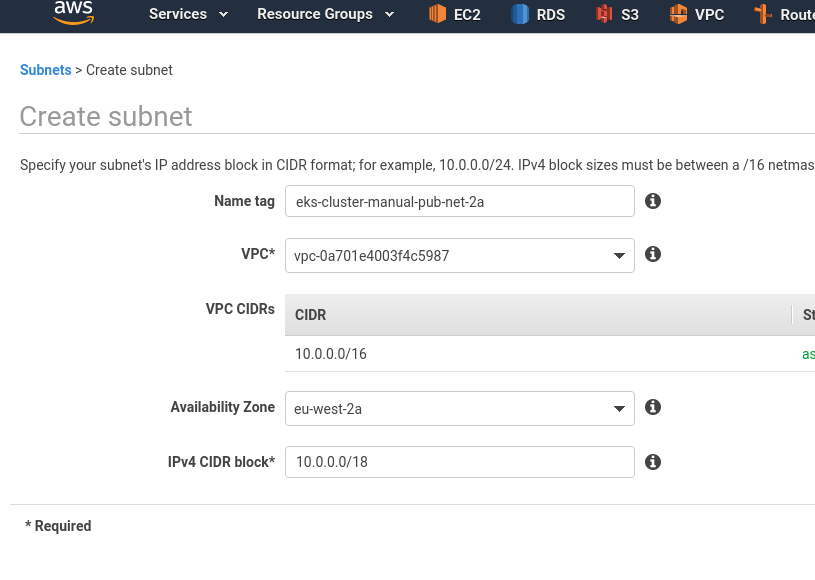

Create a first public subnet using 10.0.0.0/18 block (16384 addresses):

A second public subnet using 10.0.64.0/18 block:

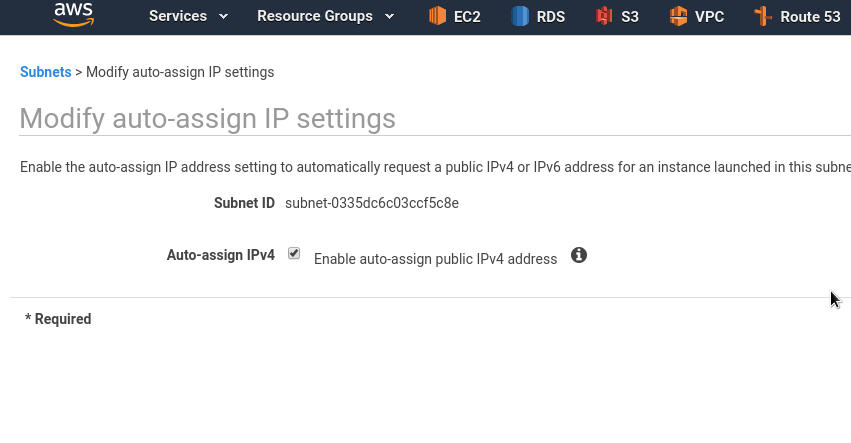

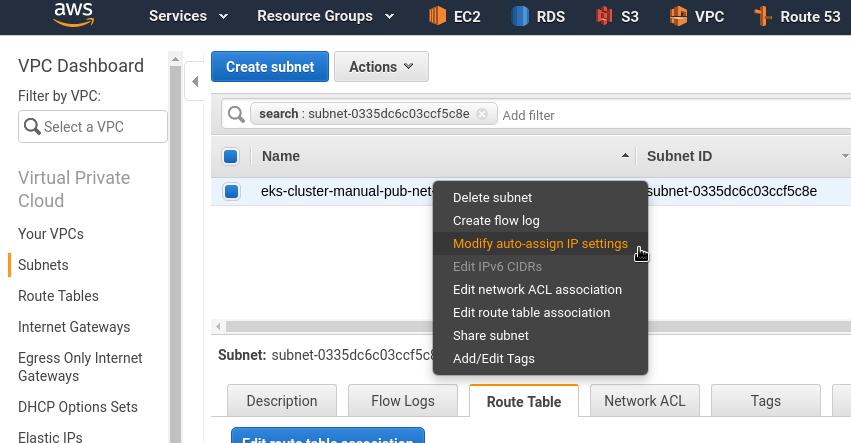

In public subnets – enable auto-assign public IPs to EC2s:

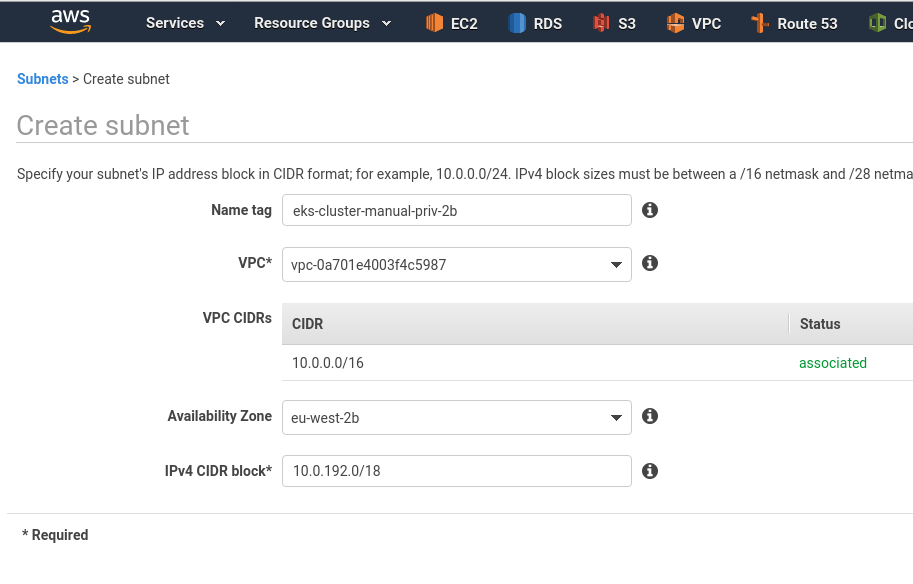

Similarly, add two private subnets:

NAT Gateway

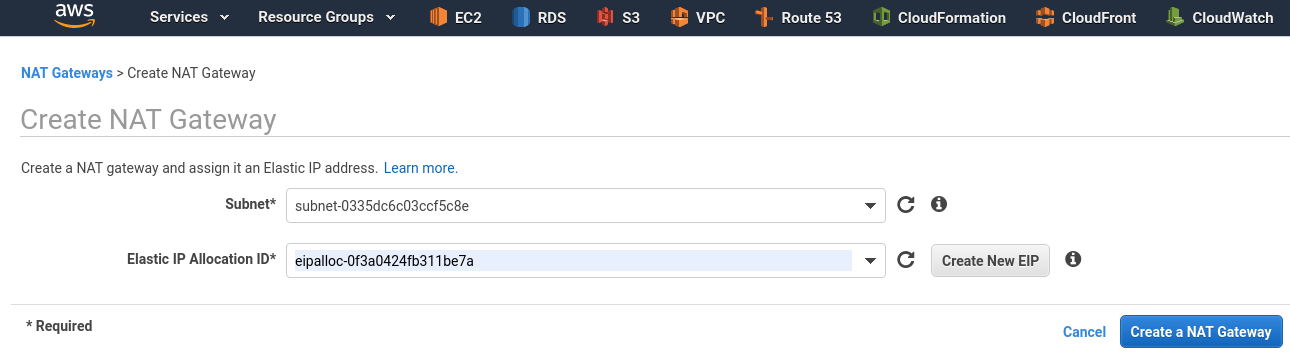

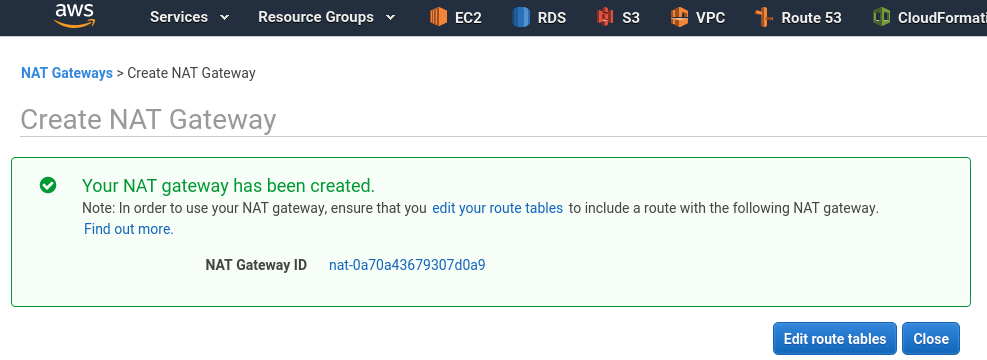

In a public subnet create a NAT Gateway – it will be used to route traffic from private subnets:

And configure routing here:

Route tables

Now, need to create two Route tables – for public and for private subnets.

Public route table

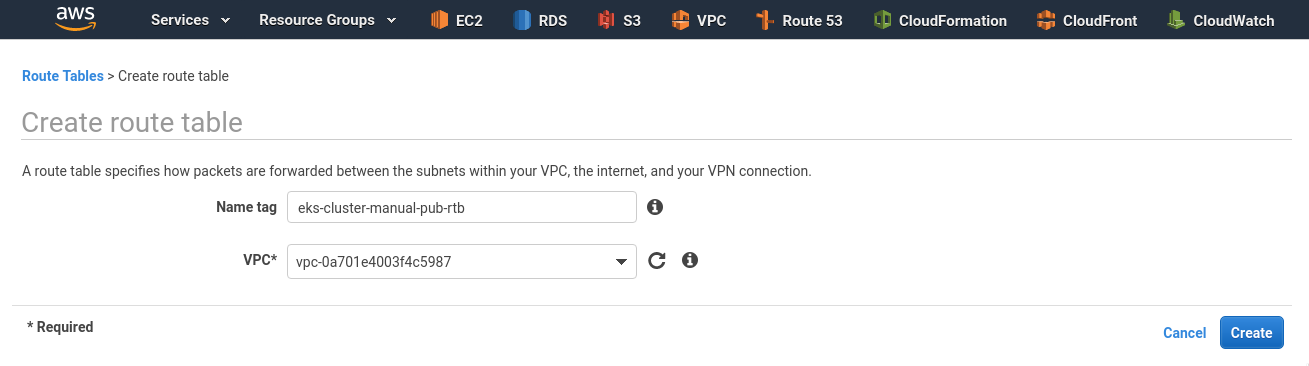

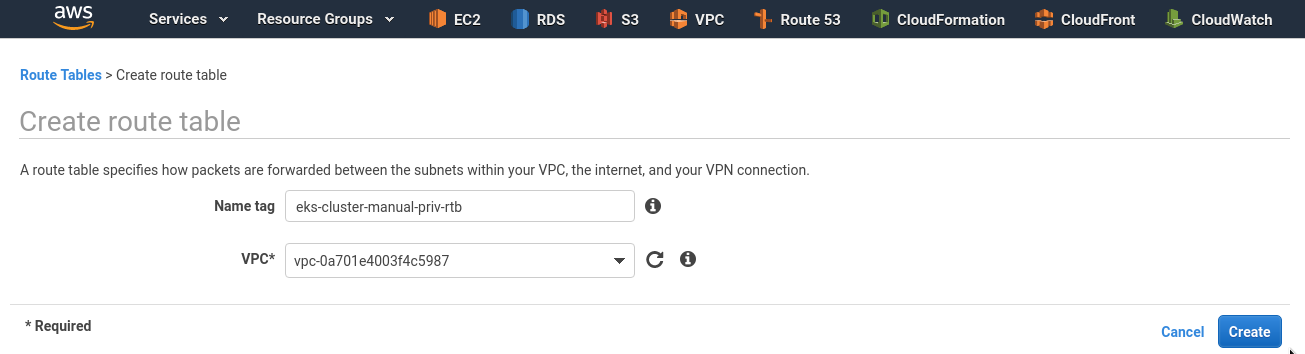

Create public subnets route table:

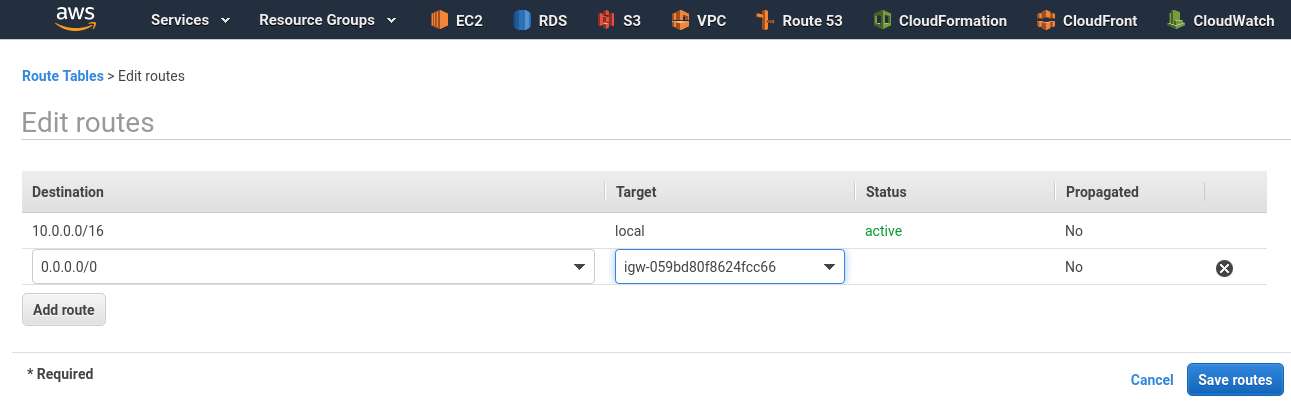

Edit routes – set route to the 0.0.0.0/0 via IGW created above:

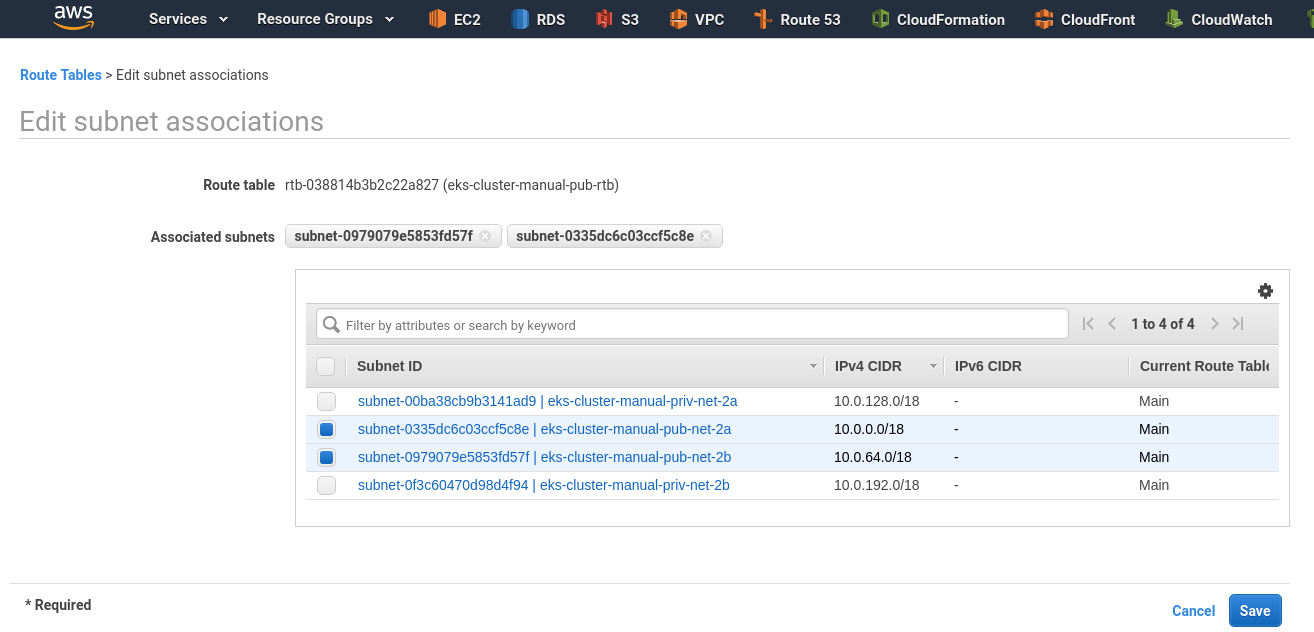

Switch to the Subnet association – attach two public subnets to this RTB:

Private route table

In the same way, create RTB for private subnets:

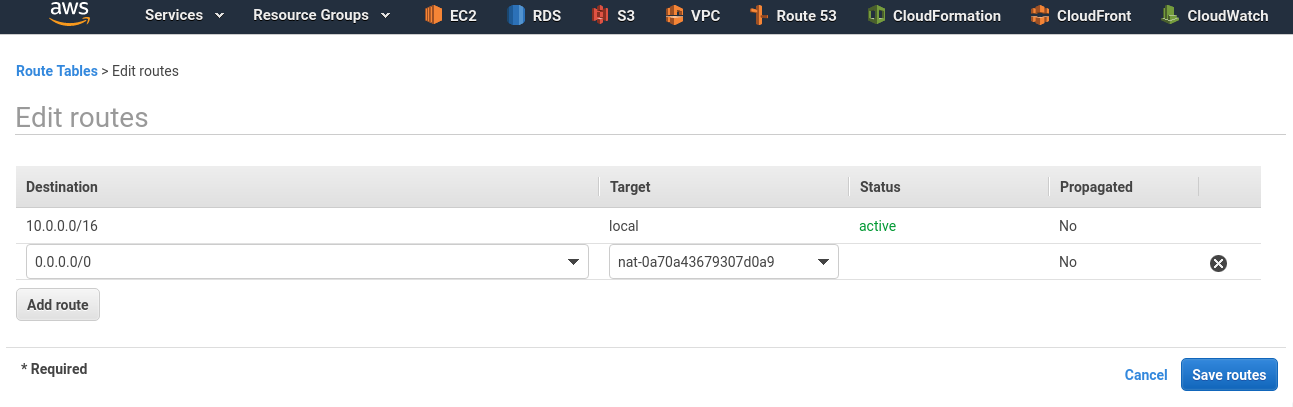

Add another route to the 0.0.0.0/0 but via NAT GW instead of IGW:

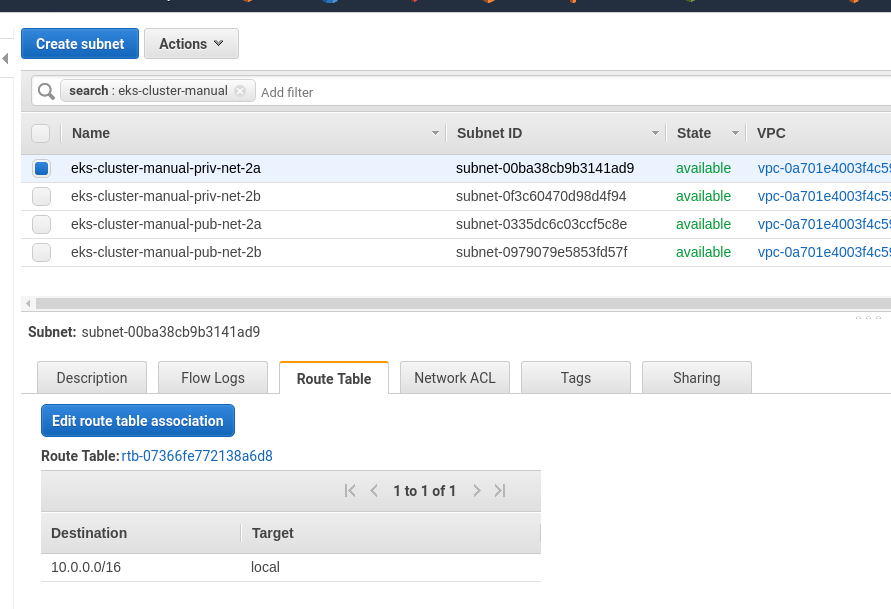

Go back to your subnets – Edit route table association:

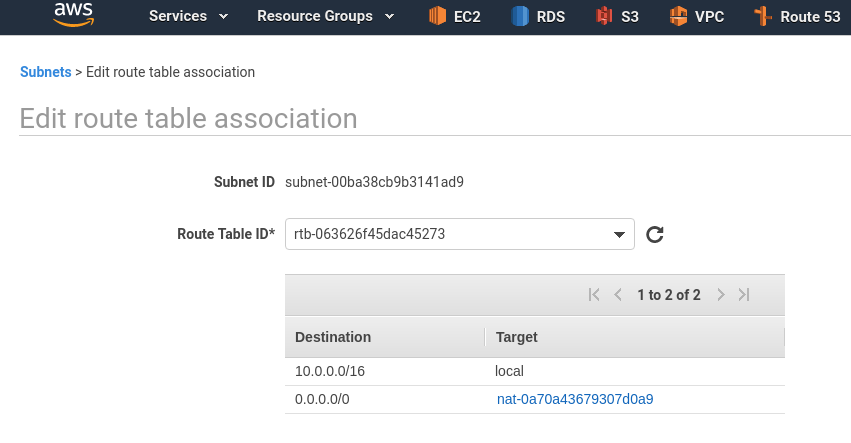

Attach our private RTB to the private subnets so they will use NAT GW:

Attach our public RTB to the private subnets so they will use Internet GW:

Check

To test if this VPC is working – run two EC2 instances.

First in the public subnet:

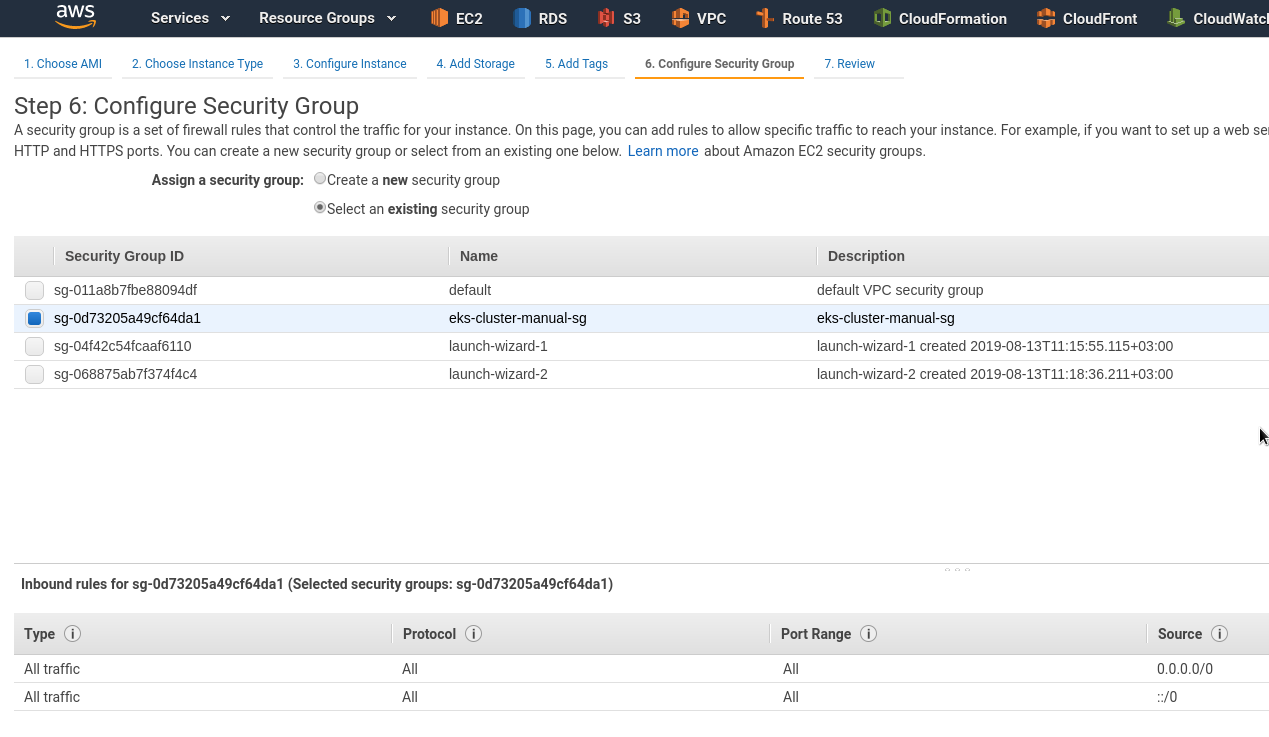

Set Security Group:

Check networking:

[setevoy@setevoy-arch-work ~] $ ssh -i setevoy-testing-eu-west-2.pem [email protected] 'ping -c 1 8.8.8.8'

PING 8.8.8.8 (8.8.8.8) 56(84) bytes of data.

64 bytes from 8.8.8.8: icmp_seq=1 ttl=51 time=1.33 ms

--- 8.8.8.8 ping statistics ---

1 packets transmitted, 1 received, 0% packet loss, time 0ms

rtt min/avg/max/mdev = 1.331/1.331/1.331/0.000 ms

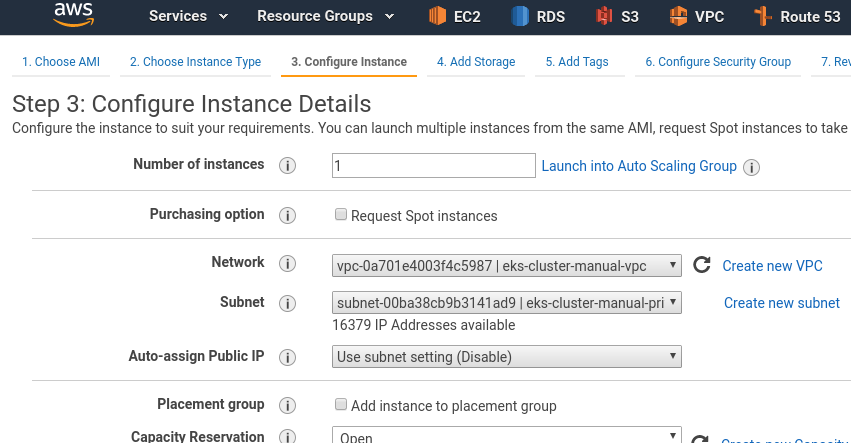

Add another EC2, in the private subnet:

Do not forget about SG.

And try to ping it from the first instance (as we can’t ping instances in a private networks from the Internet):

[setevoy@setevoy-arch-work ~] $ ssh -i setevoy-testing-eu-west-2.pem [email protected] 'ping -c 1 10.0.184.21'

PING 10.0.184.21 (10.0.184.21) 56(84) bytes of data.

64 bytes from 10.0.184.21: icmp_seq=1 ttl=64 time=0.357 ms

--- 10.0.184.21 ping statistics ---

1 packets transmitted, 1 received, 0% packet loss, time 0ms

rtt min/avg/max/mdev = 0.357/0.357/0.357/0.000 ms

If no reply to the ping – check you Security Groups and Route tables at first.

And we are done here – time to start with EKS itself.

Elastic Kubernetes Service

Create a Control Plane

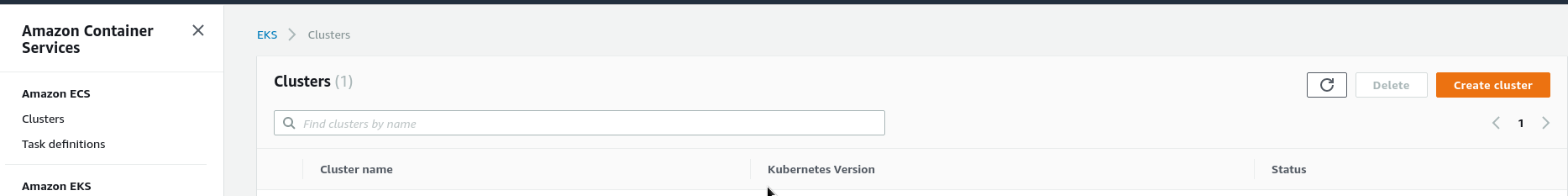

Go to the EKS and create master-nodes – click the Create cluster:

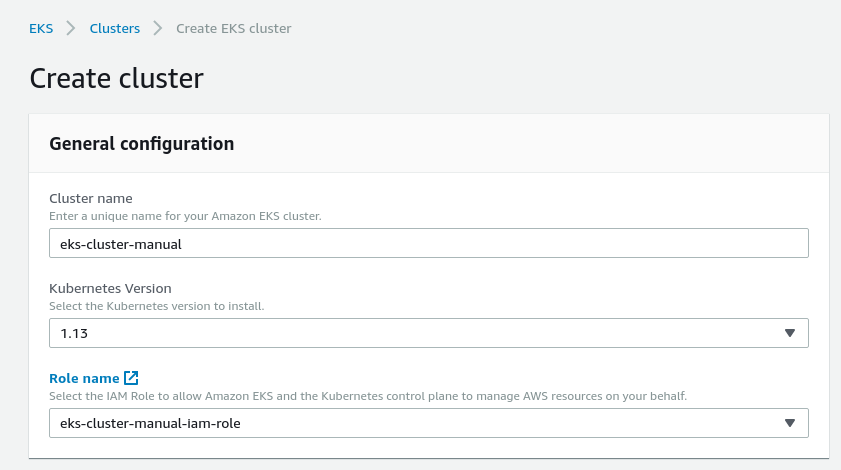

Set name, chose IAM role created at the very beginning:

In subnets chose private subnets only and set SecurityGroup created above:

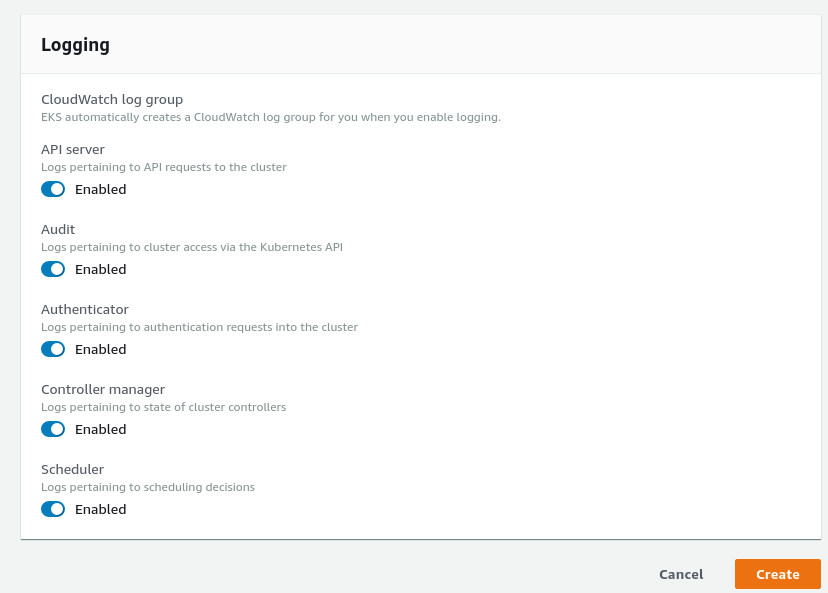

Enable logs if need:

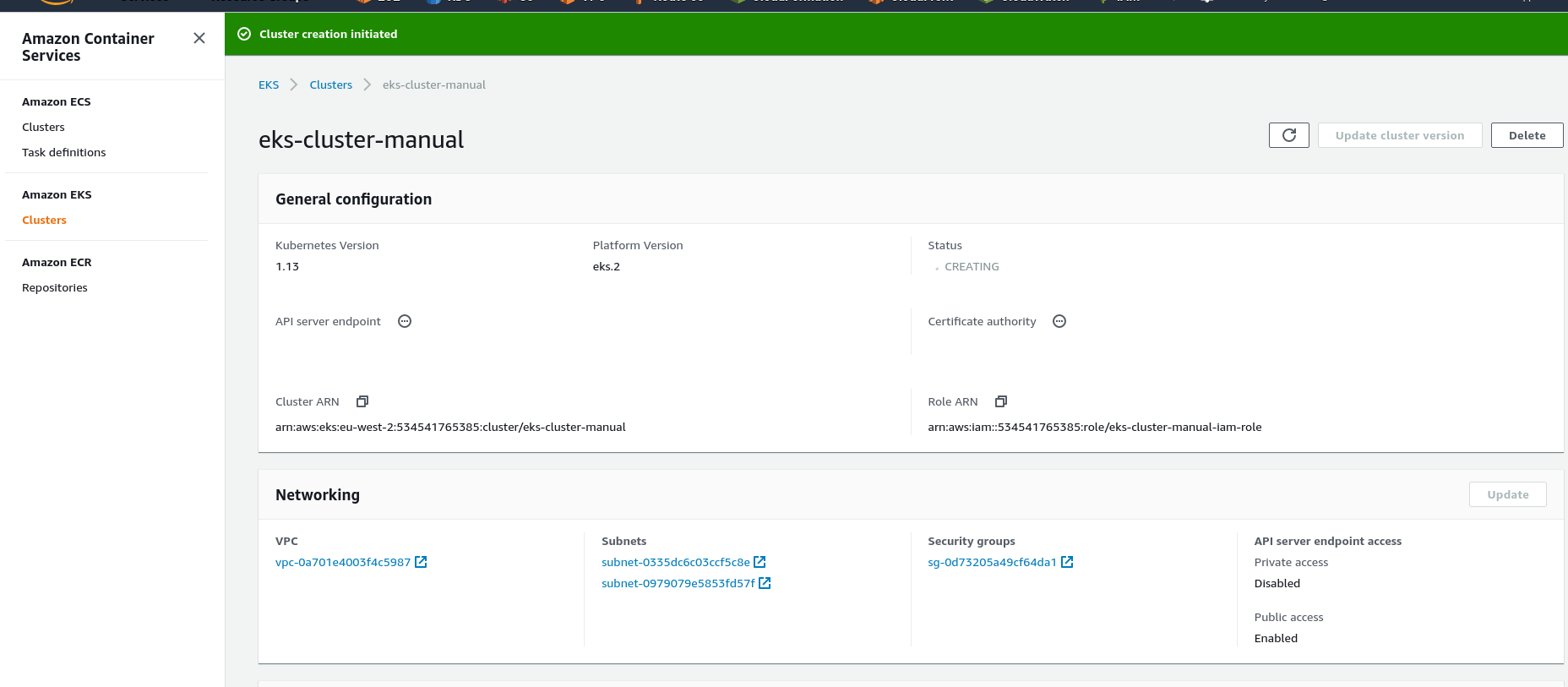

And create the cluster:

Create Worker Nodes

While the Control Plane is in the provisioning state – let’s create a CloudFormation stack for the Worker Nodes.

Can take an existing template from AWS – https://amazon-eks.s3-us-west-2.amazonaws.com/cloudformation/2019-02-11/amazon-eks-nodegroup.yaml.

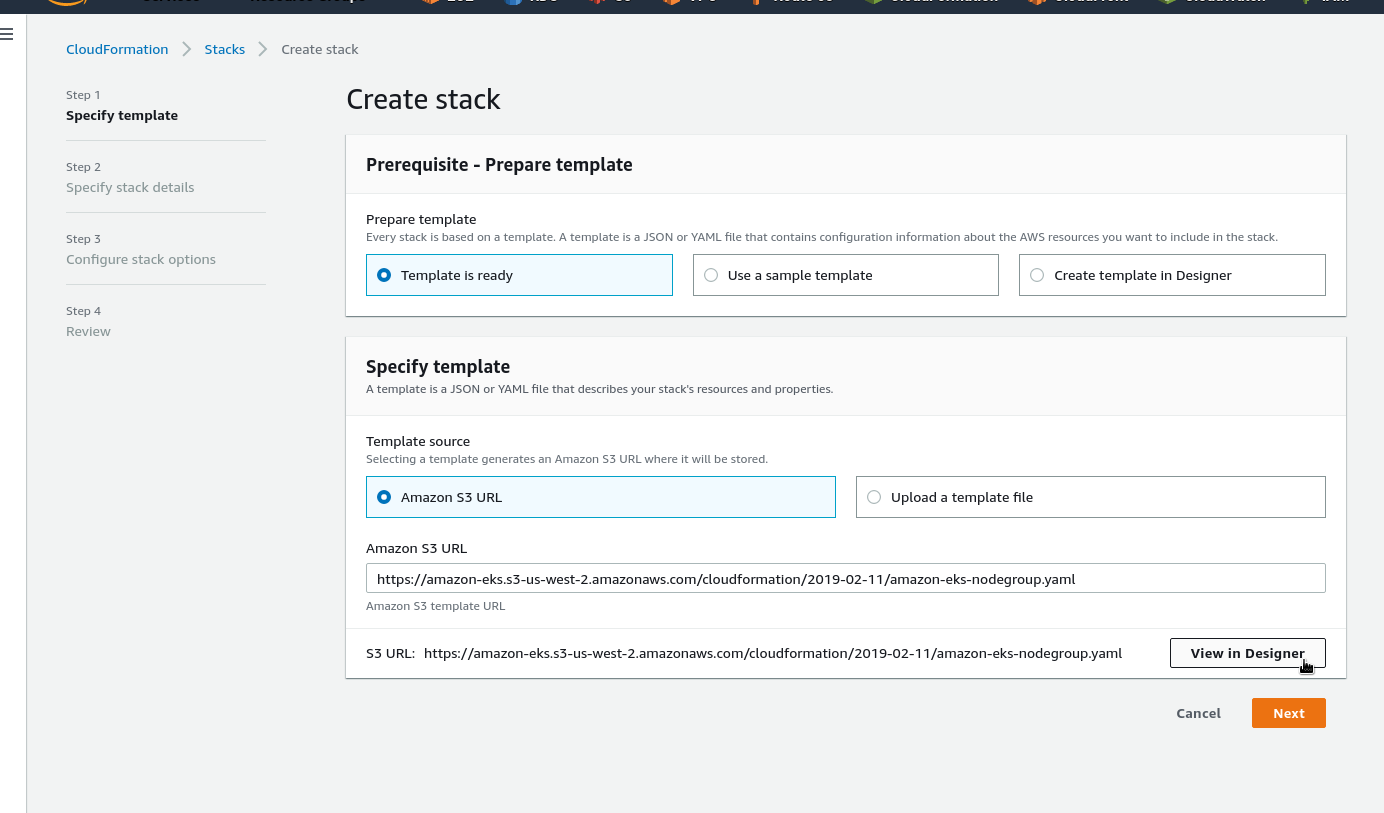

Go to the CloudFormation > Create stack:

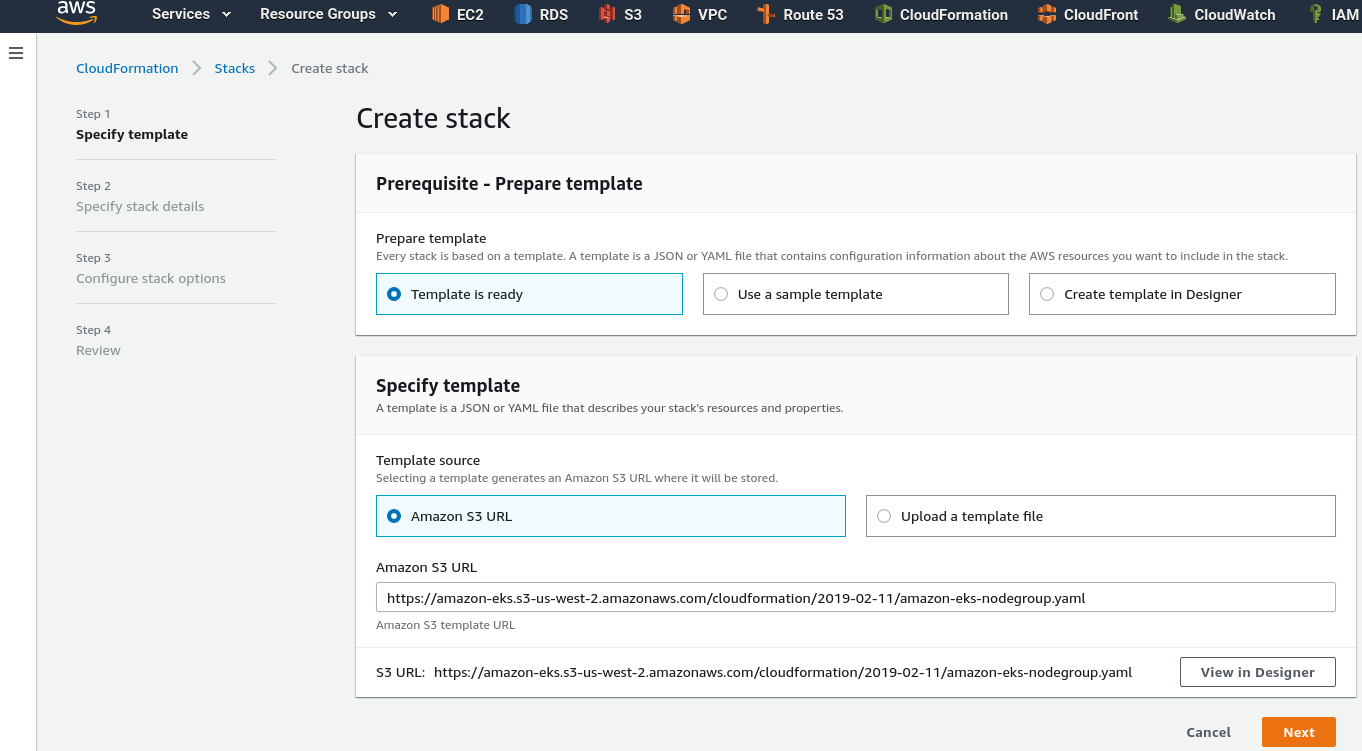

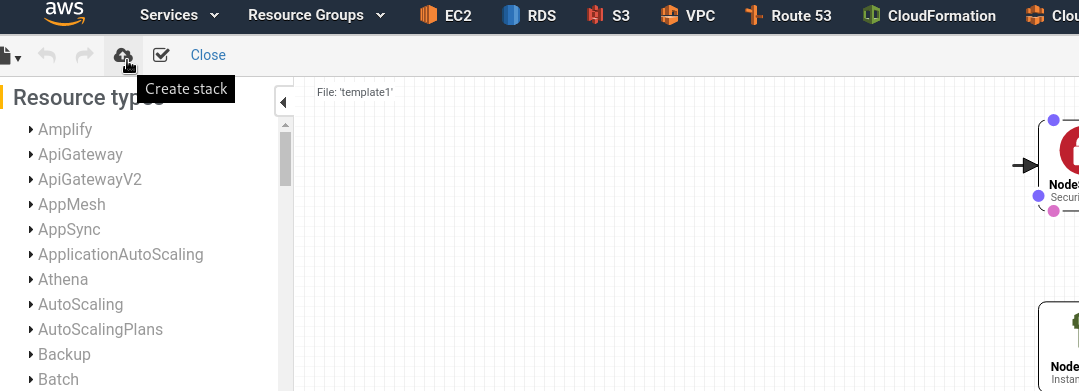

As our Worker Nodes will be placed in the private subnets open this template in the Designer:

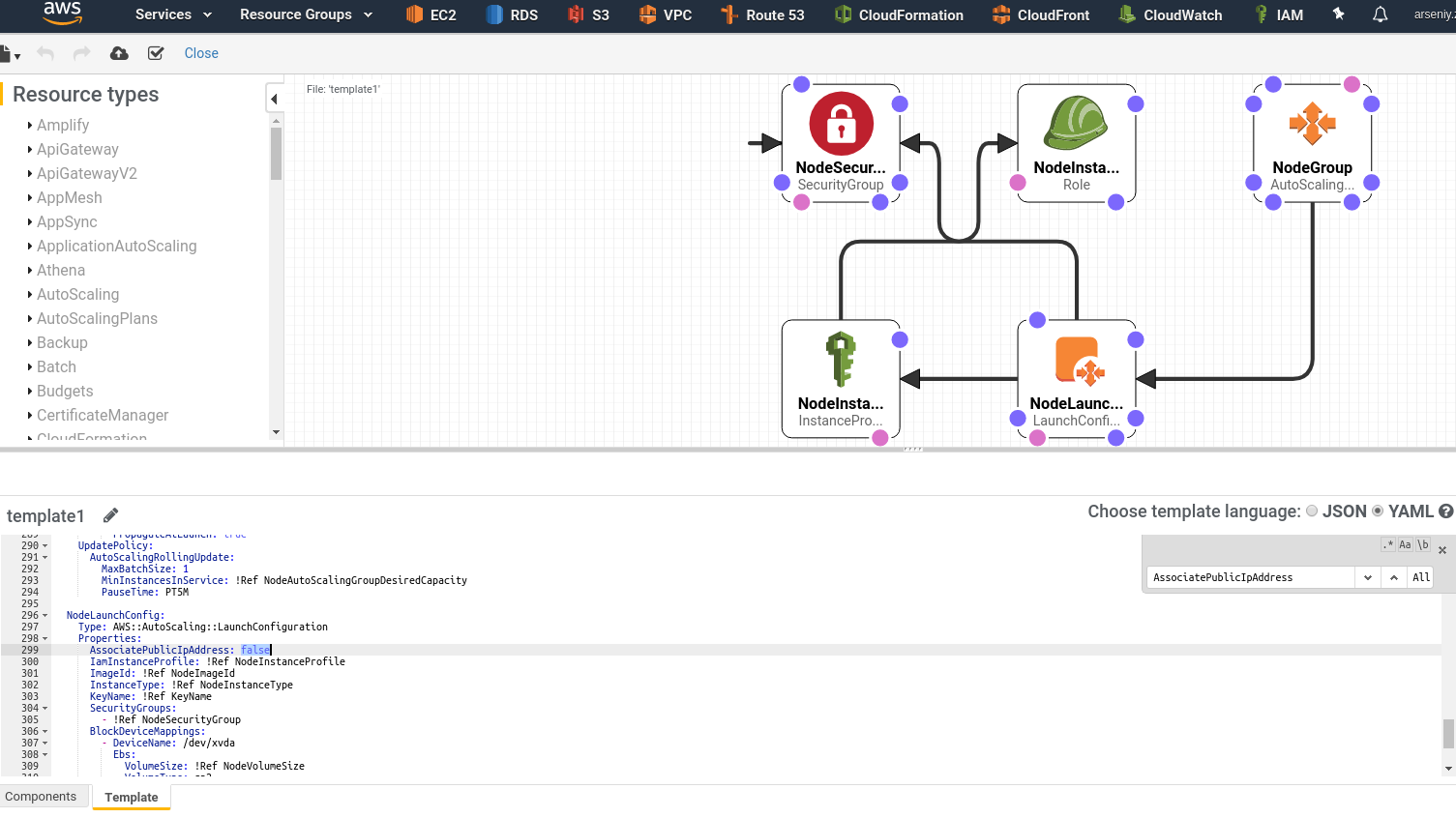

Find the AssociatePublicIpAddress parameter and change its value from the true to false:

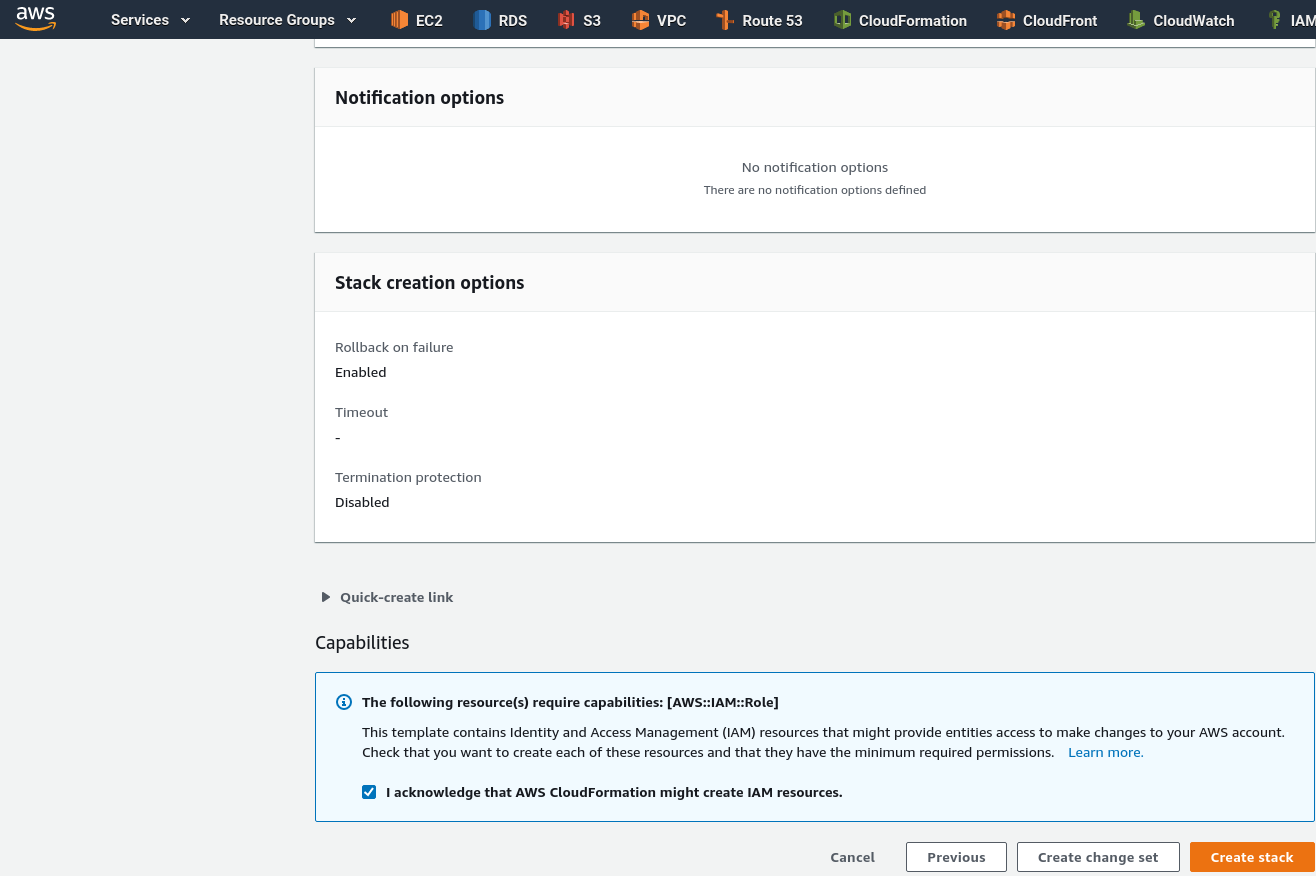

Click Create stack:

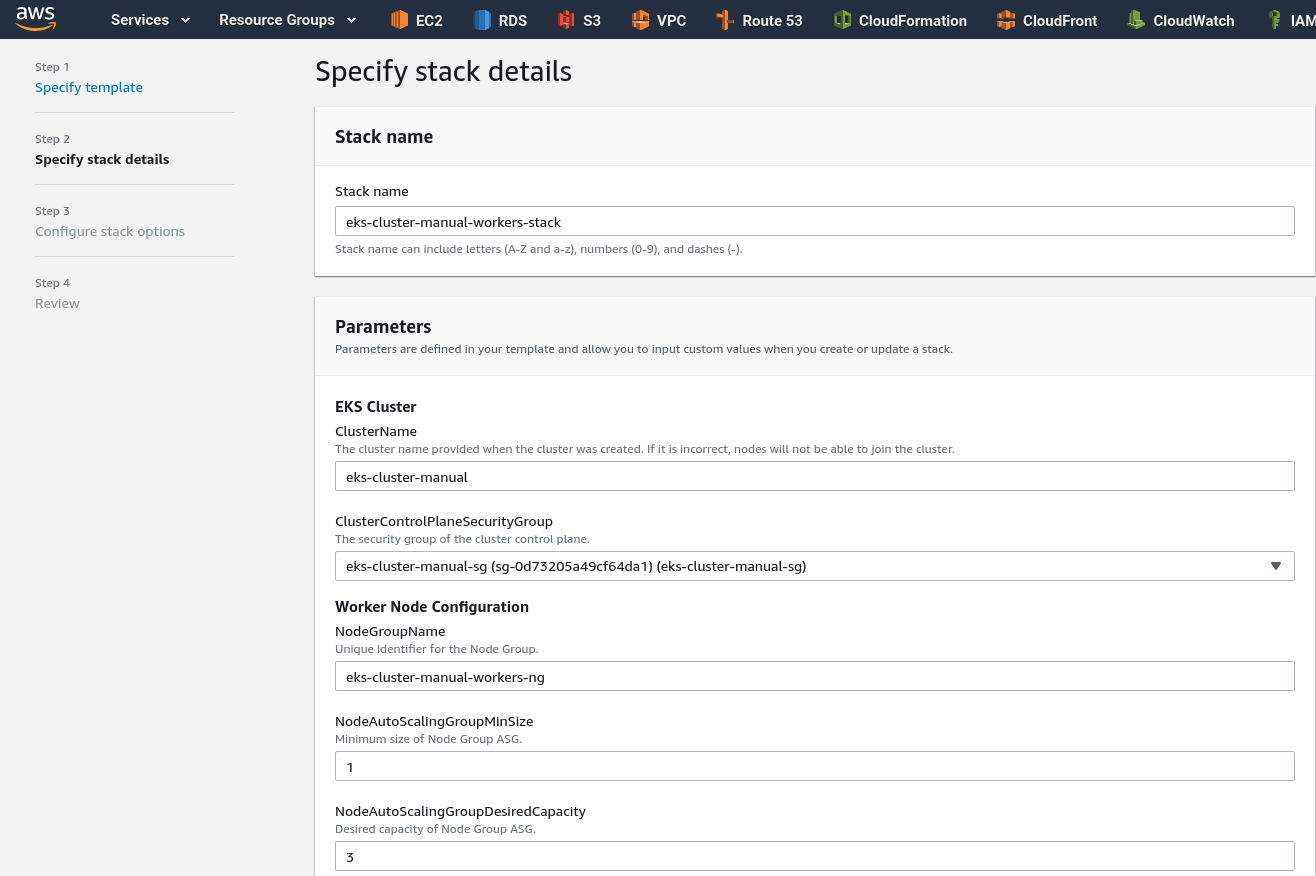

Set the stack’s name, can be any, and cluster name – same, as we did it when created Master nodes, e.g. eks-cluster-manual in this example, chose SecurityGroup, fill AutoScale settings:

Find an NodeImageId depending on a region (check the documentation for an up-to-date list):

Region Amazon EKS-optimized AMI with GPU support
US East (Ohio) (us-east-2) ami-0485258c2d1c3608f ami-0ccac9d9b57864000
US East (N. Virginia) (us-east-1) ami-0f2e8e5663e16b436 ami-0017d945a10387606
US West (Oregon) (us-west-2) ami-03a55127c613349a7 ami-08335952e837d087b
Asia Pacific (Hong Kong) (ap-east-1) ami-032850771ac6f8ae2 N/A*
Asia Pacific (Mumbai) (ap-south-1) ami-0a9b1c1807b1a40ab ami-005b754faac73f0cc
Asia Pacific (Tokyo) (ap-northeast-1) ami-0fde798d17145fae1 ami-04cf69bbd6c0fae0b
Asia Pacific (Seoul) (ap-northeast-2) ami-07fd7609df6c8e39b ami-0730e699ed0118737
Asia Pacific (Singapore) (ap-southeast-1) ami-0361e14efd56a71c7 ami-07be5e97a529cd146
Asia Pacific (Sydney) (ap-southeast-2) ami-0237d87bc27daba65 ami-0a2f4c3aeb596aa7e
EU (Frankfurt) (eu-central-1) ami-0b7127e7a2a38802a ami-0fbbd205f797ecccd
EU (Ireland) (eu-west-1) ami-00ac2e6b3cb38a9b9 ami-0f9571a3e65dc4e20
EU (London) (eu-west-2) ami-0147919d2ff9a6ad5 ami-032348bd69c5dd665
EU (Paris) (eu-west-3) ami-0537ee9329c1628a2 ami-053962359d6859fec
EU (Stockholm) (eu-north-1) ami-0fd05922165907b85 ami-0641def7f02a4cac5

Currently the stack is creating in the London/eu-west-2, no need in GPU, thus – ami-0147919d2ff9a6ad5 (Amazon Linux).

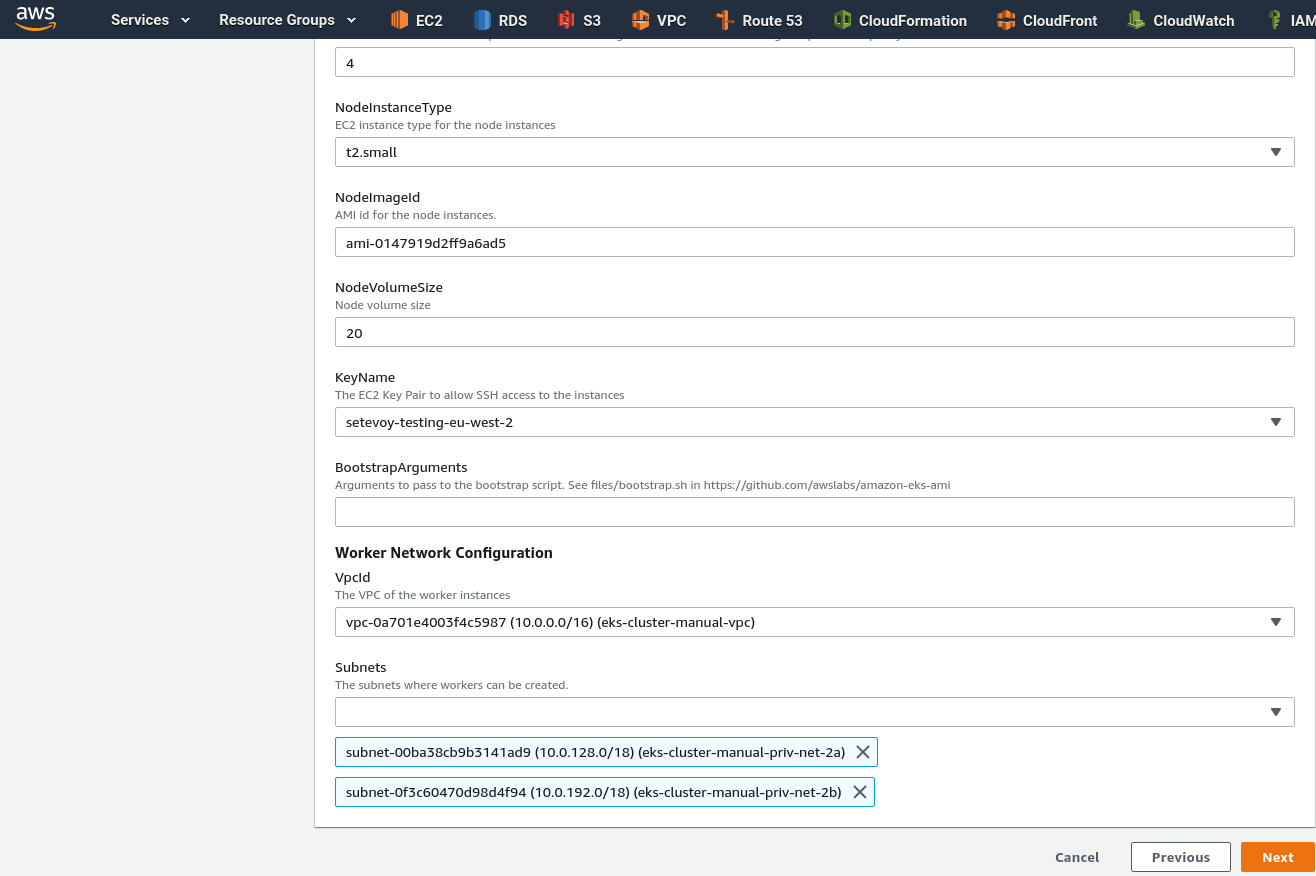

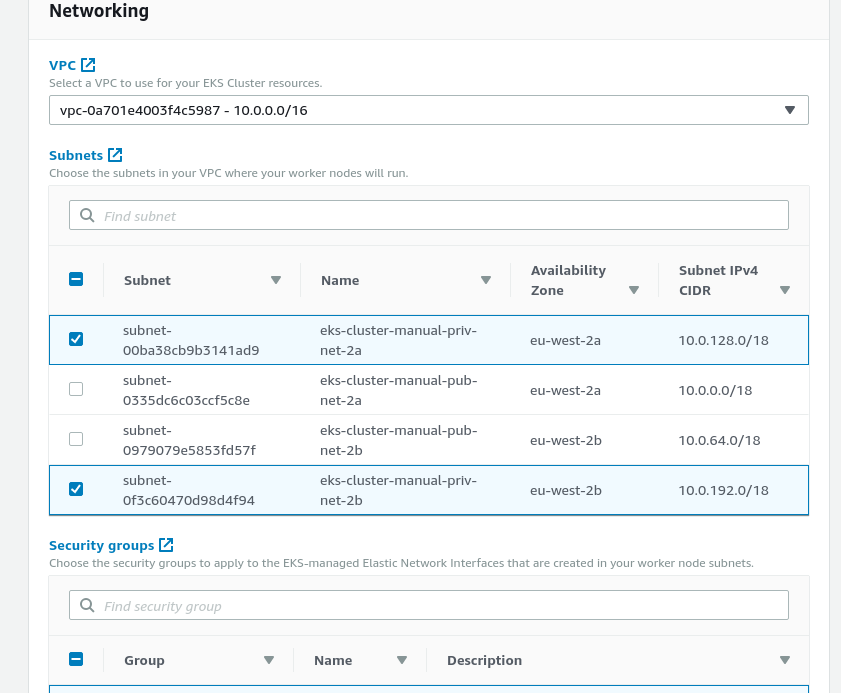

Set this AMI ID, select VPC and two subnets:

Click Next, skip the next page and click Create stack:

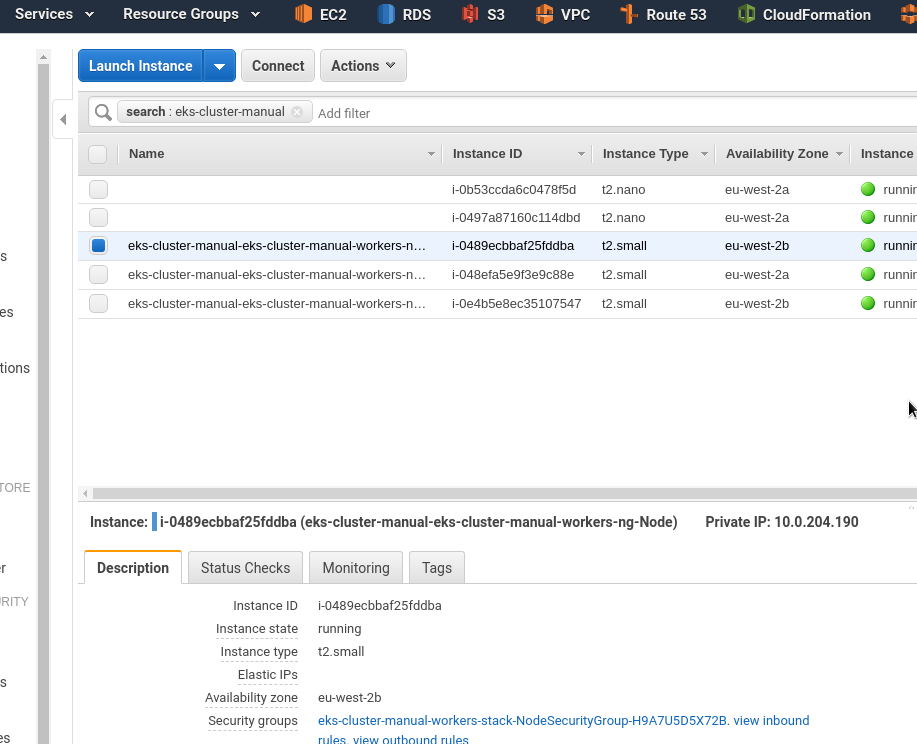

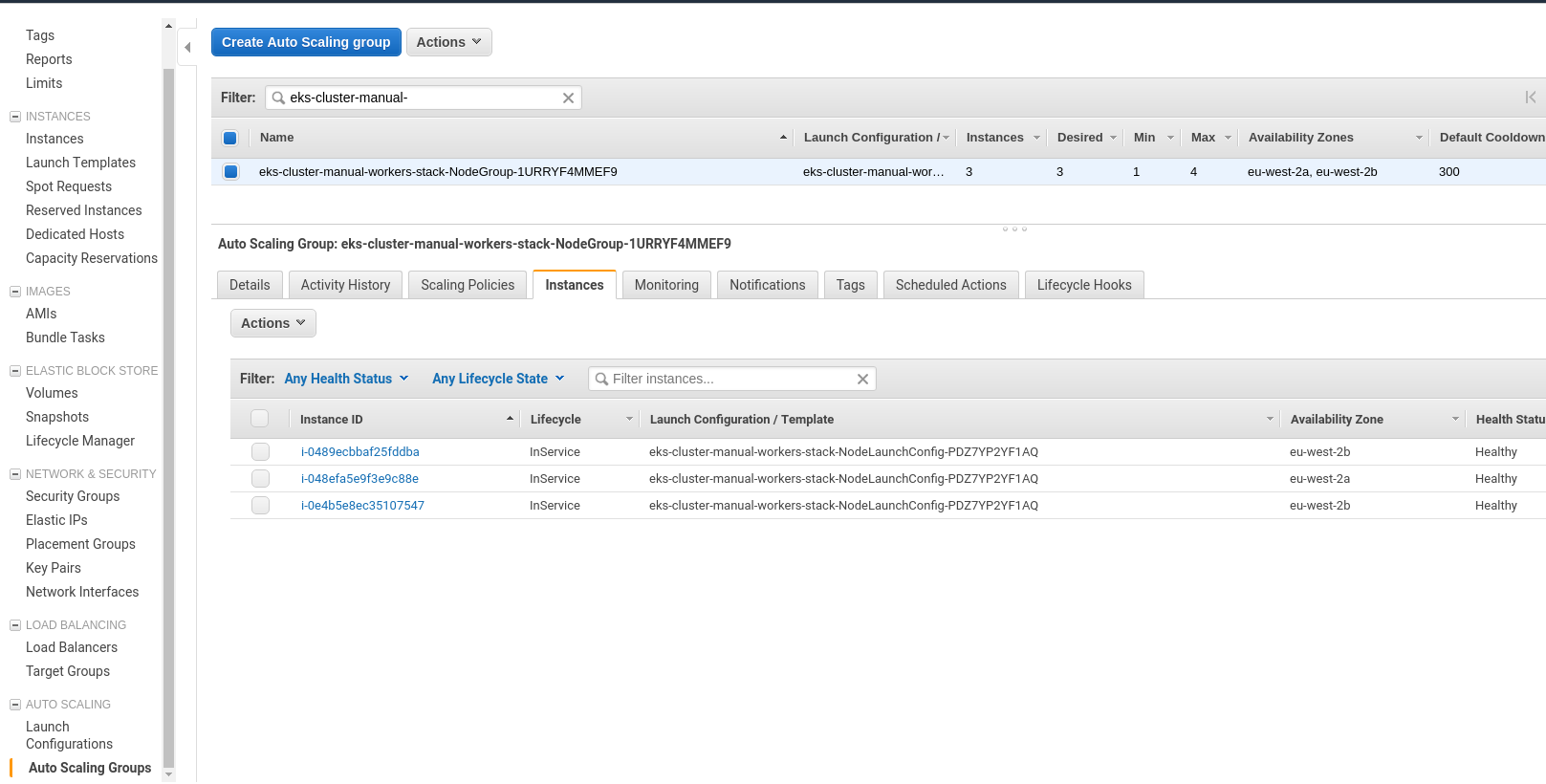

After the stack creation complete – check the AutoScaling groups:

kubectl installation

While we were working with the Worker Nodes – our EKS cluster was provisioned and we can install kubectl on a working machine.

Download an executable file:

[setevoy@setevoy-arch-work ~] $ curl -o kubectl https://amazon-eks.s3-us-west-2.amazonaws.com/1.13.7/2019-06-11/bin/linux/amd64/kubectl

[setevoy@setevoy-arch-work ~] $ chmod +x kubectl

[setevoy@setevoy-arch-work ~] $ sudo mv kubectl /usr/local/bin/

Check:

[setevoy@setevoy-arch-work ~] $ kubectl version --short --client

Client Version: v1.13.7-eks-fa4c70

To create its config file – use AWS CLI:

[setevoy@setevoy-arch-work ~] $ aws eks --region eu-west-2 --profile arseniy update-kubeconfig --name eks-cluster-manual

Added new context arn:aws:eks:eu-west-2:534***385:cluster/eks-cluster-manual to /home/setevoy/.kube/config

Add an alias just to make work simpler:

[setevoy@setevoy-arch-work ~] $ echo "alias kk="kubectl"" >> ~/.bashrc

[setevoy@setevoy-arch-work ~] $ bash

Check it:

[setevoy@setevoy-arch-work ~] $ kk get svc

NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE

kubernetes ClusterIP 172.20.0.1 443/TCP 20m

AWS authenticator

Although CloudFormation for Worker Nodes already ready, and EC2 instances are up and running – but we still can’t’ see them as Nodes in the Kubernetes cluster:

[setevoy@setevoy-arch-work ~] $ kk get node

No resources found.

Download AWS authenticator:

[setevoy@setevoy-arch-work ~] $ cd Temp/

[setevoy@setevoy-arch-work ~] $ curl -so aws-auth-cm.yaml https://amazon-eks.s3-us-west-2.amazonaws.com/cloudformation/2019-02-11/aws-auth-cm.yaml

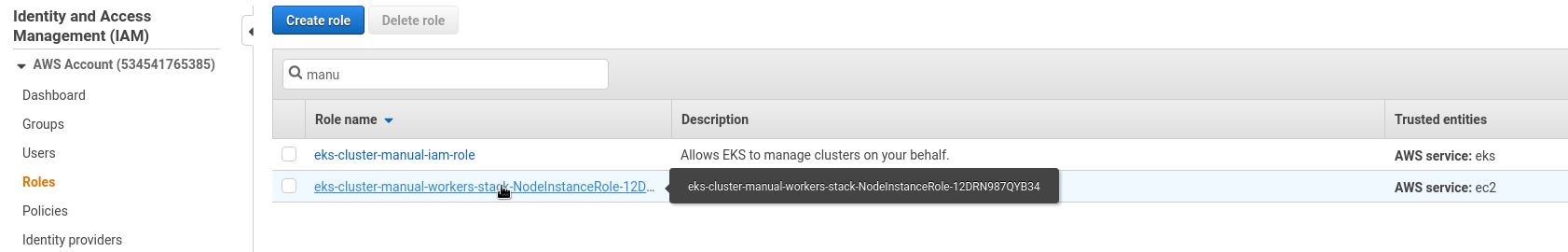

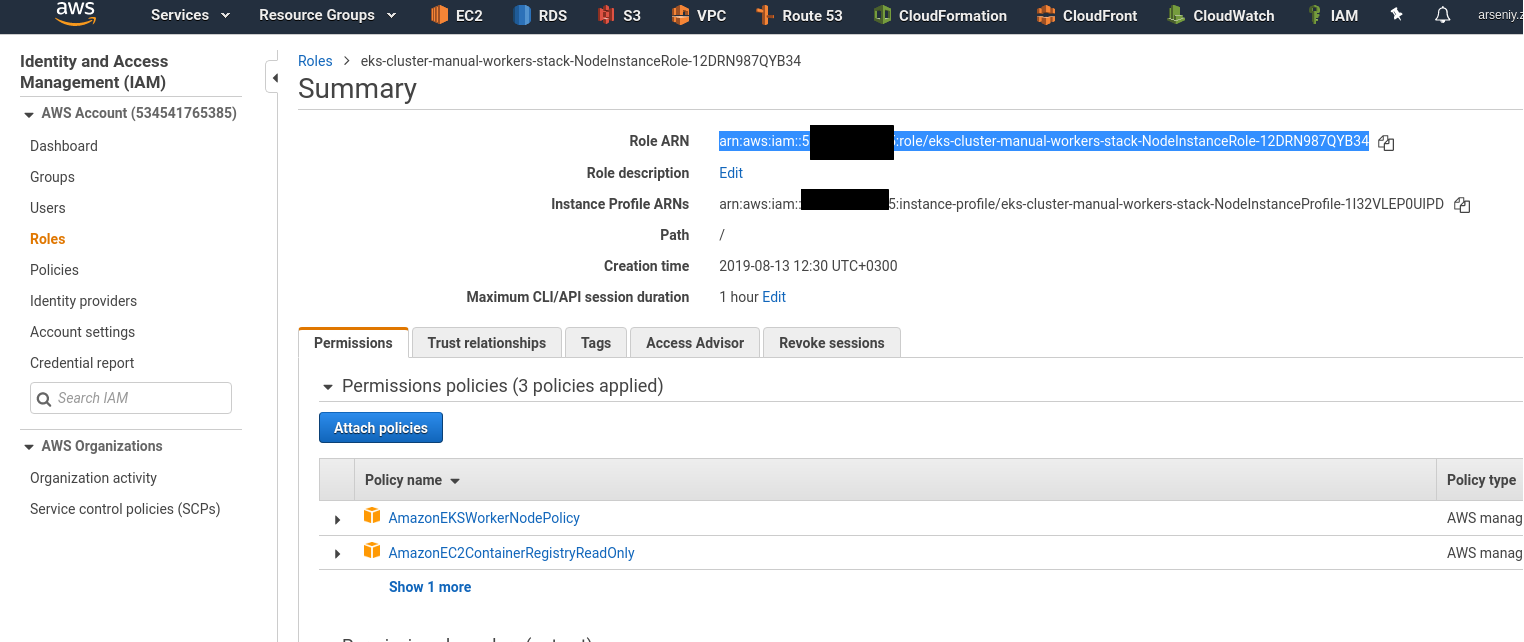

Go to the в IAM > Roles, find ARN (Amazon Resource Name) of the role (NodeInstanceRole):

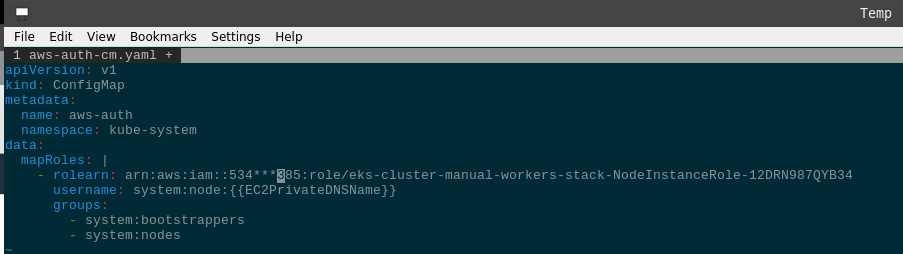

Edit file aws-auth-cm.yaml, set rolearn:

Create a ConfigMap:

[setevoy@setevoy-arch-work ~/Temp] $ kk apply -f aws-auth-cm.yaml

configmap/aws-auth created

Check:

[setevoy@setevoy-arch-work ~/Temp] $ kubectl get nodes -o wide

NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME

ip-10-0-153-7.eu-west-2.compute.internal Ready 47s v1.13.7-eks-c57ff8 10.0.153.7 Amazon Linux 2 4.14.128-112.105.amzn2.x86_64 docker://18.6.1

ip-10-0-196-123.eu-west-2.compute.internal Ready 50s v1.13.7-eks-c57ff8 10.0.196.123 Amazon Linux 2 4.14.128-112.105.amzn2.x86_64 docker://18.6.1

ip-10-0-204-190.eu-west-2.compute.internal Ready 52s v1.13.7-eks-c57ff8 10.0.204.190 Amazon Linux 2 4.14.128-112.105.amzn2.x86_64 docker://18.6.1

Nodes were added to the cluster – great.

Web-app && LoadBalancer

And for testing purpose – let’s create a simple web-services, for example, a common NGINX, as in the previous chapter.

To access NGINX – let’s also create a LoadBalancer in Kubernetes and AWS, which will proxy requests to the Worker Nodes:

kind: ServiceapiVersion: v1metadata: name: eks-cluster-manual-elbspec: type: LoadBalancer selector: app: eks-cluster-manual-pod ports: - name: http protocol: TCP # ELB's port port: 80 # container's port targetPort: 80---apiVersion: apps/v1kind: Deploymentmetadata: name: eks-cluster-manual-deployspec: # ReplicaSet pods config replicas: 1 # pods selector selector: matchLabels: app: eks-cluster-manual-pod # Pod template template: metadata: # a pod's labeles labels: app: eks-cluster-manual-pod spec: containers: - name: eks-cluster-manual-app image: nginx

Deploy them:

[setevoy@setevoy-arch-work ~/Temp] $ kk apply -f eks-cluster-manual-elb-nginx.yml

service/eks-cluster-manual-elb created

deployment.apps/eks-cluster-manual-deploy created

Check services:

[setevoy@setevoy-arch-work ~/Temp] $ kk get svc

NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE

eks-cluster-manual-elb LoadBalancer 172.20.17.42 a05***405.eu-west-2.elb.amazonaws.com 80:32680/TCP 5m23s

A Pod:

kk get po -o wide -l app=eks-cluster-manual-pod

NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES

eks-cluster-manual-deploy-698b8f6df7-jg55x 1/1 Running 0 6m17s 10.0.130.54 ip-10-0-153-7.eu-west-2.compute.internal

And the ConfigMap itself:

kubectl describe configmap -n kube-system aws-auth

Name: aws-auth

Namespace: kube-system

Labels:

Annotations: kubectl.kubernetes.io/last-applied-configuration:

{"apiVersion":"v1","data":{"mapRoles":"- rolearn: arn:aws:iam::534***385:role/eks-cluster-manual-workers-stack-NodeInstanceRole-12DRN98...

Data

====

mapRoles:

  • rolearn: arn:aws:iam::534***385:role/eks-cluster-manual-workers-stack-NodeInstanceRole-12DRN987QYB34

username: system:node:{{EC2PrivateDNSName}}

groups:

  • system:bootstrappers

  • system:nodes

Events:

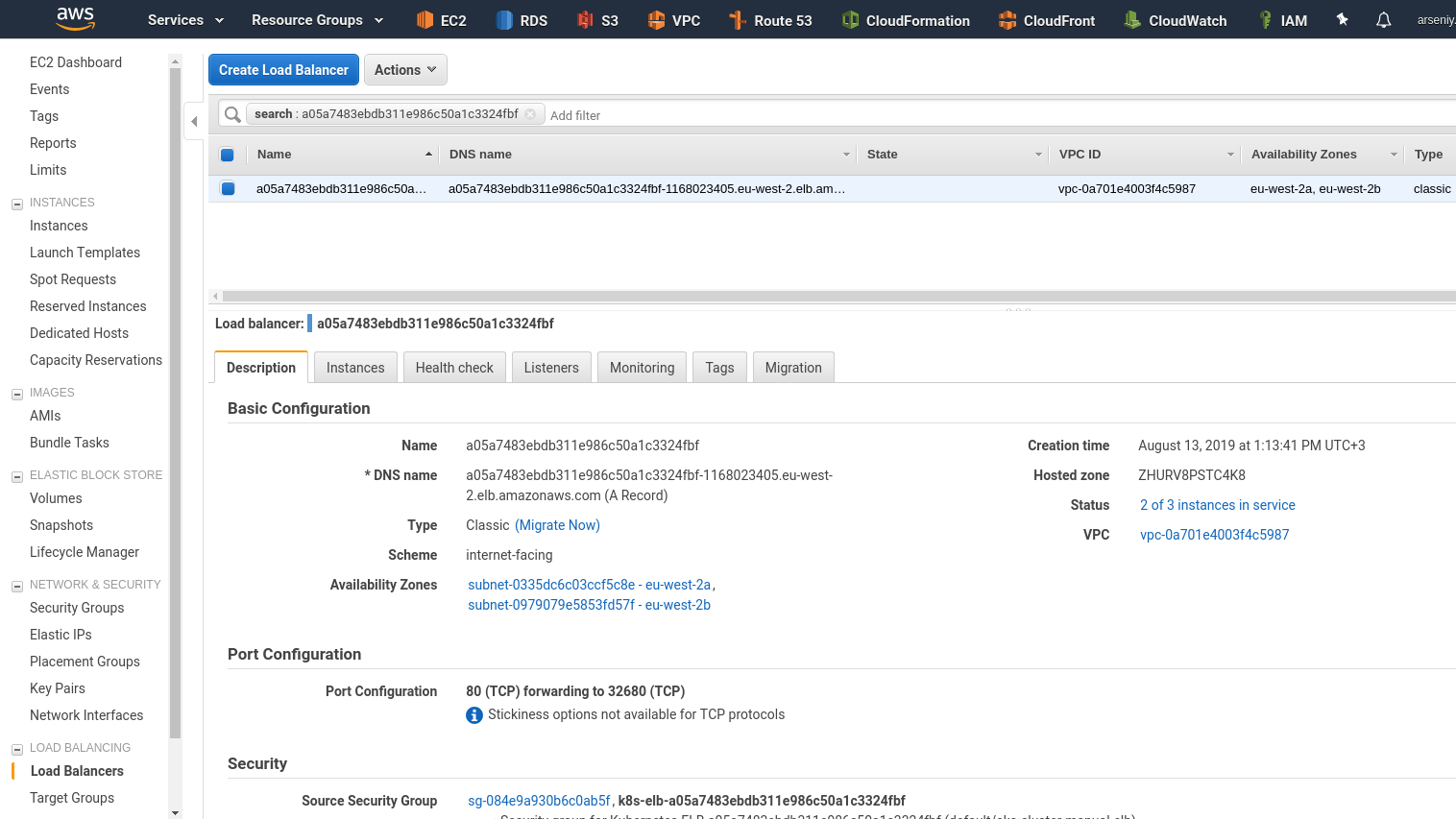

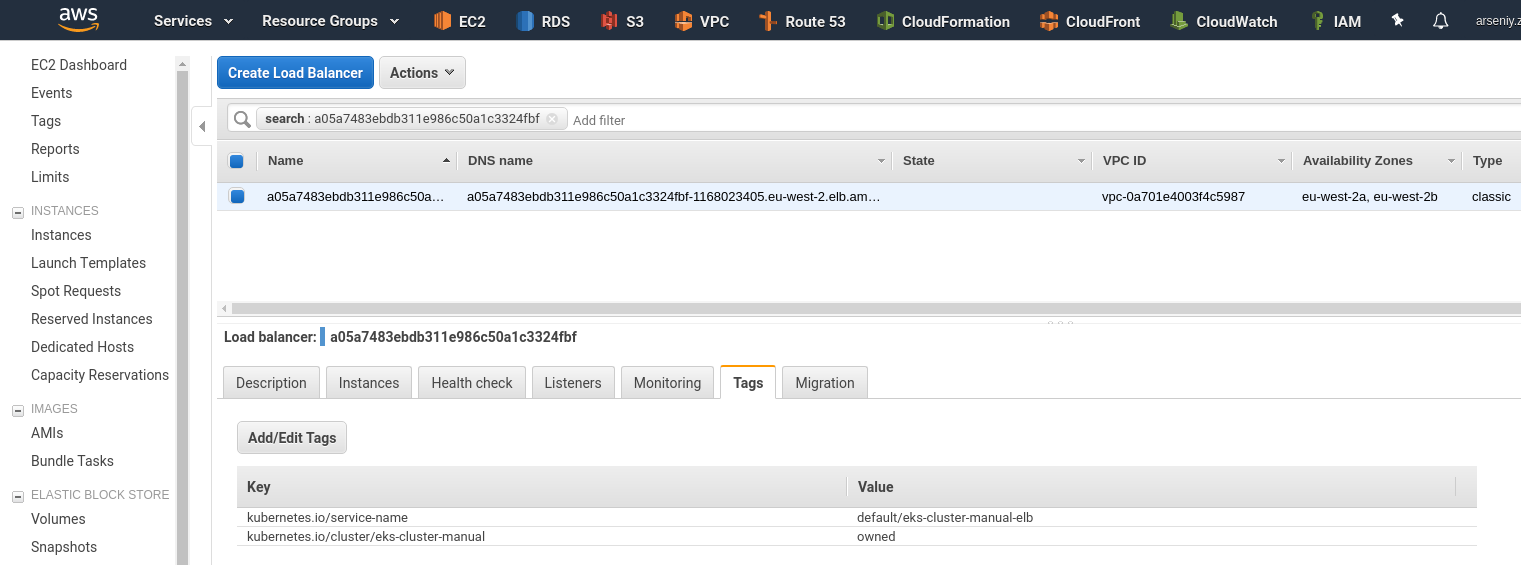

LoadBalancer in the AWS (need to wait about 5 minutes to spin up Pods and attach Nodes to the ELB):

Its tags:

And test the URL provided by AWS or by kubectl get svc command:

[setevoy@setevoy-arch-work ~/Temp] $ curl a05***405.eu-west-2.elb.amazonaws.com

<title>Welcome to nginx!</title>

...

Done.
