# load packages
library(sf)
#> Linking to GEOS 3.9.0, GDAL 3.2.1, PROJ 7.2.1
library(tidygraph)
#>
#> Attaching package: 'tidygraph'
#> The following object is masked from 'package:stats':
#>
#> filter
library(sfnetworks)
#> Registered S3 method overwritten by 'spatstat.geom':
#> method from
#> print.boxx cli
library(osmdata)
#> Data (c) OpenStreetMap contributors, ODbL 1.0. https://www.openstreetmap.org/copyright
library(tmap)
# Download data from Overpass API
my_osm_data <- opq(c(9.366765, 45.812190, 9.484896, 45.906143)) %>%
add_osm_feature(
key = 'highway',
value = c("primary", "primary_link", "secondary", "secondary_link", "tertiary", "tertiary_link", "unclassified", "residential")) %>%
osmdata_sf(quiet = FALSE)
#> Issuing query to Overpass API ...
#> Rate limit: 2
#> Query complete!
#> converting OSM data to sf format
my_osm_data <- osm_poly2line(my_osm_data)
# Create sfnetwork object
my_roads <- my_osm_data$osm_lines
my_sfn <- as_sfnetwork(my_roads[, c("osm_id", "name", "highway")], directed = FALSE)
# Apply to_spatial_subdivision morpher
my_sfn <- convert(my_sfn, to_spatial_subdivision, .clean = TRUE)
#> Warning: to_spatial_subdivision assumes attributes are constant over geometries
# Add weights
my_sfn <- my_sfn %E>% mutate(weight = edge_length())
# Estimate shortest path between two points
my_from <- st_sfc(st_point(c(9.42029, 45.84701)), crs = 4326)
my_to <- st_sfc(st_point(c(9.412025, 45.900548)), crs = 4326)
shortest_path <- convert(my_sfn, to_spatial_shortest_paths, from = my_from, to = my_to)
#> although coordinates are longitude/latitude, st_nearest_points assumes that they are planar
#> although coordinates are longitude/latitude, st_nearest_points assumes that they are planar

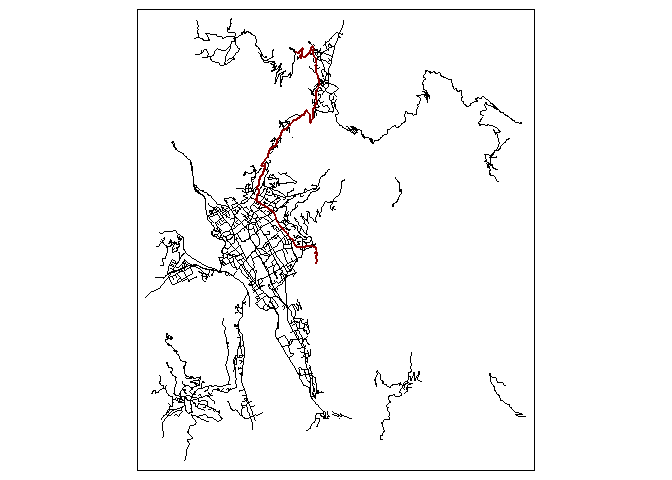

# Plot
tm_shape(my_sfn %>% st_as_sf("edges")) +
tm_lines(lwd = 1.5) +
tm_shape(shortest_path %>% st_as_sf("edges")) +
tm_lines(col = "darkred", lwd = 2)
Created on 2021-03-27 by the reprex package (v1.0.0)
