Week 2 of Coursera's Algorithms on Graphs

Directed Graphs.md

Directed Graphs

1. Directed Acyclic Graphs

(1) Directed Graphs

Definition

A directed graph is a graph where each edge has a start vertex and an end vertex.

(2) Directed DFS

• Only follow directed edges.
• explore(v) finds all vertices reachable from v.
• Can still compute pre- and post- orderings.

(3) Cycles

Definition

A cycle in a graph G is a sequence of vertices v1, v2, ..., vn so that (v1, v2), (v2, v3), ... , (vn-1, vn), (vn, v1) are all edges.

Theorem

If G contains a cycle, it cannot be linearly ordered.

(4) DAGs

Definition

A directed graph G is a Directed Acyclic Graph (or DAG) if it has no cycles.

• Being a DAG is necessary to linearly order.

2. Topological Sort

(1) Sources and Sinks

A source is a vertex with no incoming edges.
A sink is a vertex with on outgoing edges.

(2) Idea of producing linear order

• Find sink
• Put at end of order
• Remove from graph
• Repeat

(3) How do we know that there is a sink?

Follow Path

Follow path as far as possible.
v1 -> v2 -> ... ->vn. Eventually either.

• Cannot extend (found sink).
• Repeat a vertex (have a cycle).

(4) First Try

LinearOrder(G)
    while G non-empty:
        Follow a path until cannot extend
        Find sink v
        Put v at end of order
        Remove v from G

Runtime

• O(|V|) paths.
• Each takes O(|V|) time.
• Runtime O(|V|^2)

(5) Speed Up

• Retrace same path every time
• Instead only back up as far as necessary

(6) Better Algorithm

TopologicalSort(G)
    DFS(G)
    sort vertices by reverse post-order

(7) Theorem

If G is a DAG, with an edge u to v, post(u) > post(v).

3. Strongly Connected Components

(1) Strongly Connected Components

Definition

Two vertices v, w in a directed graph are connected if you can reach v from w and can reach w from v.

Theorem

A directed graph can be partitioned into strongly connected components where two vertices are connected if and only if they are in the same component.

(2) Metagraph

We can also draw a metagraph showing how the strongly connected components connect to one another.

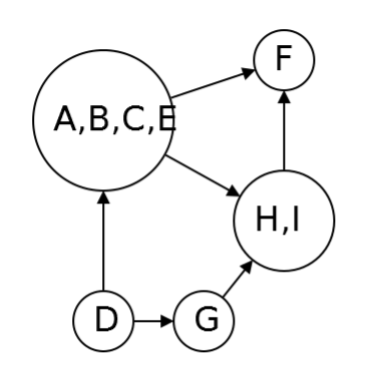

Example

Note: It's a DAG.

Theorem

The metagraph of a graph G is always a DAG.

4. Computing Strongly Connected Components

(1) Problem

input: A directed graph
output: The strongly connected components of G.

(2) Easy Algorithm

EasySCC(G)
    for each vertex v:
        run explore(v) to determine vertices reachable from v
    for each vertex v:
        find the u reachable from v that can also reach v
    these are the SCCs

Runtime

O(|V|^2 + |V||E|). Want faster.

(3) Sink Components

Idea: If v is in a sink SCC, explore(v) finds vertices reachable from v. This is exactly the SCC of v.
Need a way to find a sink SCC.

(4) Theorem

If C and C' are two strongly connected components with an edge from some vertex of C to some vertex of C', then largest post number in C bigger than the largest post number in C'.
Conclusion: The vertex with the largest postorder number is in a source component!

(5) Reverse Graph

Let G^R be the graph obtained from G by revesing all of the edges.

• G^R and G have same SCCs.
• Source components of G^R are sink components of G.

FInd sink components of G by running DFS on G^R
Note: The vertex with the largest postorder number in G^R is in a sink SCC of G.

(6) Basic Algorithm

SCCs(G)
    run DFS(G^R)
    let v have largest post number
    run Explore(v)
    vertices found are first SCC
    Remove from G and repeat

(7) Improvement Algorithm

• Don't need to rerun DFS on G^R.
• Largest remaining post number comes from sink component.

SCCs(G)
    run DFS(G^R)
    for v ∈ V in reverse postorder:
        if not visited(v):
            Explore(v)
            mark visited vertices as new SCC

Runtime

• Essentially DFS on R^G and then on G.
• Runtime O(|V| + |E|)
