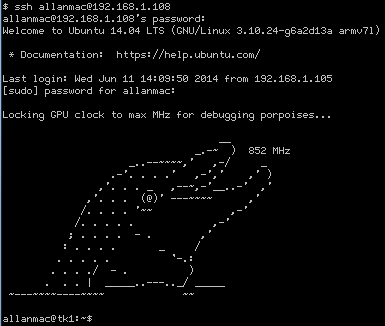

Some login tweaks for L4T 19.3 to disable USB autosuspend and lock the GPU to max MHz. I have lines 3-11 of tk1_tweaks.sh appended to my .profile.
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
#!/bin/bash | |
# | |
# Lock GPU and MEM clocks to max MHz | |
# | |
# - benchmarking shows there is no need to override the MEM clock | |
# | |
echo | |
echo Locking GPU clock to max MHz for debugging porpoises... | |
# set to max | |
cat /sys/kernel/debug/clock/override.gbus/max > /sys/kernel/debug/clock/override.gbus/rate | |
# cat /sys/kernel/debug/clock/override.emc/max > /sys/kernel/debug/clock/override.emc/rate | |
# enable override | |
echo 1 > /sys/kernel/debug/clock/override.gbus/state | |
# echo 1 > /sys/kernel/debug/clock/override.emc/state | |
echo | |
echo " __ " | |
echo " _.-~ ) GPU:" $[ $(</sys/kernel/debug/clock/gbus/rate) / 1000000] MHz | |
echo " _..--~~~~,' ,-/ _ " | |
echo " .-'. . . .' ,-',' ,' ) " | |
echo " ,'. . . _ ,--~,-'__..-' ,' " | |
echo " ,'. . . (@)' ---~~~~ ,' " | |
echo " /. . . . '~~ ,-' " | |
echo " /. . . . . ,-' " | |
echo " ; . . . . - . ,' " | |
echo " : . . . . _ / " | |
echo " . . . . . \`-.: " | |
echo " . . . ./ - . ) " | |
echo " . . . | _____..---.._/ _____ " | |
echo " ~---~~~~----~~~~ ~~ " | |
echo |
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
#!/bin/bash | |
# | |
# Halt USB autosuspend | |
# | |
sudo bash -c 'echo -1 > /sys/module/usbcore/parameters/autosuspend' | |
# | |
# Lock K1 GPU to max MHz | |
# | |
sudo ./tk1_gpu_max_clock.sh | |
Author
allanmac
commented
Jun 11, 2014
dolphantastic ^^
I only logged into say that you saved my headless TK1 :D
