[Python] Fitting plane/surface to a set of data points

README.md

Python version of the MATLAB code in this Stack Overflow post: https://stackoverflow.com/a/18648210/97160

The example shows how to determine the best-fit plane/surface (1st or higher order polynomial) over a set of three-dimensional points.

Implemented in Python + NumPy + SciPy + matplotlib.

---

EDIT (2023-06-16)

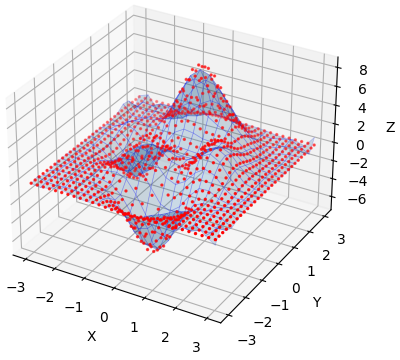

I added a new example fit.py that shows polynomial fitting of any n-th order, as well as the same thing but using scikit-learn functions fit-sklearn.py.

curve_fitting.py

#!/usr/bin/evn python

import numpy as np
import scipy.linalg
from mpl_toolkits.mplot3d import Axes3D
import matplotlib.pyplot as plt

# some 3-dim points
mean = np.array([0.0,0.0,0.0])
cov = np.array([[1.0,-0.5,0.8], [-0.5,1.1,0.0], [0.8,0.0,1.0]])
data = np.random.multivariate_normal(mean, cov, 50)

# regular grid covering the domain of the data
X,Y = np.meshgrid(np.arange(-3.0, 3.0, 0.5), np.arange(-3.0, 3.0, 0.5))
XX = X.flatten()
YY = Y.flatten()

order = 1    # 1: linear, 2: quadratic
if order == 1:
    # best-fit linear plane
    A = np.c_[data[:,0], data[:,1], np.ones(data.shape[0])]
    C,_,_,_ = scipy.linalg.lstsq(A, data[:,2])    # coefficients

    # evaluate it on grid
    Z = C[0]*X + C[1]*Y + C[2]

    # or expressed using matrix/vector product
    #Z = np.dot(np.c_[XX, YY, np.ones(XX.shape)], C).reshape(X.shape)

elif order == 2:
    # best-fit quadratic curve
    A = np.c_[np.ones(data.shape[0]), data[:,:2], np.prod(data[:,:2], axis=1), data[:,:2]**2]
    C,_,_,_ = scipy.linalg.lstsq(A, data[:,2])

    # evaluate it on a grid
    Z = np.dot(np.c_[np.ones(XX.shape), XX, YY, XX*YY, XX**2, YY**2], C).reshape(X.shape)

# plot points and fitted surface
fig = plt.figure()
ax = fig.gca(projection='3d')
ax.plot_surface(X, Y, Z, rstride=1, cstride=1, alpha=0.2)
ax.scatter(data[:,0], data[:,1], data[:,2], c='r', s=50)
plt.xlabel('X')
plt.ylabel('Y')
ax.set_zlabel('Z')
ax.axis('equal')
ax.axis('tight')
plt.show()

fit-sklearn.py

import numpy as np
from sklearn.preprocessing import PolynomialFeatures
from sklearn.linear_model import LinearRegression
from sklearn.pipeline import make_pipeline
import matplotlib.pyplot as plt

def generateData(n = 30):
    # similar to peaks() function in MATLAB
    g = np.linspace(-3.0, 3.0, n)
    X, Y = np.meshgrid(g, g)
    X, Y = X.reshape(-1,1), Y.reshape(-1,1)
    Z = 3 * (1 - X)**2 * np.exp(- X**2 - (Y+1)**2) \
        - 10 * (X/5 - X**3 - Y**5) * np.exp(- X**2 - Y**2) \
        - 1/3 * np.exp(- (X+1)**2 - Y**2)
    return X, Y, Z

def names2model(names):
    # C[i] * X^n * Y^m
    return ' + '.join([
        f"C[{i}]*{n.replace(' ','*')}"
        for i,n in enumerate(names)])

# generate some random 3-dim points
X, Y, Z = generateData()

# 1=linear, 2=quadratic, 3=cubic, ..., nth degree
order = 11

# best-fit polynomial surface
model = make_pipeline(
    PolynomialFeatures(degree=order),
    LinearRegression(fit_intercept=False))
model.fit(np.c_[X, Y], Z)

m = names2model(model[0].get_feature_names_out(['X', 'Y']))
C = model[1].coef_.T  # coefficients
r2 = model.score(np.c_[X, Y], Z)  # R-squared

# print summary
print(f'data = {Z.size}x3')
print(f'model = {m}')
print(f'coefficients =\n{C}')
print(f'R2 = {r2}')

# uniform grid covering the domain of the data
XX,YY = np.meshgrid(np.linspace(X.min(), X.max(), 20), np.linspace(Y.min(), Y.max(), 20))

# evaluate model on grid
ZZ = model.predict(np.c_[XX.flatten(), YY.flatten()]).reshape(XX.shape)

# plot points and fitted surface
ax = plt.figure().add_subplot(projection='3d')
ax.scatter(X, Y, Z, c='r', s=2)
ax.plot_surface(XX, YY, ZZ, rstride=1, cstride=1, alpha=0.2, linewidth=0.5, edgecolor='b')
ax.axis('tight')
ax.view_init(azim=-60.0, elev=30.0)
ax.set_xlabel('X')
ax.set_ylabel('Y')
ax.set_zlabel('Z')
plt.show()

fit.py

import numpy as np
from scipy.linalg import lstsq
import matplotlib.pyplot as plt

def generateData(n = 30):
    # similar to peaks() function in MATLAB
    g = np.linspace(-3.0, 3.0, n)
    X, Y = np.meshgrid(g, g)
    X, Y = X.reshape(-1,1), Y.reshape(-1,1)
    Z = 3 * (1 - X)**2 * np.exp(- X**2 - (Y+1)**2) \
        - 10 * (X/5 - X**3 - Y**5) * np.exp(- X**2 - Y**2) \
        - 1/3 * np.exp(- (X+1)**2 - Y**2)
    return X, Y, Z

def exp2model(e):
    # C[i] * X^n * Y^m
    return ' + '.join([
        f'C[{i}]' +
        ('*' if x>0 or y>0 else '') +
        (f'X^{x}' if x>1 else 'X' if x==1 else '') +
        ('*' if x>0 and y>0 else '') +
        (f'Y^{y}' if y>1 else 'Y' if y==1 else '')
        for i,(x,y) in enumerate(e)
    ])

# generate some random 3-dim points
X, Y, Z = generateData()

# 1=linear, 2=quadratic, 3=cubic, ..., nth degree
order = 11

# calculate exponents of design matrix
#e = [(x,y) for x in range(0,order+1) for y in range(0,order-x+1)]
e = [(x,y) for n in range(0,order+1) for y in range(0,n+1) for x in range(0,n+1) if x+y==n]
eX = np.asarray([[x] for x,_ in e]).T
eY = np.asarray([[y] for _,y in e]).T

# best-fit polynomial surface
A = (X ** eX) * (Y ** eY)
C,resid,_,_ = lstsq(A, Z)    # coefficients

# calculate R-squared from residual error
r2 = 1 - resid[0] / (Z.size * Z.var())

# print summary
print(f'data = {Z.size}x3')
print(f'model = {exp2model(e)}')
print(f'coefficients =\n{C}')
print(f'R2 = {r2}')

# uniform grid covering the domain of the data
XX,YY = np.meshgrid(np.linspace(X.min(), X.max(), 20), np.linspace(Y.min(), Y.max(), 20))

# evaluate model on grid
A = (XX.reshape(-1,1) ** eX) * (YY.reshape(-1,1) ** eY)
ZZ = np.dot(A, C).reshape(XX.shape)

# plot points and fitted surface
ax = plt.figure().add_subplot(projection='3d')
ax.scatter(X, Y, Z, c='r', s=2)
ax.plot_surface(XX, YY, ZZ, rstride=1, cstride=1, alpha=0.2, linewidth=0.5, edgecolor='b')
ax.axis('tight')
ax.view_init(azim=-60.0, elev=30.0)
ax.set_xlabel('X')
ax.set_ylabel('Y')
ax.set_zlabel('Z')
plt.show()

@madgrizzle

I took the time to linearize this for up to the nth degree over the afternoon. You will want to make sure that all your data has 64 bit datatype (ex: np.int64(x) or np.float64(z)) because at higher degree calculations things will begin to break when overflow warnings come up. This is what I threw together:

# functions

# in: [meshgrid], [meshgrid], [np list of coordinate pair np lists. ex: [[x1,y1,z1], [x2,y2,z2], etc.] ], [degree]
# out: [Z]
def curve(X, Y, coord, n):
    XX = X.flatten()
    YY = Y.flatten()

    # best-fit curve
    A = XYchooseN(coord[:,0], coord[:,1], n)
    C,_,_,_ = scipy.linalg.lstsq(A, coord[:,2])
    print("Calculating C in curve() done")
    # evaluate it on a grid
    Z = np.dot(XYchooseN(XX, YY, n), C).reshape(X.shape)
    return Z

# in: [array], [array], [int]
# out: sum from k=0 to k=n of n choose k for x^n-k * y^k (coefficients ignored)
def XYchooseN(x,y,n):
    XYchooseN = []
    n = n+1
    for j in range(len(x)):
        I = x[j]
        J = y[j]
        matrix = []
        Is = []
        Js = []
        for i in range(0,n):
            Is.append(I**i)
            Js.append(J**i)
            matrix.append(np.concatenate((np.ones(n-i),np.zeros(i))))
        Is = np.array(Is)
        Js = np.array(Js)[np.newaxis]
        IsJs0s = matrix * Is * Js.T
        IsJs = []
        for i in range(0,n):
            IsJs = np.concatenate((IsJs,IsJs0s[i,:n-i]))
        XYchooseN.append(IsJs)
    return np.array(XYchooseN)

X,Y = np.meshgrid(x_data,y_data) # surface meshgrid

Z = curve(X, Y, coord, 3)

# todo: cmap by avg from (x1,y1) to (x2,y2) of |Z height - scatter height|

ax.plot_surface(X, Y, Z, rstride=1, cstride=1, alpha=0.5, color='r')

Thanks MSchmidt99!
That's good. I added a bit, which users can try this code directly. In the follow:
import numpy as np
from scipy.linalg import lstsq
import matplotlib.pyplot as plt
from mpl_toolkits.mplot3d import Axes3D

def generateData(n = 30):
# similar to peaks() function in MATLAB
g = np.linspace(-3.0, 3.0, n)
X, Y = np.meshgrid(g, g)
X, Y = X.reshape(-1,1), Y.reshape(-1,1)
Z = 3 * (1 - X)2 * np.exp(- X2 - (Y+1)2)
- 10 * (X/5 - X3 - Y5) * np.exp(- X2 - Y**2)
- 1/3 * np.exp(- (X+1)2 - Y2)
data_lt = []
for ee in range(len(X)):
data_lt.append([float(X[ee]),float(Y[ee]),float(Z[ee])])
return np.array(data_lt)

in: [meshgrid], [meshgrid], [np list of coordinate pair np lists. ex: [[x1,y1,z1], [x2,y2,z2], etc.] ], [degree]

out: [Z]

def curve(X, Y, coord, n):
XX = X.flatten()
YY = Y.flatten()

# best-fit curve
A = XYchooseN(coord[:,0], coord[:,1], n)
C,_,_,_ = lstsq(A, coord[:,2])
print("Calculating C in curve() done")
# evaluate it on a grid
Z = np.dot(XYchooseN(XX, YY, n), C).reshape(X.shape)
return Z

in: [array], [array], [int]

out: sum from k=0 to k=n of n choose k for x^n-k * y^k (coefficients ignored)

def XYchooseN(x,y,n):
XYchooseN = []
n = n+1
for j in range(len(x)):
I = x[j]
J = y[j]
matrix = []
Is = []
Js = []
for i in range(0,n):
Is.append(Ii)
Js.append(Ji)
matrix.append(np.concatenate((np.ones(n-i),np.zeros(i))))
Is = np.array(Is)
Js = np.array(Js)[np.newaxis]
IsJs0s = matrix * Is * Js.T
IsJs = []
for i in range(0,n):
IsJs = np.concatenate((IsJs,IsJs0s[i,:n-i]))
XYchooseN.append(IsJs)
return np.array(XYchooseN)

data = generateData()

generate some random 3-dim points

x_data, y_data, z_data = data[:,0],data[:,1],data[:,2]

X,Y = np.meshgrid(x_data,y_data) # surface meshgrid

coord = data

Z = curve(X, Y, coord, 3)

todo: cmap by avg from (x1,y1) to (x2,y2) of |Z height - scatter height|

fig = plt.figure()
ax = fig.add_subplot(111, projection='3d') # Create a 3D axis

ax.plot_surface(X, Y, Z, rstride=1, cstride=1, alpha=0.5, color='r')
ax.scatter(data[:,0], data[:,1], data[:,2], c='green', s=50)
plt.xlabel('X')
plt.ylabel('Y')
ax.set_zlabel('Z')
ax.axis('equal')
ax.axis('tight')
plt.show()
