lighter-viridis.md

library(tidyverse)

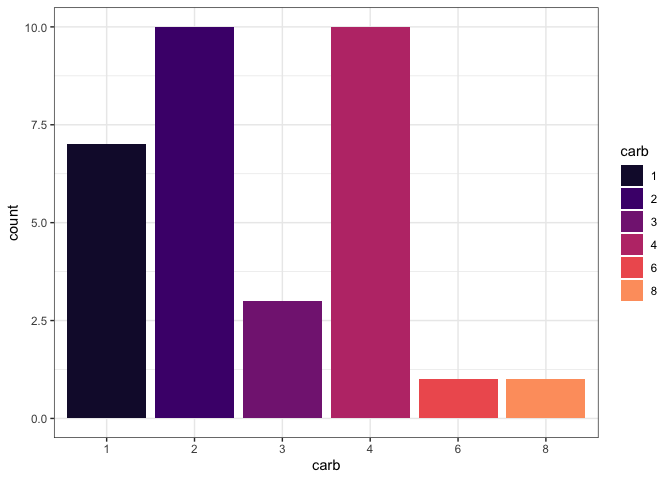

# Colors too dark
mtcars |>
  mutate(carb = factor(carb)) |>
  ggplot(aes(carb, fill = carb)) +
  geom_bar() +
  scale_fill_viridis_d(
    option = "magma", begin = 0.1, end = 0.8
  ) +
  theme_bw()

# Colors lighter, but gridlines are visible
mtcars |>
  mutate(carb = factor(carb)) |>
  ggplot(aes(carb, fill = carb)) +
  geom_bar(alpha = 0.8) +
  scale_fill_viridis_d(
    option = "magma", begin = 0.1, end = 0.8
  ) +
  theme_bw()

# Colors are lighter without transparency
mtcars |>
  mutate(carb = factor(carb)) |>
  ggplot(aes(x = carb)) +
  geom_bar(
    aes(fill = stage(
      start = carb,
      after_scale = colorspace::lighten(fill, 0.15)
    ))
  ) +
  scale_fill_viridis_d(
    option = "magma", begin = 0.1, end = 0.8
  ) +
  theme_bw()

^{Created on 2024-12-06 with reprex v2.1.1}
