library(cshapes)
#> Loading required package: sp
#> Loading required package: maptools
#> Checking rgeos availability: TRUE
#> Loading required package: plyr
library(rgdal) # need this for projection transform (spTransform)
#> rgdal: version: 1.5-18, (SVN revision 1082)
#> Geospatial Data Abstraction Library extensions to R successfully loaded
#> Loaded GDAL runtime: GDAL 3.1.1, released 2020/06/22
#> Path to GDAL shared files: /Library/Frameworks/R.framework/Versions/4.0/Resources/library/rgdal/gdal
#> GDAL binary built with GEOS: TRUE
#> Loaded PROJ runtime: Rel. 6.3.1, February 10th, 2020, [PJ_VERSION: 631]
#> Path to PROJ shared files: /Library/Frameworks/R.framework/Versions/4.0/Resources/library/rgdal/proj
#> Linking to sp version:1.4-4
#> To mute warnings of possible GDAL/OSR exportToProj4() degradation,
#> use options("rgdal_show_exportToProj4_warnings"="none") before loading rgdal.
# this returns all polygons, with start and end dates for indepdence
# we'll have to manually subset for dates below
all <- cshp()
#> Warning: readShapePoly is deprecated; use rgdal::readOGR or sf::st_read
#> Warning in showSRID(uprojargs, format = "PROJ", multiline = "NO", prefer_proj =
#> prefer_proj): Discarded datum Unknown based on WGS84 ellipsoid in CRS definition
head(all@data$CNTRY_NAME)
#> [1] Guyana Suriname Trinidad and Tobago
#> [4] Venezuela Samoa Tonga
#> 207 Levels: Afghanistan Albania Algeria Andorra Angola ... Zimbabwe
# Just using this as an example (data could come from somewhere else too)
library(rnaturalearth)
pick <- ne_countries(scale = "small")
# All current countries in the world
head(pick@data)
#> scalerank featurecla labelrank sovereignt sov_a3 adm0_dif
#> 0 1 Admin-0 country 3 Afghanistan AFG 0
#> 1 1 Admin-0 country 3 Angola AGO 0
#> 2 1 Admin-0 country 6 Albania ALB 0
#> 3 1 Admin-0 country 4 United Arab Emirates ARE 0
#> 4 1 Admin-0 country 2 Argentina ARG 0
#> 5 1 Admin-0 country 6 Armenia ARM 0
#> level type admin adm0_a3 geou_dif
#> 0 2 Sovereign country Afghanistan AFG 0
#> 1 2 Sovereign country Angola AGO 0
#> 2 2 Sovereign country Albania ALB 0
#> 3 2 Sovereign country United Arab Emirates ARE 0
#> 4 2 Sovereign country Argentina ARG 0
#> 5 2 Sovereign country Armenia ARM 0
#> geounit gu_a3 su_dif subunit su_a3 brk_diff
#> 0 Afghanistan AFG 0 Afghanistan AFG 0
#> 1 Angola AGO 0 Angola AGO 0
#> 2 Albania ALB 0 Albania ALB 0
#> 3 United Arab Emirates ARE 0 United Arab Emirates ARE 0
#> 4 Argentina ARG 0 Argentina ARG 0
#> 5 Armenia ARM 0 Armenia ARM 0
#> name name_long brk_a3 brk_name
#> 0 Afghanistan Afghanistan AFG Afghanistan
#> 1 Angola Angola AGO Angola
#> 2 Albania Albania ALB Albania
#> 3 United Arab Emirates United Arab Emirates ARE United Arab Emirates
#> 4 Argentina Argentina ARG Argentina
#> 5 Armenia Armenia ARM Armenia
#> brk_group abbrev postal formal_en formal_fr note_adm0
#> 0 <NA> Afg. AF Islamic State of Afghanistan <NA> <NA>
#> 1 <NA> Ang. AO People's Republic of Angola <NA> <NA>
#> 2 <NA> Alb. AL Republic of Albania <NA> <NA>
#> 3 <NA> U.A.E. AE United Arab Emirates <NA> <NA>
#> 4 <NA> Arg. AR Argentine Republic <NA> <NA>
#> 5 <NA> Arm. ARM Republic of Armenia <NA> <NA>
#> note_brk name_sort name_alt mapcolor7 mapcolor8 mapcolor9
#> 0 <NA> Afghanistan <NA> 5 6 8
#> 1 <NA> Angola <NA> 3 2 6
#> 2 <NA> Albania <NA> 1 4 1
#> 3 <NA> United Arab Emirates <NA> 2 1 3
#> 4 <NA> Argentina <NA> 3 1 3
#> 5 <NA> Armenia <NA> 3 1 2
#> mapcolor13 pop_est gdp_md_est pop_year lastcensus gdp_year
#> 0 7 28400000 22270 NA 1979 NA
#> 1 1 12799293 110300 NA 1970 NA
#> 2 6 3639453 21810 NA 2001 NA
#> 3 3 4798491 184300 NA 2010 NA
#> 4 13 40913584 573900 NA 2010 NA
#> 5 10 2967004 18770 NA 2001 NA
#> economy income_grp wikipedia fips_10 iso_a2
#> 0 7. Least developed region 5. Low income NA <NA> AF
#> 1 7. Least developed region 3. Upper middle income NA <NA> AO
#> 2 6. Developing region 4. Lower middle income NA <NA> AL
#> 3 6. Developing region 2. High income: nonOECD NA <NA> AE
#> 4 5. Emerging region: G20 3. Upper middle income NA <NA> AR
#> 5 6. Developing region 4. Lower middle income NA <NA> AM
#> iso_a3 iso_n3 un_a3 wb_a2 wb_a3 woe_id adm0_a3_is adm0_a3_us adm0_a3_un
#> 0 AFG 004 004 AF AFG NA AFG AFG NA
#> 1 AGO 024 024 AO AGO NA AGO AGO NA
#> 2 ALB 008 008 AL ALB NA ALB ALB NA
#> 3 ARE 784 784 AE ARE NA ARE ARE NA
#> 4 ARG 032 032 AR ARG NA ARG ARG NA
#> 5 ARM 051 051 AM ARM NA ARM ARM NA
#> adm0_a3_wb continent region_un subregion region_wb
#> 0 NA Asia Asia Southern Asia South Asia
#> 1 NA Africa Africa Middle Africa Sub-Saharan Africa
#> 2 NA Europe Europe Southern Europe Europe & Central Asia
#> 3 NA Asia Asia Western Asia Middle East & North Africa
#> 4 NA South America Americas South America Latin America & Caribbean
#> 5 NA Asia Asia Western Asia Europe & Central Asia
#> name_len long_len abbrev_len tiny homepart
#> 0 11 11 4 NA 1
#> 1 6 6 4 NA 1
#> 2 7 7 4 NA 1
#> 3 20 20 6 NA 1
#> 4 9 9 4 NA 1
#> 5 7 7 4 NA 1
# This data doesn't match the projection in cshapes; need to reproject
proj4string(all)
#> Warning in proj4string(all): CRS object has comment, which is lost in output
#> [1] "+proj=longlat +ellps=WGS84 +no_defs"
proj4string(pick)
#> [1] "+proj=longlat +datum=WGS84 +no_defs +ellps=WGS84 +towgs84=0,0,0"
pick <- spTransform(pick, proj4string(all))
#> Warning in proj4string(all): CRS object has comment, which is lost in output
#> Warning in proj4string(all): Discarded datum Unknown based on WGS84 ellipsoid in
#> CRS definition
#> Warning in spTransform(xSP, CRSobj, ...): NULL source CRS comment, falling back
#> to PROJ string
#> Warning in wkt(obj): CRS object has no comment
# Let's pick one polygon we want to merge into cshapes
# to find, just figure out the correct corresponding row in pick@data
pick@data$admin
#> [1] "Afghanistan"
#> [2] "Angola"
#> [3] "Albania"
#> [4] "United Arab Emirates"
#> [5] "Argentina"
#> [6] "Armenia"
#> [7] "Antarctica"
#> [8] "French Southern and Antarctic Lands"
#> [9] "Australia"
#> [10] "Austria"
#> [11] "Azerbaijan"
#> [12] "Burundi"
#> [13] "Belgium"
#> [14] "Benin"
#> [15] "Burkina Faso"
#> [16] "Bangladesh"
#> [17] "Bulgaria"
#> [18] "The Bahamas"
#> [19] "Bosnia and Herzegovina"
#> [20] "Belarus"
#> [21] "Belize"
#> [22] "Bolivia"
#> [23] "Brazil"
#> [24] "Brunei"
#> [25] "Bhutan"
#> [26] "Botswana"
#> [27] "Central African Republic"
#> [28] "Canada"
#> [29] "Switzerland"
#> [30] "Chile"
#> [31] "China"
#> [32] "Ivory Coast"
#> [33] "Cameroon"
#> [34] "Democratic Republic of the Congo"
#> [35] "Republic of Congo"
#> [36] "Colombia"
#> [37] "Costa Rica"
#> [38] "Cuba"
#> [39] "Northern Cyprus"
#> [40] "Cyprus"
#> [41] "Czech Republic"
#> [42] "Germany"
#> [43] "Djibouti"
#> [44] "Denmark"
#> [45] "Dominican Republic"
#> [46] "Algeria"
#> [47] "Ecuador"
#> [48] "Egypt"
#> [49] "Eritrea"
#> [50] "Spain"
#> [51] "Estonia"
#> [52] "Ethiopia"
#> [53] "Finland"
#> [54] "Fiji"
#> [55] "Falkland Islands"
#> [56] "France"
#> [57] "Gabon"
#> [58] "United Kingdom"
#> [59] "Georgia"
#> [60] "Ghana"
#> [61] "Guinea"
#> [62] "Gambia"
#> [63] "Guinea Bissau"
#> [64] "Equatorial Guinea"
#> [65] "Greece"
#> [66] "Greenland"
#> [67] "Guatemala"
#> [68] "Guyana"
#> [69] "Honduras"
#> [70] "Croatia"
#> [71] "Haiti"
#> [72] "Hungary"
#> [73] "Indonesia"
#> [74] "India"
#> [75] "Ireland"
#> [76] "Iran"
#> [77] "Iraq"
#> [78] "Iceland"
#> [79] "Israel"
#> [80] "Italy"
#> [81] "Jamaica"
#> [82] "Jordan"
#> [83] "Japan"
#> [84] "Kazakhstan"
#> [85] "Kenya"
#> [86] "Kyrgyzstan"
#> [87] "Cambodia"
#> [88] "South Korea"
#> [89] "Kosovo"
#> [90] "Kuwait"
#> [91] "Laos"
#> [92] "Lebanon"
#> [93] "Liberia"
#> [94] "Libya"
#> [95] "Sri Lanka"
#> [96] "Lesotho"
#> [97] "Lithuania"
#> [98] "Luxembourg"
#> [99] "Latvia"
#> [100] "Morocco"
#> [101] "Moldova"
#> [102] "Madagascar"
#> [103] "Mexico"
#> [104] "Macedonia"
#> [105] "Mali"
#> [106] "Myanmar"
#> [107] "Montenegro"
#> [108] "Mongolia"
#> [109] "Mozambique"
#> [110] "Mauritania"
#> [111] "Malawi"
#> [112] "Malaysia"
#> [113] "Namibia"
#> [114] "New Caledonia"
#> [115] "Niger"
#> [116] "Nigeria"
#> [117] "Nicaragua"
#> [118] "Netherlands"
#> [119] "Norway"
#> [120] "Nepal"
#> [121] "New Zealand"
#> [122] "Oman"
#> [123] "Pakistan"
#> [124] "Panama"
#> [125] "Peru"
#> [126] "Philippines"
#> [127] "Papua New Guinea"
#> [128] "Poland"
#> [129] "Puerto Rico"
#> [130] "North Korea"
#> [131] "Portugal"
#> [132] "Paraguay"
#> [133] "Palestine"
#> [134] "Qatar"
#> [135] "Romania"
#> [136] "Russia"
#> [137] "Rwanda"
#> [138] "Western Sahara"
#> [139] "Saudi Arabia"
#> [140] "Sudan"
#> [141] "South Sudan"
#> [142] "Senegal"
#> [143] "Solomon Islands"
#> [144] "Sierra Leone"
#> [145] "El Salvador"
#> [146] "Somaliland"
#> [147] "Somalia"
#> [148] "Republic of Serbia"
#> [149] "Suriname"
#> [150] "Slovakia"
#> [151] "Slovenia"
#> [152] "Sweden"
#> [153] "Swaziland"
#> [154] "Syria"
#> [155] "Chad"
#> [156] "Togo"
#> [157] "Thailand"
#> [158] "Tajikistan"
#> [159] "Turkmenistan"
#> [160] "East Timor"
#> [161] "Trinidad and Tobago"
#> [162] "Tunisia"
#> [163] "Turkey"
#> [164] "Taiwan"
#> [165] "United Republic of Tanzania"
#> [166] "Uganda"
#> [167] "Ukraine"
#> [168] "Uruguay"
#> [169] "United States of America"
#> [170] "Uzbekistan"
#> [171] "Venezuela"
#> [172] "Vietnam"
#> [173] "Vanuatu"
#> [174] "Yemen"
#> [175] "South Africa"
#> [176] "Zambia"
#> [177] "Zimbabwe"
# ok, "Greenland"'s in there
greenland <- pick[pick@data$admin=="Greenland", ]
# this is just greenland now

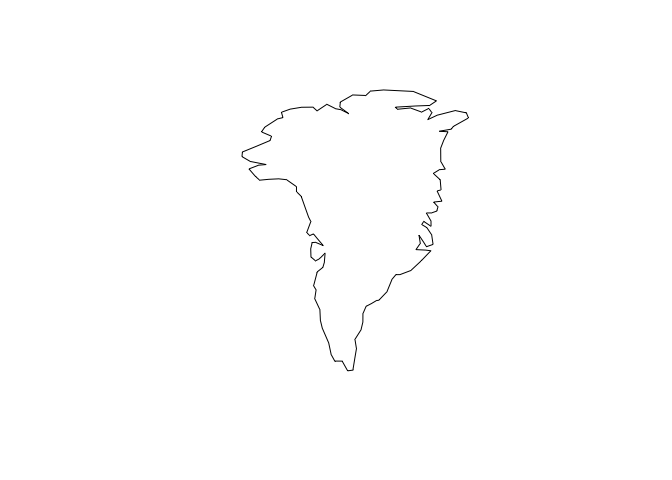

plot(greenland)
# to merge this in "all", will need to match the data columsn in all@data
# make an empty template for this (with NA values but correct column data
# types)
template <- all@data[1, ]
template[1, 1:ncol(template)] <- NA
# could fill in more values here as needed
greenland@data <- template
greenland@data$CNTRY_NAME <- "Greenland"
greenland@data$ISO1AL3 <- "GRL"
greenland@data$COWEYEAR <- 2016
greenland@data$COWSYEAR <- 1946
# add this to the cshapes map data
all <- rbind(all, greenland)
# now we can do the subsetting by date, otherwise we will have some overlapping
# nonsensical polygons (e.g. East, West, and unified Germany all there)
map <- all[all@data$COWEYEAR==2016, ]

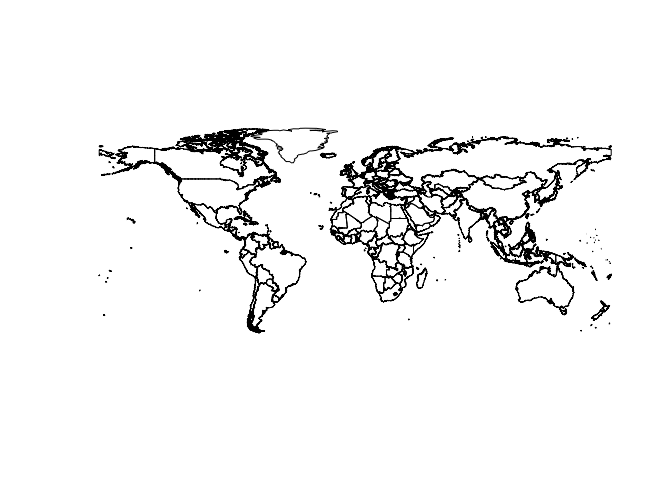

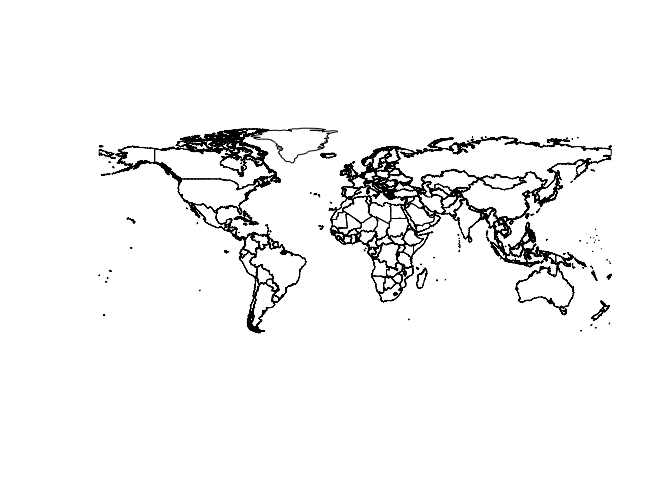

plot(map)
Created on 2020-11-24 by the reprex package (v0.3.0)
