So I was presented with this interesting problem by a co-worker to come up with a CSS solution for a very common problem. Basically we are looking at a common layout for a list of items that will be placed into a grid with two columns. Simple, right?
Wrong. How do we do this? There are so many ways we can solve this problem that the solutions are a problem in itself. In this article I will walk through the process that I went through and how I came to a solution that I feel is pretty flexible and will carry us into the future of better layout solutions.
A VERY common solution is to pretend this is a table and think of this as a series of rows and columns. I personally think that this is a very poor solution, why would we want to recreate tables for the sake of creating a table layout? For the sake of argument, I will walk through how this works.
First, the HTML. In this example I defined a parent container .block, then a container for each row .row and last, each container of content would go into the .column containers. This is a LOT of DOM!
<div class="block">
<div class="row">
<div class="column">1</div>
<div class="column">2</div>
</div>
<div class="row">
<div class="column">3</div>
<div class="column">4</div>
</div>
<div class="row">
<div class="column">5</div>
<div class="column">6</div>
</div>
<div class="row">
<div class="column">7</div>
<div class="column">8</div>
</div>
</div>Next, the supporting CSS. I don't need to write any CSS for .row as this is simply a block container, but for each column we need to specify some styles. The simplest way to address this IMHO is to set a less then 1/2 width for each column and then set the left and right margins using pseudo classes.
.column {
width: 49%;
margin-bottom: 1em;
}
.column:first-child {
margin-right: 1%;
}
.column:last-child {
margin-left: 1%;
}Like I said, this works but it is pretty lame. It's inflexible and to make it more flexible we will need to add more classes to the DOM to change margins and base widths. Not to mention, this row/column solution is really tough to deal with when rendering a list of content. You have to write more code to break this into blocks of 2 and skip through the rows. Fail.
In this next evolution I am getting closer to a solution where the issue of displaying a list of content is much easer, so I would go with the following HTML. Here we see that there are no rows or columns, but simply there is the block and then each element.
<div class="block">
<div class="element">1</div>
<div class="element">2</div>
<div class="element">3</div>
<div class="element">4</div>
<div class="element">5</div>
<div class="element">6</div>
<div class="element">7</div>
<div class="element">8</div>
</div>For the CSS it looks pretty much the same, so there is very little win there. Although we addressed the complexities of programatic layout, we are still stuck with additional manual management of widths and margins.
.element {
width: 49%;
margin-bottom: 1em;
}
.element:nth-of-type(odd) {
margin-right: 1%;
}
.element:nth-of-type(even) {
margin-left: 1%;
}It was also at this time that saw that the margin-bottom: 1em is a real issue. I want a gutter between the stacked elements, but I don't want this gutter to be under the whole block of elements. To address this, I will use the nth pseudo class to find the last two children in the list of elements and removing the bottom margin. Again pretty cool, but very manual for maintenance.
.element:nth-last-child(-n+2) {
margin-bottom: 0;
}In case you were still thinking that the row/column solution is still better, bear in mind that we can't use this nth solution as there are only two columns in a row, so all the margins would be removed.
Clearly moving on here, we are getting closer to a better solution.
If you are curious to see progress so far, I have included a JSBin of the solutions up to this point.
JS Bin<script src="http://static.jsbin.com/js/embed.js"></script>
At this point, we have a solution for a single layout. Looking forward, I knew this was NOT the end of the story. There would be more similar layouts and I for one do not want to get into the business of BEM'ing out a OOCSS solution where all the combinations are addressed.
FLAME ALERT: Before anyone gets ready to flame-on in the comments, I am well aware of the current state of browser support and don't care. Progressive enhancement leads the way and my code will be ready for the browser that can use it.
For the HTML, we are sticking with the clean block/element structure.
<div class="block">
<div class="element">1</div>
<div class="element">2</div>
<div class="element">3</div>
<div class="element">4</div>
<div class="element">5</div>
<div class="element">6</div>
<div class="element">7</div>
<div class="element">8</div>
</div>Onto flex-box. From the onset it looks pretty similar to the previous solution. With flex-box we get a TON of really nice configurable operations that we just don't get in any of the previous solutions. Don't believe me? Check out the Visual Guide to CSS3 Flexbox Properties.
I should mention, we are NOT floating ANYTHING. Flex-box by itself addresses the 'floating' of things. In my example I need the elements to wrap into columns, so using flex-wrap: wrap; will address this layout attribute.
I am not setting widths on anything, I am setting a flex-basis. This is NOT a standard width or height attribute.
This [flex-basis] property takes the same values as the width and height properties, and specifies the initial main size of the flex item, before free space is distributed according to the flex factors.
Next I will not mess around with margins for left/right either, this is being addressed with justify-content: space-between;. Nice.
.block {
display: flex;
flex-wrap: wrap;
justify-content: space-between;
}
.element {
flex-basis: 49%;
margin-bottom: 1em;
}
.element:nth-last-child(-n+2) {
margin-bottom: 0;
}In the end, we are still stuck with this .element:nth-last-child(-n+2) solution and I am not really happy about that. And while this is pretty cool and allows for more flexibility in the layout, we are still stuck with poor maintenance for alternate solutions that would again have me running down the BEM/OOCSS path again. There is a better way.
We have had some fun playing with standard CSS and HTML, it's time to turn this up to 11 and have some real fun. The goal I now set for myself is that I want some functionality where I can create any series of selectors and by using some Sass magic I can easily apply a combination of flex-box scenarios and transform my layout.
The first problem to solve is that I don't want to have to set a value for the flex-basis. I should be able to come up with a number that works based on the number of columns I want in my layout.
To do this I am going to create a function that will accept two arguments, one $arg for the number of columns that I intend to use and then a boolean value $gutter whether or not if I want gutters between my columns.
To map this out, I am taking 1 and dividing this by $arg and using the percentage Sass function to come up with a value. If I want gutters, then I am simply reducing this value by 1%. There may be a better way to do this, but this works for now.
@function gutter-value($arg, $gutter) {
@if $gutter {
$value: percentage(1 / $arg) - 1%;
} @else {
$value: percentage(1 / $arg);
}
@return $value
}Now how flex-box works you need two parts and for this I am going to create two mixins, flex-grid-container and flex-grid-item.
For the container we need a few things. display: flex is a given, so I am simply going to hard-code that. For flex-wrap I am setting an argument for that and setting the default to null. By doing so, the attribute won't be printed out into the CSS if you don't want it. It saves is a @if{} step.
What's cool is that in Sass a boolean also equals if a variable has a value, it's not specific to true or false. So when $wrap has a value of wrap to satisfy the attribute, this also sends a true value to @if $wrap and then justify-content: space-between; will be process into the CSS. This time we are saving the need for an additional argument in the mixin.
@mixin flex-grid-container($wrap: null) {
display: flex;
flex-wrap: $wrap;
@if $wrap {
justify-content: space-between;
}
}Feeling good here. Moving onto the next mixin for the elements. It's here that we start to make use of the function we created earlier. This mixin takes three arguments, $arg, $gutter and $margin.
$arg will be where we enter the number of columns we are looking for. $gutter will be that boolean blue that we pass into the function. You can say true or gutter or yes-gutters-please. It will work as long as you don't use false or null.
Last is $margin, this is an actual value. With the default set to null none of the CSS inside that @if statement will process into CSS. When this is used, not only will set a bottom margin, but using the $arg value we can also set the :nth-last-child pseudo selector.
@mixin flex-grid-item($arg, $gutter: null, $margin: null) {
flex-basis: gutter-value($arg, $gutter);
@if $margin != null {
margin-bottom: $margin;
&:nth-last-child(-n+#{$arg}) {
margin-bottom: 0;
}
}
}Pulling all this together we have a pretty nifty API to work with.
To make this easy to follow along and play with, I created a SassMeister Gist to play with.
Play with this gist on SassMeister.
<script src="http://cdn.sassmeister.com/js/embed.js" async></script>And to make this even easier to play with for the number of columns, I re-wrote the HTML part using some haml magic. To change the number of elements in the .block container, simply update the (1..6) value. Say you want 12 elements? Ok, (1..12). You want 24 elements, (1..24). I think you get the point.
The #{i} part simply outputs the number of the column into the view.
.block
-(1..6).each do |i|
.element #{i}To get this working, we only need the following code. For flex-box to work, you need to set some values for the outer container, .block in our case. Then you set values for the elements within the container, .element, in this example.
flex-grid-container takes one argument. If you want it to wrap, simply put in wrap or true and it will update .block to have the necessary rules. And yes, there will be times when you will invoke this mixin without setting a value and the null operator will work.
Next we have flex-grid-item and this takes three arguments. $arg for the number of columns, the $gutter argument which is looking for a boolean value and last there is $margin that is looking for a CSS value.
.block {
@include flex-grid-container(wrap);
}
.element {
@include flex-grid-item(2, true, 1em);

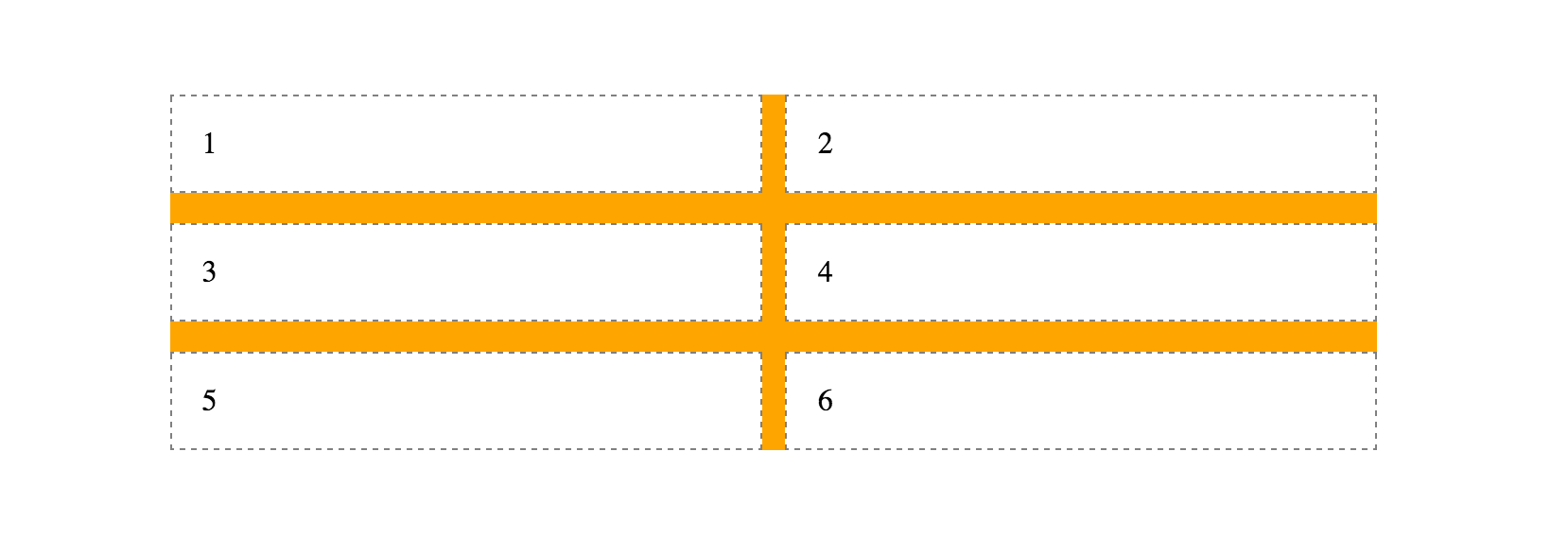

}The previous example should look something like this:

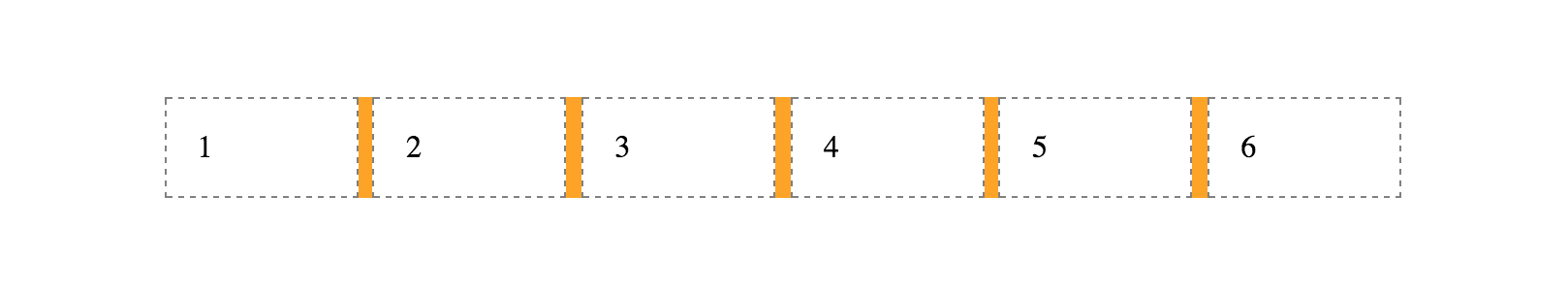

Now lets say that you only want 6 columns across with a gutter? Basically update the $arg to equal the number of elements and set the $gutter argument to true. Since there is no wrapping, there is no need to set the $margin value.
It looks weird, but we need to set the $wrap value so that we get the justify-content: space-between; properties. Without it, all you columns will be flush left. If it makes you feel better, just set true ;)
.block {
@include flex-grid-container(true);
}
.element {
@include flex-grid-item(6, true);
}

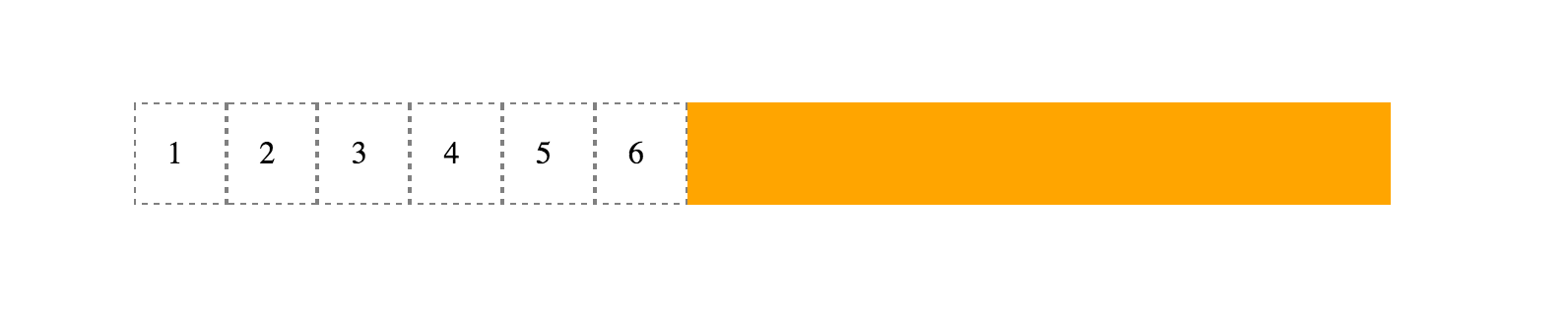

This was an interesting accident I discovered, but if you set the $arg in flex-grid-item to be twice the value of the number of elements, 6 in this example, then your grid column is 50% of the available space. Nothing special really, when you look at the output CSS it's simple math at this point. But, still cool.
So, for the haml keep the following:
.block
-(1..6).each do |i|
.element #{i}And for the Sass, use this:
.block {
@include flex-grid-container();
}
.element {
@include flex-grid-item(12);
}
This is not meant to be a framework, I won't be building a new site and getting a Twitter handle to promote the next amazing 'Sass Flexie Grid'. But I do hope that you can come away from this learning something new. I did.
Have fun!
