Asyncio Queue Producer-Consumer Pattern in Streamlit

asyncio-queue-producer-consumer.py

# See this thread: https://discuss.streamlit.io/t/best-fastest-practice-to-display-live-2d-data/19895
# Code below is lifted from @andfanilo's comment

# https://realpython.com/async-io-python/#using-a-queue
import asyncio
from datetime import datetime

# pip install opencv-python-headless
import cv2
import numpy as np
import streamlit as st


QUEUE_SIZE = 100
SIZE_IMAGE = 512


def get_or_create_eventloop():
    try:
        return asyncio.get_event_loop()
    except RuntimeError as ex:
        if "There is no current event loop in thread" in str(ex):
            loop = asyncio.new_event_loop()
            asyncio.set_event_loop(loop)
            return asyncio.get_event_loop()


async def produce_images(queue, delay):
    while True:
        _ = await asyncio.sleep(delay)
        image = np.random.random((SIZE_IMAGE, SIZE_IMAGE)).astype(np.float32)

        # Add bars depending on state count
        n = st.session_state.produced_images % SIZE_IMAGE
        m = st.session_state.produced_images % SIZE_IMAGE
        image[n : n + 10] = 0
        image[:, m : m + 10] = 1

        _ = await queue.put(cv2.cvtColor(image, cv2.COLOR_GRAY2BGR))
        st.session_state.produced_images += 1


async def consume_images(image_placeholder, queue_size_placeholder, queue, delay):
    while True:
        _ = await asyncio.sleep(delay)
        if queue.qsize() > 0:
            image = await queue.get()
            image_placeholder.image(
                image,
                caption=f"Consumed images: {st.session_state.consumed_images}, {str(datetime.now())}",
            )
            queue_size_placeholder.metric(
                f"In queue (queue size is {QUEUE_SIZE})", st.session_state.queue.qsize()
            )
            st.session_state.consumed_images += 1
            queue.task_done()


async def run_app(
    image_placeholder, queue_size_placeholder, queue, produce_delay, consume_delay
):
    _ = await asyncio.gather(
        produce_images(queue, produce_delay),
        consume_images(image_placeholder, queue_size_placeholder, queue, consume_delay),
    )


##### ACTUAL APP

if __name__ == "__main__":
    st.set_page_config(
        layout="wide",
        initial_sidebar_state="auto",
        page_title="Asyncio test",
        page_icon=None,
    )

    if "event_loop" not in st.session_state:
        st.session_state.loop = asyncio.new_event_loop()
    asyncio.set_event_loop(st.session_state.loop)

    # if "queue" not in st.session_state:
    #    st.session_state.queue = asyncio.Queue(QUEUE_SIZE)
    # if "produced_images" not in st.session_state:
    #    st.session_state.produced_images = 0
    # if "consumed_images" not in st.session_state:
    #    st.session_state.consumed_images = 0
    st.session_state.queue = asyncio.Queue(QUEUE_SIZE)
    st.session_state.produced_images = 0
    st.session_state.consumed_images = 0

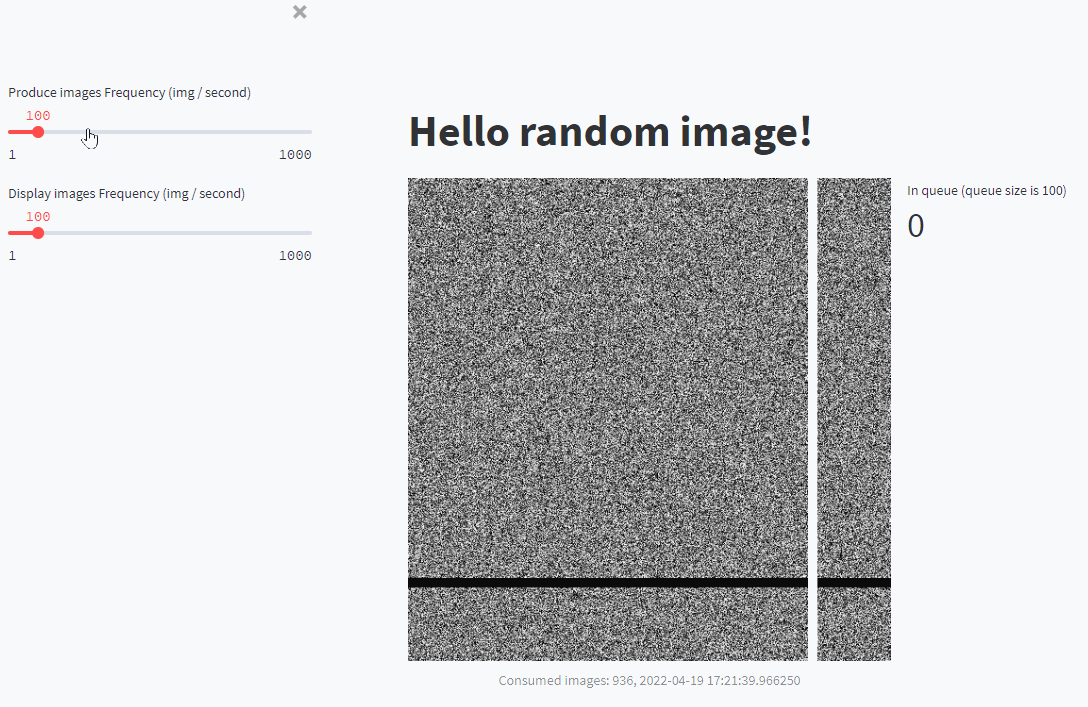

    st.title("Hello random image!")
    produce_delay = 1 / st.sidebar.slider(
        "Produce images Frequency (img / second)", 1, 1000, 100
    )
    consume_delay = 1 / st.sidebar.slider(
        "Display images Frequency (img / second)", 1, 1000, 100
    )
    c1, c2 = st.columns(2)
    image_placeholder = c1.empty()
    queue_size_placeholder = c2.empty()

    asyncio.run(
        run_app(
            image_placeholder,
            queue_size_placeholder,
            st.session_state.queue,
            produce_delay,
            consume_delay,
        )
    )
