Workflows (States) in Django

I'm going to cover a simple, but effective, utility for managing state and transitions (aka workflow). We often need to store the state (status) of a model and it should only be in one state at a time.

Common Software Uses

Publishing (Draft->Approved->Published->Expired->Deleted)
Payments
Account Authorization (New->Active->Suspended->Deleted)
Membership (Trial->Paid->Cancelled)
Quality Assurance, Games
Anything with a series of steps

Definitely avoid ...

Booleans for states

is_new
is_active
is_published
is_draft
is_deleted
is_paid
is_member
is_*

Mutually exclusive states ... sort of finite, but the number of states increases with each bool:

2 bools = 2^2 = 4 states
3 bools = 2^3 = 8 states
etc (2^N)

Brittle and too many states to check.

Finite State Machine

finite list of states
one state at a time; the current state
transition state by triggering event or condition

The behavior of state machines can be observed in many devices in modern society which perform a predetermined sequence of actions depending on a sequence of events with which they are presented.

http://en.wikipedia.org/wiki/Finite-state_machine

Simple approach ...

CharField with defined choices

state = CharField(
    default=1,
    choices=[(1, "draft"), (2, "approved"), (3, "published")]
)

Define methods to change state:

def publish(self):
    self.state = 3
    email_sombody(self)
    self.save()

def approve(self):
    self.state = 2
    self.save()

Better, but ...

not enforced
- Can I go from draft to published, skipping approval?
- What happens if I publish something that's already published?
repetitive
side-effects mix with transition code

Some Goals

Safe, verifiable transitions between states
Conditions for the transition
Clear side effects from state transitions
DRY

django-fsm

declarative transitions and conditions (via decorators)
specialized field to contain state

https://github.com/kmmbvnr/django-fsm

P.S. RoR has similar apps too

FSMField

Specialized CharField
Set protected=True
- to prevent direct/accidental manipulation
- forces use of transition methods
- raises an AttributeError "Direct state modification is not allowed"

Example

state = FSMField(
    default=State.DRAFT,
    verbose_name='Publication State',
    choices=State.CHOICES,
    protected=True,
)

(alternatives FSMIntegerField, FSMKeyField)

Transition decorator

@transition(field=state, source=[State.APPROVED, State.EXPIRED],
    target=State.PUBLISHED,
    conditions=[can_display])
def publish(self):
    '''
    Publish the object.
    '''
    email_the_team()
    update_sitemap()
    busta_cache()

What does this get us?

defined source and target states (valid transitions)
a method to complete the transition and define side-effects
a list of conditions (aside from state), that must be met for the transition to occur

Extras

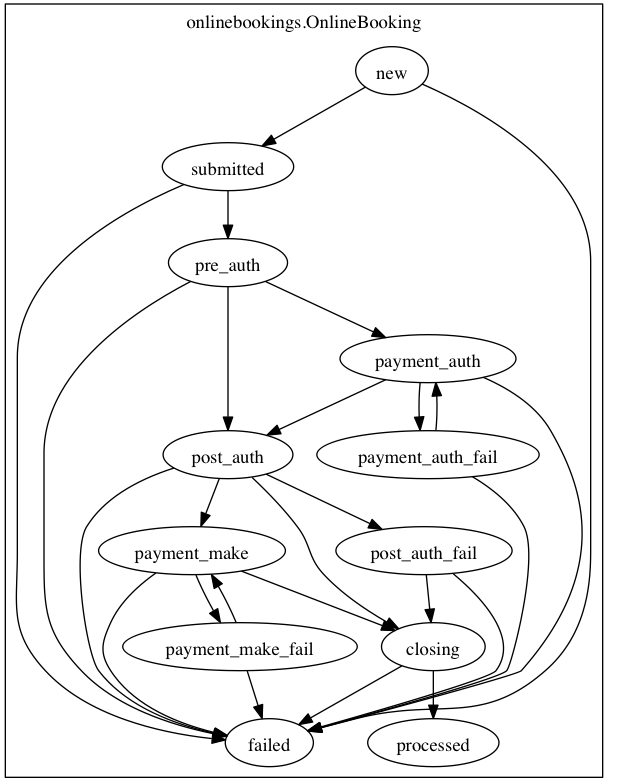

Graphing state transitions

./manage.py graph_transitions -o example-graph.png fsm_example.PublishableModel

Something a bit more complex:

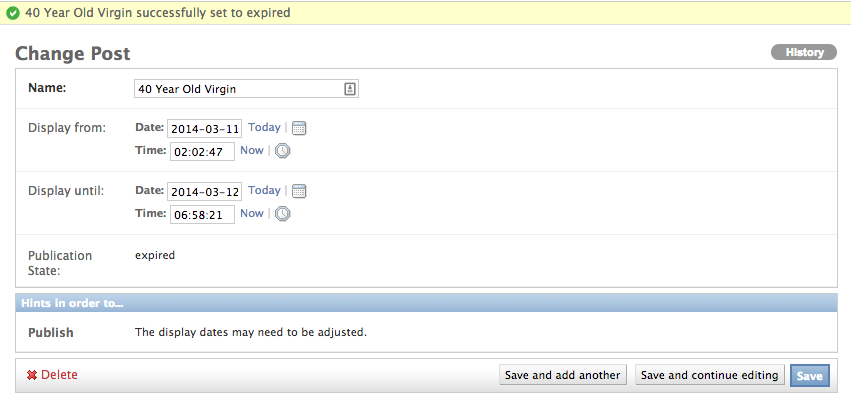

django-fsm-admin

https://github.com/gadventures/django-fsm-admin

submit row
logging history
noting what's required to change state (messages)

django-fsm-log

https://github.com/gizmag/django-fsm-log

If you'd like your state transitions stored in something other than the admin history.

Alternatives?

Not much out there. django-fsm has the most activity.

More information on the state of django workflow libaries

http://viewflow.io/

Fin

Craig Nagy @nagyman G Adventures - Software Engineering, eComm Mgr.
