Play Movie Texture with Mask
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Shader "Custom/MaskedSprite" { | |
Properties { | |
_MainTex ("Base (RGB)", 2D) = "white" {} | |
} | |
SubShader { | |
Tags { | |
"Queue"="Transparent" | |
"IgnoreProjector"="True" | |
"RenderType"="Transparent" | |
"PreviewType"="Plane" | |
} | |
LOD 100 | |
Alphatest Greater 0 | |
Cull Off | |
Lighting Off | |
ZWrite Off | |
Fog { Mode Off } | |
Blend SrcAlpha OneMinusSrcAlpha | |
ColorMask RGB | |
Pass { | |
Blend SrcAlpha OneMinusSrcAlpha | |
CGPROGRAM | |
#pragma vertex vert | |
#pragma fragment frag | |
#pragma multi_compile DUMMY PIXELSNAP_ON | |
#include "UnityCG.cginc" | |
struct appdata_t | |
{ | |
float4 vertex : POSITION; | |
float4 color : COLOR; | |
float2 texcoord : TEXCOORD0; | |
}; | |
struct v2f | |
{ | |
float4 vertex : SV_POSITION; | |
fixed4 color : COLOR; | |
half2 texcoord : TEXCOORD0; | |
}; | |
v2f vert(appdata_t IN) | |
{ | |
v2f OUT; | |
OUT.vertex = mul(UNITY_MATRIX_MVP, IN.vertex); | |
OUT.texcoord = IN.texcoord; | |
OUT.color = IN.color; | |
#ifdef PIXELSNAP_ON | |
OUT.vertex = UnityPixelSnap (OUT.vertex); | |
#endif | |
return OUT; | |
} | |
sampler2D _MainTex; | |
half4 frag (v2f IN) : SV_Target | |
{ | |
half2 mask_uv = IN.texcoord; | |
mask_uv.y /= 2; | |
half2 base_uv = mask_uv; | |
base_uv.y += 0.5; | |
fixed3 base = tex2D (_MainTex, base_uv); | |
fixed3 mask = tex2D (_MainTex, mask_uv); | |
return fixed4(base, mask.r); | |
} | |
ENDCG | |
} | |
} | |
FallBack "Diffuse" | |
} |
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment

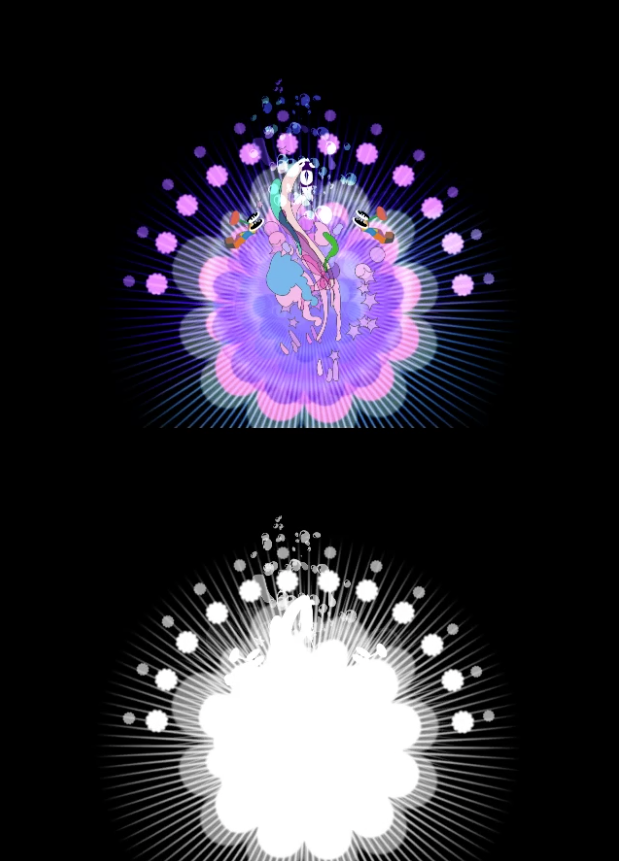

Need Movie like below
