Mapping JS: Building narrative with geo data + CartoDB

Aurelia Moser, Map Scientist, CartoDB Workshop - NICAR Session Link

March 6, 2015, 3:20PM-4:20PM

Find this document here:

Stackedit: http://bit.ly/1BMad7n
Gist: http://bit.ly/1BciteV

Find the code checkpoints here:

Github: https://github.com/auremoser/nicar-2015

Outline

Visualizing Data
- Why Maps?
Introduction to CartoDB
- Examples
- Tour of the interface
- APIs / JS Libs
Mapping Basics
- Setting up accounts!
- Data import
- Datasets
Mapping Data
- Getting Geospatial Data
- Data representation in CartoDB (SQL schema)
- Geocoding + SQL/PostGIS
- Merging Tables
- Customizing UI
Building a Map

Basics of VisJson (ckpt-1)
- Quick map with CreateVis (ckpt-2)
- Custom map with CreateLayer (ckpt-3)
- Add SQL/CSS Templates (ckpt-4)
- Add Interactivity - Buttons (ckpt-5)
- Infowindows (ckpt-6)
BONUS: Charts (ckpt-7)

Building a Narrative
- Case Study: GA - Onomatopeoia Map
- CrashPop_Demo
- Tell Time/Stories: Odyssey + Torque
- Datatelling: Graphs + Charts
Wrap-Up and Resources

Visualizing Data

Source: The Data Visualization Catalogue.

Source: Periodic Table of Visualizations

CartoDB is a light open source library and graphical user interface application for hosting and visualizing geospatial data.

Intro to CartoDB

Examples

Tour of the interface

APIs / JS Libs

You can read more about the CartoDB APIs and JS Library here

CartoJS - JS library for interacting with CartoDB
Maps API - generate public/private maps with data hosted on your CDB account
SQL API - run sql in your code that dynamically filters/affects/queries your mapped data stored in CartoDB
Import API - CRUD files in your CartoDB Account

Mapping Basics

Setting Up Accounts

You can setup a free student account today since we're all learning: https://cartodb.com/signup?plan=academy

IRE members are eligible for a free upgraded account that includes:

more space
private tables (a Magellan account feature)
sync tables

Email [email protected] with your request for an upgraded account and membership ID, and we'll set you up.

Data Import

We're going to be building a visualization of traffic accidents in Georgia.

We'll be mapping crash/fatalities from motor accidents (c. 2006) and census population data (c. 2010) for a Crash/Pop map (what I've called an "onomatopoeia map," just because).

Traffic accidents are pretty common/available datasets, as is census information. We'll be building a choropleth of traffic accidents, resulting in fatality and crash/injury reports percapita.

Datasets

You can download the datasets we'll be working with, and the files for the workshop here.

Description	Source	Download	Dropbox
2010 Georgia Census Demographics	Atlanta Regional Data	pop_2010	pop_2010
Traffic Fatality Data	GA Office of Highway Safety	crash_2006	crash_2006

Mapping Data

Getting Geospatial Data

Geospatial data is info that ids a geolocation and its characteristic features/frontiers, typically represented by points, lines, polygons, and/or complex geographic features.

Issues:

Comes in multiple formats (supported formats for CartoDB)
Sources uncertain
Contains errors
etc.

Downloading the Traffic Data and the Census Data requires some finessing.

Data Check:

check the source and update date of your data
remove headers/extra columns (in Excel or Open Refine)
import the csv/geojson and auto-geocoding via carto
correct column names to more intelligible terms
correct datatypes
do any preliminary sql or filtering that suits

The sets I've prepared should give you "cleaner" data. Here are the fields, or columns, we'll be focusing on:

Georgia Census Data - names of counties and population counts
Georgia Traffic Data - names of counties, crash counts, fatality counts (injury counts are also available)

Here is what it might look like when you upload your data:

Data representation in CartoDB (SQL schema)

The most basic SQL statement is:

SELECT * FROM table_name

The * means everything. This means that all rows and columns from the table are given back once the query is run.

A more detailed query is like this:

SELECT
  name,
  height,
  age
FROM
  class_list
WHERE
  name = 'Aure'
  AND (
    height > 1.2
    OR
    height < 1.9
  )

SELECT is what you're requesting (required)
FROM is where the data is located (required)
WHERE is the filter on the data you're requesting (optional)
GROUP BY and ORDER BY are optional additions, you can read more about aggregate/other functions below.

Geocoding + SQL/PostGIS

There are two special columns in CartoDB:

the_geom
the_geom_webmercator

The first of these is in the units of standard latitude/longitude, while the second is a projection based on the original Mercator projection but optimized for the web.

If you want to run SQL commands and see your map update, make sure to SELECT the the_geom_webmercator because this is the column that's used for mapping--the other is more of a convenience column since most datasets use lat/long.

This is a SQL statement and you can load it in your visualization tray as a way of querying and exploring your data with immediate visual output. In this case the Traffic Accident data is aliased to "ta" and the Atlanta Census data is aliased to "ac".

SELECT ac.the_geom_webmercator, ta.county_name, 100000 * ta.number_fatality / ac.population fatalities_per_capita
      FROM
        traffic_accidents ta, atl_census_demo_2010 ac
      WHERE ac.county_name = ta.county_name

This is a query that adds some more information from the sample, to include percapita counts of the fatality and crash data available in your datasets.

You can enter queries, apply them, click on "create table from query" in the green field below the column names.

Merging Tables

Joining and merging tables to make one dataset is a common need. Say you have two datasets related to the same place/map and need to combine them so that they can share the same geometry.

You can do this in SQL read more here, but CartoDB also has an in-editor button for that.

Here is a usecase relative to these datasets:

when you download the traffic data from source, it has county names but no polygon or geospatial reference
this dataset has polygon info for georgia counties, as well as a corresponding column of county names
you can load them both into cartodb, and select the "merge tables" button
select column or spatial join

select the columns that you want to join on, in this case, both datasets share a "county_name" column

toggle the columns you want to exist in your new "joined" dataset

Customizing UI

Once you load both datasets, add them together as layers in the same visualization.

Navigate to your census data, select Add layer, create a visualization when prompted (titled something like nicar-atl or whatever you'd like).

You have myriad customization options in the in-browser editor.

sql - run sql and postgis functions across your data
wizard - adjust the type, colors and fills in your map
infowindow - create hovers, tooltips with information from your datatables
css - customize the css and style of your map outside the wizard
legends - create keys for your map
filters - filter the data without sql

You can also select and change your basemaps in the upper left corner of your map.

All of these options can be cloned in javascript!

Building a Map

You can build any type of visualization that suits your data.

Types of visualizations

Simple -- most basic visualization
Cluster -- counts number of points within a certain binned region
Choropleth -- makes a histogram of your data and gives bins different colors depending on the color ramp chosen
Category -- color data based on unique category (works best for a handful of unique types)
Bubble -- size markers based on column values
Intensity -- colors by density
Density -- data aggregated by number of points within a hexagon
Torque -- temporal visualization of data (categorical and heatmap versions)

Check out visualization documentation for more.

Choropleth

We'll be making choropleths because we have county-level polygon data for Georgia.

Choropleth maps show map elements colored according to where a value associated with the map element falls in a range. It's like a histogram where each bin is colored differently according to a color scale you pick.

Quantification is an option to pay attention to since it controls how the data is binned into different colors.
Equal interval gives bins of equal size across the range, which means that outliers stand out.
Quantile bins so that each quantile has approximately the same number of values.

Once you load your data, you can play with the editor options to see what type of visualization you might light to make. You can make a population choropleth for example, using the population data from your census table.

Quick map with `CreateVis`

Here's a reference point for this section: ckpt-1

You will need:

datasets from above

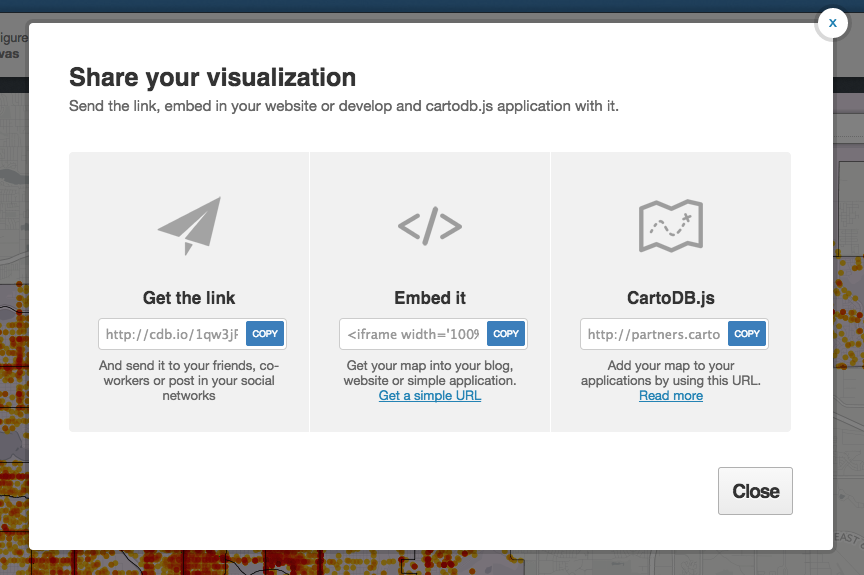

visjson from your account, you can reference mine to find yours too.
Basic Text Editor
Browser

Running Locally

You can open HTML files on your hard drive from a browser. Use CMD+O or CTRL+O like you'd do to open a file in any program.
You can also run a little server by navigating to the folder where you will store your files and running http-server &; you have node installed with http-server setup!

###VisJson

The viz.json file is the main source of data for CartoDB JavaScript functions (createVis and createLayer) for creating visualizations in the browser.

Structure of file: JSON
Defines how to access data: listing servers, subdomains, etc.
Most important for developers is the layers array because it explicitly shows the structure of how visualizations are put together
- Defines base maps, if applicable, as layers[0]
- CartoDB data layer is layers[1], may consist of multiple sublayers
  - Defines infowindows, which we'll cover in this workshop
  - Defines data accessed by using a SQL statement
  - Defines styling for tile layers, if applicable
  - Defines interactivity (what data shows up on layer events)
  - layer_name is the also the name of table where data comes from in the account with key user_name

You can view it by opening a text editor and loading the file, or downloading a JSON viewer extension for inbrowser views (Chrome or Firefox).

Creating Basic Visualization in JavaScript

Copy & paste template from here.

Overview of template:

Included JavaScript libraries and CSS file
map element
<script> tags

Create basic visualization using createVis by copying and pasting the following either between script tags in your html or by making a file called [?].js (I used main.js in the template) and referencing it between your script tags:

window.onload = function() {
    var vizjson_url = ''; // <-- Paste viz.json URL between quotes

    cartodb.createVis(map_id, vizjson_url) // <-- Change map_id to 'map'
        .done(function(vis, layers) {
            // do stuff
            console.log("Map successfully created");
        })
        .error(function(err) {
            // report error
            console.log("An error occurred: " + err);
        });
}

createVis is excellent for creating maps quickly with very little code. There is a lot of customization with it as well. The documentation is here.

Edit the fields to match your map reload your browser window, your map should work.

Custom map with `CreateLayer`

Here's a reference point for this section: ckpt-2

createLayer is the other main method for bring maps to your browser.

The following is the basic createLayer structure (depends on Leaflet.js):

window.onload = function () {
  //
   var layerSource = 'http://documentation.cartodb.com/api/v2/viz/ed78c85e-c11b-11e4-ab66-0e853d047bba/viz.json'; // add your url ID here between viz/ and /viz.json

   var options = {
       sql: "SELECT * FROM atl_census_demo_2010",
       cartocss: "#atl_census_demo_2010{polygon-fill:#0fa59f;}"
   }

   var sublayers = [];

   // instantiate map object from Leaflet
   var mapObj = new L.Map(map, {  // <-- use your map #id for rendering
       center: [31.7550, -84.3900], // Atlanta, Georgia
       zoom: 7 // zoom projection to adjust starting point zoom
   });

   // add basemap tiles
   L.tileLayer('http://{s}.basemaps.cartocdn.com/light_nolabels/{z}/{x}/{y}.png', {
       attribution: '&copy; <a href="http://www.openstreetmap.org/copyright">OpenStreetMap</a> contributors'
   }).addTo(mapObj);

   // add data tile layer
   cartodb.createLayer(mapObj,layerSource)
       .addTo(mapObj)
       .done(function(layer) {
           console.log("Map successfully created.");
           sublayers[0] = layer.getSubLayer(0);
           sublayers[1] = layer.getSubLayer(1);
           sublayers[0].set(options); // altering the SQL and CartoCSS; see above
           sublayers[1].hide(); // hiding the traffic data
       })
       .error(function(err) {
           console.log("Map not created: " + err);
       });
}

One big difference here is that we explicitly expose the SQL and CartoCSS, allowing for easy customization.

Edit the fields to match your map reload your browser window, your map should work.

Add SQL/CSS Templates

Here's a reference point for this section: ckpt-3

New goal: We'll create an interactive map that allows us to toggle between the basic view and the view of crashes per county per capita.

To accomplish this, we need to know how many crashes happened per neighborhood, then divide that number by the population of the neighborhood.

You can do this a number of ways, we'll be using SQL, you can read documentation on available function magic in the PostGIS docs and otherwise just follow along.

Going back to the createLayer example we just made:

Copy the following SQL into your index.html file below the <style> tags.

<script type='sql/text' id='sql'>
      SELECT ac.the_geom_webmercator, ac.population, ta.county_name, ceil(100000 * ta. number_crash / ac. population) crashes_per_capita, ceil(100000 * ta.number_fatality / ac.population) fatalities_per_capita
      FROM
        traffic_accidents ta, atl_census_demo_2010 ac
      WHERE ac.county_name = ta.county_name
</script>

Paste the following CartoCSS structure in the <head> section of your webpage.
This is a pre-configured Choropleth style. You could also create one on the fly by calculating the range in data and creating bins within that range.

<style type='cartocss/text' id='choropleth'>
    /** choropleth visualization */
    #atl_census_demo_2010{
      polygon-fill: #F1E6F1;
      polygon-opacity: 0.8;
      line-color: #FFF;
      line-width: 0.5;
      line-opacity: 1;
    }
    #atl_census_demo_2010 [ fatalities_per_capita <= 116.48223645894] {
       polygon-fill: #8A4E8A;
    }
    #atl_census_demo_2010 [ fatalities_per_capita <= 43.4522839606757] {
       polygon-fill: #A05AA0;
    }
    #atl_census_demo_2010 [ fatalities_per_capita <= 34.5685840707965] {
       polygon-fill: #B379B3;
    }
    #atl_census_demo_2010 [ fatalities_per_capita <= 27.2727272727273] {
       polygon-fill: #C08FC0;
    }
    #atl_census_demo_2010 [ fatalities_per_capita <= 21.2074084546868] {
       polygon-fill: #CCA5CC;
    }
    #atl_census_demo_2010 [ fatalities_per_capita <= 16.7128259001051] {
       polygon-fill: #D8BBD8;
    }
    #atl_census_demo_2010 [ fatalities_per_capita <= 12.3350191192796] {
       polygon-fill: #F1E6F1;
    }
</style>

Next replace the string for `sql in the options object with

$("#sql").text(),

(don't forget the comma!), and the string after cartocss with

$("#choropleth").text()

These two pieces of code are just a jQuery operation that finds the HTML element that has an id of sql or cartocss and extracts the text contained within it.

add a sublayer reference to your data tile layer function at the end of your js:

sublayers[0].set(options); // altering the SQL and CartoCSS; see above

Check the checkpoint code here if you're stuck. You can also run the SQL in the tray (not in the your local files) and the the map will populate. The advantage to adding it as a template, is that you can swap it for other SQL or run different queries with different template references locally, and you are not limited to one query option.

Reload your browser window, your map should work!

Add Interactivity - Buttons

Here's a reference point for this section: ckpt-4

To add more interactivity, we'll create two buttons to toggle between the Simple map view and the view that gives a choropleth map. We can easily do this in CartoDB by using the sublayer.setSQL() and sublayer.setCartoCSS() methods to change the data.

First, create another <style type="cartocss/text" id="simple"> tag set with the following CartoCSS style. Make sure the id is set to simple

      /** simple visualization */
      #atl_census_demo_2010{
        polygon-fill: #0fa59f;
        polygon-opacity: 0.7;
        line-color: #FFF;
        line-width: 1;
        line-opacity: 1;
    }

Next, let's create some buttons. Put the following snippet below the div with an id='map'.

<div id="cartocss" class="layer_selector">
        <p>Buttons</p>
        <ul>
            <li data="choropleth">Fatality Choropleth Per Capita</li>
            <li data="simple">Simple County Map</li>
        </ul>
</div>

Wire up the buttons with click events:

function createSelector(layer) {
      var cartocss = "";
      var $options = $(".layer_selector").find("li");
      $options.click(function(e) {
          var $li = $(e.target);
          var selected = $li.attr('data');

          $options.removeClass('selected');
          $li.addClass('selected');

          cartocss = $('#'+selected).text();

          layer[0].setCartoCSS(cartocss);
      });
   }

Examples:

Infowindows + More

Here's a reference point for this section ckpt-5

Adding infowindows in Editor

You can enable hover infowindows in your editor, that will port to your map and give you some choropleth context.

customization in html/css
all data in your table is available to you to populate the tooltips

Adding infowindows in JS

HTML templates
- Handlebar notation
- Customizing display of information
- Pulling in images

<script type="infowindow/html" id="infowindow_template">
  <div class="cartodb-popup">
    <a href="#close" class="cartodb-popup-close-button close">x</a>
     <div class="cartodb-popup-content-wrapper">
       <div class="cartodb-popup-header">
         <img style="width: 100%" src="http://cartodb.com/assets/logos/logos_full_cartodb_light-5ef5e4ff558f4f8d178ab2c8faa231c1.png"></src>
       </div>
       <div class="cartodb-popup-content">
         <!-- content.data contains the field info -->
         <h4>County: </h4>
         <p>{{content.data.county_name}}</p>
       </div>
     </div>
     <div class="cartodb-popup-tip-container"></div>
  </div>
</script>

Then add this to the options:

interactivity: 'cartodb_id, county_name'

After sublayers[0].set(...), add this:

sublayers[0].infowindow.set('template', $('#infowindow_template').html());

Click events
- On hover
- On click

You can build on this, or checkout the demo block here to view the result of your work with some limited interactivity!

Final project here: Onomatopoeia (Crash/Pop) Map

Building Narrative

Outside of the CartoJS library, we have others to help you build dynamic narrative with your data.

Tell Time + Stories

Maps that tell Time - Torque

Maps that tell Stories - Odyssey JS

Talk Data in Charts

You can use CartoDB's SQL API to query your data and pull it into any charting library of your choosing.

You can easily wire up a chart of county-level traffic fatalities, check the code here.

Learn more about it here!

Here are some examples:

Type	Title	Link/Demo	BlogPost
Chart.js Bar Graph	Traffic Data	Aurelia's Block
Highcharts	Sensor Data	Github / Demo	MOW Post
Highcharts	Weather Data	Aurelia's Block	Tutorial
Chart.js Line Graph	Tornado Data	Andrew's Block
Plot.ly	Earthquake Data	Plotly Tutorial	CartoDB Blog

More

sql.execute(SQL command) to extract data from your account, place into charts, infowindows, etc.
- Using Chart.js
sql.getBounds(SQL command) to find the bounding box of data returned by SQL command
- Porpoise Map

Resources

##CartoDB

Map Academy
- CartoDB.js -- build a web app to visualize your data, allowing for user interaction
- SQL and PostGIS
CartoDB Tutorials
CartoDB Editor Documentation
CartoDB APIs
Community help on StackExchange
CartoDB Map Gallery

##Data

GIS Layer Data for Georgia
- Tax Allocation Districts
- Public vs. Private School distribution
- Development districts Watershed management
- Bike and Transport Data
ARC Census Data
Georgia County Polygons

##Visualization

My contact: [email protected]

If you make a map you're proud of or just want to say hello, connect with me @auremoser
