Infared remote control for AEHA format with Arduino Uno.

AEHA_IR_Transmitter.ino

#include <util/atomic.h>

int T = 470;

void setup() {

  pinMode(8, OUTPUT);
  digitalWrite(8, LOW);

  pinMode(9, OUTPUT);

  TCCR1A = 0;
  TCCR1B = 0;

  // Compare Output Mode = "inverting mode. Set bit on compare match, clear bit at BOTTOM."
  TCCR1A |= _BV(COM1A1) | _BV(COM1A0);

  // Waveform Generation Mode = "14 Fast PWM TOP=ICR1"
  TCCR1A |= _BV(WGM11);
  TCCR1B |= _BV(WGM13) | _BV(WGM12);

  // write 16bit register
  ATOMIC_BLOCK(ATOMIC_RESTORESTATE) {
    // TOP
    ICR1 = 421U;

    // Compare
    OCR1A = 140U;
  }

  // Clock Select  = "no prescaling"
  TCCR1B |= _BV(CS10);

  Serial.begin(9600);
  Serial.setTimeout(15000UL);
}

void command(byte* cmd, size_t len_cmd) {
  // leader
  digitalWrite(8, HIGH);
  delayMicroseconds(T * 8);
  digitalWrite(8, LOW);
  delayMicroseconds(T * 4);

  // data
  for(int i = 0; i < len_cmd; i++) {
    byte b = cmd[i];
    for(int j = 7; j >= 0; j--){
      digitalWrite(8, HIGH);
      delayMicroseconds(T * 1);
      digitalWrite(8, LOW);
      delayMicroseconds(T * (bitRead(b, j)? 3: 1));
    }
  }

  // trailer
  digitalWrite(8, HIGH);
  delayMicroseconds(T * 1);
  digitalWrite(8, LOW);
  delay(1);
}

void loop() {

  if(Serial.available()){
    String s = Serial.readStringUntil('\n');
    byte cmd[6];
    int len_cmd = 0;

    char buf[3];
    buf[2] = '\0';
    int len = s.length() - 1;
    for(int i = 0; i < len; i++) {
        buf[0] = s[i++];
        buf[1] = s[i];
        byte b = strtol(buf, NULL, 16);
        Serial.print(b, HEX);
        Serial.print(" ");
        cmd[len_cmd++] = b;
    }

    command(cmd, len_cmd);
    Serial.println("");
  }
}

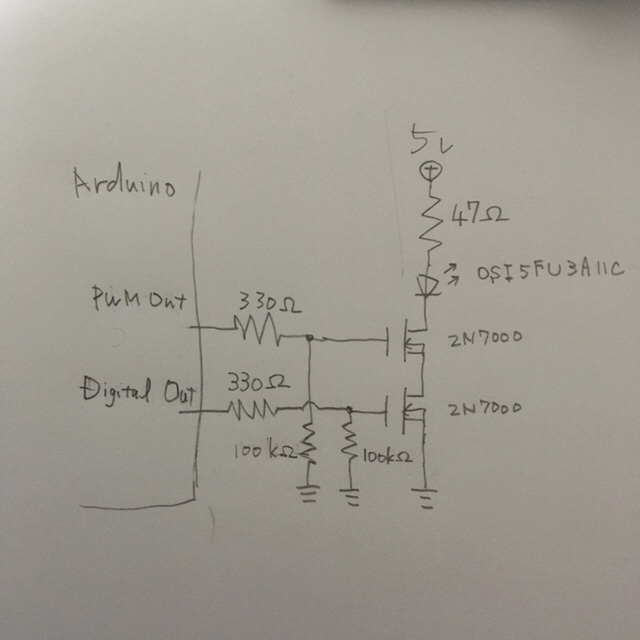

schematic.md

~example.sh-session

$ python3 -m serial.tools.miniterm -e /dev/ttyAMA0 9600
#-----
344A90BC2C
#-----
