| package com.quangcv.myapplication; | |
| import android.app.Activity; | |
| import android.content.Context; | |
| import android.graphics.Canvas; | |
| import android.graphics.Color; | |
| import android.graphics.Paint; | |
| import android.os.Bundle; | |
| import android.util.TypedValue; | |
| import android.view.View; | |
| import android.view.ViewGroup; | |
| import android.widget.HorizontalScrollView; | |
| import android.widget.RelativeLayout; | |
| import android.widget.ScrollView; | |
| public class MainActivity extends Activity { | |
| static final Paint paint = new Paint(Paint.ANTI_ALIAS_FLAG); | |
| int screenWidth, screenHeight; | |
| @Override | |
| protected void onCreate(Bundle savedInstanceState) { | |
| super.onCreate(savedInstanceState); | |
| screenWidth = getResources().getDisplayMetrics().widthPixels; | |
| screenHeight = getResources().getDisplayMetrics().heightPixels; | |
| setContentView(new ParentView(this)); | |
| } | |
| float dpToPx(float px) { | |
| return TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_DIP, px, getResources().getDisplayMetrics()); | |
| } | |
| class ParentView extends RelativeLayout { | |
| ScrollView verticalScrollView; | |
| HorizontalScrollView horizontalScrollView; | |
| public ParentView(Context context) { | |
| super(context); | |
| horizontalScrollView = new HorizontalScrollView(getContext()); | |
| horizontalScrollView.setBackgroundColor(0xffffffff); | |
| LayoutParams lp1 = new LayoutParams(screenWidth, screenHeight / 4); | |
| lp1.addRule(RelativeLayout.ALIGN_PARENT_BOTTOM); | |
| addView(horizontalScrollView, lp1); | |
| DrawView horizontalContent = new DrawView(getContext(), true); | |
| horizontalScrollView.addView(horizontalContent, new LayoutParams(ViewGroup.LayoutParams.WRAP_CONTENT, ViewGroup.LayoutParams.MATCH_PARENT)); | |
| verticalScrollView = new ScrollView(getContext()); | |
| verticalScrollView.setBackgroundColor(0xffffffff); | |
| LayoutParams lp2 = new LayoutParams(screenWidth, screenHeight / 4); | |
| lp2.addRule(RelativeLayout.CENTER_IN_PARENT); | |
| addView(verticalScrollView, lp2); | |
| DrawView verticalContent = new DrawView(getContext(), false); | |
| verticalScrollView.addView(verticalContent, new LayoutParams(ViewGroup.LayoutParams.MATCH_PARENT, ViewGroup.LayoutParams.WRAP_CONTENT)); | |
| } | |
| @Override | |
| protected void dispatchDraw(Canvas canvas) { | |
| // draw parent's content first | |
| canvas.drawColor(0xff373F51); | |
| paint.setColor(0xffEEC643); | |
| paint.setTextSize(dpToPx(20)); | |

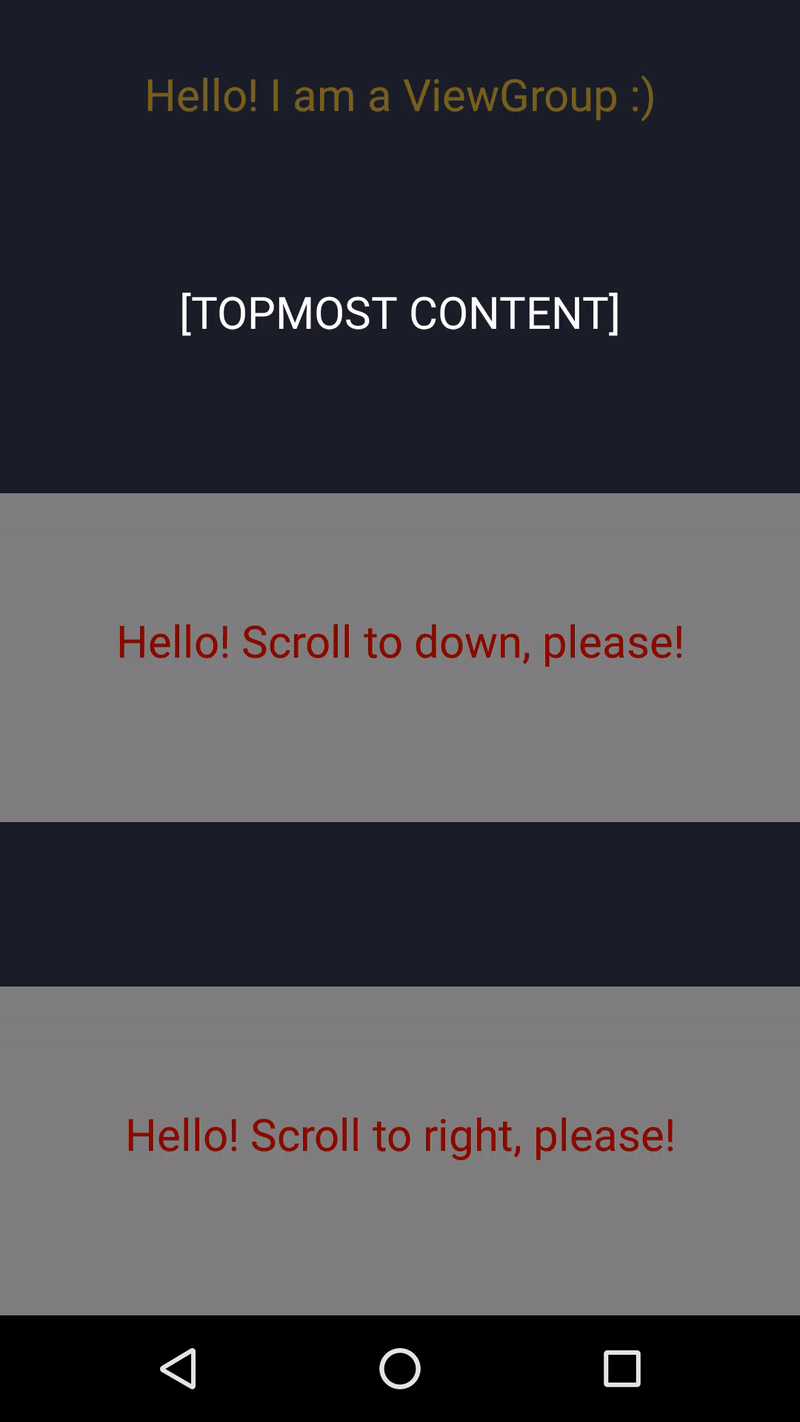

| String title = "Hello! I am a ViewGroup :)"; | |
| canvas.drawText(title, screenWidth / 2f - paint.measureText(title) / 2f, 150, paint); | |
| // draw children's content | |
| super.dispatchDraw(canvas); | |
| // draw parent's content last | |
| paint.setColor(0x80000000); | |
| canvas.drawRect(0, 0, getWidth(), getHeight(), paint); | |
| paint.setColor(0xffffffff); | |
| String text = "[TOPMOST CONTENT]"; | |
| canvas.drawText(text, screenWidth / 2f - paint.measureText(text) / 2f, screenHeight / 4, paint); | |
| } | |
| } | |
| class DrawView extends View { | |
| static final int maxSize = 5000; | |
| static final String horizontalContent = "Hello! Scroll to right, please!"; | |
| static final String verticalContent = "Hello! Scroll to down, please!"; | |
| boolean horizontalOrVertical; | |
| public DrawView(Context context, boolean horizontalOrVertical) { | |
| super(context); | |
| this.horizontalOrVertical = horizontalOrVertical; | |
| } | |
| @Override | |
| public void draw(Canvas canvas) { | |
| super.draw(canvas); | |
| paint.setColor(Color.RED); | |
| if (horizontalOrVertical) | |
| canvas.drawText(horizontalContent, screenWidth / 2 - paint.measureText(horizontalContent) / 2, screenHeight / 8, paint); | |
| else | |
| canvas.drawText(verticalContent, screenWidth / 2 - paint.measureText(verticalContent) / 2, screenHeight / 8, paint); | |
| } | |
| @Override | |
| protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) { | |
| if (horizontalOrVertical) | |
| setMeasuredDimension(maxSize, MeasureSpec.getSize(heightMeasureSpec)); | |
| else | |
| setMeasuredDimension(MeasureSpec.getSize(widthMeasureSpec), maxSize); | |
| } | |
| } | |
| } |
Author
catvinhquang
commented
Jan 22, 2018
