Santa-Fe regression with matlab

KRLS plot.md

nmse = 0.042

KRLStest.m

%% Kernel Recursive Least Square demo on Santa-fe laser series
% using krls resources on this page http://web.mit.edu/~wingated/www/resources.html

%% load data and prepare inputs
ydat = [urlread('http://www-psych.stanford.edu/~andreas/Time-Series/SantaFe/A.dat') urlread('http://www-psych.stanford.edu/~andreas/Time-Series/SantaFe/A.cont')];

y = textscan(ydat,'%f');
y=y{1}(1:1100)/256;

% y = (sin((1:115)*pi/5)+0.05*randn(1,115))';

% set an auto-regressive matrix for the inputs
X = zeros(length(y), 40);
for i=1:size(X,2)
	X(:,i) = [ repmat(NaN, i, 1); y(1:end-i)];
end

%% kernel-rls regression

%parameters
%  - here we test them directly, normally we must allocate room for
%     cross-validation in order to find optimal paramaters in a grid.
%     Once the best parameters are assessed they can evaluated on the
%     training+validation set

kernel_func = @rbf4nn;   % the Gaussian kernel
kparam = 0.9;            % the variance of the Gaussian
ald_thresh = 0.01;        % the linear dependence threshold
n = 40;                 %   uto-regressive window size

ltest = 100;
Ytest = y(end-ltest+1:end);
X_ = X(n+1:end-ltest, 1:n);
Y_ = y(n+1:end-ltest);
%we could try to train with missing values, starting at 2 instead of n+1
ltraining = size(X_,1);
lvalidation= 0;

kp = krls_init( kernel_func, kparam, ald_thresh, X_(1,:)', Y_(1) );

for i = 2:ltraining
  kp = krls( kp, X_(i,:)', Y_(i)  );
end;

v = [Y_(ltraining) X_(ltraining, 1:n-1)];
prediction = zeros(ltest, 1);
for j=1:ltest
    prediction(j) = krls_query( kp, v' );
    v = [prediction(j) v(1:n-1)];
end
testNMSE = 1-goodnessOfFit(Ytest, prediction, 'NMSE')

%plot(1:length(Y_),Y_,'b-',1:length(Y_),r.f,'r--')
%figure,plot(1:length(Yvalidation),Yvalidation,'b-',1:length(Yvalidation),r_.f,'r--')
%figure

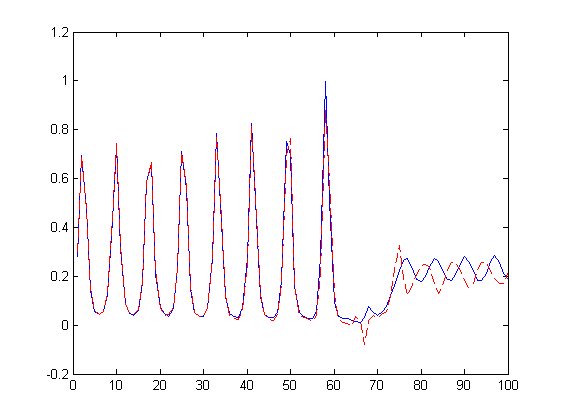

plot(1:length(Ytest),Ytest,'b-',1:length(Ytest),prediction,'r--')

%% reinforce training
% detailled p:28 of http://webee.technion.ac.il/people/rmeir/Publications/KrlsReport.pdf

ireinforce = 10;
nmses = repmat(testNMSE,1,ireinforce);
predictions = repmat(prediction,1,ireinforce);

for i=2:ireinforce
    % make new inputs, by injecting the fitted values
    fitted = zeros(ltraining,1);
    for j = i:ltraining
        fitted(j)=krls_query( kp, X_(j,:)' );
    end
    X_(2:end,2:end) = X_(1:end-1,1:end-1);
    X_(i:end,1) = fitted(1:end-i+1);
    for j = i:ltraining
        kp = krls( kp, X_(j,:)', Y_(j)  );
    end;

    v = [Y_(ltraining) X_(ltraining, 1:n-1)];
    prediction = zeros(ltest, 1);
    for j=1:ltest
        prediction(j) = krls_query( kp, v' );
        v = [prediction(j) v(1:n-1)];
    end
    nmses(i) = 1-goodnessOfFit(Ytest, prediction, 'NMSE');
    predictions(:,i) = prediction;

    %plot(1:length(Ytest),Ytest,'b-',1:length(Ytest),predictions,'r--')
end


%% plot best reinforcement
[minNMSE, iNMSE] = min(nmse);
figure
plot(1:length(Ytest),Ytest,'b-',1:length(Ytest),predictions(:,iNMSE),'r--')
fprintf('nmse=  %f', minNMSE);

I don't remember at all about this (it's 10 years old), done with matlab I think, I can see nmses is defined, but not nmse, that's strange, try testing out, replace nmse by nmses or something

Thank you for your response.
Actually I tried to rewrite the code line-by-line to understand what is happening at each line. And finally, I was able to achieve the results you got. However, I am not sure why the “KRLS paper” was able to achieve a lower error (NMSE = 0.026)

me too, that's the best I could achieve
