Uploading RMD file using gistr package

Interpolation_Raster.md

---

title: "Testing gistr package" author: "Chisato" date: "27/07/2019" output: html_document: highlight: kate theme: spacelab toc: yes

Creating Gradient Colours from Colour Palettes

## Get Your Favourite Colour - I am creating named vector
colpal <- c("red"="#fe4a49", "blue"="#2ab7ca","yellow"= "#fed766","grey"= "#e6e6ea", "white"="#f4f4f8")
attr(colpal,"names")

## [1] "red"    "blue"   "yellow" "grey"   "white"

metro_pal <- c("#d11141", "#00b159", "#00aedb", "#f37735", "#ffc425")

## Quick and Dirty way to show colours in a plot (along with hexcode)

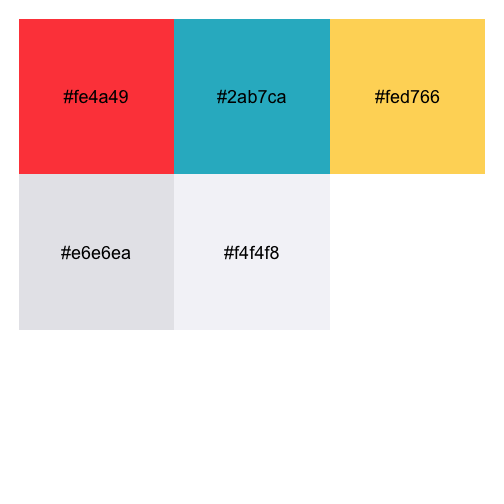

show_col(colpal, labels=T, borders=NA, cex_label=1.5)

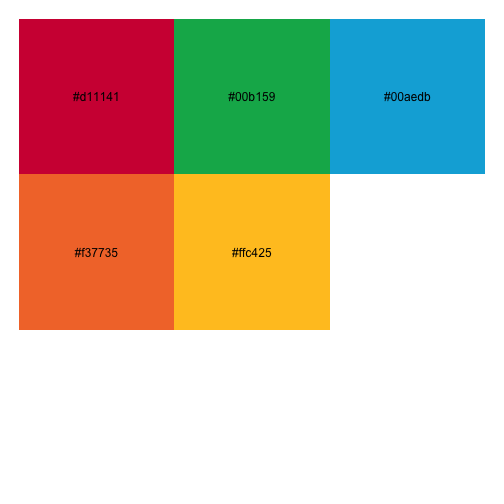

show_col(metro_pal, labels=T, border=NA)

## I think I'm in love with this function colorRampPalette
### Let's say I want to get 16 colour palettes from 5 colours
# bias must be positive number, higher values give more widely spaced colours at the high end.
# space - you can pick rgb or Lab
# interpolate - "linear" or "spline

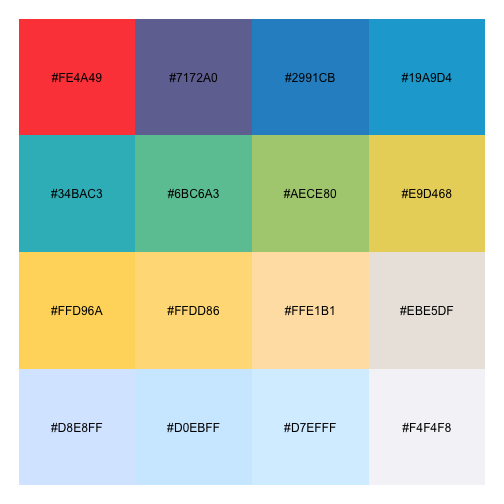

show_col(colorRampPalette(colpal, space="Lab")(16), border=NA)

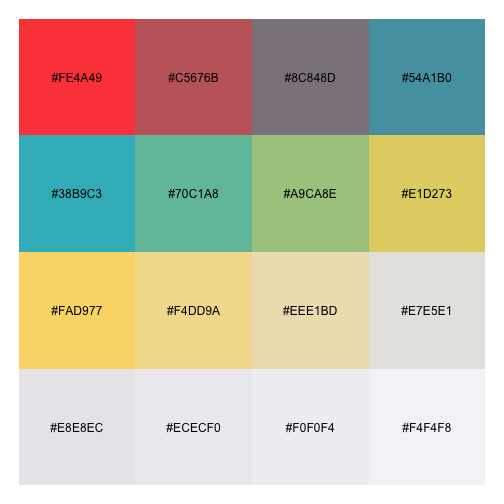

show_col(colorRampPalette(colpal, space="rgb")(16), border=NA)

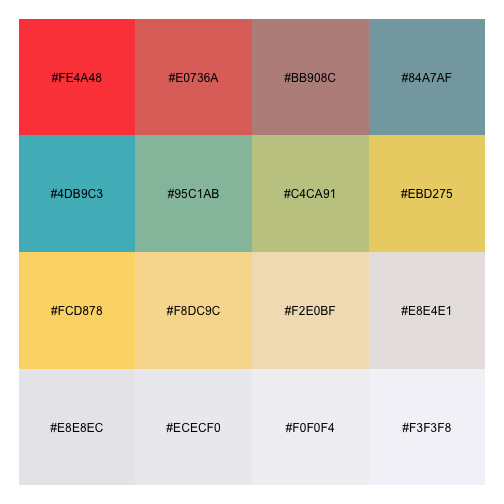

show_col(colorRampPalette(colpal, interpolate="spline")(16), border=NA)

show_col(colorRampPalette(colpal, interpolate="linear")(16), border=NA)

colpal_16 <- colorRampPalette(colpal, interpolate="spline")(16)

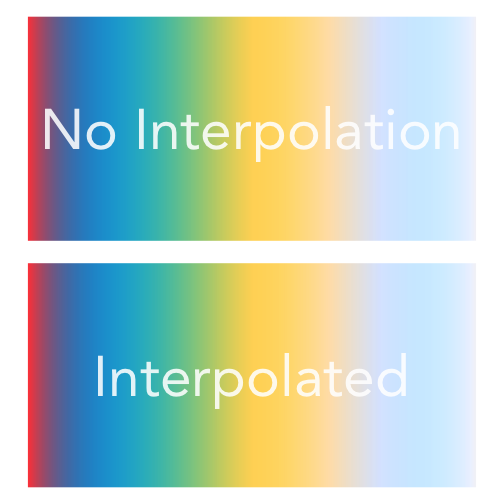

## You can create a raster image by below
bg <-matrix(colorRampPalette(colpal,interpolate="spline")(50*50), nrow=1)

a <-tibble(x=seq(1,5, length.out=5), y=seq(1,20, length.out=5)) %>%
  ggplot() +
  annotation_raster(raster=bg, xmin=1,xmax=5,ymin=1,ymax=20) +
  geom_blank(aes(x=x,y=y))+
  theme_void() +
  annotate(geom="text", x=3, y=10.5, label="No Interpolation",
           family="Avenir",
           size=20, color="#ffffffde")

b <-tibble(x=seq(1,5, length.out=5), y=seq(1,20, length.out=5)) %>%
  ggplot() +
  annotation_raster(raster=bg, xmin=1,xmax=5,ymin=1,ymax=20, interpolate=T) +
  geom_blank(aes(x=x,y=y))+
  theme_void() +
  annotate(geom="text", x=3, y=10.5, label="Interpolated",
           family="Avenir",
           size=20, color="#ffffffde")

a + b + plot_layout(ncol=1)
