GraphQL Notes

Notes in WIP

What Is It?

GraphQL is a query language for your API
Uses Type system to define data (and thus a server-side runtime for executing queries)
Backed by your existing code and data (i.e. not DB dependent)

Benefits

More efficient - less roundtrips, multi-request/multi-resource requests are handled server side. Don't need to deal with multiple resource endpoints
Client has control on what data is returned
How to handle versioning: Can add new fields without removing the old ones, because we have a graph and we can flexibly grow the graph by adding more nodes

Cons

Easier is resource exhaustion attacks (AKA Denial of Service attacks). E.g. (1) an overly complex queries that will consume all the resources of the server, requesting deep nested relationships (e.g. user -> friends -> friends …) (2) use field aliases to ask for the same field many times
Client data caching - can't use the query as key to cache as there can be overlap between keys. Can use a Graph Cache (see below)
N+1 SQL queries - for each field requested, this can result in a new database request per resolved field (see: https://github.com/facebook/dataloader that tries to resolve this).

Mitigation

Cost analysis on the query in advance and enforce some kind of limits on the amount of data one can consume.
Implement a time-out to kill requests that take too long to resolve
Rate limiting at a lower level under GraphQL.
Whitelisting endpoints (e.g. if internally consumable api)

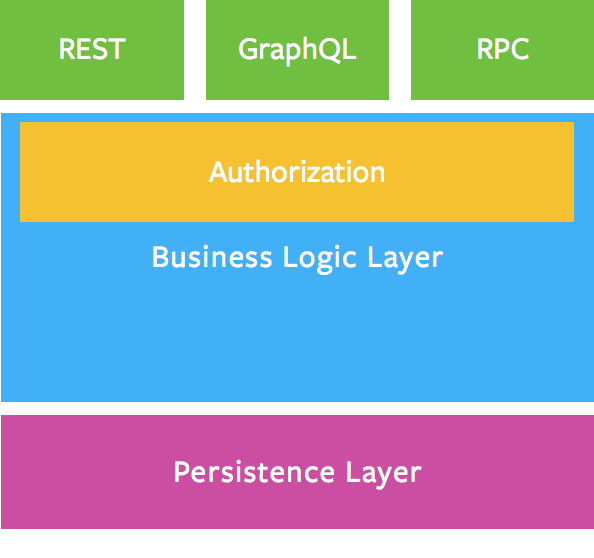

Authentication & Authorisation

This can be a layer behind GraphQL. GraphQL can be used by clients to pass tokens to

Graph Cache

Normalize the query to flat collection of records (each record gets unique id), then the record can be cached instead of the full response.
Note: Cyclic graph - this can happen if records reference eachother (Relay.js manages this)

DataLoader

A utility one can use to read data from databases and make it available to GraphQL resolver functions.
DataLoader will act as our agent to reduce the SQL queries sent to the DB
Uses a combination of caching and batching (i.e. answers cached, queries batched)

Example APIs

https://www.graphqlhub.com/playground?query=%23%20Hit%20the%20Play%20button%20above!%0A%23%20Hit%20%22Docs%22%20on%20the%20right%20to%20explore%20the%20API%0A%0A%7B%0A%20%20graphQLHub%0A%20%20twitter%20%7B%0A%20%20%20%20user%20(identifier%3A%20name%2C%20identity%3A%20%22clayallsopp%22)%20%7B%0A%20%20%20%20%20%20created_at%0A%20%20%20%20%20%20description%0A%20%20%20%20%20%20id%0A%20%20%20%20%20%20screen_name%0A%20%20%20%20%20%20name%0A%20%20%20%20%20%20profile_image_url%0A%20%20%20%20%20%20url%0A%20%20%20%20%20%20tweets_count%0A%20%20%20%20%20%20followers_count%0A%20%20%20%20%20%20tweets(limit%3A%201)%20%7B%0A%20%20%20%20%20%20%20%20text%0A%20%20%20%20%20%20%7D%0A%20%20%20%20%7D%0A%20%20%20%20tweet(id%3A%20%22687433440774459392%22)%20%7B%0A%20%20%20%20%20%20text%2C%0A%20%20%20%20%20%20retweets(limit%3A%202)%20%7B%0A%20%20%20%20%20%20%20%20id%2C%0A%20%20%20%20%20%20%20%20retweeted_status%20%7B%0A%20%20%20%20%20%20%20%20%20%20id%0A%20%20%20%20%20%20%20%20%7D%0A%20%20%20%20%20%20%20%20user%20%7B%0A%20%20%20%20%20%20%20%20%20%20screen_name%0A%20%20%20%20%20%20%20%20%7D%0A%20%20%20%20%20%20%7D%0A%20%20%20%20%7D%0A%20%20%20%20search(q%3A%20%22Javascript%22%2C%20count%3A%201%2C%20result_type%3A%20mixed)%20%7B%0A%20%20%20%20%20%20user%20%7B%0A%20%20%20%20%20%20%20%20screen_name%0A%20%20%20%20%20%20%7D%0A%20%20%20%20%20%20id%0A%20%20%20%20%20%20text%0A%20%20%20%20%7D%0A%20%20%7D%0A%7D

Guide:

Best Practises

Example

type Query {
  me: User
}

type User {
  id: ID
  name: String
}

function Query_me(request) {
  return request.auth.user;
}

function User_name(user) {
  return user.getName();
}

Query:

{
  me {
    name
  }
}

Result:

{
  "me": {
    "name": "Luke Skywalker"
  }
}

Live Demo

http://graphql.org/swapi-graphql/

Request

{
  person(personID: 4) {
    name,
    birthYear,
    homeworld {
      name
    },
    filmConnection {
      films {
        title
      }
    }
  }
}

^ Notes

persionID is an argument
sub-selection of fields on an object

Response

{
  "data": {
    "person": {
      "name": "Darth Vader",
      "birthYear": "41.9BBY",
      "homeworld": {
        "name": "Tatooine"
      },
      "filmConnection": {
        "films": [
          {
            "title": "A New Hope"
          },
          {
            "title": "The Empire Strikes Back"
          },
          {
            "title": "Return of the Jedi"
          },
          {
            "title": "Revenge of the Sith"
          }
        ]
      }
    }
  }
}

The Query: http://graphql.org/swapi-graphql/?query=%7B%0A%20%20person(personID%3A%204)%20%7B%0A%20%20%20%20name%2C%0A%20%20%20%20birthYear%2C%0A%20%20%20%20homeworld%20%7B%0A%20%20%20%20%20%20name%0A%20%20%20%20%7D%2C%0A%20%20%20%20filmConnection%20%7B%0A%20%20%20%20%20%20films%20%7B%0A%20%20%20%20%20%20%20%20title%0A%20%20%20%20%20%20%7D%0A%20%20%20%20%7D%0A%20%20%7D%0A%7D&operationName=null

Aliases

When you want to name the resulting field e.g. when fields may conflict

Query:

{
  empireHero: hero(episode: EMPIRE) {
    name
  }
  jediHero: hero(episode: JEDI) {
    name
  }
}

Result:

{
  "data": {
    "empireHero": {
      "name": "Luke Skywalker"
    },
    "jediHero": {
      "name": "R2-D2"
    }
  }
}

Fragments

When: Want to split complicated application data requirements into smaller chunks e.g. when combining UI components with different fragments into one data fetch

Request

{
  leftComparison: hero(episode: EMPIRE) {
    ...comparisonFields
  }
  rightComparison: hero(episode: JEDI) {
    ...comparisonFields
  }
}

fragment comparisonFields on Character {
  name
  appearsIn
  friends {
    name
  }
}

Result

{
  "data": {
    "leftComparison": {
      "name": "Luke Skywalker",
      "appearsIn": [
        "NEWHOPE",
        "EMPIRE",
        "JEDI"
      ],
      "friends": [
        {
          "name": "Han Solo"
        },
        {
          "name": "Leia Organa"
        },
        {
          "name": "C-3PO"
        },
        {
          "name": "R2-D2"
        }
      ]
    },
    "rightComparison": {
      "name": "R2-D2",
      "appearsIn": [
        "NEWHOPE",
        "EMPIRE",
        "JEDI"
      ],
      "friends": [
        {
          "name": "Luke Skywalker"
        },
        {
          "name": "Han Solo"
        },
        {
          "name": "Leia Organa"
        }
      ]
    }
  }
}

Operation Name

Operation Types:

query
mutation
subscription

When: In production, to make query less ambiguous

Why:

Easier to debug
Easier to see in logs

Query:

query HeroNameAndFriends {
  hero {
    name
    friends {
      name
    }
  }
}

Result

{
  "data": {
    "hero": {
      "name": "R2-D2",
      "friends": [
        {
          "name": "Luke Skywalker"
        },
        {
          "name": "Han Solo"
        },
        {
          "name": "Leia Organa"
        }
      ]
    }
  }
}

Variables

When: Handling dynamic arguments e.g. selecting an item in a dropdown

Query

query HeroNameAndFriends($episode: Episode) {
  hero(episode: $episode) {
    name
    friends {
      name
    }
  }
}

Result

{
  "data": {
    "hero": {
      "name": "R2-D2",
      "friends": [
        {
          "name": "Luke Skywalker"
        },
        {
          "name": "Han Solo"
        },
        {
          "name": "Leia Organa"
        }
      ]
    }
  }
}

Declared variables - must be either scalars, enums, or input object types

Optional variable

query ($episode: Episode) {
  ...
}

Mandatory variable

query ($episode: Episode!) {
  ...
}

Default Variable

query HeroNameAndFriends($episode: Episode = "JEDI") {
  hero(episode: $episode) {
    ...
  }
}

Passing input type

mutation {
  createMessage(input: {
    author: "andy",
    content: "hope is a good thing",
  }) {
    id
  }
}

Directives

When: Add/Remove fields from your query

Can be attached to a field or fragment

@include(if: Boolean) Only include this field in the result if the argument is true.
@skip(if: Boolean) Skip this field if the argument is true.

Query

query Hero($episode: Episode, $withFriends: Boolean!) {
  hero(episode: $episode) {
    name
    friends @include(if: $withFriends) {
      name
    }
  }
}

Response

{
  "data": {
    "hero": {
      "name": "R2-D2"
    }
  }
}

Mutations

When: Modifying server-side data

Mutation field returns an object type, you can ask for nested fields (e.g. when you want to see the result of an update)

mutation CreateReviewForEpisode($ep: Episode!, $review: ReviewInput!) {
  createReview(episode: $ep, review: $review) {
    stars
    commentary
  }
}

Variables

{
  "ep": "JEDI",
  "review": {
    "stars": 5,
    "commentary": "This is a great movie!"
  }
}

Result

{
  "data": {
    "createReview": {
      "stars": 5,
      "commentary": "This is a great movie!"
    }
  }
}

Multiple fields in mutations

Query fields are executed in parallel Mutation fields run in series, one after the other

Inline Fragments

When: to access data on the underlying concrete type (inheritance - field on concrete type)

Query

query HeroForEpisode($ep: Episode!) {
  hero(episode: $ep) {
    name
    ... on Droid {
      primaryFunction
    }
    ... on Human {
      height
    }
  }
}

Variable

{
  "ep": "JEDI"
}

Result

{
  "data": {
    "hero": {
      "name": "R2-D2",
      "primaryFunction": "Astromech"
    }
  }
}

^ Notes:

Return type: Character
Character can be either Droid or Human
"name" field - is common to Character
specific fields - primaryFunction / height, are specific to the concrete type

Meta Fields

When: Want to know specific details

E.g. __typename metafield to know what object type is returned

Query

{
  search(text: "an") {
    __typename
    ... on Human {
      name
    }
    ... on Droid {
      name
    }
    ... on Starship {
      name
    }
  }
}

Result

{
  "data": {
    "search": [
      {
        "__typename": "Human",
        "name": "Han Solo"
      },
      {
        "__typename": "Human",
        "name": "Leia Organa"
      },
      {
        "__typename": "Starship",
        "name": "TIE Advanced x1"
      }
    ]
  }
}

Schemas and Types

Type System

Schema

what fields can be selected
What kinds of objects might be returned
What fields are available on those sub-objects

Type Language

"GraphQL schema language" - like the query language Allows us to talk about GraphQL schemas in a language-agnostic way.

Object Types and Fields

Schema

type Character {
  name: String!
  appearsIn: [Episode]!
}

Notes:

object type - Character
fields - name, appearsIn
scalar type - String
non-nullable - ! in String! and [Episode]
array - [Episode]! (as non-nullable array, an array of zero-or-more elements is returned)

Arguments

type Starship {
  id: ID!
  name: String!
  length(unit: LengthUnit = METER): Float
}

^ Notes:

Can have zero or more args
arguments must be named e.g. unit
default value e.g. METER

Query and Mutation Types

Define the entry point of every GraphQL query

schema {
  query: Query
  mutation: Mutation
}

Scalar Types

The leaves of the query

Int: A signed 32‐bit integer.
Float: A signed double-precision floating-point value.
String: A UTF‐8 character sequence.
Boolean: true or false.
ID: unique identifier, used to refetch an object or as the key for a cache. Serialized in the same way as a String (not intended to be human‐readable)

Custom Scalar Types e.g.

scalar Date

^ the implementation defines how that type should be serialized, deserialized e.g. Date could be serialized as integer timestamp

Enumeration Types

Example:

enum Episode {
  NEWHOPE
  EMPIRE
  JEDI
}

Lists and Non-Null

Exmaple:

type Character {
  name: String!
  appearsIn: [Episode]!
}

! indicates the field is non-null

List of non-null strings:

myField: [String!]

^ List can be null, but the items must be non-null strings

myField: null // valid
myField: [] // valid
myField: ['a', 'b'] // valid
myField: ['a', null, 'b'] // error

Non-null list

myField: [String]!

myField: null // error
myField: [] // valid
myField: ['a', 'b'] // valid
myField: ['a', null, 'b'] // valid

Interfaces

Character Interface

interface Character {
  id: ID!
  name: String!
  friends: [Character]
  appearsIn: [Episode]!
}

Implementations

type Human implements Character {
  id: ID!
  name: String!
  friends: [Character]
  appearsIn: [Episode]!
  starships: [Starship]
  totalCredits: Int
}

type Droid implements Character {
  id: ID!
  name: String!
  friends: [Character]
  appearsIn: [Episode]!
  primaryFunction: String
}

Asking for fields that exist on specific implementation

query HeroForEpisode($ep: Episode!) {
  hero(episode: $ep) {
    name
    ... on Droid {
      primaryFunction
    }
  }
}

Union Types

Example

union SearchResult = Human | Droid | Starship

^ Must be concrete object types

Query

{
  search(text: "an") {
    ... on Human {
      name
      height
    }
    ... on Droid {
      name
      primaryFunction
    }
    ... on Starship {
      name
      length
    }
  }
}

Input Types

Can also pass in complex types - need keyword Input

input ReviewInput {
  stars: Int!
  commentary: String
}

Use ReviewInput

mutation CreateReviewForEpisode($ep: Episode!, $review: ReviewInput!) {
  createReview(episode: $ep, review: $review) {
    stars
    commentary
  }
}

Variables

{
  "ep": "JEDI",
  "review": {
    "stars": 5,
    "commentary": "This is a great movie!"
  }
}

Result

{
  "data": {
    "createReview": {
      "stars": 5,
      "commentary": "This is a great movie!"
    }
  }
}

^ Notes:

fields on an input object type can refer to input object types
can't mix input and output types in your schema
Input object types can't have arguments on their fields

Validation

Example of invalid cases: https://github.com/graphql/graphql-js/blob/master/src/__tests__/starWarsValidation-test.js

(1) Cyclic references Example: A fragment cannot refer to itself or create a cycle, as this could result in an unbounded result

{
  hero {
    ...NameAndAppearancesAndFriends
  }
}

fragment NameAndAppearancesAndFriends on Character {
  name
  appearsIn
  friends {
    ...NameAndAppearancesAndFriends
  }
}

(2) Fields that don't exist

{
  hero {
    favoriteSpaceship
  }
}

(3) Must specify which fields returned

{
  hero
}

(4) Cannot query fields on a scalar

Exmaple: name is a scalar

{
  hero {
    name {
      firstCharacterOfName
    }
  }
}

(5) Can't query fields that exist on implementation

Example: primaryFunction does not exist

{
  hero {
    name
    primaryFunction
  }
}

Valid request: request the fields on Droid

{
  hero {
    name
    ...DroidFields
  }
}

fragment DroidFields on Droid {
  primaryFunction
}

^ Refactored (as this is not used more than once)

{
  hero {
    name
    ... on Droid {
      primaryFunction
    }
  }
}

Code on validation: https://github.com/graphql/graphql-js/blob/master/src/validation

Execution

GraphQL query is executed by a GraphQL server Each field on each type is backed by a function called the resolver

Root fields & resolvers

Top level is Root / Query type

JS Example:

Query: {
  human(obj, args, context) {
    return context.db.loadHumanByID(args.id).then(
      userData => new Human(userData)
    )
  }
}

Resolver Args

obj - The previous object, which for a field on the root Query type is often not used.
args - The arguments provided to the field in the GraphQL query.
context - A value provided to the resolver and holds contextual info e.g logged in user, or access to a database.

Asynchronous resolvers

Example:

human(obj, args, context) {
  return context.db.loadHumanByID(args.id).then(
    userData => new Human(userData)
  )
}

context - provides access to DB for lookup
DB is async operation, which returns a Promise (Futures/Tasks/Deferred)
During execution, GraphQL will wait for Promises, Futures, and Tasks to complete before continuing and will do so with optimal concurrency

Trivial Resolvers

Example: Human object to have a name property which we can read and return directly

Human: {
  name(obj, args, context) {
    return obj.name
  }
}

GraphQL libraries will let you omit resolvers this simple Assume that if a resolver isn't provided for a field, that a property of the same name should be read and returned

Scalar coercion

The type system knows what to expect and converts values returned by a resolver function into something that upholds the API contract

Each item in the list was coerced to the appropriate enum value

Example: Enums Resolver

Human: {
  appearsIn(obj) {
    return obj.appearsIn // returns [ 4, 5, 6 ]
  }
}

Where apearsIn is an Enum

enum Episode {
  NEWHOPE
  EMPIRE
  JEDI
}

^ The function returns numbers, but results returned (from example above) return enums

E.g.

{
  "data": {
    "leftComparison": {
      "name": "Luke Skywalker",
      "appearsIn": [
        "NEWHOPE",
        "EMPIRE",
        "JEDI"
      ],
      "friends": [
        {
          "name": "Han Solo"
        },
        {
          "name": "Leia Organa"
        },
        {
          "name": "C-3PO"
        },
        {
          "name": "R2-D2"
        }
      ]
    },
    ...
 }

List resolvers

Human: {
  starships(obj, args, context) {
    return obj.starshipIDs.map(
      id => context.db.loadStarshipByID(id).then(
        shipData => new Starship(shipData)
      )
    )
  }
}

^ The resolver returns a list of Promises

GraphQL will wait for all of these Promises concurrently before continuing When left with a list of objects, it will concurrently continue to load the name field on each of these items.

Producing the result

A key-value map is used to store each resolved field

Key: field name (or alias)

Value: resolved value

Resolved bottom up (leaves to the root of the query)

Example:

Query

{
  human(id: 1002) {
    name
    appearsIn
    starships {
      name
    }
  }
}

Result

{
  "data": {
    "human": {
      "name": "Han Solo",
      "appearsIn": [
        "NEWHOPE",
        "EMPIRE",
        "JEDI"
      ],
      "starships": [
        {
          "name": "Millenium Falcon"
        },
        {
          "name": "Imperial shuttle"
        }
      ]
    }
  }
}

Introspection

When: Ask a GraphQL schema for information about what queries it supports

Example of queries for the introspection system:

https://github.com/graphql/graphql-js/blob/master/src/__tests__/starWarsIntrospection-test.js

Query the __schema field

{
  __schema {
    types {
      name
    }
  }
}

Result

{
  "data": {
    "__schema": {
      "types": [
        {
          "name": "Query"
        },
        {
          "name": "Episode"
        },
        {
          "name": "Character"
        },
        {
          "name": "ID"
        },
        {
          "name": "String"
        },
        {
          "name": "Int"
        },
        {
          "name": "FriendsConnection"
        },
        {
          "name": "FriendsEdge"
        },
        {
          "name": "PageInfo"
        },
        {
          "name": "Boolean"
        },
        {
          "name": "Review"
        },
        {
          "name": "SearchResult"
        },
        {
          "name": "Human"
        },
        {
          "name": "LengthUnit"
        },
        {
          "name": "Float"
        },
        {
          "name": "Starship"
        },
        {
          "name": "Droid"
        },
        {
          "name": "Mutation"
        },
        {
          "name": "ReviewInput"
        },
        {
          "name": "__Schema"
        },
        {
          "name": "__Type"
        },
        {
          "name": "__TypeKind"
        },
        {
          "name": "__Field"
        },
        {
          "name": "__InputValue"
        },
        {
          "name": "__EnumValue"
        },
        {
          "name": "__Directive"
        },
        {
          "name": "__DirectiveLocation"
        }
      ]
    }
  }
}

Notes

__Schema, __Type, __TypeKind, __Field, __InputValue, __EnumValue, __Directive: These start with a double underscore - they are part of the introspection system.

Example queries

(1) Ask for Query types

{
  __schema {
    queryType {
      name
    }
  }
}

Result

{
  "data": {
    "__schema": {
      "queryType": {
        "name": "Query"
      }
    }
  }
}

(2) Look at specific type - name and "kind" (i.e. interface or object?)

{
  __type(name: "Droid") {
    name
    kind
  }
}

Result

{
  "data": {
    "__type": {
      "name": "Droid",
      "kind": "OBJECT"
    }
  }
}

kind returns a __TypeKind - INTERFACE, OBJECT are values in the Enum

(3) Ask for details on fields

{
  __type(name: "Droid") {
    name
    fields {
      name
      type {
        name
        kind
      }
    }
  }
}

Result

{
  "data": {
    "__type": {
      "name": "Droid",
      "fields": [
        {
          "name": "id",
          "type": {
            "name": null,
            "kind": "NON_NULL"
          }
        },
        {
          "name": "name",
          "type": {
            "name": null,
            "kind": "NON_NULL"
          }
        },
        {
          "name": "friends",
          "type": {
            "name": null,
            "kind": "LIST"
          }
        },
        {
          "name": "friendsConnection",
          "type": {
            "name": null,
            "kind": "NON_NULL"
          }
        },
        {
          "name": "appearsIn",
          "type": {
            "name": null,
            "kind": "NON_NULL"
          }
        },
        {
          "name": "primaryFunction",
          "type": {
            "name": "String",
            "kind": "SCALAR"
          }
        }
      ]
    }
  }
}

Looking at id

{
  "name": "id",
  "type": {
    "name": null,
    "kind": "NON_NULL"
   }
}

^ name is null - this is because it's a "wrapper" type of kind NON_NULL

Query ofType on that field's type which returns ID

ofType {
  name
  kind
}

Example:

{
  __type(name: "Droid") {
    name
    fields {
      name
      type {
        name
        kind
        ofType {
          name
          kind
        }
      }
    }
  }
}

Result

"ofType": {
  "name": "ID",
  "kind": "SCALAR"
}

From:

{
  "data": {
    "__type": {
      "name": "Droid",
      "fields": [
        {
          "name": "id",
          "type": {
            "name": null,
            "kind": "NON_NULL",
            "ofType": {
              "name": "ID",
              "kind": "SCALAR"
            }
          }
        },
        ...
      ]
    }
  }
}

(4) Ask for docs

{
  __type(name: "Droid") {
    name
    description
  }
}

Result

{
  "data": {
    "__type": {
      "name": "Droid",
      "description": "An autonomous mechanical character in the Star Wars universe"
    }
  }
}

Best Practises

network, authorization, and pagination

JSON with GZIP

Better performance using gzip

Accept-Encoding: gzip

Versioning

It's not required, as the api is evolutionary Why: GraphQL only returns the data that's explicitly requested. Can add new fields without breaking changes

Nullability

Every field is nullable by default If there are issues with downstream systems, particular fields could be returned as "null" - i.e. failure not thrown

GraphQL provides non-null variants of types - the field will never return "null" when an error, the previous parent field will be "null" instead.

Pagination

Fields that could return long lists accept arguments "first" and "after" - "after" is a unique identifier of each of the values in the list.

"Connections" - best practice pattern for pagination

Example tools that use the "Connections" pattern

https://facebook.github.io/relay/

More details on pagination

http://graphql.org/learn/pagination/

Server-side Batching & Caching

For performance reasons and address repeated requests to backend db/services

Batching - multiple requests for data are requested in a single request to an underlying database/microservice. FB's DataLoader can be used for this.

Thinking in Graphs

Business Domain - you model your business domain as a graph

Model your business domain as a graph by defining a schema; Define different types of nodes and how they connect/relate to one another

Shared Language

Name things intiuitively - for a shared understanding and consensus of these business domain rules

Business Logic Layer

Single source of truth for enforcing business domain rules

E.g. business logic, validation, authentication

Entry points to the system - REST / GraphQL / RPC

Legacy data

GraphQL schema that describes how clients use the data

Avoid mirroring the legacy database schema
"what" rather than "how"

Keep iterating

Build only the part of the schema that you need for one scenario at a time. Then gradually expand the schema

Serving over HTTP

GraphQL usually served over HTTP

Web Request Pipeline

Flow:

Request -> Auth / Filters / Transformers -> GraphQL

Auth/Filters/Transformers - middleware

URIs, Routes

GraphQL's conceptual model is an entity graph

GraphQL server operates on a single URL/endpoint, usually /graphql

HTTP Methods, Headers, and Body

HTTP Methods handled - GET and POST

GET request

"Query" indicates GET request

{
  me {
    name
  }
}

http://myapi/graphql?query={me{name}}

variables - Query Variables are sent as JSON-encoded string (optional) operationName - which named operation is to be executed (optional)

POST request

Content-Type: application/json

{
  "query": "...",
  "operationName": "...",
  "variables": { "myVariable": "someValue", ... }
}

operationName - optional

variables - optional

query - if defined, should act same way as GET

"application/graphql" - HTTP POST body contents as the GraphQL query string

Response

Resonses always in JSON

Response fields data (and errors if present)

{
  "data": { ... },
  "errors": [ ... ]
}

GraphiQL

Testing and Dev

If using express-graphql

app.use('/graphql', graphqlHTTP({
  schema: MySessionAwareGraphQLSchema,
  graphiql: process.env.NODE_ENV === 'development',
}));

Node

Authorisation

Delegate authorization logic to the business logic layer

Why: to have a single source of truth for authorization

//Authorization logic lives inside postRepository
var postRepository = require('postRepository');

var postType = new GraphQLObjectType({
  name: ‘Post’,
  fields: {
    body: {
      type: GraphQLString,
      resolve: (post, args, context, { rootValue }) => {
        return postRepository.getBody(context.user, post);
      }
    }
  }
});

^ User object should be populated on the context argument or rootValue

Should: pass a fully-hydrated User object instead of an opaque token or API key to your business logic layer (e.g. current user)

Pagination

Pagination Models

How relationships are expressed in GraphQL:

Plurals
Slicing
Pagination & Edges
End-of-list, counts, and Connections
Connection Model

Plurals

Example: Requesting friends

{
  hero {
    name
    friends {
      name
    }
  }
}

Result:

{
  "data": {
    "hero": {
      "name": "R2-D2",
      "friends": [
        {
          "name": "Luke Skywalker"
        },
        {
          "name": "Han Solo"
        },
        {
          "name": "Leia Organa"
        }
      ]
    }
  }
}

Slicing

Limiting number of results returned

e.g.

{
  hero {
    name
    friends(first:2) {
      name
    }
  }
}

Pagination & Edges

Methods:

friends(first:2 offset:2) - next 2 in the list
friends(first:2 after:$friendId) - 2 after a specific friend
friends(first:2 after:$friendCursor) - (cursor-based pagination) using cursor from the last item (used for pagination)

cursors should be base64 encoded

To model a cursor:

This belongs on an edge (not on the User object)

{
  hero {
    name
    friends(first:2) {
      edges {
        node {
          name
        }
        cursor
      }
    }
  }
}

End-of-list, counts, and Connections

To indicate

When we've reached the end
Total number

Object -> Connection -> Edges

{
  hero {
    name
    friends(first:2) {
      totalCount
      edges {
        node {
          name
        }
        cursor
      }
      pageInfo {
        endCursor
        hasNextPage
      }
    }
  }
}

Object
|
|- Connection
		|
		|- totalCount
		|
		|- edges
		|	|- node
		|	|- cursor
		|
		|- pageInfo
			|- endCursor
			|- hasNextPage

PageInfo might also have startCursor and endCursor

Connection Model

Object -> Connection -> Edges

Connection - friendsConnection

Example:

{
  hero {
    name
    friendsConnection(first:2 after:"Y3Vyc29yMQ==") {
      totalCount
      edges {
        node {
          name
        }
        cursor
      }
      pageInfo {
        endCursor
        hasNextPage
      }
    }
  }
}

Result:

{
  "data": {
    "hero": {
      "name": "R2-D2",
      "friendsConnection": {
        "totalCount": 3,
        "edges": [
          {
            "node": {
              "name": "Han Solo"
            },
            "cursor": "Y3Vyc29yMg=="
          },
          {
            "node": {
              "name": "Leia Organa"
            },
            "cursor": "Y3Vyc29yMw=="
          }
        ],
        "pageInfo": {
          "endCursor": "Y3Vyc29yMw==",
          "hasNextPage": false
        }
      }
    }
  }
}

Caching

GraphQL does not have an endpoint for fetching specific resources (like in REST API), so cannot cache the response

Use an opaque globally unique id (UUIDs) for clients to use for caching

i.e. so Clients can cache what is returned to them

Globally Unique IDs

Some techniques:

reuse UUID in the backend
ID_type
Base64 encoding the ID

e.g. of request

{
  starship(id:"3003") {
    id
    name
  }
  droid(id:"2001") {
    id
    name
    friends {
      id
      name
    }
  }
}

Compatibility with existing APIs

How to pass the ID to the backend that it can understand

How - can have a field for the old id e.g. previousApiId

Alternatives

Aim: The client needs to derive a globally unique identifier for their caching

2 methods:

server derives the id
the client derives the id (query with the id and __typename)

Resources

Official

Libraries

http://graphql.org/code/#elixir
GraphQL Elixir
- http://graphql-elixir.org/
- https://github.com/graphql-elixir/graphql
absinthe-graphql

Others

GraphiQL

Relay.js

DataLoader

https://github.com/facebook/dataloader

Example APIs/Projects

claritee/graphql.md

GraphQL Notes

What Is It?

Example APIs

Best Practises

Example

Live Demo

Aliases

Fragments

Operation Name

Variables

Directives

Mutations

Multiple fields in mutations

Inline Fragments

Meta Fields

Schemas and Types

Type System

Type Language

Object Types and Fields

Schema

Arguments

Query and Mutation Types

Scalar Types

Enumeration Types

Lists and Non-Null

Interfaces

Union Types

Input Types

Validation

Execution

Root fields & resolvers

Asynchronous resolvers

Trivial Resolvers

Scalar coercion

List resolvers

Producing the result

Introspection

Best Practises

JSON with GZIP

Versioning

Nullability

Pagination

Server-side Batching & Caching

Thinking in Graphs

Shared Language

Business Logic Layer

Legacy data

Keep iterating

Serving over HTTP

Web Request Pipeline

URIs, Routes

HTTP Methods, Headers, and Body

GET request

POST request

Response

GraphiQL

Node

Authorisation

Pagination

Plurals

Slicing

Pagination & Edges

End-of-list, counts, and Connections

Connection Model

Caching

Globally Unique IDs

Compatibility with existing APIs

Alternatives

Resources
