d3 event handler part 2

event-mouse-2.md

d3 event handler - 2

1. create a new project

2. set up index.html, main.js, d3.js

3. Start with the four circles that you used in the previous lesson. Delete the event handlers. Copy the code below into the main.js file.

    const svg = d3.select('body')
      .append('svg')
      .attr('width', 300)
      .attr('height', 300);

    const dataset = [
      { cx: 25, cy: 25, r: 25, color: 'red' },
      { cx: 25, cy: 100, r: 25, color: 'green' },
      { cx: 25, cy: 175, r: 25, color: 'blue' },
      { cx: 25, cy: 250, r: 25, color: 'orange' }];

    const circles = svg.selectAll('circle')
      .data(dataset)
      .enter()
      .append('circle');

    circles
      .attr('cx', d => d.cx)
      .attr('cy', d => d.cy)
      .attr('r', d => d.r);

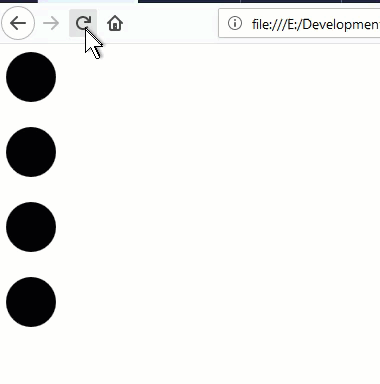

New event handler to add circle

Add circle to the right of the first circle.

circles.on('mouseover', (data, index, nodes) => {
  svg.append('circle')
    .attr('cx', '125')
    .attr('cy', '25')
    .attr('r', '25');
});

use cx attribute of each circle

    circles.on('mouseover', (data) => {
      svg.append('circle')
        .attr('cx', () => data.cx + 100)
        .attr('cy', () => data.cy)
        .attr('r', '25');
    });

remove new "right" circle

When you move the mouse off of the left circle, the right circle will disappear.

1. add id for the new circle
2. create a mouseout event handler to delete the new circle by selecting the id

add id

    circles.on('mouseover', (data) => {
      svg.append('circle')
        .attr('cx', () => data.cx + 100)
        .attr('cy', () => data.cy)
        .attr('r', '25')
        .attr('id', 'removeMe');
    });

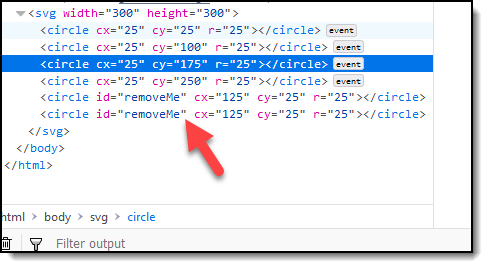

Use the inspector to make sure the id is attached.

create mouseout event to remove new circle

            circles.on('mouseout', () => {
              d3.select('#removeMe')
                .remove();
            });

replace circle with text

    circles.on('mouseover', (data) => {
      svg.append('text')
        .attr('x', () => data.cx + 100)
        .attr('y', () => data.cy)
        .text(data.color)
        .attr('id', 'removeMe');
    });

use string template to add in additional text

1. This is a shortcut that replaces the plus sign

2. it is the same as 'color: ' + data.color

3. must use back-tick, which is in the upper left of the keyboard

    circles.on('mouseout', () => {
      d3.select('#removeMe')
        .remove();
    });

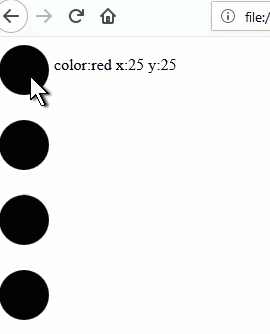

convert into tooltip

adjust placement of text

Add in additional text and adjust placement to make it into a tooltip.

.text(`color:${data.color} x:${data.cx} y:${data.cy}`)

change color of circle

1. nodes[index] is the current circle that is selected

2. apply style to current circle

    circles.on('mouseover', (data, index, nodes) => {
      d3.select(nodes[index])
        .style('fill', data.color);


change circle back to black

In mouseout, adjust style back to black.

    circles.on('mouseout', (data, index, nodes) => {
      d3.select(nodes[index])
        .style('fill', 'black');

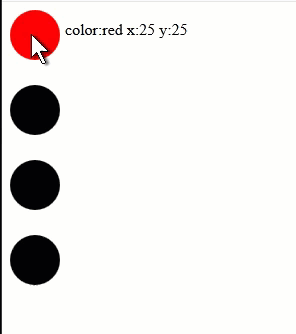

highlight current selection with opacity

1. set all circles opacity to 0.25

2. set selected circle opacity back to 1

    circles.on('mouseover', (data, index, nodes) => {
      circles
        .attr('opacity', '0.25');
      d3.select(nodes[index])
        .style('fill', data.color)
        .attr('opacity', '1');


Reset Opacity on mouseout

On mouseout, reset opacity.

    circles.on('mouseout', (data, index, nodes) => {
      circles
        .attr('opacity', '1');
      d3.select(nodes[index])
        .style('fill', 'black');
      d3.select('#removeMe')
        .remove();
    });
