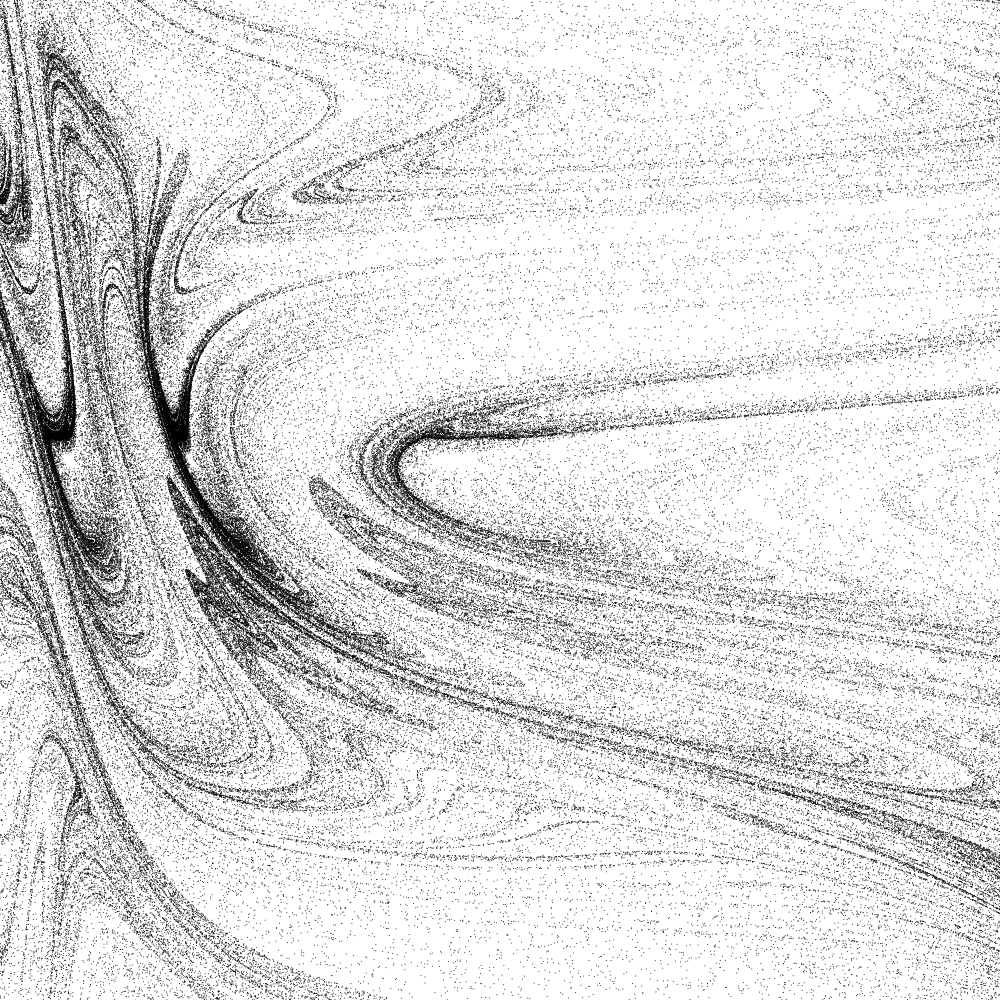

poincare section of chaotic network of three neurons

poincare.jl

# most of the code is by Rainer Engelken

# updated to Julia 1.0 syntax, tested on 1.4

using Luxor, StaticArrays

 # poincare section of chaotic network of three neurons
function spikingnet(n, couplingstrength=1.0)

    # number of spikes in calculation
    nspikes = n

    # define adjacency matrix
    topo = SMatrix{3,3}(0.0 .< [0 0 0;
                                1 0 1;
                                0 1 0])

    # define effective coupling strength
    c = couplingstrength

    #initial network state
    ϕ = rand(3)

    # initialize phase history
    𝚽 = Point[]

    for s = 1:nspikes

        # find next spiking neuron j
        ϕmax, j = findmax(ϕ)

        # calculate next spike time
        dt = π/2 - ϕmax

        # evolve phases till next spike time
        ϕ .+= dt

        # get postsynaptic neurons
        post = topo[:, j]

        # update postsynaptic neurons (quadratic integrate and fire neuron)
        ϕ[post] = @. atan(tan(ϕ[post]) - c)

        # reset spiking neuron
        ϕ[j] = -π/2

        # save neuron 2 & 3 whenever neuron 1 spikes
        j==1 && push!(𝚽, Point(ϕ[2], ϕ[3]))

    end
    return 𝚽
end

# animation code:
poinchaos = Movie(1000, 1000, "poincare chaos")
backdrop(scene, framenumber) =  background("black")
function frame(scene, framenumber)
    background("white")
    sethue("black")
    r = 0.5
    # move coupling strength from 0.5 to 2
    cstrength = rescale(framenumber/scene.framerange.stop, 0, 1, 0.5, 2)
    sn = spikingnet(10^6, cstrength)
    circle.(sn .* 400, r, :fill)
end

animate(poinchaos, [
    Scene(poinchaos, backdrop, 0:100),
    Scene(poinchaos, frame,    0:100)],
    creategif=true,
    pathname="/tmp/poincare.gif")

how can it be ported to current julia?
