Whatsapp_injection_writeup.md

Introduction

The task of the project was about finding an obfuscated app on the play store, modifying it such that it would notify another app whenever it was opened.

I did not really have a quick way to check wheter an app on the play store was obfuscated or not, so I decided to choose an app that I knew for sure had at least some kind of obfuscation, and that app is Whatsapp Messenger.

The apk for "Whatsapp Messenger" I got is version 2.20.123, x86 architecture (because that's the architecture of the emulator I am currently running)

Finding an injection spot

I started by decompiling the apk down to the smali code using apktool:

apktool d -r -f com.whatsapp.apk

Then, I started inspecting the decompiled smali. Unfortunately, Whatsapp is not a small app by any means, with more than 13k smali classes:

$ find . -name "*.smali" | wc -l
13666

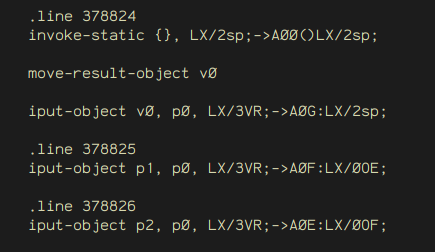

Furthermore, as you may see from the screenshot below, many of the classes and methods names were obfuscated. Some were implemented in native libraries, too.

It was not easy for me to find a good spot to inject code in. Ideally, I would have needed a function that would be executed every time the app is opened, but the mangled names were making this difficult.

For some time I tried tracing all the functions executed by Whatsapp by installing frida-server on the emulator and starting Whatsapp with frida-trace, but I did not get very far with that.

After a while though I realized that not all methods can be obfuscated, as there are some which are required to have a special name by Java or Android, such as toString(), constructor(), etc. So, I started looking for methods like this that could indicate the start of an Activity, and soon I found out that onCreate() was not obfuscated too!

So, after running

grep -R ".method.*onCreate"

I found out about com/whatsapp/Main.smali, and decided to test if that was a suitable spot for injection. I am not comfortable in smali, so I decided to look online and found out on a stackoverflow question that the best way was to display a Toast with the following smali:

const-string v0, "Hack the plan3t!"
const/4 v1, 0x1
invoke-static {p0, v0, v1}, Landroid/widget/Toast;->makeText(Landroid/content/Context;Ljava/lang/CharSequence;I)Landroid/widget/Toast;
move-result-object v0
invoke-virtual {v0}, Landroid/widget/Toast;->show()V

I inserted the code and recompiled the apk with:

apktool b com.whatsapp
keytool -genkey -v -keystore my-release-key.keystore -alias test -keyalg RSA -validity 10000
jarsigner -verbose -sigalg MD5withRSA -digestalg SHA1 -keystore my-release-key.keystore com.whatsapp.apk test

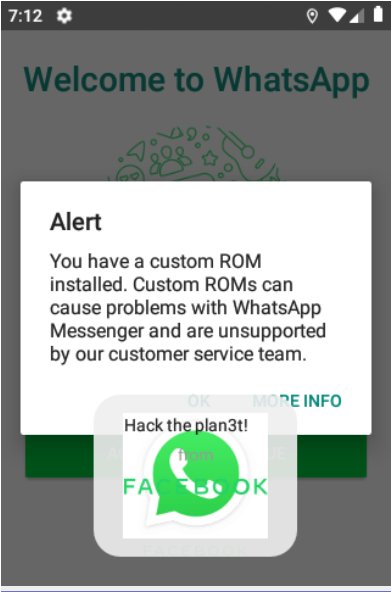

I had to read about smali registers and how do they work because I kept getting crashes, but after a few small adjustments to avoid using any registers the original onCreate() was using I got it to work!

The receiver app

Now, I had to code the app that kept the counter. I used one of the examples from to get started and I modified it to display a simple TextView.

I then studied a bit about available IPC methods in Android, and decided that the fastest one to implement was a BroadcastReceiver that listens on Intents from Whatsapp.

Here is the code of the app that I properly named Whatsapp Stalker:

class MyReceiver extends BroadcastReceiver {
	int counter;
	TextView t;

	public MyReceiver(TextView t) {
		counter = 0;
		this.t = t;
	}

	@Override
	public void onReceive(Context context, Intent intent) {
		counter ++;
		t.setText("Number of times Whatsapp was opened: " + counter);
	}
}

public class MainActivity extends Activity {

	@Override
	protected void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
		setContentView(R.layout.sample_main);
		TextView textViewResource = (TextView) findViewById(R.id.text_html_resource);
		textViewResource.setText( "Number of times Whatsapp was opened: " + 0);

		IntentFilter filter = new IntentFilter();
		filter.addAction("com.stalker.WHATSAPP_OPENED");
		MyReceiver myReceiver = new MyReceiver(textViewResource);
		registerReceiver(myReceiver, filter);
	}
}

The app is really spartan, but it does its job.

The injection

Now I had to come up with the smali code to send an intent to the Whatsapp Stalker. Again, I am not very knowleadgeable on smali, and I really wanted to get it to work without too much trial and error, so I decided to cheat a little bit: I just wrote the normal Java code to send an intent in an empty app, then compiled it, decompiled my own app with apktool, and just copy pasted the relevant smali code.

Original java code:

Intent intent = new Intent();
intent.setAction("com.stalker.WHATSAPP_OPENED");
intent.setPackage("com.example");
sendBroadcast(intent);

Corresponding smali:

new-instance v8, Landroid/content/Intent;
invoke-direct {v8}, Landroid/content/Intent;-><init>()V
const-string v7, "com.stalker.WHATSAPP_OPENED"
invoke-virtual {v8, v7}, Landroid/content/Intent;->setAction(Ljava/lang/String;)Landroid/content/Intent;
const-string v7, "com.example.whatsappstalker"
invoke-virtual {v8, v7}, Landroid/content/Intent;->setPackage(Ljava/lang/String;)Landroid/content/Intent;
invoke-virtual {p0, v8}, Lcom/example/whatsappstalker/MainActivity;->sendBroadcast(Landroid/content/Intent;)V

I know this is not the most elegant solution, but it works!

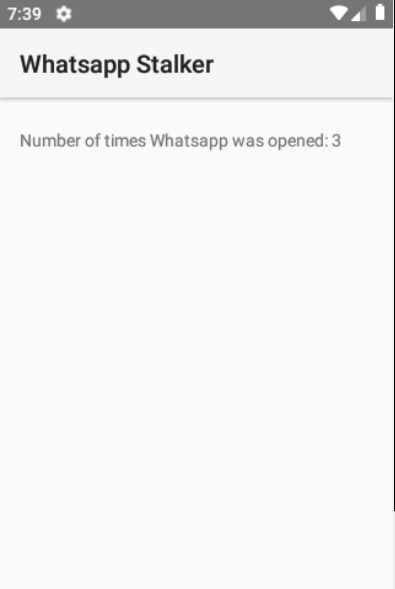

I just had to adjust some register names and package paths, but in the end I got what I wanted:

Conclusion

Since I was already very late with the submission, I did not put much effort into making the injection discreet or the receiver app fancy, I just wanted to get a proof of concept.

Some limitations of my current approach, that I could have fixed with more time:

• The receiver app only increases the counter while it is open in the background. It would have been a better solution to implement it as a Service that is always on in the background.
• The receiver app reset the counter everytime it is closed. This could be fixed by saving it to Preferences or something similar.
• The count only get increased when Whatsapp is created - that means that if it is open in the background you need to close it and open it again to increase the counter; perhaps it would have been more interesting if it increased the counter every time the user switched to Whatsapp?
• The sendBroadcast(Intent) is not the most discreet way to talk to another application - I restricted the listening of such Intent only to applications that have the package "com.example.whatsappstalker", but it could still be improved a lot

Thanks for taking the time to read this! Luca Di Bartolomeo
