Simple scraper of the ASPX search form for U.S. Congress House financial disclosure results

_house-public-disc-scraper-README.md

Simple scraper of the ASPX search form for U.S. Congress House financial disclosure results

The following script, given someone's last name, prints a CSV of financial disclosure PDFs (the first 20, for simplicity's sake) as found on the House Financial Disclosure Reports. It's meant to be a proof-of-concept of how to scrape ASPX (and other "stateful" websites) with using plain old requests -- without too much inconvenience -- rather than resorting to something heavy like the selenium websdriver

The search page can be found here: http://clerk.house.gov/public_disc/financial-search.aspx

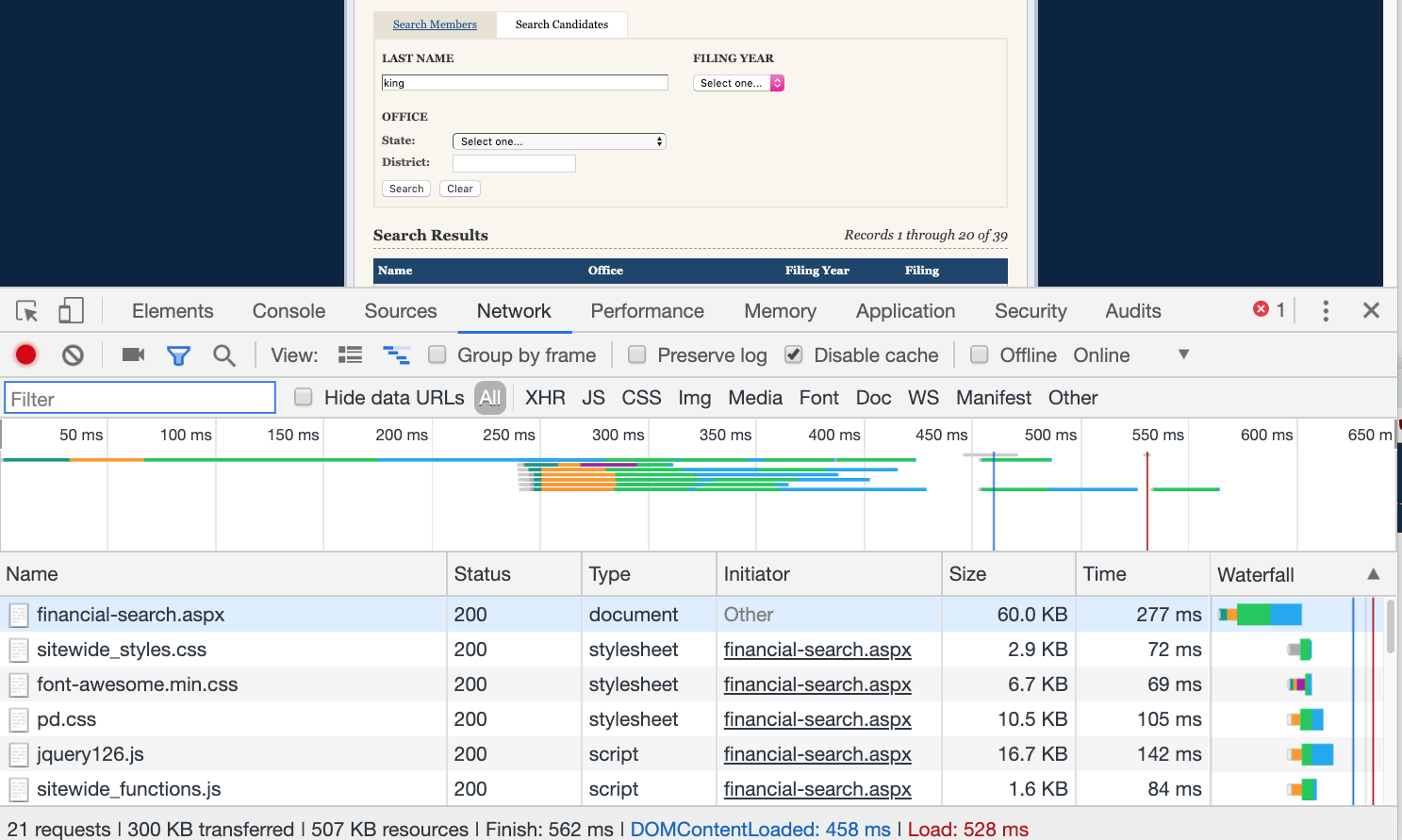

Here's a screenshot of what it does when you search via web browser:

I've attached an example of what the form data paylod looks like to this gist: sample-form-data-post-response-txt

Sample usage of script

You can download the script attached to this gist and run it like this -- the frst argument is presumed to be the "last name":

$  python house-public-disc-simple-search.py 'king'

The output looks like this:

Searching for last name of: `king` ...
name,office,filing_year,filing,url
"KING, HON.PETER T.",NY03,2007,FD Original,http://clerk.house.gov/public_disc/financial-pdfs/2008/8135888.pdf
"KING, HON.PETER T.",NY03,2007,FD Amendment,http://clerk.house.gov/public_disc/financial-pdfs/2008/8138301.pdf
"KING, HON.PETER T.",NY03,2008,FD Original,http://clerk.house.gov/public_disc/financial-pdfs/2009/8140250.pdf
"KING, HON.PETER T.",NY03,2009,FD Original,http://clerk.house.gov/public_disc/financial-pdfs/2010/8147290.pdf
"KING, HON.PETER T.",NY03,2010,FD Original,http://clerk.house.gov/public_disc/financial-pdfs/2011/8202610.pdf
"KING, HON.PETER T.",NY03,2011,FD Original,http://clerk.house.gov/public_disc/financial-pdfs/2012/8205535.pdf
"KING, HON.PETER T.",NY02,2012,FD Amendment,http://clerk.house.gov/public_disc/financial-pdfs/2013/8212617.pdf
"KING, HON.PETER T.",NY02,2012,FD Original,http://clerk.house.gov/public_disc/financial-pdfs/2013/8212125.pdf
"King, Mr.Peter T.",NY02,2013,FD Original,http://clerk.house.gov/public_disc/financial-pdfs/2013/10001239.pdf
"King, Hon.Peter T.",NY02,2014,FD Original,http://clerk.house.gov/public_disc/financial-pdfs/2014/10007122.pdf
"King, Hon.Peter T.",NY02,2015,FD Original,http://clerk.house.gov/public_disc/financial-pdfs/2015/10012142.pdf
"King, Hon.Peter T.",NY02,2016,FD Original,http://clerk.house.gov/public_disc/financial-pdfs/2016/10016910.pdf
"King, Hon.Peter T.",NY02,2017,FD Original,http://clerk.house.gov/public_disc/financial-pdfs/2017/10022302.pdf
"KING, HON.STEVE",IA05,2007,FD Original,http://clerk.house.gov/public_disc/financial-pdfs/2008/8135889.pdf
"KING, HON.STEVE",IA05,2008,FD Original,http://clerk.house.gov/public_disc/financial-pdfs/2009/8140601.pdf
"KING, HON.STEVE",IA05,2009,FD Original,http://clerk.house.gov/public_disc/financial-pdfs/2010/8147289.pdf
"KING, HON.STEVE",IA05,2010,FD Original,http://clerk.house.gov/public_disc/financial-pdfs/2011/8202611.pdf
"KING, HON.STEVE",IA05,2011,FD Original,http://clerk.house.gov/public_disc/financial-pdfs/2012/8206497.pdf
"KING, HON.STEVE",IA05,2011,Extension,http://clerk.house.gov/public_disc/financial-pdfs/2012/8206900.pdf
"KING, HON.STEVE",IA05,2011,Extension,http://clerk.house.gov/public_disc/financial-pdfs/2012/8206933.pdf

About the script

(I've put most of the technical details as a clump of comments in the actual script below)

The most annoying part of this is having to do the web search the old-fashioned-way -- i.e. via clicking-and-pointing in your browser -- and inspecting the traffic via the Network Panel when you submit the form.

(Tip: it's recommended to disable Javascript and the cache for more predictable results)

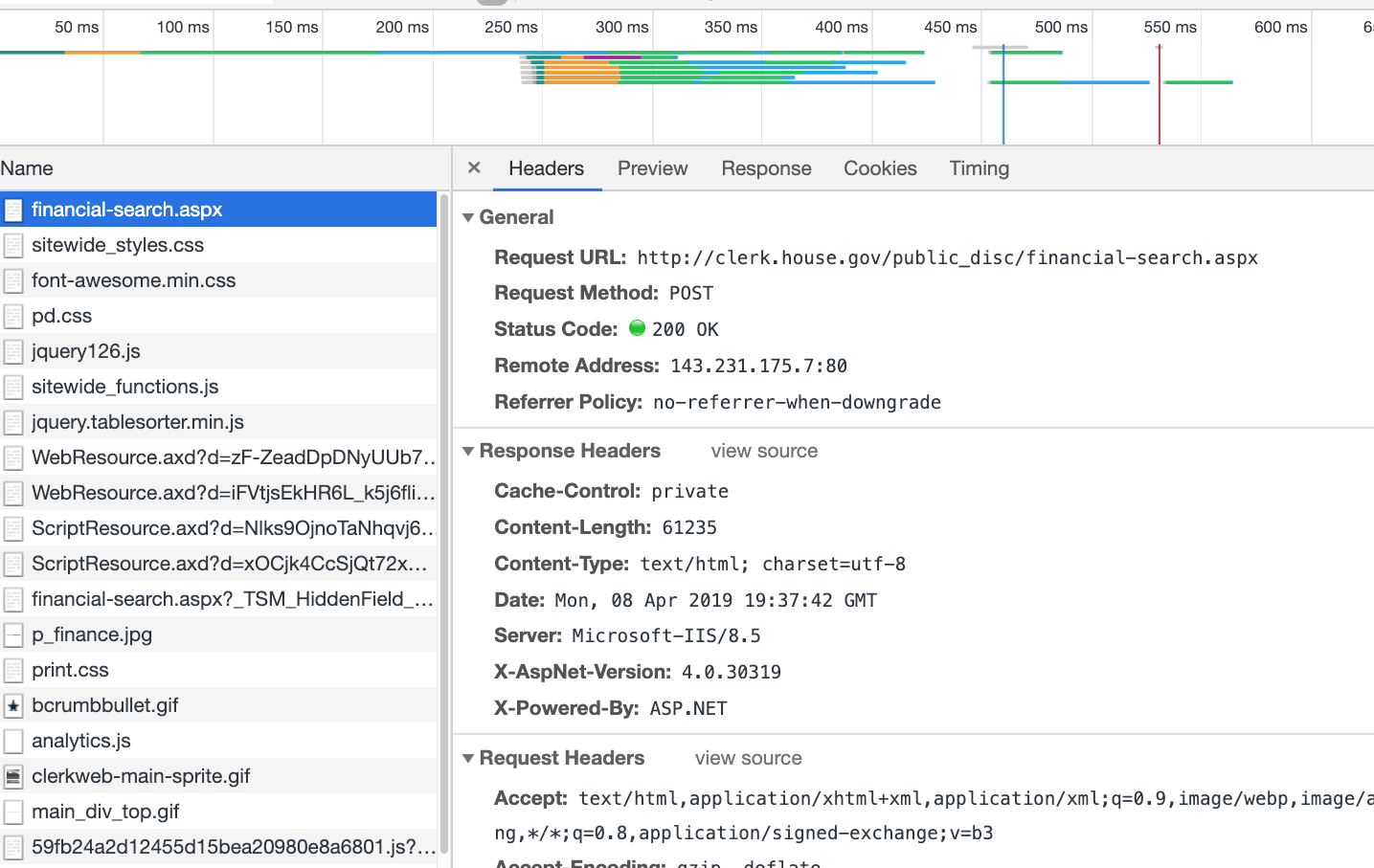

In the Network Panel, click on the first request (to financial-search.aspx to see the details, such as the headers:

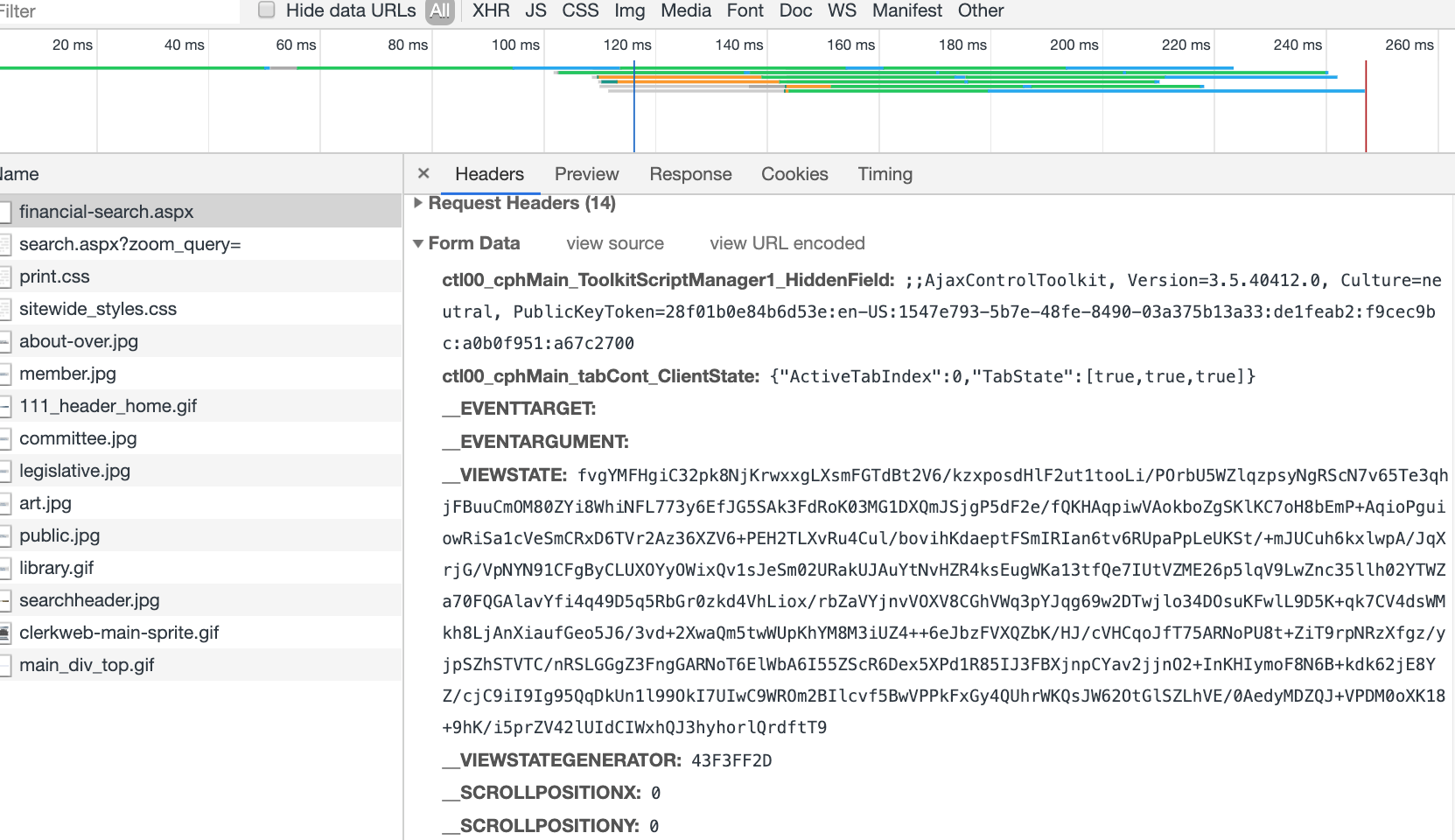

Scroll down to the Form Data panel to see all the actual form parameters sent in the POST request. With some trial and error, you'll see what the website requires at a minimum to trigger a successful response:

house-public-disc-simple-search.py

"""
house-public-disc-simple-search.py
gist: https://gist.github.com/dannguyen/994bfe5a4a1e9ba6c73f21046e31e86c
Simple scraper of the ASPX search form for U.S. Congress House financial disclosure results
---------------

The following script, given someone's last name, prints a CSV of
financial disclosure PDFs (the first 20, for simplicity's sake) as
found on the House Financial Disclosure Reports:

http://clerk.house.gov/public_disc/financial-search.aspx

Command-line usage:

    $ house-public-disc-simple-search.py king


Background
----------

This is an example of how to use plain ol' requests and html parsing
to scrape an ASPX site that does **not** preserve state
via cookies or something AJAXy.


We can deal with these (basically) stateless sites by first performing a
get request, and getting the HTML form. The state values are directly
encoded into the HTML, e.g.

    <form name="aspnetForm" method="post" action="./financial-search.aspx" id="aspnetForm">
     <input type="hidden" name="ctl00_cphMain_ToolkitScriptManager1_HiddenField" id="ctl00_cphMain_ToolkitScriptManager1_HiddenField" value="">
     <input id="ctl00_cphMain_tabCont_ClientState" name="ctl00_cphMain_tabCont_ClientState" type="hidden" value='{"ActiveTabIndex":0,"TabState":[true,true,true]}'/>,
     <input id="__VIEWSTATEGENERATOR" name="__VIEWSTATEGENERATOR" type="hidden" value="43F3FF2D"/>,
     ...
    </form>

We can use BeautifulSoup/lxml to scrape these hardcoded values and fill populate a
dict, which we then send via requests.post

The only trick is that you need to manually visit the site and do a query
the old-fashioned way, with the devtools Network panel open. This allows you
to see the payload sent by the POST request. In the case of the House Financial Disclosure
Reports site, we have to make sure:

- to send a last name value (e.g. 'King') for the `ctl00$cphMain$txbLast_nm` param
- to *not* submit a value for `ctl00$cphMain$btnClear` param
"""

# http://docs.python-requests.org/en/master/user/advanced/


from bs4 import BeautifulSoup
from csv import DictWriter
import re
import requests
from sys import argv, stdout, stderr
from urllib.parse import urljoin

SEARCH_URL = 'http://clerk.house.gov/public_disc/financial-search.aspx'
TABLE_FIELDNAMES = ['name', 'office', 'filing_year', 'filing']

def _clean_text(txt):
    return re.sub(r'\s+', ' ', txt).strip()


def _search_by_lastname(last_name):
    get_resp = requests.get(SEARCH_URL)
    soup = BeautifulSoup(get_resp.text, 'lxml')
    form = soup.select_one('form#aspnetForm')


    # get all the input/select elements
    inputs = [i for i in form.select('input, select')]

    # create a dict that contains the default values for the input fields, as
    #   they currently exist on the form. This is just a quickie way of populating
    #   all the annoying fields like '__VIEWSTATE' and '__EVENTVALIDATION'
    myparams = {i['name']: i.get('value') or '' for i in inputs}

    # We *don't* want to submit the values for the Clear button
    myparams.pop('ctl00$cphMain$btnClear')

    # finally, we manually set the last name field
    myparams['ctl00$cphMain$txbLast_nm'] = last_name

    # submit the post request
    post_resp = requests.post(SEARCH_URL, data=myparams)
    return post_resp


def _parse_results(resp):
    # scrape the first table of results (1 through 20)
    soup = BeautifulSoup(resp.text, 'lxml')
    rows = soup.select('#search_results tr')[1:-1]
    results = []
    for row in rows:
        cells = row.select('td')
        d = {name: _clean_text(cells[idx].text) for idx, name in enumerate(TABLE_FIELDNAMES)}
        d['url'] = urljoin(SEARCH_URL, row.select('a')[0]['href'])
        results.append(d)

    return results

def scrape_by_last_name(last_name):
    resp = _search_by_lastname(last_name)
    data = _parse_results(resp)
    return data


if __name__ == '__main__':
    # assume first argument is the "last name"
    last_name = argv[1]
    stderr.write("Searching for last name of: `{}` ...\n".format(last_name))

    # output to stdout in CSV form
    outs = DictWriter(stdout, fieldnames=TABLE_FIELDNAMES + ['url'])
    outs.writeheader()
    outs.writerows(scrape_by_last_name(last_name))

sample-form-data-post-response.txt

ctl00_cphMain_ToolkitScriptManager1_HiddenField: ;;AjaxControlToolkit, Version=3.5.40412.0, Culture=neutral, PublicKeyToken=28f01b0e84b6d53e:en-US:1547e793-5b7e-48fe-8490-03a375b13a33:de1feab2:f9cec9bc:a0b0f951:a67c2700
ctl00_cphMain_tabCont_ClientState: {"ActiveTabIndex":0,"TabState":[true,true]}
__EVENTTARGET:
__EVENTARGUMENT:
__VIEWSTATE: NWh3sI46WtmQT7PcIfjKWkyKp30kiLIjCvA1GfKwwi6cRhc+3Op+6Yo+idaDWgk5rd1GUT8ZvS/RxP9iQs1C/YvLInRFlZQX1bSlFfaW3HkWKpfI4DAYtVht4EXQDDcGrYbrVhLfteWjWR7a/QR+sdJHC4Ls98DRT/OtsyAsfRQYqrmH9tRKdl3m1XSksS/HswO3YgN75WbDRyuKGn9nMjeRaQ8Xgzm182Vwc9xdqHQSWLZ/V/eMbHBDG7G6E6DDcGZ7DPsna3sZipz4aLHZcpwl9WGzy6i5P/2H6bm7TpEE3m5KIeWl/elx46G3FS00WL5bIeMcIjDjtjSeEpr0543QPKjozpd1e3cKL2Mtm9L2dPmctDo6TYY+8OppWI7D01KHn+Jd87+5So0Gc7Lm++GpLqz13Ffr7s5lJDZDQ5rE2gB+wPdHDbUXaHpm/BYfTaU+FjzDGNGABhuYQrp9P7tSGJR+wLOcDUoq+v736LUHeFGZF2GNz6ZY/omvaaMk4+dGka29RToOXtbrR532pE+dcbgiJlM9qzmAP1wLlnQ7OtpWHoJwsRqoqjhHxXkAgshykqbPgHKO0GPOnSs2Mcd6l1kWwrbPdSuBZtmoGkN0pbS9v9s9l0iAnNlNKOm4RezU+V8ryxzhrKo/JOMW5oQBoMMscu8sAzAXq8gVVbpx6FzVLIb4C5qTj1WiwlGp7K2u8G1L4VgdoKoOWwHaifO9/7aDJ435AIvZ0CR0DM5TIZQ0xnU53KaIJ6ZIYBoBdyNRRkLZ4fw3ciTe2LmWwKFfoVDh+0e8btlXtQ+lf4pVZ3f/
__VIEWSTATEGENERATOR: 43F3FF2D
__SCROLLPOSITIONX: 0
__SCROLLPOSITIONY: 0
__VIEWSTATEENCRYPTED:
__EVENTVALIDATION: VYqMycNqnGPNu8K4XomrNa1ma55Xo+1P6YtUnwDXDUuESZZHEoQxsI2i80UOog+bSlKGuEpg/UkrXZnZA30YvkNygn5D6MXk++WeJAQZ2isX5pqtQ2J5cjf7aILqkiG8mNgyGSA8pibD4fsEzxn/6QfEwjQTwdl2afjLQk1SEACQf3++iYcmTxUpsyYByA/tpKDMv6WhMpCADMOC6kDXO/Knyvphl2EaxyLC77JBJ+35PAxa9wnMe28zPKMRpE4FxQ94M+O7zPtXyGONPZOAr/OMT0xT3LuufsYmyuDn22mcN4pQxPsPw8pJg9JdQoR+rRFSxjlrdYRIfJ8vcot+csjqB6fZ+DYBTJKvKNb7MmCRrI4PdNhdZVQZnyCa3W/ZZWbvDKuOGUs6Fvem58PAUH2w09zGf7D3GGd4YAA3t+rq8XMYkRViH61o9+2i8jr5tKDNsZvs+KHd0JEEO3uoJFeQscTWnOKQyeA2mFqZSI069yajcYU78YDKiplFLOn3JX99mtGbk7FUYaH0zqYdOJqHTxmDcf3m5d8uR/+XEMURV798QMLL3V42WvB2K3QaOYpqpQmc8GvWATLTfxsWYyxo+amrPtHcBpY3JGm+4TAhFkM+0ukqXKsq0AnlAGO/3OPYfJvWZvHB9VqFNewa+32wGXiGgFva+yCYiQHGKUFDIA2r3/MTUUxx8tIorDcjnmXU5pZYSVv03+gmtMHoErpxR4DMFcZon4U8LDg+JUHDmmPAykwYMZMdCSTwM5+7CxY17IGezTXmZg63lUmP0aS/dt3b4K3PmFDhJAyAz7PibSrx5tiUN2kM/qfWK1kc2+p2wnNtPnKp/Un8lDq19N4Vw3NpGRqB6B3Fv6EdnOt3CTi46jfR//u3GGnduTEESa47Dh7cF4pdmoryZbjvKp3nh2O0dwm6FGjJV6vch/uZ+QASA14uhnePFGsKeNbqSLz2/6Q/me2gj/f1FcpORbqxULEa/TN34PhjsaFeSwwUyOm6ez/rKETTVWoRdUSBTR8QUSrppCyvapSXgRRwZwH/PaWJ6fHb23mtQFUgjt/5c169M+Fy06AJMCkPeBh+E4V4BG0AAOXKptt3hZ+//8fzaEKF9F96DVHgu2RSrQ6i7HI7o7rJ/SHg4djCnsV6iYEEi1+o8z7P3hpxWmoY6iE8pb6Zmbrqp7xRC6SWuvRK6tSVdP+QuoUyIBG3O65rNEJsb2bps0dsMrA+oKa/4gidb+2N68obIH5OFU1hIphzy0xkkLx80VRiOVHRl1Y4yVvUlSVVj53xGohH7+LXvSEGgGC1uwMZ8xQKRKjvqBfiQC9Q4TLIs5ZYUCAWt/KtN7kNdYKT+MDGVihLYF6kcVBKGdPGmabXV/NhHQ1fCdemvrGuUrUABKjFx6mAplpOAnHqhDgQdc2RnlFcJfOWIofl4N4jBFVqo3bcrjV2d6HPyWjsNDWcmMAu2Xre+EBZ49y7g20Jn4ShctbU727UY/EloGvTYuBamqunuww//9HUDuFtu91hntE2NWjKZUpWmt1WYIfJEmOBNQMXrjRJBl6YSU5Oe03YhVKmOF3MyZTxfgAtxyVzp+Uo8aBVOl+Z50p6doSGbX7EUnmH0ciAR0xI89cTD0Eu4S64fBxPIgLMBqJhfr7a+yNVhrfdCs7/YTW+xHddqTqB3G5xQqkk66NFvdYLnVP46yf7E5Dtf4/GJc9jMZMzcRud6dWRx3sgs1hNZkpW+qsub2IRMS7odHwGJtI=
ctl00$txbSearchBox:
ctl00$cphMain$txbLast_nm: king
ctl00$cphMain$txbFiling_year:
ctl00$cphMain$ddlState:
ctl00$cphMain$txbDistrict_cd:
ctl00$cphMain$btnSearch: Search
