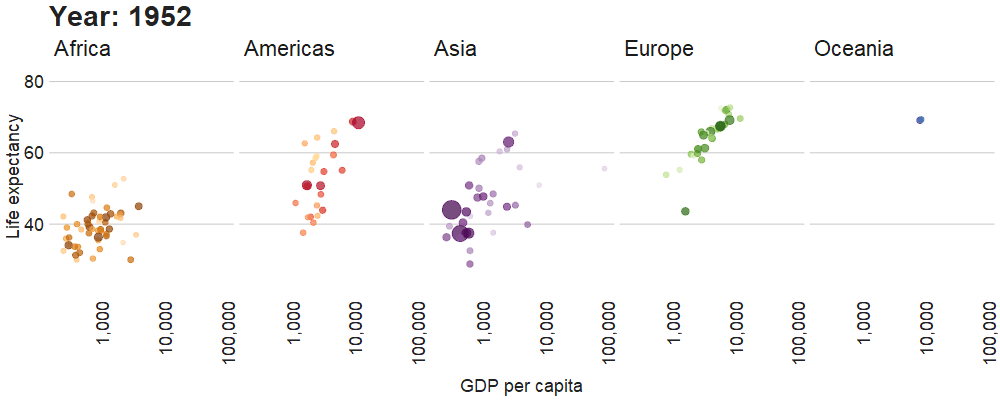

draws the gganimate gapminder example, using bbc style
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| # packages | |
| library(tidyverse) | |
| library(gganimate) | |
| library(gapminder) | |
| library(scales) | |
| # modified version of the bbc_style function | |
| # adapted from: https://github.com/bbc/bbplot | |
| bbc_style2 <- function(font = "Helvetica") { | |
| theme( | |
| plot.title = element_text(family = font, size = 28, face = "bold", color = "#222222"), | |
| plot.subtitle = element_text(family = font, size = 22, margin = margin(9, 0, 9, 0)), | |
| plot.caption = element_blank(), | |
| legend.position = "top", | |
| legend.text.align = 0, | |
| legend.background = element_blank(), | |
| legend.title = element_blank(), | |
| legend.key = element_blank(), | |
| legend.text = element_text(family = font, size = 18, color = "#222222"), | |
| axis.title = element_text(family = font, size = 18, color = "#222222"), | |
| axis.text = element_text(family = font, size = 18, color = "#222222"), | |
| axis.text.x = element_text(margin = margin(5, b = 10)), | |
| axis.ticks = element_blank(), | |
| axis.line = element_blank(), | |
| panel.grid.minor = element_blank(), | |
| panel.grid.major.y = element_line(color = "#cbcbcb"), | |
| panel.grid.major.x = element_blank(), | |
| panel.background = element_blank(), | |
| strip.background = element_rect(fill = "white"), | |
| strip.text = element_text(size = 22, hjust = 0)) | |
| } | |
| # gapminder animation | |
| p <- gapminder %>% | |
| ggplot(aes( | |
| x = gdpPercap, | |
| y = lifeExp, | |
| size = pop, | |
| colour = country)) + | |
| geom_point(alpha = 0.7, show.legend = FALSE) + | |
| scale_colour_manual(values = country_colors) + | |
| scale_size(range = c(2, 12)) + | |
| scale_x_log10(labels = comma) + | |
| facet_wrap(~continent, nrow = 1) + | |
| bbc_style2() + | |
| theme(axis.text.x = element_text(angle = 90, hjust = 1)) + | |
| ggtitle("Year: {frame_time}") + | |
| xlab("GDP per capita") + | |
| ylab("Life expectancy") + | |
| transition_time(year) + | |
| ease_aes('linear') | |
| # animate | |
| animate(p, type="cairo", detail = 5, width = 1000, height = 400) | |
| anim_save("~/../Desktop/bb_gapminder.gif") |
