Hetzner Terraform.md

Nice choice 😄 terraform-hcloud-kube-hetzner is basically the gold standard for a fully code-driven Hetzner dev platform.

Below is a complete, opinionated setup guide to get a development-ready Hetzner Cloud environment using Terraform only (infra + Kubernetes).

What you’ll end up with

By the end, you’ll have:

Hetzner Cloud infra (servers, networks, firewalls, LB)
A Kubernetes cluster (k3s)
Private networking + public ingress
Automatic node bootstrapping
Ready for CI/CD, dev workloads, previews, etc.

Project we’re using

terraform-hcloud-kube-hetzner
Repo: https://github.com/mysticaltech/terraform-hcloud-kube-hetzner

This project wraps best-practice Hetzner patterns into Terraform modules.

1️⃣ Prerequisites (local machine)

Install these first:

terraform >= 1.4
kubectl
helm
ssh

Optional but recommended:

jq
direnv

2️⃣ Hetzner setup (one-time)

Create API token

Hetzner Cloud Console → Security → API Tokens
Create Read & Write token

Export it:

export HCLOUD_TOKEN=your_token_here

3️⃣ Clone the project

git clone https://github.com/mysticaltech/terraform-hcloud-kube-hetzner.git
cd terraform-hcloud-kube-hetzner

Project structure (important to understand):

.
├── terraform/
│   ├── modules/
│   ├── main.tf
│   ├── variables.tf
│   └── outputs.tf
├── example/
│   └── k3s/
└── README.md

You’ll work mostly inside example/k3s.

4️⃣ Configure your dev cluster

cd example/k3s
cp terraform.tfvars.example terraform.tfvars

Minimal dev-friendly config

hcloud_token = env("HCLOUD_TOKEN")

cluster_name = "dev-cluster"

k3s_version = "v1.29.1+k3s1"

ssh_public_key = "~/.ssh/id_rsa.pub"

location = "fsn1"

control_plane_nodepools = [
  {
    name        = "control"
    server_type = "cx21"
    count       = 1
  }
]

agent_nodepools = [
  {
    name        = "workers"
    server_type = "cx31"
    count       = 2
  }
]

enable_ingress_nginx = true
enable_cert_manager  = true
enable_metrics_server = true

💡 Dev tip

cx21 is enough for control plane
cx31 gives comfortable dev headroom
You can scale nodepools later via Terraform

5️⃣ Initialize Terraform

terraform init
terraform plan

If everything looks good:

terraform apply

⏱️ Takes ~5–10 minutes.

Terraform will:

Create servers
Setup private network
Install k3s
Configure firewalls
Deploy ingress + cert-manager

6️⃣ Get kubeconfig

After apply:

terraform output -raw kubeconfig > ~/.kube/config
chmod 600 ~/.kube/config

Verify:

kubectl get nodes

You should see:

control-plane
worker-1
worker-2

🎉 You now have a real Kubernetes cluster.

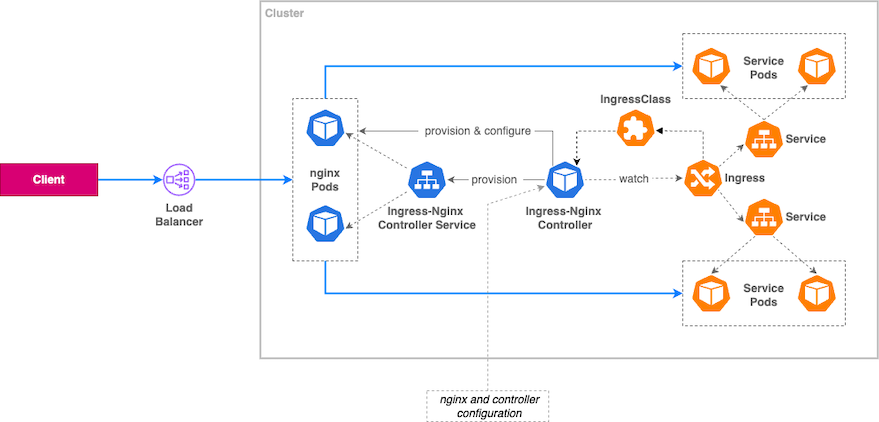

7️⃣ Ingress & HTTPS (out of the box)

Already included:

NGINX Ingress
Cert-Manager

Example test app:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: hello
spec:
  replicas: 1
  selector:
    matchLabels:
      app: hello
  template:
    metadata:
      labels:
        app: hello
    spec:
      containers:
        - name: hello
          image: nginx

Ingress example:

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: hello
  annotations:
    cert-manager.io/cluster-issuer: letsencrypt-prod
spec:
  ingressClassName: nginx
  tls:
  - hosts:
    - hello.yourdomain.com
    secretName: hello-tls
  rules:
  - host: hello.yourdomain.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: hello
            port:
              number: 80

8️⃣ Scaling & updates (Terraform-native)

Scale workers:

agent_nodepools = [
  {
    name        = "workers"
    server_type = "cx31"
    count       = 4
  }
]

Then:

terraform apply

Upgrade k3s:

k3s_version = "v1.30.0+k3s1"

Terraform handles rolling updates.

9️⃣ Recommended dev add-ons

Once cluster is up:

helm install argocd argo/argo-cd
helm install prometheus prometheus-community/kube-prometheus-stack
helm install loki grafana/loki-stack

This turns it into a proper dev platform.

10️⃣ Why this setup is 🔥 for dev

✅ Everything is code ✅ Easy teardown (terraform destroy) ✅ Cheap compared to managed clouds ✅ Production-like Kubernetes ✅ Scales cleanly

This is basically “EKS-like dev infra for 1/10th the cost”.

Want next?

I can:

Harden this for staging / production
Add GitHub Actions CI runners
Add Hetzner Load Balancer
Convert it into a mono-repo Terraform layout
Add remote state (S3 / Terraform Cloud)

Just tell me what you want to layer on top 👌

what all will be included and everything setup done using this way will be purely by code? what else would be needed:

Are following needed after this: 🔥 Egress / NAT konfigurieren 🔥 CSI installieren 🔥 Ingress korrekt anpassen 🔥 StorageClass default setzen 🔥 PVC Tests

Great questions — you’re thinking about real completeness, not just “it applies, ship it” 👍 Short version: yes, this approach is ~95% pure code, and most of what you listed is already handled. The rest are intentional choices, not missing pieces.

Let’s break it down cleanly.

Is everything done purely by code?

Yes. With terraform-hcloud-kube-hetzner:

Infrastructure → Terraform
Kubernetes bootstrap → Terraform + cloud-init
Core add-ons → Terraform (Helm providers)
Cluster lifecycle → Terraform (scale, upgrade, destroy)

There is no click-ops after initial API token creation.

The only optional manual step is:

Using kubectl / helm for app workloads (which you’d normally automate later via ArgoCD).

What is INCLUDED out of the box

🧱 Infrastructure (Terraform)

✅ Servers (control plane + workers) ✅ Private network (VPC-like) ✅ Firewalls ✅ SSH keys ✅ Public + private IP layout

☸ Kubernetes Core

✅ k3s installed ✅ Flannel CNI ✅ kubeconfig output ✅ Node bootstrapping ✅ Cluster upgrades via version pin

🔌 Platform Add-ons (optional but common)

✅ NGINX Ingress ✅ cert-manager ✅ metrics-server

Now your checklist — one by one

🔥 Egress / NAT konfigurieren

Status: 🟡 Implicitly handled

Hetzner Cloud gives automatic outbound internet access
Nodes NAT through Hetzner’s network by default
No extra NAT Gateway needed for dev/staging

You only need custom egress if:

You want static egress IPs
You want egress restrictions / firewalling
You run air-gapped workloads

➡️ Dev setup: nothing to do ➡️ Prod hardening: optional firewall rules

🔥 CSI installieren

Status: ❌ NOT installed by default (by design)

k3s ships with local-path-provisioner, which is:

Node-local
Not HA
Not suitable for real storage

For real storage you need Hetzner CSI:

What to add (still 100% code):

hcloud-csi Helm chart
API token secret
StorageClasses

➡️ This is expected and correct — storage is workload-specific.

🔥 Ingress korrekt anpassen

Status: 🟢 Mostly done

NGINX Ingress:

Installed
Exposed
Works out of the box

You may want to adjust:

LoadBalancer type (LB vs NodePort)
Annotations
TLS defaults
ExternalTrafficPolicy

➡️ Dev: already good ➡️ Prod: tweak values.yaml (still Terraform/Helm)

🔥 StorageClass default setzen

Status: ❌ Only after CSI install

Once CSI is installed:

You must explicitly mark a StorageClass as default

Example:

storageclass.kubernetes.io/is-default-class: "true"

This is intentional — Terraform won’t guess your storage preference.

➡️ Required if you want PVCs without explicit SC.

🔥 PVC Tests

Status: ❌ Not included (and shouldn’t be)

PVC tests are:

Validation
Environment-specific
App-level concerns

But yes — you should test:

kind: PersistentVolumeClaim
apiVersion: v1
spec:
  accessModes: ["ReadWriteOnce"]
  resources:
    requests:
      storage: 5Gi

➡️ This is a sanity check, not infra.

Final truth table

Item	Needed?	Included?	Reason
Egress / NAT	❌ Dev	✅ Implicit	Hetzner default
CSI	✅	❌	Storage is workload-specific
Ingress	🟡	✅	May need tuning
Default StorageClass	✅	❌	Must be explicit
PVC Tests	🟡	❌	Validation step

What else you’ll eventually want (but not missing)

These are next-layer, not gaps:

GitOps (ArgoCD / Flux)
Backup (Velero + S3)
Monitoring (Prometheus / Grafana)
Logging (Loki)
Secrets (SOPS / External Secrets)
NetworkPolicies
Pod Security Standards

All still 100% code.

Bottom line

✔ Yes — this setup is fully Infrastructure-as-Code ✔ No manual cluster setup ✔ Your checklist is correct thinking, not red flags ✔ CSI + StorageClass are the only must-adds

If you want, next I can:

Add Hetzner CSI via Terraform
Turn this into prod-grade baseline
Show a full GitOps flow

Just tell me where you want to go next 🚀
