Percentogram (histogram with bins of equal number of observations)

StatQuantileBin.R

# This is now available into ggpercentogram.
# https://github.com/eliocamp/ggpercentogram/
StatQuantileBin <- ggplot2::ggproto("StatQuantileBin", ggplot2::StatBin,
   default_aes = ggplot2::aes(x = ggplot2::after_stat(density), y = ggplot2::after_stat(density), weight = 1),
   compute_group = function(data, scales,
                            binwidth = NULL, bins = 30, breaks = NULL, trim = 0,
                            closed = c("right", "left"), pad = FALSE,
                            flipped_aes = FALSE,
                            # The following arguments are not used, but must
                            # be listed so parameters are computed correctly
                            origin = NULL, right = NULL, drop = NULL,
                            width = NULL) {
     x <- ggplot2::flipped_names(flipped_aes)$x

     if (is.null(breaks)) {  # If breaks is not provided, we need to compute them
       if (!is.null(binwidth)) {   # Either with binwidth
         trim <- trim/2
         quantiles <- seq(trim, 1 - trim, binwidth)
       } else {    # or the number of bins
         quantiles <- seq(trim, 1 - trim, length.out = bins)
       }
     } else {
       quantiles <- breaks
     }

     breaks <- quantile(data[[x]], quantiles)

     keep <- !duplicated(breaks)

     # If quantiles is too close, sometimes you get duplicates
     breaks <- breaks[keep]
     quantiles <- quantiles[keep]

     bins <- ggplot2:::bin_breaks(breaks, closed)
     bins <- ggplot2:::bin_vector(data[[x]], bins, weight = data$weight, pad = pad)

     bins$quantile <- quantiles[-length(quantiles)]
     bins$flipped_aes <- flipped_aes
     ggplot2::flip_data(bins, flipped_aes)
   }
)

library(ggplot2)

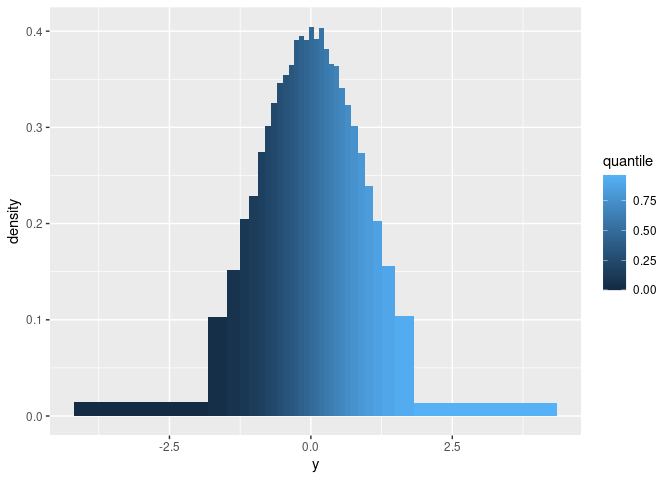

ggplot(data.frame(y = rnorm(1e5)), aes(y)) +
  geom_histogram(stat = StatQuantileBin,
                 aes(fill = after_stat(quantile)))
#> `stat_quantile_bin()` using `bins = 30`. Pick better value with `binwidth`.

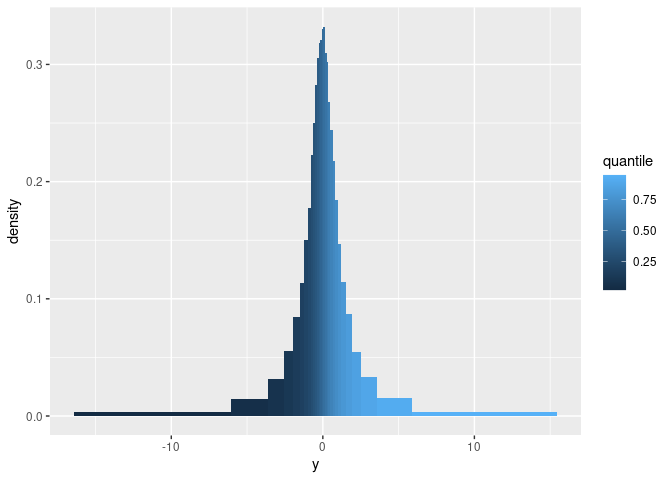

ggplot(data.frame(y = rcauchy(1e5)), aes(y)) +
  geom_histogram(stat = StatQuantileBin, trim = 0.02,
                 aes(fill = after_stat(quantile)))
#> `stat_quantile_bin()` using `bins = 30`. Pick better value with `binwidth`.

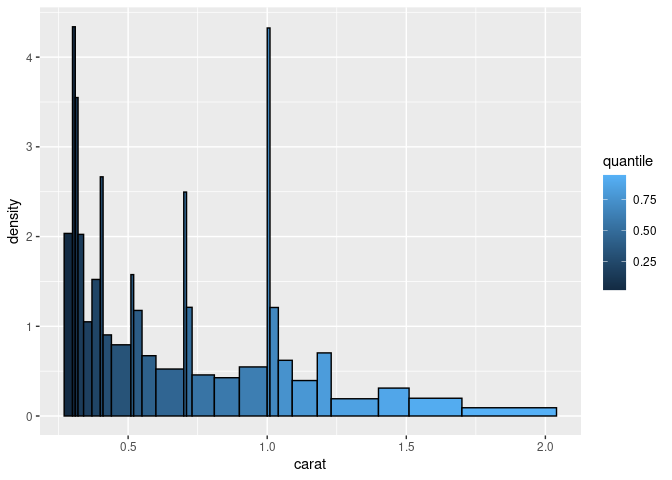

ggplot(diamonds, aes(carat)) +
  geom_histogram(stat = StatQuantileBin, trim = 0.02,
                 aes(fill = after_stat(quantile)), color = "black")
#> `stat_quantile_bin()` using `bins = 30`. Pick better value with `binwidth`.

^{Created on 2023-04-13 with reprex v2.0.2}
