layers-in-perspective-3D-stack.py

# Generate tiles from image, then create a layered/stacked 3D perspective.
# Modified from: https://stackoverflow.com/questions/56279466/how-do-i-create-a-figure-displaying-a-stack-of-images-at-an-angle

# Modules
import cv2
import numpy as np

# Load source image
im = cv2.imread('yearly_forest_loss_patches_1_ha_per_100_sq_km.jpg')
im
M = im.shape[0]//3
N = im.shape[1]//6
images = [im[x:x+M,y:y+N] for x in range(0,im.shape[0],M) for y in range(0,im.shape[1],N)]

w, h = 500,1800
# Corners of images to be pasted onto background
pts2 = np.float32([[0,0],[w,0],[0,w],[w,w]])
for i in range(18):
    img = np.zeros((w,w,3), np.uint8)
    img[:,:,:] = i*42, 255, 255
    img = cv2.cvtColor(img, cv2.COLOR_HSV2BGR)
    images.append(img)

# Create a background
bg = np.zeros((w,h,3), np.uint8)

# Define where to paste the images
top, bottom, dx, width, middle, left_buffer = 100, 450, 50, 150, 300, 200
# top, bottom, dx, width, middle, left_buffer = 100, 500, 200, 200, 300, 50
# Create a mask
mask = np.zeros((w,w), np.uint8)
mask[:] = 255
bg_zeros = np.zeros_like(bg)


for i in range(18):
    # Get the image
    img = images[i]
    # Compute where to paste the image
    left = left_buffer+dx*i
    right = left_buffer+dx*i + width
    mid = int((left + right)/2)
    pts1 = np.float32([[mid, top], [right, middle],
                       [left, middle], [mid, bottom]])
    # Warp the image
    M = cv2.getPerspectiveTransform(pts2,pts1)
    dst = cv2.warpPerspective(img,M,(h,w))
    # Warp the mask and mask out the background
    cmask = cv2.warpPerspective(mask, M, (h,w))
    bg = cv2.bitwise_and(bg,bg,mask = 255-cmask)
    # Add the image to the background
    bg += dst
cv2.imshow('bg', bg)
cv2.waitKey()
cv2.destroyAllWindows()

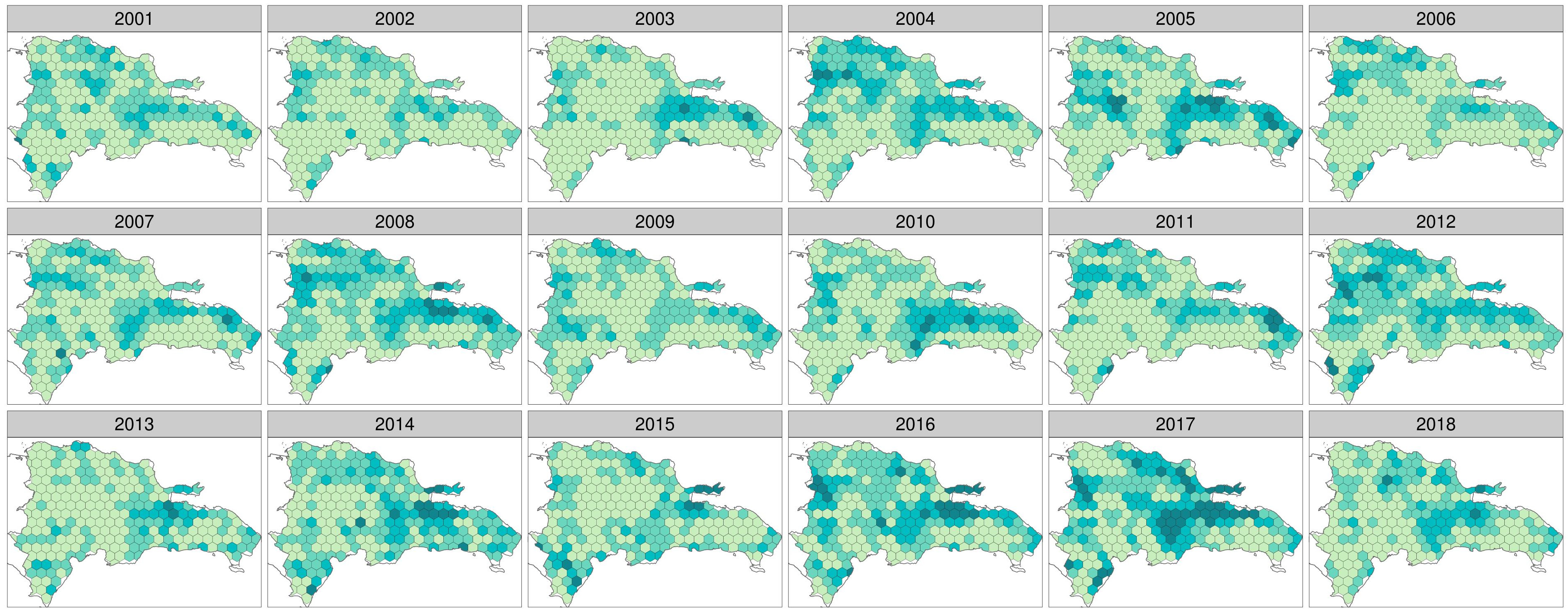

From this:

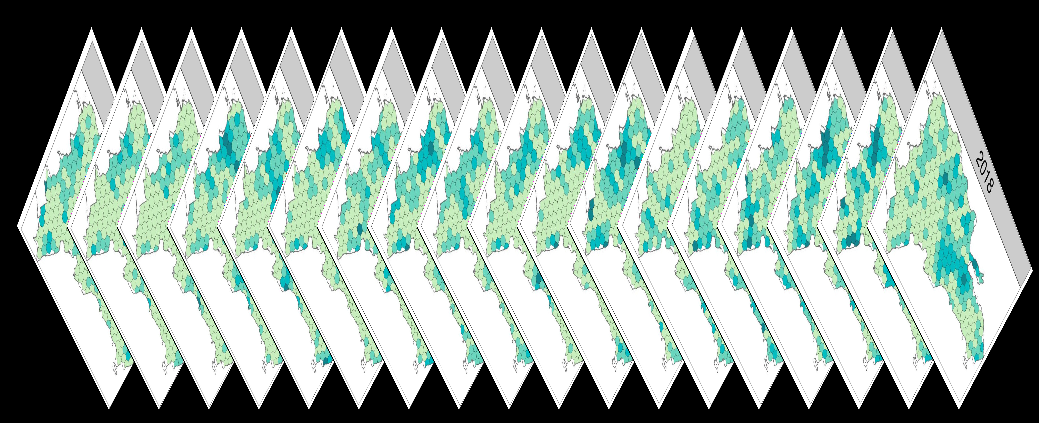

To this:
