Org-mode Syntax Cheat sheet

org-syntax-cheatsheet.org

#+TITLE:     org-syntax-cheatsheet.org
#+AUTHOR:    John Smith
#+EMAIL:     john.smith@email.com
#+DATE:      2012-10-03 Wed
#+DESCRIPTION: Some fancy description.
#+KEYWORDS: keyword1, keyword2.
#+LANGUAGE:  en
#+OPTIONS:   H:3 num:t toc:t \n:nil @:t ::t |:t ^:t -:t f:t *:t <:t
#+OPTIONS:   TeX:t LaTeX:t skip:nil d:nil todo:t pri:nil tags:not-in-toc
#+INFOJS_OPT: view:nil toc:2 ltoc:t mouse:underline buttons:0 path:http://orgmode.org/org-info.js
#+EXPORT_SELECT_TAGS: export
#+EXPORT_EXCLUDE_TAGS: noexport
#+LINK_UP:
#+LINK_HOME:
#+XSLT:
* What else can be specified.
  Also check [[http://orgmode.org/manual/Export-options.html][Manual entry for export options]]
** Summary:
   - #+TITLE:       the title to be shown (default is the buffer name)
   - #+AUTHOR:      the author (default taken from user-full-name)
   - #+DATE:        a date, an Org timestamp1, or a format string for format-time-string
   - #+EMAIL:       his/her email address (default from user-mail-address)
   - #+DESCRIPTION: the page description, e.g. for the XHTML meta tag
   - #+KEYWORDS:    the page keywords, e.g. for the XHTML meta tag
   - #+LANGUAGE:    language for HTML, e.g. ‘en’ (org-export-default-language)
   - #+TEXT:        Some descriptive text to be inserted at the beginning.
   - #+TEXT:        Several lines may be given.
   - #+OPTIONS:     H:2 num:t toc:t \n:nil @:t ::t |:t ^:t f:t TeX:t ...
   - #+BIND:        lisp-var lisp-val, e.g.: org-export-latex-low-levels itemize
   - You need to confirm using these, or configure org-export-allow-BIND
     - #+LINK_UP:     the ``up'' link of an exported page
     - #+LINK_HOME:   the ``home'' link of an exported page
     - #+LaTeX_HEADER: extra line(s) for the LaTeX header, like \usepackage{xyz}
     - #+EXPORT_SELECT_TAGS:   Tags that select a tree for export
     - #+EXPORT_EXCLUDE_TAGS:  Tags that exclude a tree from export
     - #+XSLT:        the XSLT stylesheet used by DocBook exporter to generate FO file
   - #+SETUPFILE: path to setup file. (simplifies frequent use of the same options)
   - #+STYLE:    <link rel="stylesheet" type="text/css" href="stylesheet.css" /> (for html export)
** Meaning of the options
   - H:         set the number of headline levels for export
   - num:       turn on/off section-numbers
   - toc:       turn on/off table of contents, or set level limit (integer)
   - \n:        turn on/off line-break-preservation (DOES NOT WORK)
   - @:         turn on/off quoted HTML tags
   - ::         turn on/off fixed-width sections
   - |:         turn on/off tables
   - ^:         turn on/off TeX-like syntax for sub- and superscripts.  If you write "^:{}", a_{b} will be interpreted, but the simple a_b will be left as it is.
   - -:         turn on/off conversion of special strings.
   - f:         turn on/off footnotes like this[1].
   - todo:      turn on/off inclusion of TODO keywords into exported text
   - tasks:     turn on/off inclusion of tasks (TODO items), can be nil to remove all tasks, todo to remove DONE tasks, or list of kwds to keep
   - pri:       turn on/off priority cookies
   - tags:      turn on/off inclusion of tags, may also be not-in-toc
   - <:         turn on/off inclusion of any time/date stamps like DEADLINES
   - *:         turn on/off emphasized text (bold, italic, underlined)
   - TeX:       turn on/off simple TeX macros in plain text
   - LaTeX:     configure export of LaTeX fragments.  Default auto
   - skip:      turn on/off skipping the text before the first heading
   - author:    turn on/off inclusion of author name/email into exported file
   - email:     turn on/off inclusion of author email into exported file
   - creator:   turn on/off inclusion of creator info into exported file
   - timestamp: turn on/off inclusion creation time into exported file
   - d:         turn on/off inclusion of drawers, or list drawers to include
** CSS Support for HTML export
   - p.author            author information, including email
   - p.date              publishing date
   - p.creator           creator info, about org mode version
   - .title              document title
   - .todo               TODO keywords, all not-done states
   - .done               the DONE keywords, all states that count as done
   - .WAITING            each TODO keyword also uses a class named after itself
   - .timestamp          timestamp
   - .timestamp-kwd      keyword associated with a timestamp, like SCHEDULED
   - .timestamp-wrapper  span around keyword plus timestamp
   - .tag                tag in a headline
   - ._HOME              each tag uses itself as a class, "@" replaced by "_"
   - .target             target for links
   - .linenr             the line number in a code example
   - .code-highlighted   for highlighting referenced code lines
   - div.outline-N       div for outline level N (headline plus text))
   - div.outline-text-N  extra div for text at outline level N
   - .section-number-N   section number in headlines, different for each level
   - div.figure          how to format an inlined image
   - pre.src             formatted source code
   - pre.example         normal example
   - p.verse             verse paragraph
   - div.footnotes       footnote section headline
   - p.footnote          footnote definition paragraph, containing a footnote
   - .footref            a footnote reference number (always a <sup>)
   - .footnum            footnote number in footnote definition (always <sup>)
** LaTeX Support
   By default, the LaTeX output uses the class article.
   - #+LaTeX_CLASS: article
   - #+LaTeX_CLASS_OPTIONS: [a4paper]
   - #+LaTeX_HEADER: \usepackage{xyz}
   - #+LaTeX: Literal LaTeX code for export
   - #+BEGIN_LaTeX
     All lines between these markers are exported literally
     #+END_LaTeX
   - #+CAPTION: A long table
     #+LABEL: tbl:long
     #+ATTR_LaTeX: longtable align=l|lp{3cm}r|l
     | ..... | ..... |
     | ..... | ..... |
   - #+CAPTION: A long table
     #+LABEL: tbl:long
     #+ATTR_LaTeX: longtable align=l|lp{3cm}r|l
     | ..... | ..... |
     | ..... | ..... |
   - #+CAPTION:    The black-body emission of the disk around HR 4049
     #+LABEL:      fig:SED-HR4049
     #+ATTR_LaTeX: width=5cm,angle=90
     [[./img/sed-hr4049.pdf]]
     #+ATTR_LaTeX: width=0.38\textwidth wrap placement={r}{0.4\textwidth}
     [[./img/hst.png]]
   - [[http://orgmode.org/manual/Beamer-class-export.html#Beamer-class-export][Beamer class support]]
   - [[http://orgmode.org/manual/Embedded-LaTeX.html#Embedded-LaTeX][Embedded Latex]]
* References
** Org Babel
   [[http://orgmode.org/worg/org-contrib/babel/index.html][Babel for org-mode]]
** Org
   [[http://orgmode.org/worg/org-tutorials/index.html][Tutorials]]
   [[http://orgmode.org/worg/index.html][Worg main site.]]
* Heading with tags 						  :tag1:tag2:
** TODO Heading 2: Set a deadline and a schedule
   SCHEDULED: <2012-03-06 Tue> DEADLINE: <2012-03-07 Wed>
*** DONE [66%] Heading 3: a list with checkboxes
    1. [X] task 1
    2) [X] task 2
    3. [ ] task 3
** TODO [1/3] Track completion of tasks
*** DONE Finished task
    - State "DONE"       from "TODO"       [2012-03-07 Wed 07:56]
*** STARTED Started task
*** TODO Unstarted task
    - State "TODO"       from "DONE"       [2012-03-07 Wed 08:02]
* Fancy typesetting features
  - *bold* /ital/ _underline_ =code= ~verbatim~ +strike through+
  # comment (not exported)
  - : literal example
  - -----  horizontal line (5 dashes)
* Hyperlinks
  [[http:][hyperlink text]]

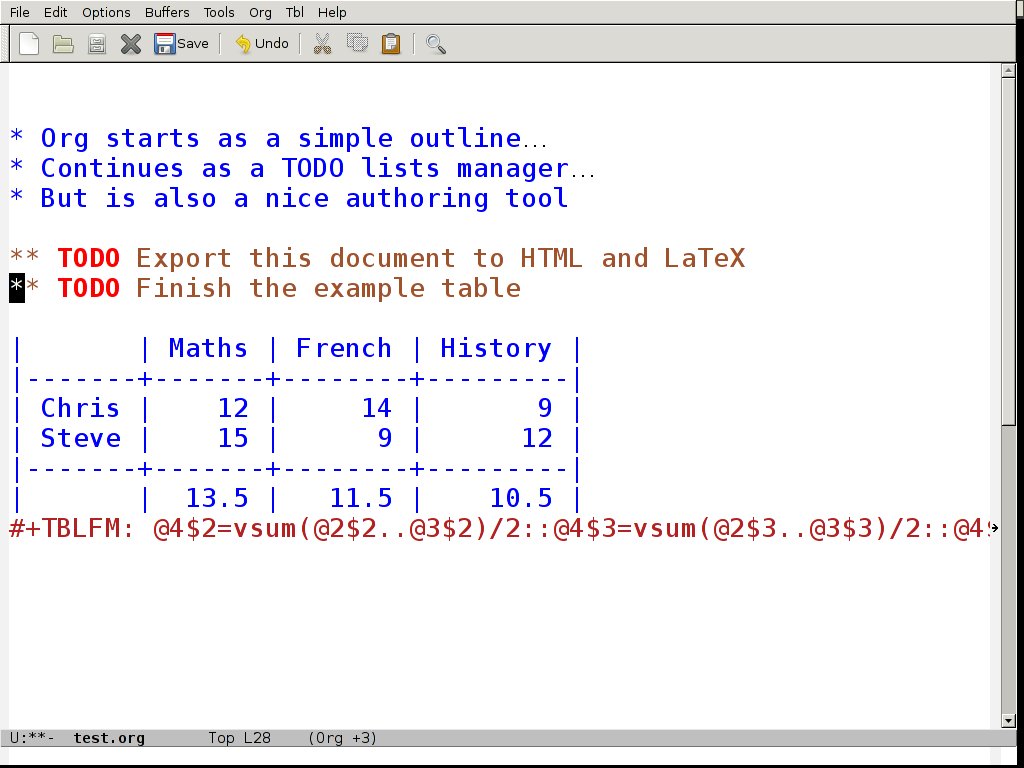

  [[http://orgmode.org/worg/images/orgweb/2.jpg]]
  [[info:org#External links][External Links]]
  [[docview:papers/last.pdf::NNN][targetted link]]
  [[shell:ls *.org][shell commands]]
* Tables and Spreadsheets
  :PROPERTIES:
  :foo:      bar
  :Cats:     Cheese burger
  :END:
** Basic Table
   #+TBLNAME: dates
   | Col1 | Col 2 |
   |------+-------|
   | KW   | Sep   |
   | TW   | Aug   |
   # C-c - :: insert a row of dashes
** Spreadsheet
   #+TBLNAME: square-roots
   | x |         y |
   |---+-----------|
   | 1 |         1 |
   | 2 | 1.4142136 |
   | 3 | 1.7320508 |
   | 4 |         2 |
   #+TBLFM: $2=sqrt($1)
* Source Code
  #+name: R-plot-1-to-10
  #+begin_src R
  plot(1:10)
  #+end_src
  #+name: add1(x=0)
  #+begin_src python :cache :results silent
  return x + 1
  #+end_src
* Mathematical Equations
  \begin{equation}
  \int^x_0 x^2 dx = \frac{x^3}{3}
  \end{equation}
  # C-c C-x C-l

This is really nice!

Saved a lot of time for me.
