This is a work in progress because I have not been able to build an apk yet, but I can build an Android executable.
I keep this notes for my future self and for you if you are fighting against this beast too.
Please read it all, because I will write down every do's and dont's that I have found.
I will polish the document as soon as I have everything.
A rust hello world project. This is the Cargo.toml:
[package]
name = "hello_world"
version = "0.1.0"
authors = ["Ignacio Lago <[email protected]>"]
edition = "2018"
[dependencies]A rust + nannou project, nothing special about it. This is the Cargo.toml:
[package]
name = "synthwave84"
version = "0.1.0"
authors = ["Ignacio Lago <[email protected]>"]
edition = "2018"
[dependencies]
nannou = "0.12"The main tutorial is outdated: Building and Deploying a Rust library on Android
These are the current steps (as for Feb 2020):
Probably the easiest way to download the SDKs: Android Studio. If you are doing stuff for Android you would need it anyway.
Open Android Studio.
From the toolbar, go to
Android Studio > Preferences > Appearance & Behaviour > Android SDK > SDK Tools.
Check the following options for installation and click OK.
- Android SDK Tools
- NDK (Side by side)

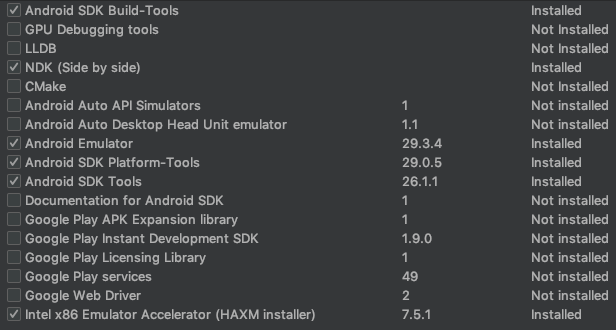

These are my selected options:
Alternative: NDK direct download
This is a spoiler, cargo-apk will need NDK 18b, the latest version to use gcc. From r19 it uses Cmake.
Links:
- r18 https://developer.android.com/ndk/guides/standalone_toolchain
- r19 https://developer.android.com/ndk/guides/other_build_systems
> cargo apk build
Compiling android_native_app_glue.c
error: could not execute process `/Users/ignlg/Library/Android/sdk/ndk/21.0.6113669/toolchains/arm-linux-androideabi-4.9/prebuilt/darwin-x86_64/bin/arm-linux-androideabi-gcc /Users/ignlg/Library/Android/sdk/ndk/21.0.6113669/sources/android/native_app_glue/android_native_app_glue.c -c -o /Users/ignlg/Development/rust/android-test/target/android-artifacts/arm-linux-androideabi/android_native_app_glue.o --sysroot /Users/ignlg/Library/Android/sdk/ndk/21.0.6113669/platforms/android-18/arch-arm` (never executed)
Caused by:
No such file or directory (os error 2)
Look at the end of that command:
/Users/ignlg/Library/Android/sdk/ndk/21.0.6113669/platforms/android-18/arch-arm
You need android-18.
Some links about it:

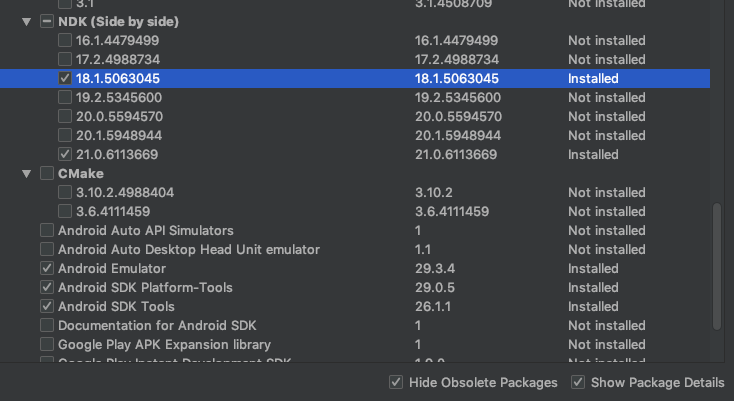

On the SDK Tools select Show Package Details and, under NDK (Side by side) select: 18.1.5063045
Via Hombrew
brew install cmake
Note: I have not tested the alternative: Installing it with Android Studio.
The OpenSSL version that comes with my macOS is:
> openssl version
LibreSSL 2.6.5
error: failed to run custom build command for `openssl v0.9.24`
process didn't exit successfully: `/build/rustup/src/rustup.rs-1.14.0/target/release/build/openssl-4e050bcc8f5aae18/build-script-build` (exit code: 101)
--- stderr
thread 'main' panicked at 'Unable to detect OpenSSL version', /build/.cargo/registry/src/github.com-1ecc6299db9ec823/openssl-0.9.24/build.rs:16:14
note: Run with `RUST_BACKTRACE=1` for a backtrace.
warning: build failed, waiting for other jobs to finish...
error: build failed
Via Homebrew
brew install openssl
Configure your build environment (.bashrc, .zprofile, etc):
export OPENSSL_INCLUDE_DIR=/usr/local/opt/openssl/include
export OPENSSL_LIB_DIR=/usr/local/opt/openssl/lib
Variables for NDK >= r19 (change 21.0.6113669 with your latest version):
export ANDROID_HOME=$HOME/Library/Android/sdk
export NDK_HOME=$ANDROID_HOME/ndk/21.0.6113669
export NDK_ROOT=$ANDROID_HOME/ndk/21.0.6113669
OR Variables for NDK r18:
export ANDROID_HOME=$HOME/Library/Android/sdk
export NDK_HOME=$ANDROID_HOME/ndk/18.1.5063045
export NDK_ROOT=$ANDROID_HOME/ndk/18.1.5063045
Note that the version used is 18.1.5063045 for cargo apk.
❯ ${NDK_HOME}/build/tools/make_standalone_toolchain.py --api 26 --arch arm64 --install-dir NDK/arm64
WARNING:__main__:make_standalone_toolchain.py is no longer necessary. The
$NDK/toolchains/llvm/prebuilt/darwin-x86_64/bin directory contains target-specific scripts that perform
the same task. For example, instead of:
$ python $NDK/build/tools/make_standalone_toolchain.py \
--arch arm64 --api 26 --install-dir toolchain
$ toolchain/bin/clang++ src.cpp
Instead use:
$ $NDK/toolchains/llvm/prebuilt/darwin-x86_64/bin/aarch64-linux-android26-clang++ src.cpp
Modify or create $HOME/.cargo/config:
[target.aarch64-linux-android]
ar = "Library/Android/sdk/ndk/21.0.6113669/toolchains/llvm/prebuilt/darwin-x86_64/bin/aarch64-linux-android-ar"
linker = "Library/Android/sdk/ndk/21.0.6113669/toolchains/llvm/prebuilt/darwin-x86_64/bin/aarch64-linux-android29-clang"
[target.armv7-linux-androideabi]
ar = "Library/Android/sdk/ndk/21.0.6113669/toolchains/llvm/prebuilt/darwin-x86_64/bin/arm-linux-androideabi-ar"
linker = "Library/Android/sdk/ndk/21.0.6113669/toolchains/llvm/prebuilt/darwin-x86_64/bin/armv7a-linux-androideabi29-clang"
[target.i686-linux-android]
ar = "Library/Android/sdk/ndk/21.0.6113669/toolchains/llvm/prebuilt/darwin-x86_64/bin/i686-linux-androideabi-ar"
linker = "Library/Android/sdk/ndk/21.0.6113669/toolchains/llvm/prebuilt/darwin-x86_64/bin/i686-linux-androideabi29-clang"
Note that the version used should be 18.1.5063045 for cargo apk.
mkdir ~/.NDK;
$NDK_HOME/build/tools/make_standalone_toolchain.py --api 26 --arch arm64 --install-dir ~/.NDK/arm64;
$NDK_HOME/build/tools/make_standalone_toolchain.py --api 26 --arch arm --install-dir ~/.NDK/arm;
$NDK_HOME/build/tools/make_standalone_toolchain.py --api 26 --arch x86 --install-dir ~/.NDK/x86;
rustup target add aarch64-linux-android armv7-linux-androideabi i686-linux-android
Important note:
At this point, even using NDK 21.x, any of these commands should work:
cargo build --target aarch64-linux-android --release
cargo build --target armv7-linux-androideabi --release
cargo build --target i686-linux-android --release
If you receive an error mentioning cargo_apk_injected_glue_get_native_window then cargo-apk is needed.
After executing:
> cargo build --release --all --target armv7-linux-androideabi
error: linking with `/Users/ignlg/Library/Android/sdk/ndk/21.0.6113669/toolchains/llvm/prebuilt/darwin-x86_64/bin/armv7a-linux-androideabi29-clang` failed: exit code: 1
. . .
= note: /Users/ignlg/.cargo/registry/src/github.com-1ecc6299db9ec823/android_glue-0.2.3/src/lib.rs:123: error: undefined reference to 'cargo_apk_injected_glue_get_native_window'
/Users/ignlg/.cargo/registry/src/github.com-1ecc6299db9ec823/android_glue-0.2.3/src/lib.rs:123: error: undefined reference to 'cargo_apk_injected_glue_get_native_window'
/Users/ignlg/.cargo/registry/src/github.com-1ecc6299db9ec823/android_glue-0.2.3/src/lib.rs:123: error: undefined reference to 'cargo_apk_injected_glue_get_native_window'
/Users/ignlg/.cargo/registry/src/github.com-1ecc6299db9ec823/android_glue-0.2.3/src/lib.rs:123: error: undefined reference to 'cargo_apk_injected_glue_get_native_window'
/Users/ignlg/.cargo/registry/src/github.com-1ecc6299db9ec823/android_glue-0.2.3/src/lib.rs:77: error: undefined reference to 'cargo_apk_injected_glue_add_sender'
/Users/ignlg/.cargo/registry/src/github.com-1ecc6299db9ec823/android_glue-0.2.3/src/lib.rs:102: error: undefined reference to 'cargo_apk_injected_glue_set_multitouch'
clang: error: linker command failed with exit code 1 (use -v to see invocation)
cargo install cargo-apk
> cargo apk build --release
error: Could not execute `gradle`. Did you
install it? (If already installed on windows with `gradle.bat`
in your path, you must customise the gradle command to
`gradle.bat` with the CARGO_APK_GRADLE_COMMAND environment
variable).
Via Homebrew:
brew install gradle
> cargo apk build
Compiling android_native_app_glue.c
/Users/ignlg/Library/Android/sdk/ndk/18.1.5063045/sources/android/native_app_glue/android_native_app_glue.c:18:10: fatal error: 'jni.h' file
not found
#include <jni.h>
^~~~~~~
1 error generated.
error: process didn't exit successfully: `/Users/ignlg/Library/Android/sdk/ndk/18.1.5063045/toolchains/arm-linux-androideabi-4.9/prebuilt/darwin-x86_64/bin/arm-linux-androideabi-gcc /Users/ignlg/Library/Android/sdk/ndk/18.1.5063045/sources/android/native_app_glue/android_native_app_glue.c -c -o /Users/ignlg/Development/rust/android-test/target/android-artifacts/arm-linux-androideabi/android_native_app_glue.o --sysroot /Users/ignlg/Library/Android/sdk/ndk/18.1.5063045/platforms/android-18/arch-arm` (exit code: 1)
