Deploying a Wordpress site using AWS RDS and free tier EC2 instance - Hands-on

I'm currently preparing AWS Certified Solution Architect - Associate certificate.
The following gist is intended to anyone looking to launch a Wordpress blog or website on AWS.
We gonna be using Amazon RDS (Amazon Relational Database Service) as well as an EC2 instance.
I performed this setup on my Ubuntu 18.04.2 LTS.
To check your OS version, execute $ lsb_release -a in your Terminal.

Installations

None. Just log into your AWS management console, https://console.aws.amazon.com.
You'll need to perform several tasks in your CLI regarding SSH keygen, so make sure you check the following prerequisites.

Prerequisites

First, make sure Oracle jdk is installed. I recommend java 1.8.0
To uninstall effectively your current jdk, perform this:
$ sudo apt-get remove openjdk*
$ sudo apt-get remove --auto-remove openjdk*
$ sudo apt-get purge openjdk*
$ sudo apt-get purge --auto-remove openjdk*

To install java 1.8.0, open Terminal Ctrl+Alt+T and run the command:
$ sudo add-apt-repository ppa:webupd8team/java // adds PPA repository
$ sudo apt-get update // updates package list
$ sudo apt-get install openjdk-8-jdk // installs openjdk


$ javac -version // shows your new java version

Author

• Isaac Arnault - AWS Cloud series - Related tags: #EC2 #EFS #AWSCLI #Linux

RDS_EC2.md

We can skip Part 1 if we have a User and Group already provisioned.

Otherwise, make sure to create a User and Group via IAM, https://console.aws.amazon.com/iam/home.

Part 1 : create a User and a Group using IAM

• We log into our AWS management console using $ https://console.aws.amazon.com.

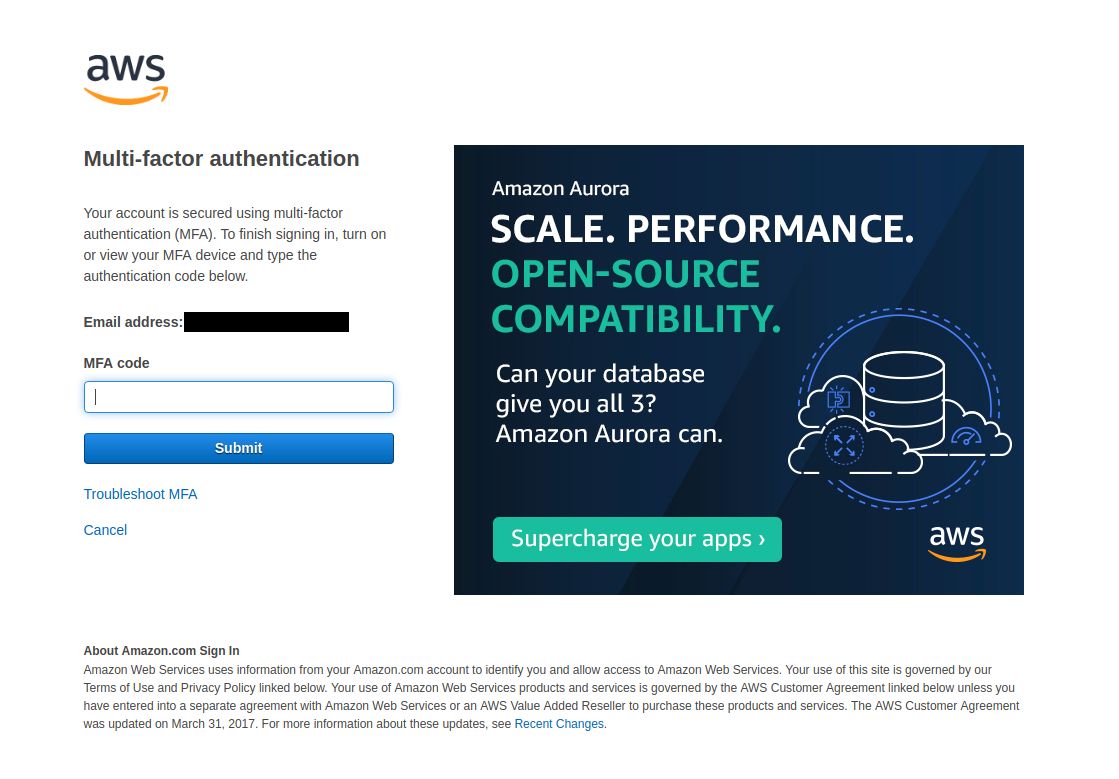

I'm using MFA to secure my root account access coupled with Google Authenticator on my Android smartphone.

We can bypass this step and login normally to AWS Management Console.

🔴 See output

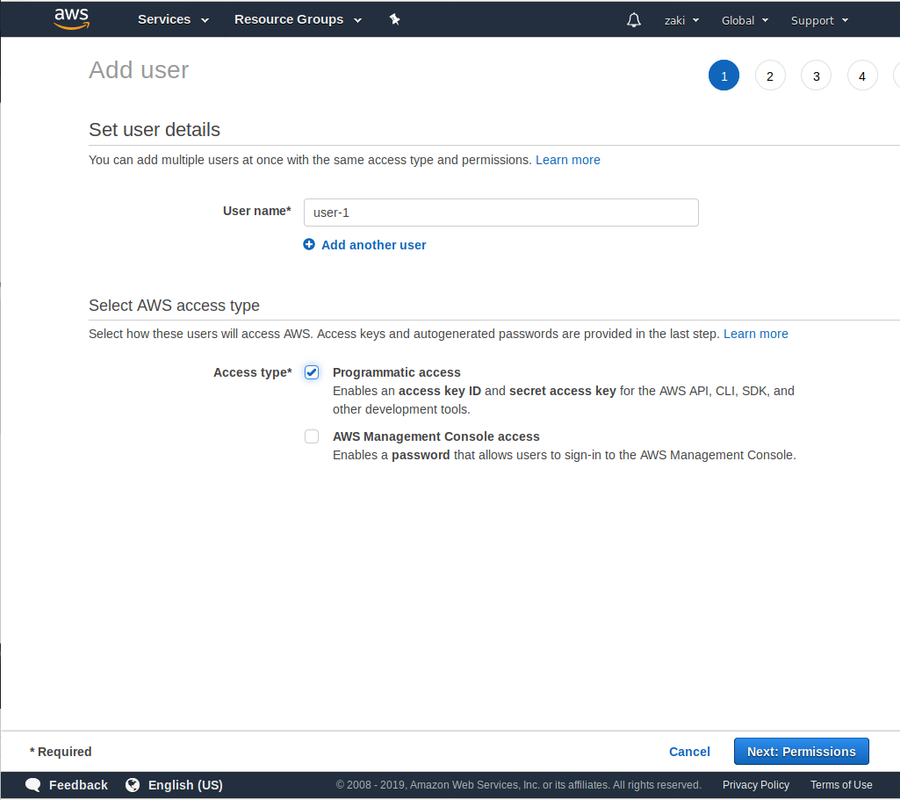

We go to Services > IAM > Users > Add user

User name : user-1

Access type : Programmatic access

🔴 See output

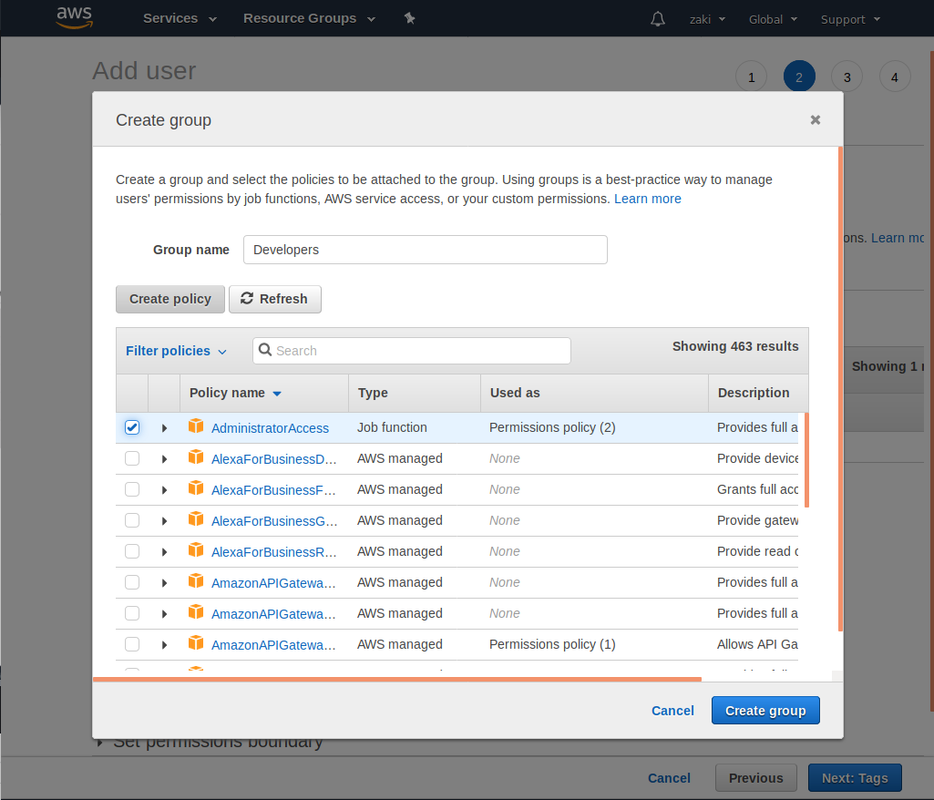

Next : Permissions > Create group

Group name : Developers

Administrator Access > Create group

🔴 See output

Next : Tags

Key: dev-1 | Value: name of the developer

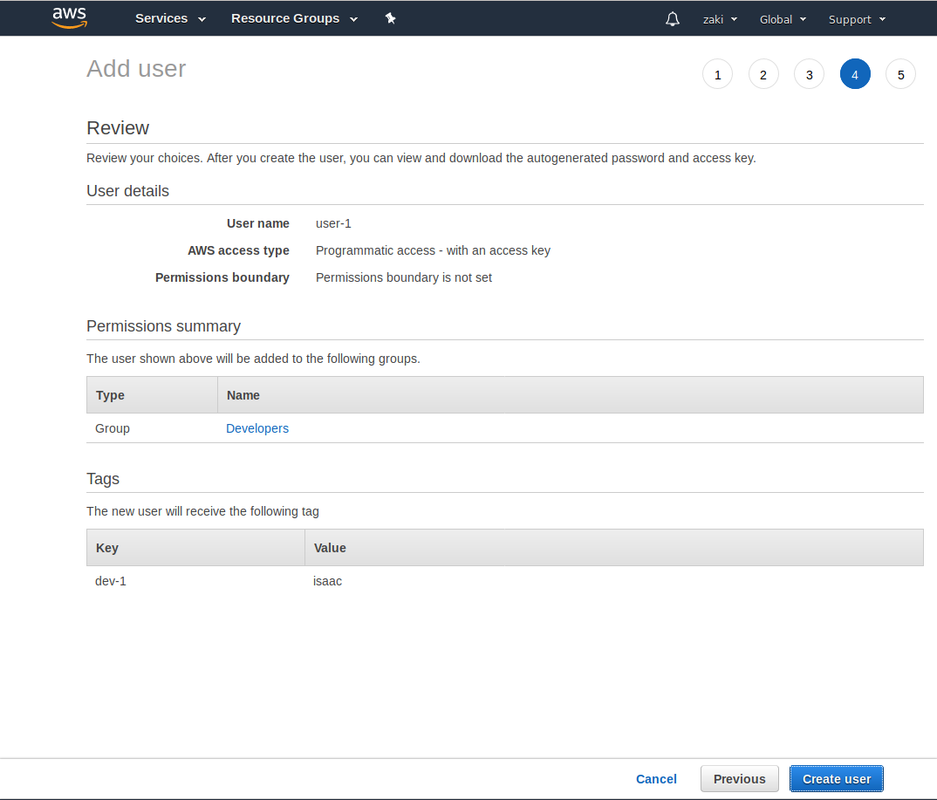

Create user

🔴 See output

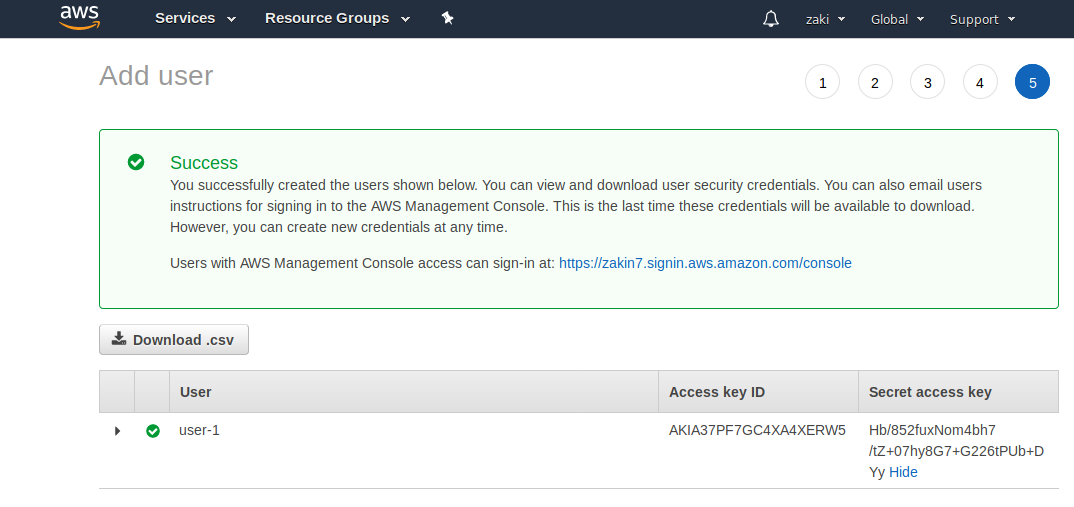

Download .csv (you're going to use these credentials later on in this tutorial)

• We write down our Access key ID and Secret access key > close the window


🔴 See output

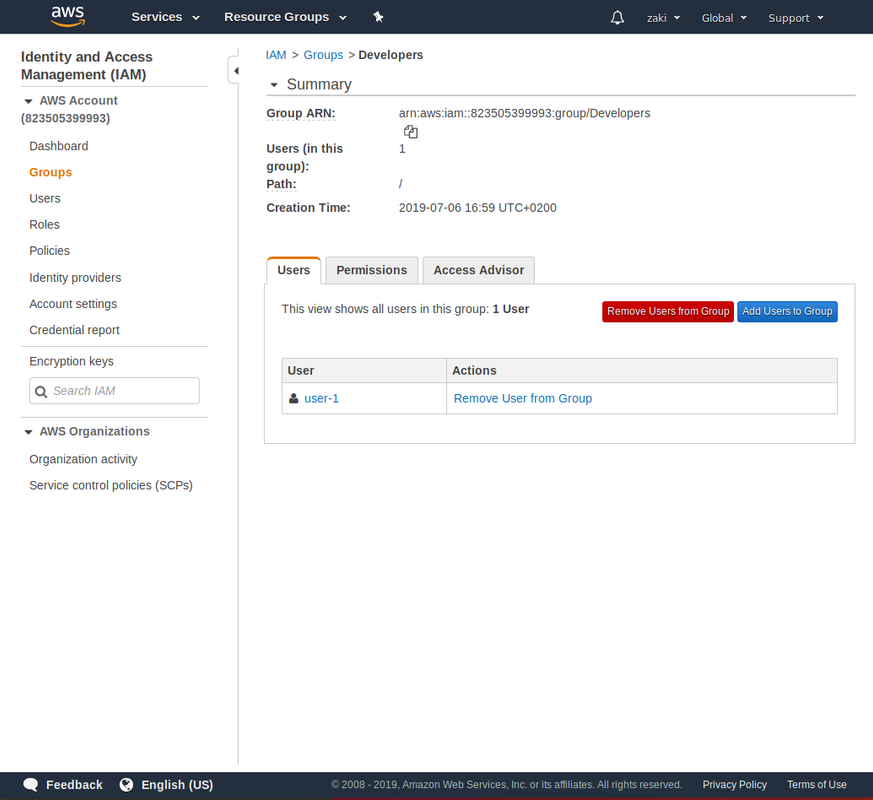

• Now in Groups we should have one group named Developers which should list user-1.

🔴 See output

---

Part 2 : deploy one EC2 instance using a custom script

Services > EC2

• In "Create Instance" section, click on "Launch Instance"


We're going to choose 2 instances

• We select Amazon Linux 2 AMI (HVM), SSD Volume Type


• Instance type: choose t2.micro (Free tier eligible). Instance comes with 1vCPU and 1 GiB (memory).


Next: Configure instance details

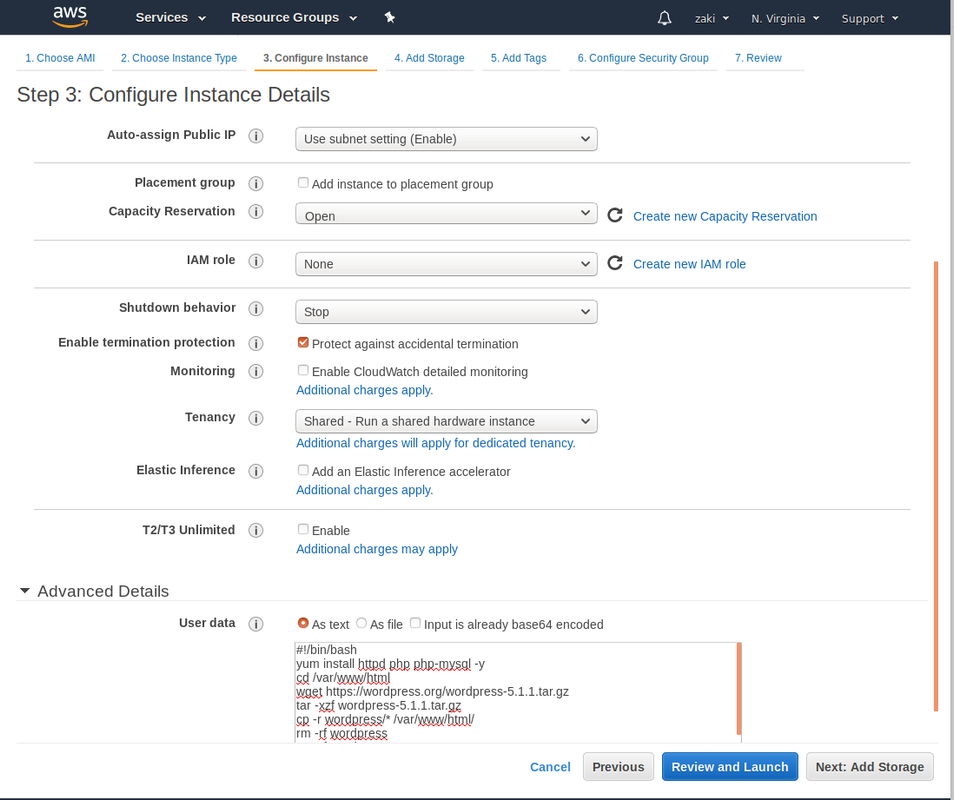

We choose to deploy one instances and we provision the Advanced details section with the following script:

🔵 See script

#!/bin/bash
yum install httpd php php-mysql -y
cd /var/www/html
wget https://wordpress.org/wordpress-5.1.1.tar.gz
tar -xzf wordpress-5.1.1.tar.gz
cp -r wordpress/* /var/www/html/
rm -rf wordpress
rm -rf wordpress-5.1.1.tar.gz
chmod -R 755 wp-content
chown -R apache:apache wp-content
service httpd start
chkconfig httpd on

• We leave all fields as they're by default, we just Enable termination protection.


🔴 See output

Next : Add Storage

• We leave all fields as they're by default.


Next : Add Tags
We use as Key : Name and Value : WP-Server.

Next : Configure Security Group

• We create a new security group > Security group name: WP-SG > Description : WordPress Server Security Group


Make sure you Add Rule (add 4 new rules):

1. HTTP- This will enable access to Port 80.

2. SSH - This will enable access to Port 22 using source 0.0.0.0/0

3. SSH - This will enable access to Port 22 using source::/0

4. HTTPS - This will enable access to Port 443.


🔴 See output

Review and launch > Launch > Create New Key Pair > Key Pair Name : EC2KP > Download Key Pair.

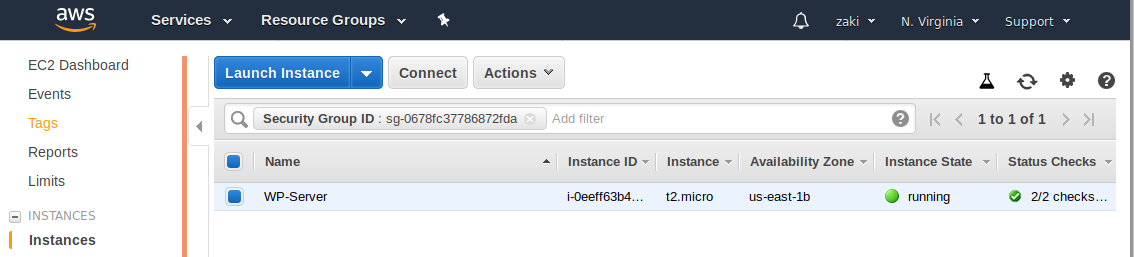

Launch Instances > View Instances

🔴 See output

• At this point of the tutorial, we should have one running EC2 instance, a User and a Group created via IAM.

---

Part 3 : create a RDS instance

• Go to Services > Database > RDS

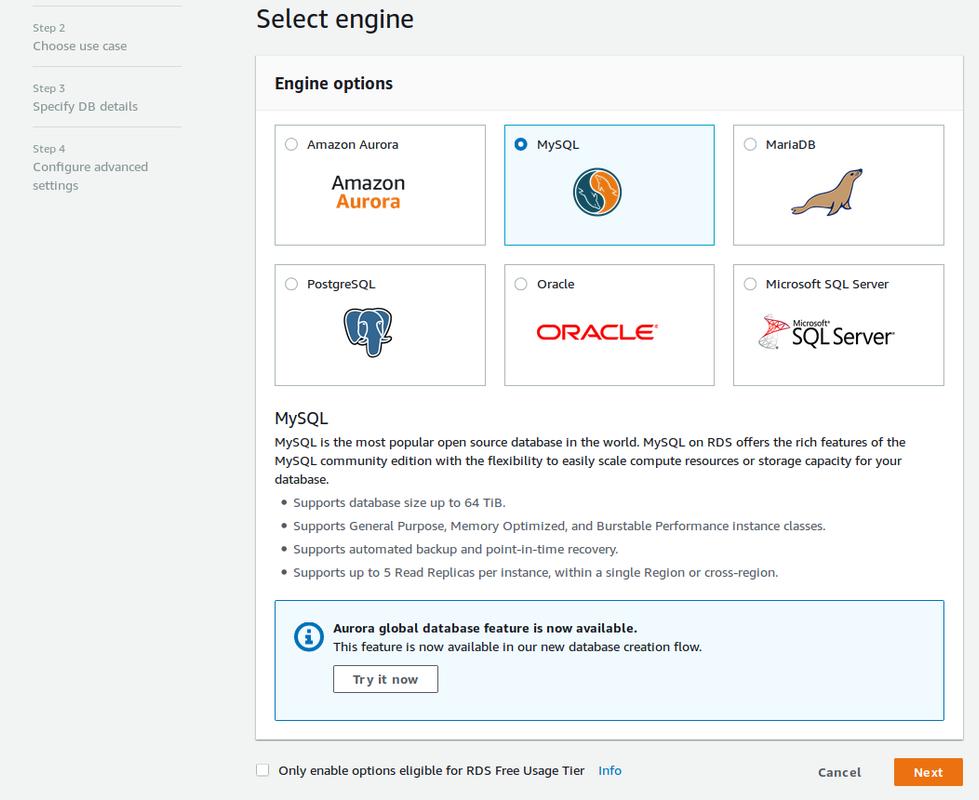

• We'll click on "Create database" and select "MySQL" then "Next"


🔴 See output

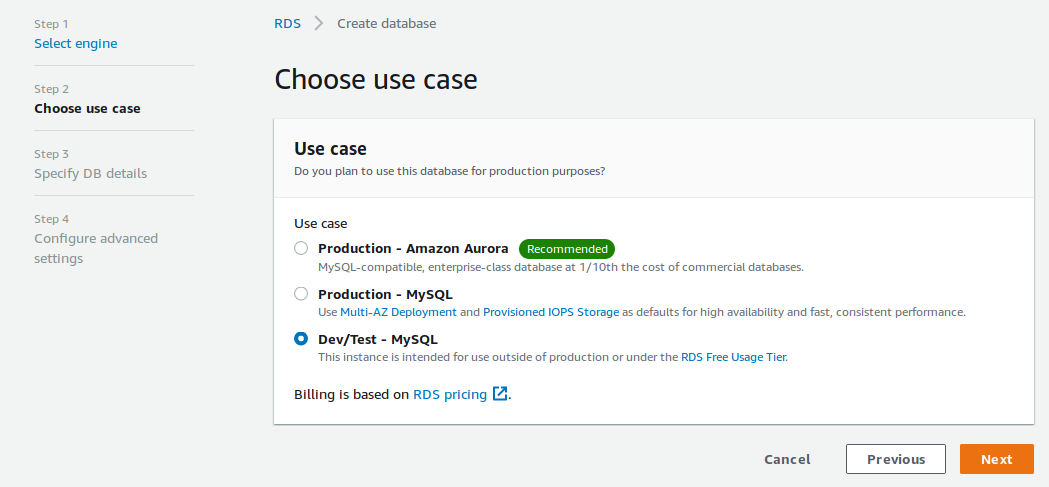

• Choose use case - select Dev/Test - MySQL


🔴 See output

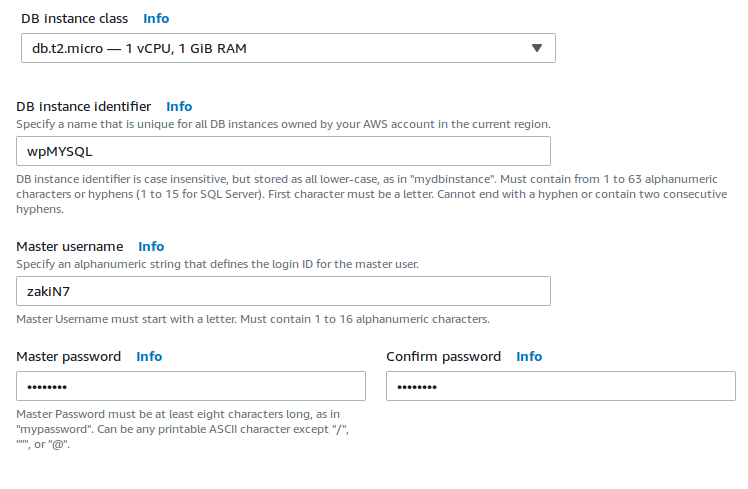

• Specify DB details : we'll leave all fields as they're by default, except :


DB instance class : select db.t2.micro which comes with 1 vCPU and 1 GiB RAM. Obviously, if you need more computational resources, feel free to scale it up.

DB instance identifier : wp_mySQL

🔴 See output

Configure advanced settings

• Database options : Database name


🔴 See output

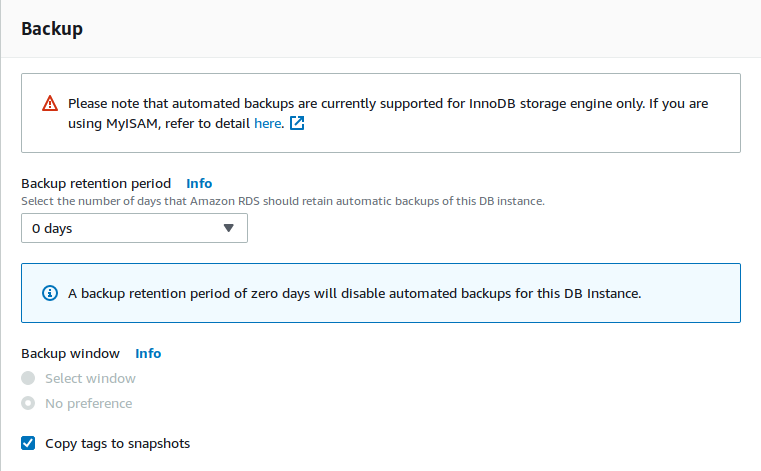

• Backup : Backup retention period


Set it to 0 days

🔴 See output

• Deletion protection : we enable deletion protection, then we "Create database".


🔴 See output

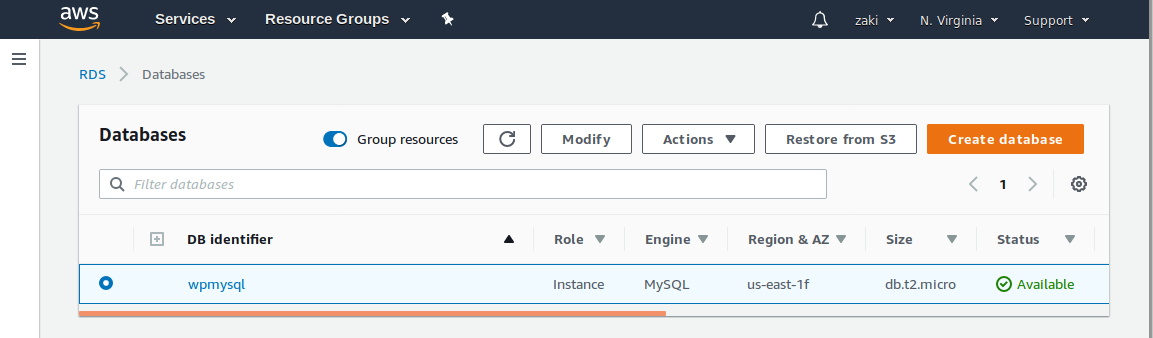

To verify that our RDS instance is deployed, we go to RDS > atabases

🔴 See output

Part 4 : make both security groups talk to each other

We'll now enable the communication between our originate Security Group and the one created once we set an Amazon RDS instance.

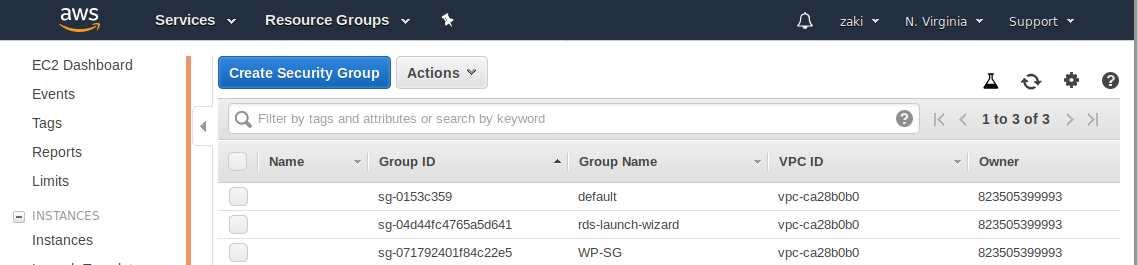

Go to EC2 > Security Groups. At this stage of the tutorial you should see 3 security groups : one is default, the second one is the one created by the Amazon RDS instance which starts wich Group Name is rds-launch-wizard, and the last one is the one we manually created.

🔴 See output

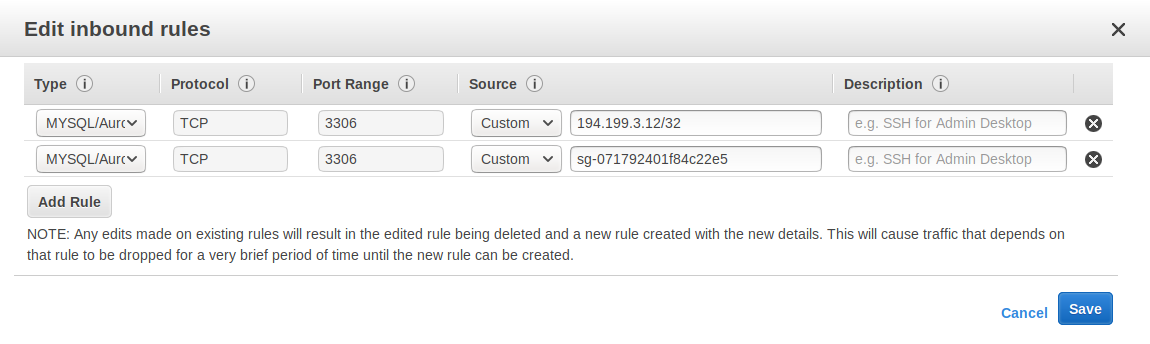

• Select rds-launch-wizard and go to "Inbound". Click "Edit" > Add Rule > Select MYSQL/Aurora and enter GroupID of WP-SG, then "Save". See below output.


🔴 See output

Once this is done, move on Part 5 to deploy your Wordpress site.

Part 5 : deploy your Wordpress site

5.1: tune your WP server on your web browser

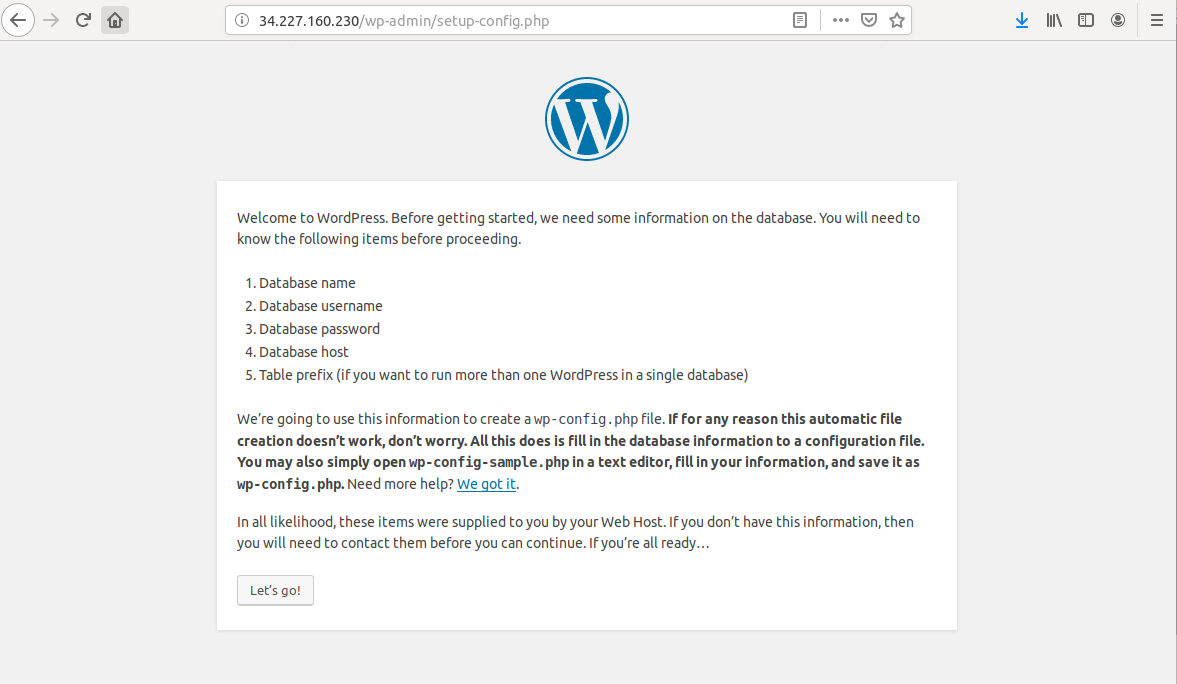

Connect to IPv4 Public IP of your EC2 instance in your web browser. You should see the below screen.

🔴 See output

Click "Let's go" and fill up the provided fields.

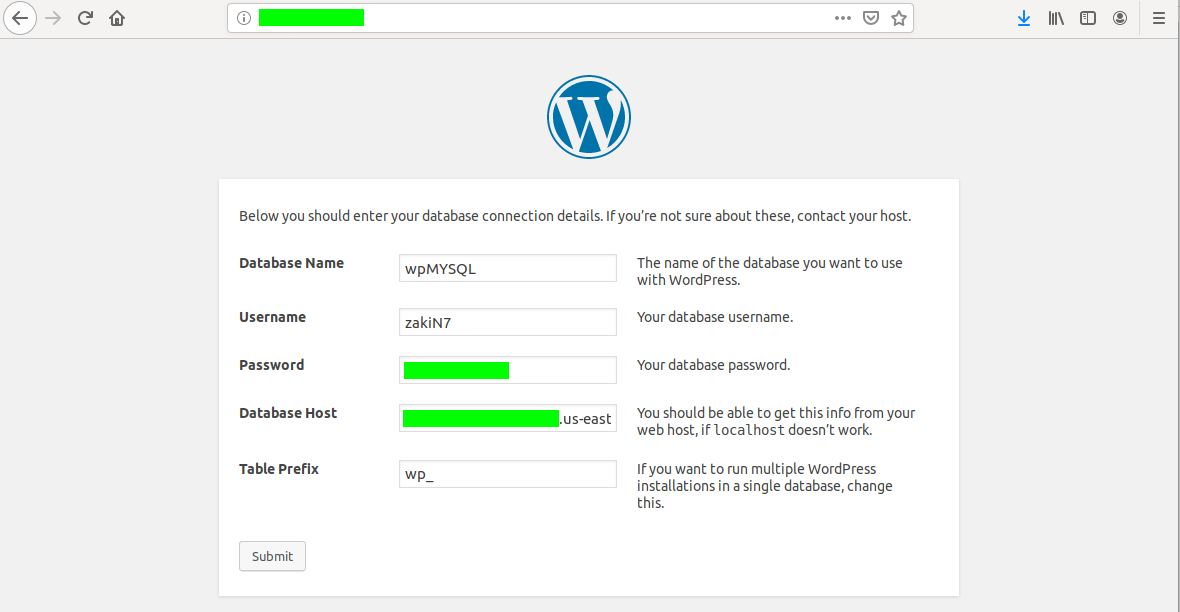

Replace "localhost" in "Database host" filed by your RDS endpoint. Go to RDS > Databses > select your database and copy "Endpoint url". Paste it into "Database Host" field.

🔴 See output

Before you "Run the installation", connect to your EC2 instance.

5.2: connect to your EC2 instance

We should remember that we've downloaded an EC2KP.pem file earlier. We will now move this file to a newly created directory.

Ctrl + Alt + T to open a new CLI window

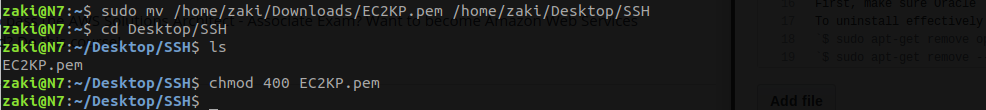

$ cd Desktop > $ mkdir SSH - Creates an SSH directory to store our Key Pair (credentials).

$ cd Downloads > $ sudo mv /home/zaki/Downloads/EC2KP.pem /home/zaki/Desktop>SSH

• Go to your SSH directory and check that the file persists there : $ cd Desktop/SSH > ls


• We change the permissions to .pem file, ie: $ chmod 400 EC2KP.pem.


🔴 See output

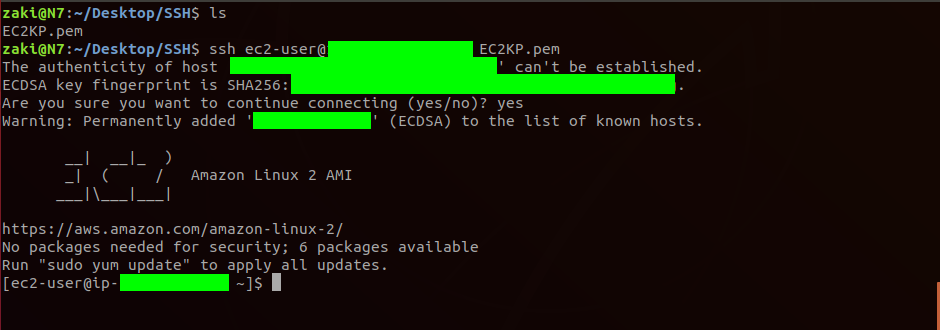

• We will now connect to our EC2 instance using our CLI


• Use : $ ssh ec2-user@your-ipv4-public-address -i EC2KP.pem.


• Type "yes" when prompted by the CLI


🔴 See output

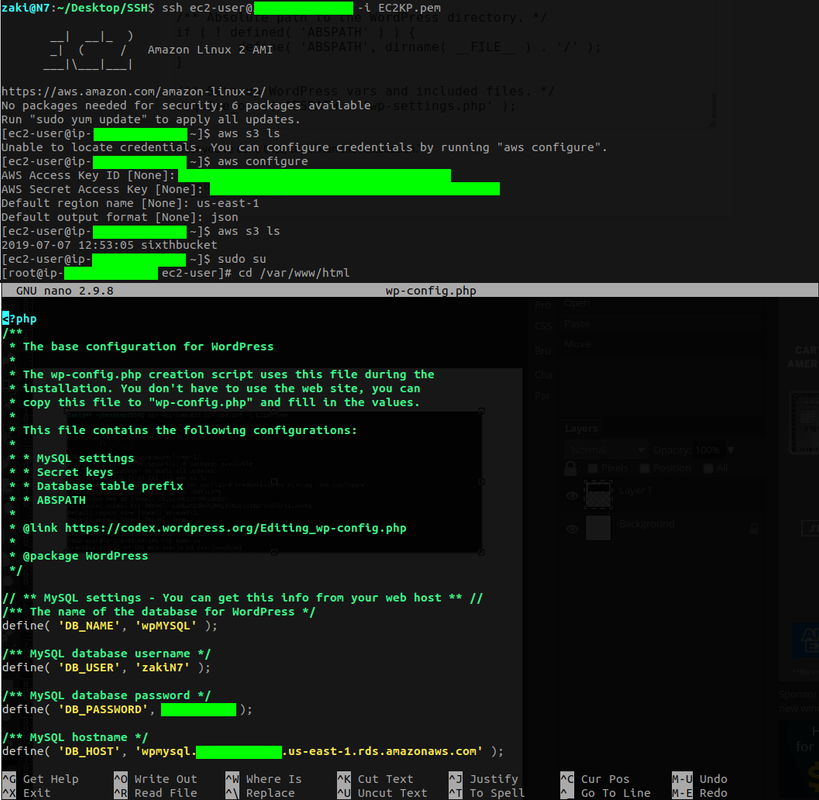

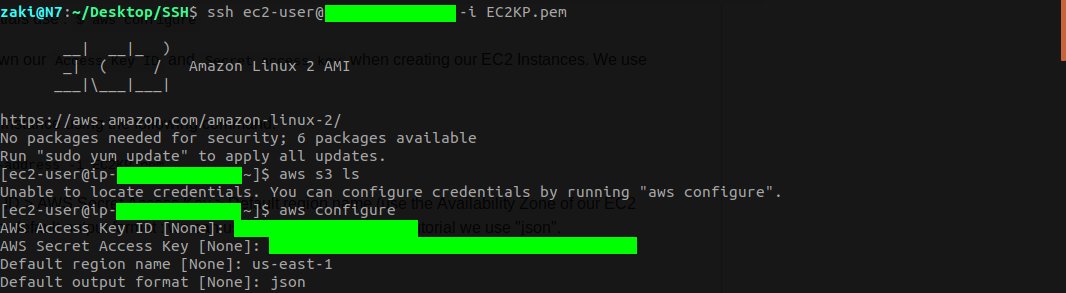

• Go in root mode : $ sudo su and use $ aws s3 ls. The last command should return "Unable to locate credentials. We can configure credentials by running "aws configure".


To use your provided credentials use : $ aws configure

Remember that we wrote down our Access Key ID and Secret access key when creating our EC2 Instances. We use the provided credentials.

• We connect to our EC2 instance using the following command:

$ ssh ec2-user@your-ipv4-address -i EC2KP.pem

• We provide Access Key ID > AWS Secret Access Key > Default region name (use the Availability Zone of our EC2 instance, ie : us-east-1) > default output format : we can use "text" or "json". In this tutorial we use "json".


🔴 See output

---

Important
If buckets do not show up, we can go to Users > Security credentials > Create a new access key. Or we can create a new EC2 instance and restart the procedure in our `AWS` CLI.

When you Create access key, you'll have to download a file "access.Keys.csv".

When connected to SSH, we should perform the following commands :

$ sudo su - to elevate our priviledges

$ cd /var/www/html - to enter html directory

$ nano wp-config.php - to create and set up a Wordpress conf file

At this step, we should go back to our web browser and copy/paste the provided script upon Wordpress installation. We paste it into our config.php file. See below :

🔴 See output

Ctrl + x and y - to exit from our config.php file and save the file

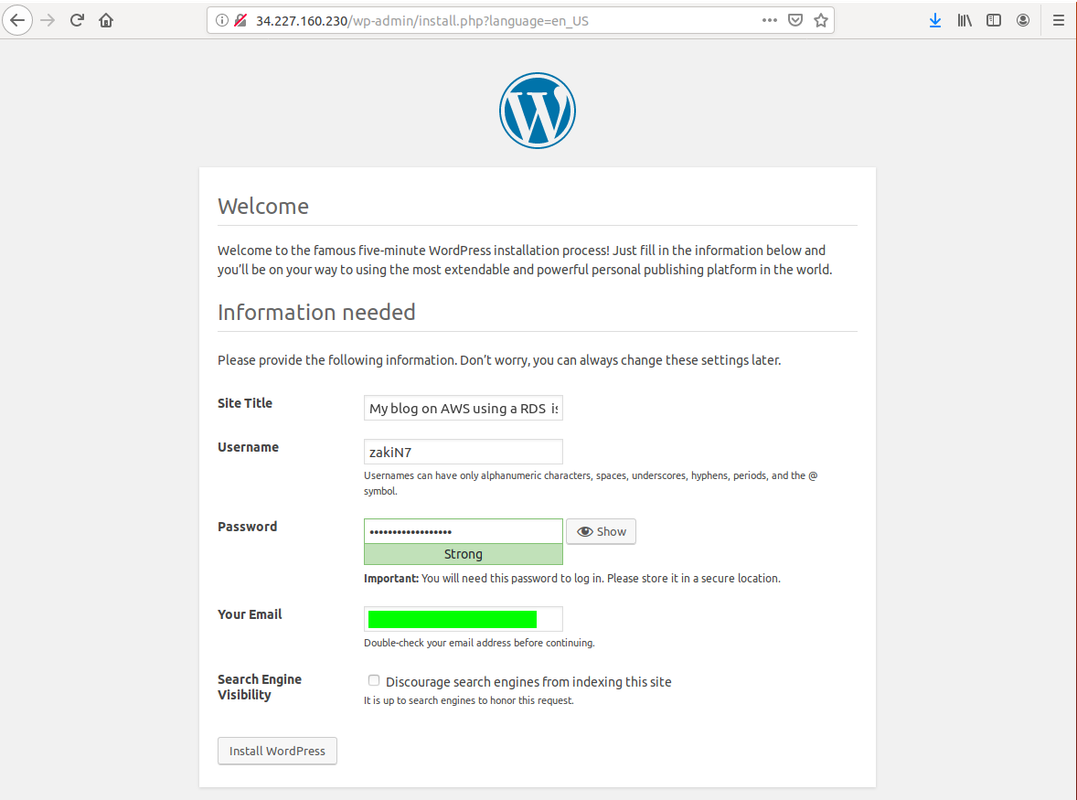

Now we can go back to our web browser to complete the installation. Click "Run the installation" and fill out the form.

🔴 See output

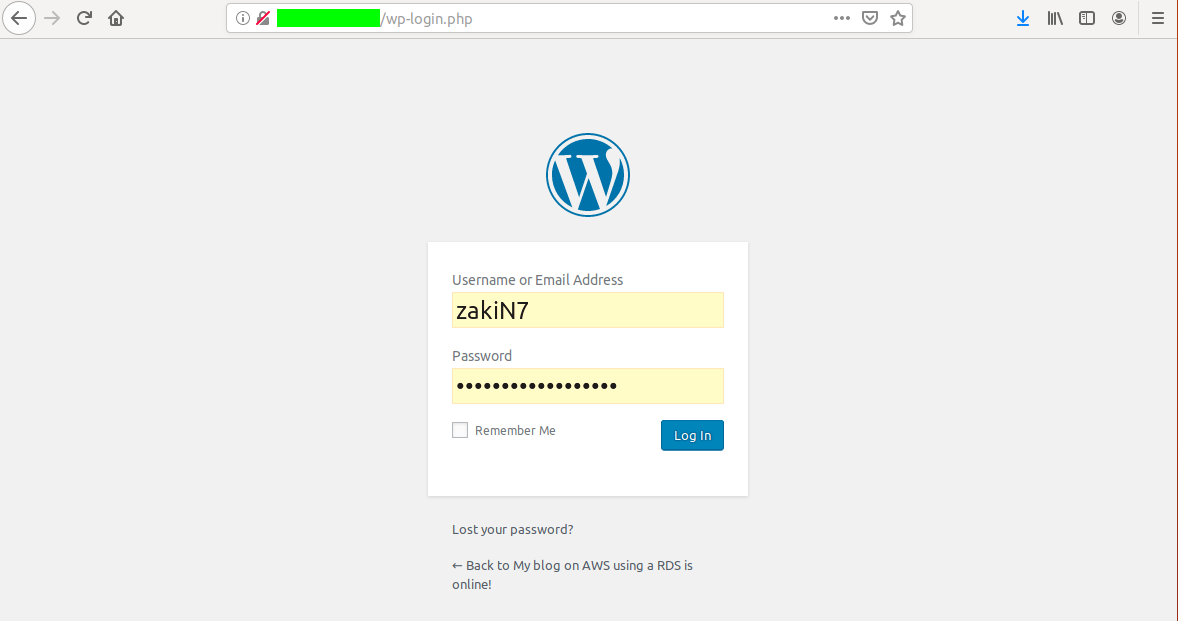

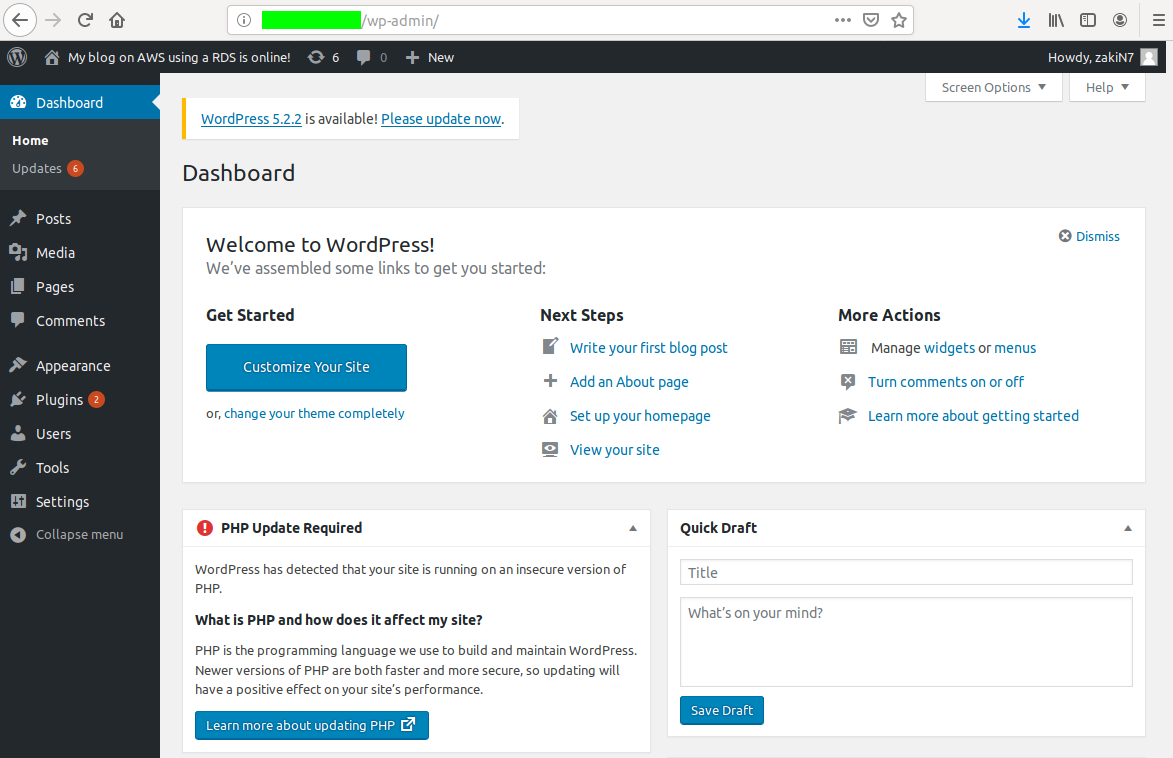

We should be able to log into our Wordpress dashboard if everything went fine.

🔴 See output

🔵 See dashboard

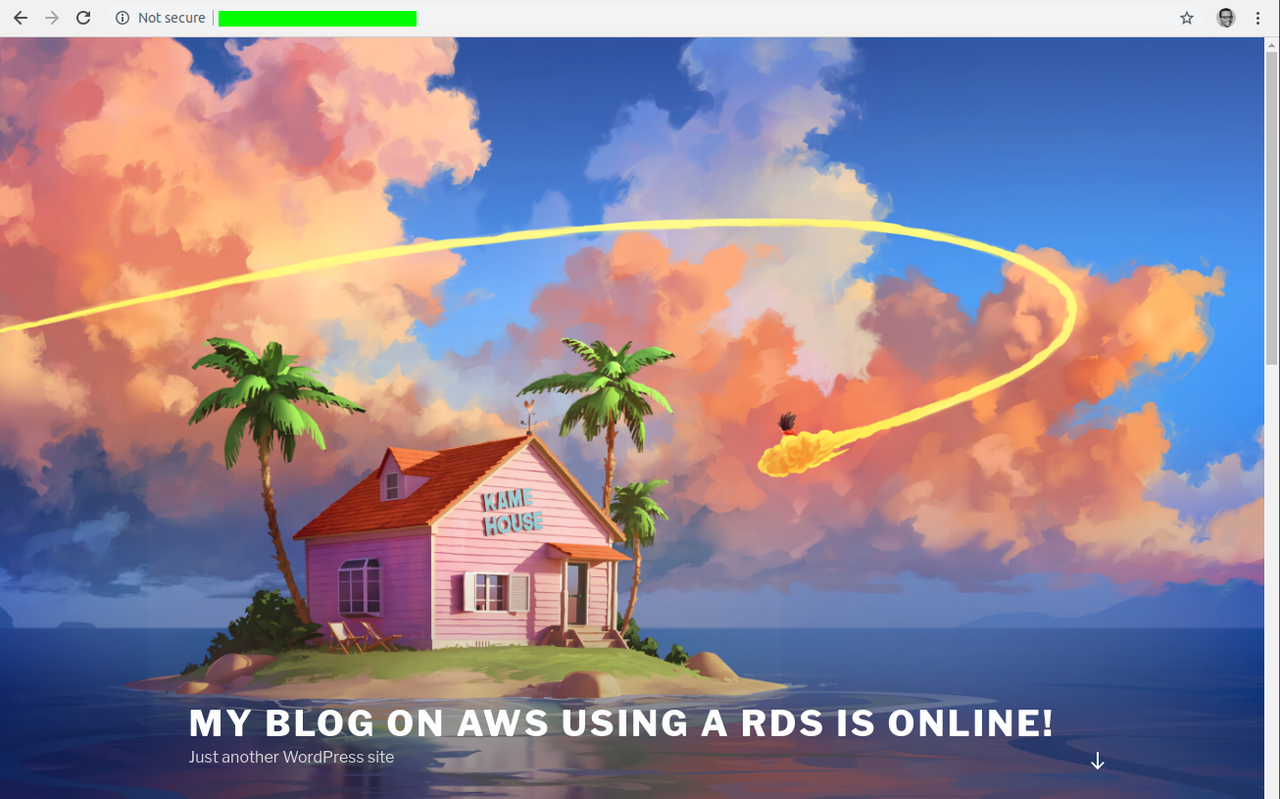

Go to appearance and activate your desired theme.

🔴 See output

---

That's all for now guys. Please fork this gist and feel free to spread a word about it. Thanks.
